MAX17651

PRODUCTION

4V to 60V, 100mA, Ultra-Low Quiescent Current, Linear Regulator

60V Linear Regulator enables robust design for Industrial Applications

Data Sheet (Rev. 4) Product Selection Table
Viewing:

Overview

  • Extremely Easy to Use
    • Only 4 External Components Required
    • Stable with Tiny 4.7µF, 0805 Output Capacitor
    • All Ceramic Capacitors, Compact Layout
  • Reduces Number of Linear Regulators to Stock
    • Wide 4V to 60V Input Voltage Range
    • Adjustable 0.6V to 58V Output
    • Up to 100mA Load Current Capability
  • Operates Reliably in Adverse Industrial Environments
    • Built-In Output Voltage Monitoring with PGOOD Pin
    • High-Voltage ENABLE Input
    • Low 8µA Quiescent Current
    • Low Dropout Voltage of 560mV at 100mA
    • Overload Protection
    • Overtemperature Protection
    • Wide -40°C to +125°C Ambient Operating Temperature Range / -40°C to +150°C Junction Temperature Range
MAX17651
4V to 60V, 100mA, Ultra-Low Quiescent Current, Linear Regulator
max17651 typical application circuit MAX17651: Functional Diagram
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Technical Articles 4

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

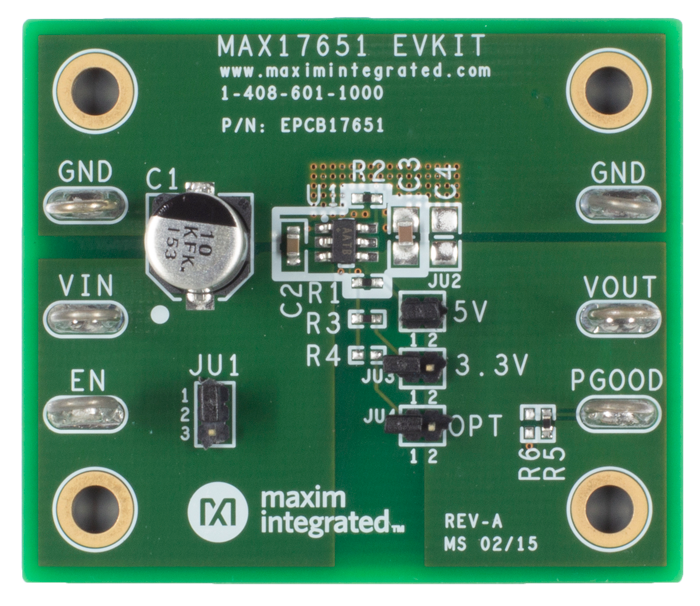

eval board
schematic 1
MAX17651EVKIT

Evaluation Kit for the MAX17651

Buy Now View Details

Features and Benefits

  • Extremely Easy to Use
    • Stable with Tiny 4.7µF, 0805 Output Capacitor
    • Only Four External Components Required
  • Reduces Number of Linear Regulators to Stock
    • Wide 4V to 60V Input Voltage Range
    • Adjustable 0.6V to 59V Output Voltage
    • Up to 100mA Load Current Capability
  • Operates Reliably in Adverse Industrial Environments
    • Built-In Output Voltage Monitoring with PGOOD Pin
    • High-Voltage ENABLE Input
    • Low 8µA Quiescent Current
    • Overload Protection
    • Overtemperature Protection

Product Details

The MAX17651 evaluation kit (EV Kit) is a fully assembled and tested circuit board that demonstrates the performance of the MAX17651 high-voltage, ultra-low quiescent current linear regulator. The EV kit operates over a wide input voltage range of 4V to 60V and provides up to 100mA load current. It draws only 8µA supply current under no-load conditions. The device is simple to use and easily configurable with minimal external components. It features overload current protection and thermal shutdown. The EV kit comes installed with the MAX17651AZT+ in a 6-pin, compact TSOT package.

Applications

  • Battery-Powered Equipment
  • Low-Current Industrial Power Supplies
  • Post Regulator for Switching Power Supplies
  • Remote Sensors
  • Utility Meters

eval board
schematic 2
MAX17651EVKIT

Evaluation Kit for the MAX17651

Buy Now View Details

Features and Benefits

  • Extremely Easy to Use
    • Stable with Tiny 4.7µF, 0805 Output Capacitor
    • Only Four External Components Required
  • Reduces Number of Linear Regulators to Stock
    • Wide 4V to 60V Input Voltage Range
    • Adjustable 0.6V to 59V Output Voltage
    • Up to 100mA Load Current Capability
  • Operates Reliably in Adverse Industrial Environments
    • Built-In Output Voltage Monitoring with PGOOD Pin
    • High-Voltage ENABLE Input
    • Low 8µA Quiescent Current
    • Overload Protection
    • Overtemperature Protection

Product Details

The MAX17651 evaluation kit (EV Kit) is a fully assembled and tested circuit board that demonstrates the performance of the MAX17651 high-voltage, ultra-low quiescent current linear regulator. The EV kit operates over a wide input voltage range of 4V to 60V and provides up to 100mA load current. It draws only 8µA supply current under no-load conditions. The device is simple to use and easily configurable with minimal external components. It features overload current protection and thermal shutdown. The EV kit comes installed with the MAX17651AZT+ in a 6-pin, compact TSOT package.

Applications

  • Battery-Powered Equipment
  • Low-Current Industrial Power Supplies
  • Post Regulator for Switching Power Supplies
  • Remote Sensors
  • Utility Meters

MAX17651EVKITA

Evaluation Kit for the MAX17651

Buy Now View Details

Features and Benefits

  • Wide 4V to 60V Input Voltage Range
  • umper Configurable 12V, 5V, and 3.3V Outputs
  • Up to 100mA Load Current Capability
  • 8µA No Load Supply Current
  • Active-High, Enable Input
  • PGOOD Output for Regulator Output Voltage Monitoring
  • Overload Protection
  • Overtemperature Protection
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX17651EVKITA# evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the performance of the MAX17651 high-voltage, ultra-low quiescent current linear regulator in a 6-pin TDFN package. The EV kit operates over a wide input voltage range of 4V to 60V and provides up to 100mA load current. It draws only 8µA supply current under no-load conditions. The EV kit is simple to use and easily configurable with minimal external components. It features overload current protection and thermal shutdown. The EV kit comes installed with the MAX17651ATT+ in a 6-pin, (3mm x 3mm) TDFN package.

Applications

  • Battery-Powered Equipment
  • Low-Current Industrial Power Supplies
  • Post Regulator for Switching Power Supplies
  • Remote Sensors
  • Utility Meters
MAX17651EVKIT
Evaluation Kit for the MAX17651
MAX17651EVKIT: Board Photo
MAX17651EVKIT
Evaluation Kit for the MAX17651
MAX17651EVKIT: Board Photo
MAX17651EVKITA
Evaluation Kit for the MAX17651
