MAX11254

24-Bit, 6-Channel, 64ksps, 6.2nV/√Hz PGA, Delta-Sigma ADC with SPI Interface

24-Bit Delta-Sigma ADC Offers 10X Less Power with Superior Noise Performance

Buy Now

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

High Resolution for Industrial Applications that Require a Wide Dynamic Range
- 133dB SNR at 50sps
- 124dB SNR at 1000sps
Longer Battery Life for Portable Applications
- 2.2mA Operating Mode Current
- 1µA Sleep Current
Single or Split Analog Supplies Provide Input Voltage Range Flexibility
- 2.7V to 3.6V (Single Supply) or ±1.8V (Split Supply)
Enables System Integration
- Low Noise, 6.2nV/√Hz PGA with Gains of 1, 2, 4, 8, 16, 32, 64, 128
- 6-Channel, Fully Differential Input
Enables On-Demand Device and System Gain and Offset Calibration
- User-Programmable Offset and Gain Registers
Robust Performance in a Small Package
- -40°C to +125°C Operating Temperature Range
- TQFN Package, 5mm x 5mm
AEC-Q100 Qualified, Refer to Ordering Information for List of /V Parts

Product Details

The MAX11254 is a 6-channel, 24-bit delta-sigma ADC that achieves exceptional performance while consuming very low power. Sample rates up to 64ksps allow precision DC measurements. The MAX11254 communicates via a SPI serial interface and is available in a small (5mm x 5mm) TQFN package.

The MAX11254 offers a 6.2nV/ noise programmable gain amplifier (PGA) with gain settings from 1x to 128x. The integrated PGA provides isolation of the signal inputs from the switched capacitor sampling network. The PGA also enables the MAX11254 to interface directly with high-impedance sources without compromising available dynamic range.

The MAX11254 operates from a single 2.7V to 3.6V analog supply, or split ±1.8V analog supplies, allowing the analog input to be sampled below ground. The digital supply range is 1.7V to 2.0V or 2.0V to 3.6V, allowing communication with 1.8V, 2.5V, 3V, or 3.3V logic.

Design Solution: Automotive Touch-Screen Sensing: It’s All About Your ADC ›

Applications

Analog I/O for Programmable Logic Controllers
Automotive
Battery-Powered Instrumentation
Pressure Sensors
Weigh Scales

Product Categories

A/D Converters (ADC)
- Multiplexed A/D Converters

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (2)

MAX11254EVKIT

Evaluation Kit for the MAX11253 and MAX11254

MAX11253EVKIT

Evaluation Kit for the MAX11253 and MAX11254

MAX11254EVKIT

View Detailed Evaluation Kit Information

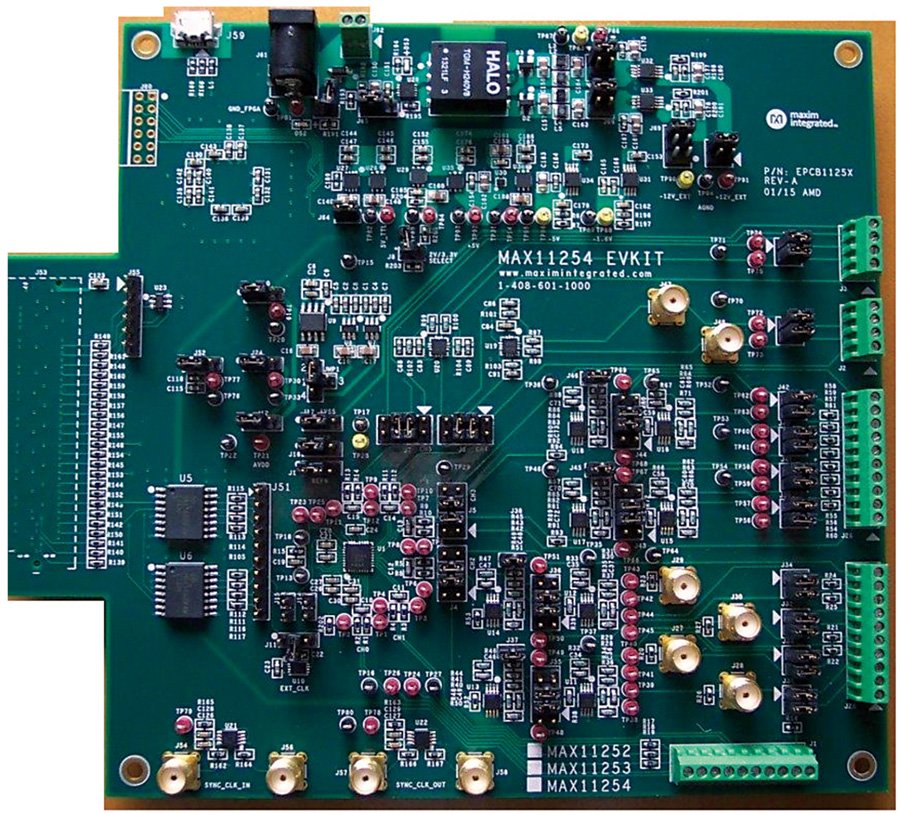

The MAX11253/MAX11254 evaluation kit (EV kit) provides a proven design to evaluate the MAX11253/MAX11254, a 24-bit, 6-channel, 64ksps, integrated PGA delta-sigma ADC. The EV kit includes a graphical user interface (GUI) that provides communication from the target device to the PC. The EV kit can operate in multiple modes:

Standalone Mode: in “standalone” mode, the EV kit is connected to the PC via a USB cable and performs a subset of the complete EV kit functions with limitations for sample rate, sample size, and no support for coherent sampling.
FPGA Mode: in “FPGA” mode, the EV kit is connected to an Avnet ZedBoard^™ through a low-pin-count FMC connector. ZedBoard features a Xilinx^® Zynq^® -7000 SoC, which connects to the PC through an Ethernet port, allowing the GUI to perform different operations with full control over mezzanine card functions. The EV kit with FPGA platform performs the complete suite of evaluation tests for the target IC.
User-Supplied SPI Mode: In addition to the USB and FMC interfaces, the EV kit provides a 12-pin Pmod^™-style header for user-supplied SPI interface to connect the signals for SCLK, DIN, DOUT, and CNVST.

The EV kit includes Windows XP^®, Windows^® 7, and Windows 8.1-compatible software for exercising the features of the IC. The EV kit GUI allows different sample sizes, adjustable sampling rates, internal or external reference options, and graphing software that includes the FFT and histogram of the sampled signals.

The ZedBoard accepts a +12V AC-DC wall adapter. The EV kit can be powered by a local +12V supply. The EV kit has on-board transformers and digital isolators to separate the IC from the ZedBoard/on-board processor.

The MAX11253/MAX11254 EV kit comes installed with a MAX11253ATJ+ or MAX11254ATJ+ in a 32-pin TQFN-EP package.
