Overview

Features and Benefits

  • Internal Power MOSFETs with Current Limit (3A typ)
  • Fast Load-Transient Response
  • External Reference Input with Reference Output Buffer
  • 1.1V to 3.6V Power Input
  • ±15mV (max) Load-Regulation Error
  • Thermal-Fault Protection
  • Shutdown Input
  • Power-Good Window Comparator with 2ms (typ) Delay

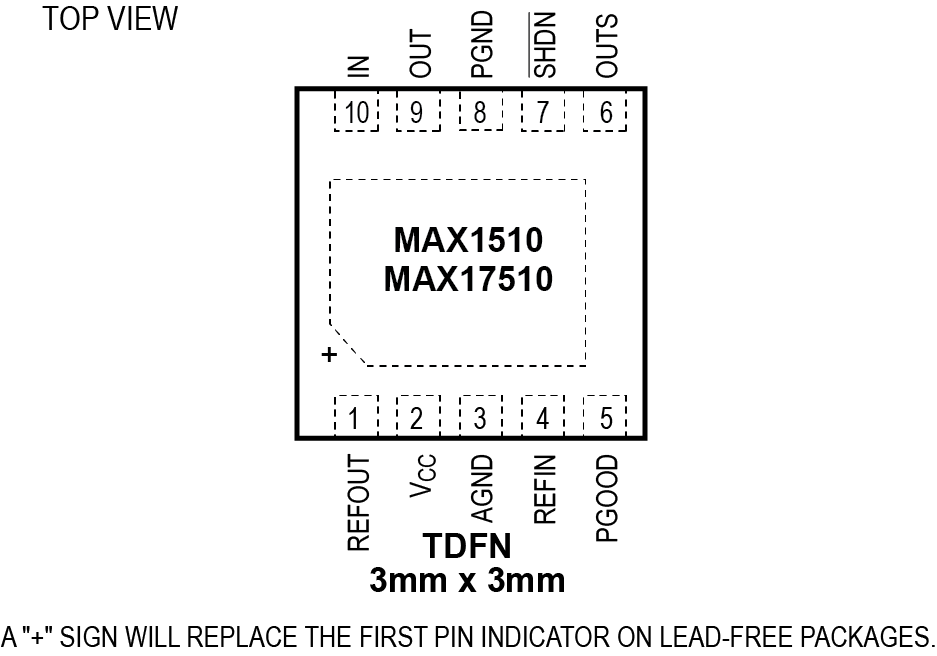

  • Small, Low-Profile 10-Pin, 3mm × 3mm TDFN Package
  • Ceramic or Polymer Output Capacitors

Product Details

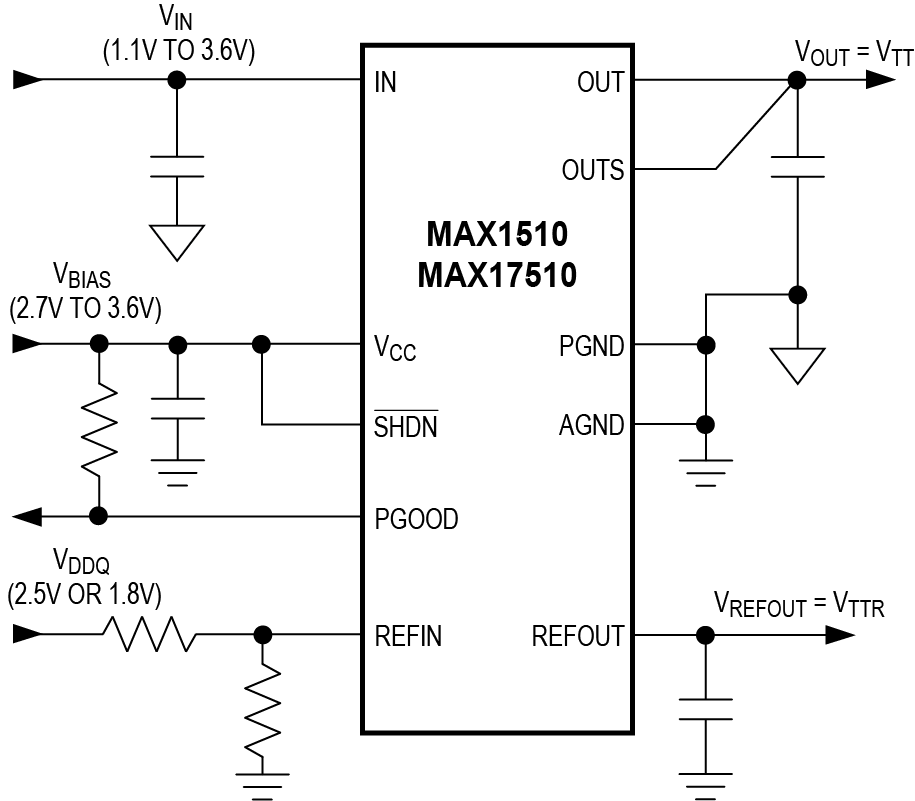

The MAX1510/MAX17510 DDR linear regulators source and sink up to 3A peak (typ) using internal n-channel MOSFETs. These linear regulators deliver an accurate 0.5V to 1.5V output from a low-voltage power input (VIN = 1.1V to 3.6V). The MAX1510/MAX17510 use a separate 3.3V bias supply to power the control circuitry and drive the internal n-channel MOSFETs.

The MAX1510/MAX17510 provide current and thermal limits to prevent damage to the linear regulator. Additionally, the MAX1510/MAX17510 generate a power-good (PGOOD) signal to indicate that the output is in regulation. During startup, PGOOD remains low until the output is in regulation for 2ms (typ). The internal soft-start limits the input surge current.

The MAX1510/MAX17510 power the active-DDR termination bus that requires a tracking input reference. The MAX1510/MAX17510 can also be used in low-power chipsets and graphics processor cores that require dynamically adjustable output voltages. The MAX1510/MAX17510 are available in a 10-pin, 3mm × 3mm thin DFN package.

Mobile App

Applications

  • Active Termination Buses
  • Chipset/RAM Supplies as Low as 0.5V
  • DDR Memory Termination
  • Graphics Processor Core Supplies
  • Notebook and Desktop Computers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
