MAX14630
USB Charger Adapter Emulators
Industry's First USB Charger Adapter Emulators Optimized for Dedicated Chargers
Top
Overview
Features and Benefits
- Optimized for Charging Adapters
- Flexible Device and Adapter Connection Order
- Convenient CB Pin Controls the Charging Mode
- Faster Charging
- Apple 2A Charging Capability in Autodetection Mode
- Samsung Galaxy Tablet 2A Charging Capability (MAX14630)
- Improved Charger Interoperability
- Meets New USB BC Revision 1.2 Specification
- Backward Compatible with Previous USB BC Revisions
- Meets China YD/T1591-2009 Charging Specification
- Greater User Flexibility
- CB Pin Controls Charger Mode
- Save Board Space
- 2.9mm x 1.6mm, 5-Pin TSOT Package
Product Details

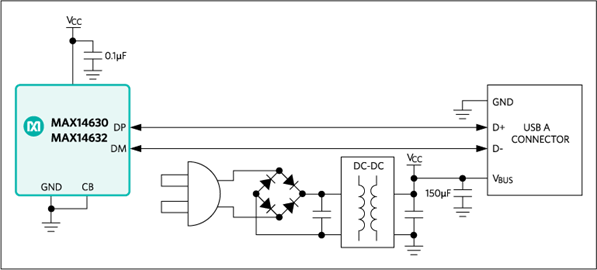

The MAX14630/MAX14632 are USB adapter emulators with automatic host charger identification circuitry for USB dedicated chargers.
The devices allow USB wall adapters, travel chargers, and other dedicated chargers to identify themselves as a USB dedicated charger to USB devices, an Apple charger to Apple products, and a Samsung Galaxy dedicated charger port to legacy D+/D- short detection devices that use the D+ pullup of the USB transceiver.
The devices feature a control input that allows for charger mode selection. The MAX14630 supports both Apple 2A and USB Battery Charger (BC) revision 1.2 specification compliant devices in Autodetection 2A mode and Samsung Galaxy Tablet 2A devices in SS 2A mode. The MAX14632 supports Autodetection 2A mode as well as Autodetection 1A mode for compatibility with most Apple and USB BC compliant devices.
The devices are available in a 5-pin (2.9mm x 1.6mm) TSOT package and are specified over the -40°C to +85°C extended temperature range.
Applications
- Universal Chargers including iPod®/iPad®/iPhone®
- USB Car Chargers and Cigarette Lighter Adapters
- USB Wall Chargers and Travel Adapters
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
