MAX14590

PRODUCTION

High-Current Overvoltage Protectors with Adjustable OVLO

Input-Voltage Protection Optimized for High-Power Systems

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.15

Viewing:

Overview

Protect High-Power Portable Devices
- Wide Operating Input-Voltage Protection from +2.2V to +36V
- 3A Continuous Current Capability
- Integrated 40mΩ (typ) n-Channel MOSFET Switch
Flexible Overvoltage Protection Design
- Adjustable Overvoltage Protection Trip Level
- Wide Adjustable OVLO Threshold Range from +4V to +20V
- Preset Internal Accurate OVLO Thresholds:
  - 7V ±2.9% (MAX14586)
  - 15V ±3.3% (MAX14590)
Additional Protection Features Increase System Reliability
- Soft-Start to Minimize In-Rush Current
- Internal 15ms Startup Debounce
- Thermal-Shutdown Protection
Minimize PCB Area
- 8-Pin TDFN (2mm x 2mm) Package

The MAX14586/MAX14590 overvoltage protection devices feature a low 48mΩ (typ) on-resistance (R_ON) internal FET and protect low-voltage systems against voltage faults up to +36V. When the input voltage exceeds the overvoltage threshold, the internal FET is turned off to prevent damage to the protected components.

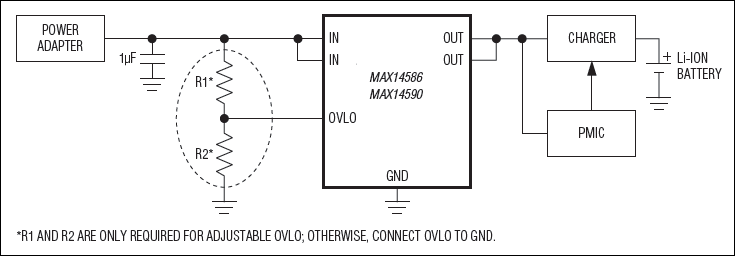

The overvoltage protection threshold can be adjusted with optional external resistors to any voltage between 4V and 20V. With the OVLO input set below the external OVLO select voltage, the devices automatically choose the internal accurate trip thresholds. The internal overvoltage thresholds (OVLO) are preset to 7V typical (MAX14586) or 15V typical (MAX14590). The devices are also protected against overcurrent events by an internal thermal shutdown.

The MAX14586/MAX14590 are offered in a small, 8-pin TDFN package with exposed pad and operate over the -40°C to +85°C extended temperature range.

Applications

Mobile Internet Devices
Smartphones
Tablet PCs

Part Models: 2
1ku List Price: Starting From $2.15

Documentation

Data Sheet 1

MAX14586-MAX14590: High-Current Overvoltage Protectors with Adjustable OVLO Data Sheet (Rev.0) 03/31/2011

Reliability Data 1

MAX14590 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14590ETA+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX14590ETA+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 6, 2025 - 2455N ASSEMBLY
		pcn_2455n
MAX14590ETA+
MAX14590ETA+T	PRODUCTION
Oct 25, 2013 - 1354 TEST
		pcn_1354
MAX14590ETA+T	PRODUCTION	pcn_1354
