MAX13172E

Obsolete

+5V Multiprotocol, Software-Selectable Clock Transceiver

The MAX13172E Offers Extended ESD Protection and is a Pin-for-Pin Upgrade to the MXL1544

Data Sheet (Rev. 1) Product Selection Table
Viewing:

Overview

  • The MAX13170E/MAX13172E/MAX13174E Chipset is a Pin-for-Pin Upgrade to the MXL1544/MAX3175/MXL1543/MXL1543B Chipset
  • Chipset Operates from a Single +5V Supply
  • Software-Selectable DCE/DTE Configurations
  • Supports V.28 (RS-232), V.10/V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21, RS-423) Protocols
  • Flowthrough Pin Configuration
  • Fail-Safe Receivers While Maintaining V.11 and V.35 Compatibility
  • Extremely Low Maximum Shutdown Current (No-Cable Mode)
  • TUV-Certified NET1/NET2 and TBR1/TBR2 Compliant (Pending)
  • Extended ESD Protection for All Transmitter Outputs and Receivers Inputs to GND
    • ±10kV Using the Human Body Model
    • ±3kV Using the Contact Method Specified in IEC 61000-4-2
    • ±3kV Using the Air Gap Discharge Method Specified in IEC 61000-4-2

The MAX13172E is a four-driver/four-receiver multiprotocol transceiver that operates from a single +5V supply in conjunction with the MAX13170E and MAX13174E. The MAX13172E, along with the MAX13170E and the MAX13174E, form a complete software-selectable data terminal equipment (DTE) or data communication equipment (DCE) interface port that supports the V.28 (RS-232), V.10/V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21, RS-423), and V.35 protocols. The MAX13172E transceiver carries serial-interface control signaling, while the MAX13170E carries the high-speed clock and data signals. Typically, the MAX13170E is terminated using the MAX13174E.

The MAX13172E is available in a 5.3mm x 10.2mm, 28-pin SSOP package and operates over the 0°C to +70°C commercial temperature range.

Applications

  • CSU and DSU
  • Data Networking
  • Data Routers
  • PCI Cards
  • Switches
  • Telecommunication Equipment
MAX13172E
+5V Multiprotocol, Software-Selectable Clock Transceiver

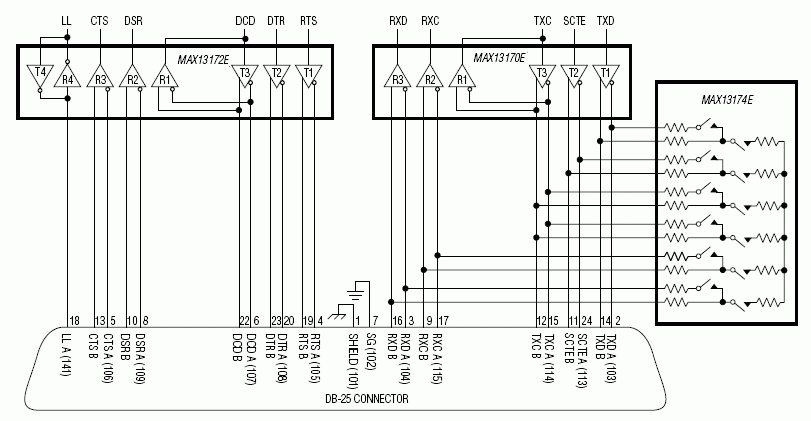

MAX13172E: Typical Operating Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Analog Switches & Multiplexers 1
MAX13174E
Obsolete +5V Multiprotocol, Pin-Selectable Cable Terminator
Interface Transceivers 3
MAX13170E
Obsolete +5V Multiprotocol, 3Tx/3Rx, Software-Selectable Clock Transceivers
MXL1543B
Obsolete +5V Multiprotocol, 3Tx/3Rx, Software-Selectable Clock/Data Transceivers
MXL1544
PRODUCTION +5V, Multiprotocol, Software-Selectable Control Transceivers
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

MAX13174EEVKIT

Evaluation Kit for the MAX13170E, MAX13172E, and MAX13174E

Buy Now View Details

Features and Benefits

  • Programmable Transceiver Supports
    • V.28 (RS-232)
    • V.11 (RS-449/V.36, EIA-530, EIA-530A, and X.21)
    • V.35
  • True Fail-Safe Receiver Inputs
  • Programmable Cable Termination (MAX13174E)
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX13170E/MAX13172E/MAX13174E evaluation kit (EV kit) combines the MAX13170E multiprotocol clock/data transceiver, the MAX13172E control transceiver, and the MAX13174E cable terminator chips. This chipset forms a complete software-selectable multiprotocol data terminal equipment (DTE) or data communications equipment (DCE) interface port that supports the V.28 (RS-232), V.11 (RS-449/V.36, EIA-530, EIA-530A, and X.21), and V.35 protocols. Internal charge pumps allow the EV kit to operate off a single 5V supply.

The EV kit was designed to take advantage of the chipset's flow-through pinout. The EV kit includes a 40-pin header (logic signals), a female DB25 connector (protocol signals), three SMA connectors (high-speed logic signals), and scope-probe connectors for measuring the high-speed data signals (logic and protocol signals).

Applications

  • CSU and DSU
  • Data Networking
  • Data Routers
  • PCI Cards
  • Telecommunication Equipment

MAX13172EEVKIT

Evaluation Kit for the MAX13170E, MAX13172E, and MAX13174E

Buy Now View Details

Features and Benefits

  • Programmable Transceiver Supports
    • V.28 (RS-232)
    • V.11 (RS-449/V.36, EIA-530, EIA-530A, and X.21)
    • V.35
  • True Fail-Safe Receiver Inputs
  • Programmable Cable Termination (MAX13174E)
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX13170E/MAX13172E/MAX13174E evaluation kit (EV kit) combines the MAX13170E multiprotocol clock/data transceiver, the MAX13172E control transceiver, and the MAX13174E cable terminator chips. This chipset forms a complete software-selectable multiprotocol data terminal equipment (DTE) or data communications equipment (DCE) interface port that supports the V.28 (RS-232), V.11 (RS-449/V.36, EIA-530, EIA-530A, and X.21), and V.35 protocols. Internal charge pumps allow the EV kit to operate off a single 5V supply.

The EV kit was designed to take advantage of the chipset's flow-through pinout. The EV kit includes a 40-pin header (logic signals), a female DB25 connector (protocol signals), three SMA connectors (high-speed logic signals), and scope-probe connectors for measuring the high-speed data signals (logic and protocol signals).

Applications

  • CSU and DSU
  • Data Networking
  • Data Routers
  • PCI Cards
  • Telecommunication Equipment

MAX13170EEVKIT

Evaluation Kit for the MAX13170E, MAX13172E, and MAX13174E

Buy Now View Details

Features and Benefits

  • Programmable Transceiver Supports
    • V.28 (RS-232)
    • V.11 (RS-449/V.36, EIA-530, EIA-530A, and X.21)
    • V.35
  • True Fail-Safe Receiver Inputs
  • Programmable Cable Termination (MAX13174E)
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX13170E/MAX13172E/MAX13174E evaluation kit (EV kit) combines the MAX13170E multiprotocol clock/data transceiver, the MAX13172E control transceiver, and the MAX13174E cable terminator chips. This chipset forms a complete software-selectable multiprotocol data terminal equipment (DTE) or data communications equipment (DCE) interface port that supports the V.28 (RS-232), V.11 (RS-449/V.36, EIA-530, EIA-530A, and X.21), and V.35 protocols. Internal charge pumps allow the EV kit to operate off a single 5V supply.

The EV kit was designed to take advantage of the chipset's flow-through pinout. The EV kit includes a 40-pin header (logic signals), a female DB25 connector (protocol signals), three SMA connectors (high-speed logic signals), and scope-probe connectors for measuring the high-speed data signals (logic and protocol signals).

Applications

  • CSU and DSU
  • Data Networking
  • Data Routers
  • PCI Cards
  • Telecommunication Equipment
MAX13174EEVKIT
Evaluation Kit for the MAX13170E, MAX13172E, and MAX13174E
MAX13172EEVKIT
Evaluation Kit for the MAX13170E, MAX13172E, and MAX13174E
MAX13170EEVKIT
Evaluation Kit for the MAX13170E, MAX13172E, and MAX13174E
