MAX1284
400ksps/300ksps, Single-Supply, Low-Power, Serial 12-Bit ADCs with Internal Reference
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Single-Supply Operation
- +4.5V to +5.5V (MAX1284)
- +2.7V to +3.6V (MAX1285)
- ±1 LSB (max) DNL, ±1 LSB (max) INL
- 400ksps Sampling Rate (MAX1284)
- Internal Track/Hold
- Internal +2.5V Reference
- Low Power: 2.5mA (400ksps)
- SPI/QSPI/MICROWIRE 3-Wire Serial Interface
- Pin-Compatible, High-Speed Upgrades to MAX1240/MAX1241
- 8-Pin SO Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

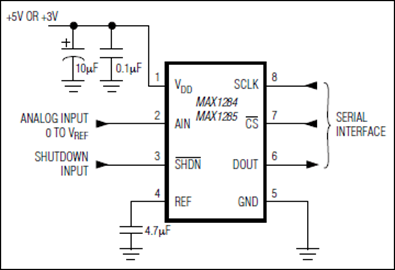

The MAX1284/MAX1285 12-bit analog-to-digital converters (ADCs) combine a high-bandwidth track/hold (T/H), a serial interface with high conversion speed, an internal +2.5V reference, and low power consumption. The MAX1284 operates from a single +4.5V to +5.5V supply; the MAX1285 operates from a single +2.7V to +3.6V supply.
The 3-wire serial interface connects directly to SPI™/QSPI™/MICROWIRE™ devices without external logic. The devices use an external serial-interface clock to perform successive-approximation analog-to-digital conversions.
Low power, ease of use, and small package size make these converters ideal for remote-sensor and data-acquisition applications or for other circuits with demanding power consumption and space requirements. The MAX1284/MAX1285 are available in 8-pin SO packages.
These devices are pin-compatible, higher-speed versions of the MAX1240/MAX1241; for more information, refer to the respective data sheets.
Applications
- Battery-Powered Applications
- Data Acquisition
- Medical Instruments
- Pen Digitizers
- Portable Data Logging
- Process Control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX1284
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
3
MAX1284-MAX1285B: 400ksps/300ksps, Single-Supply, Low-Power, Serial 12-Bit ADCs with Internal Reference Data Sheet (Rev.2)
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX1284BCSA+ |
Small-Outline IC, Narrow (0.15in)
|
|
|
| MAX1284BCSA+T |
Small-Outline IC, Narrow (0.15in)
|
|
|
| MAX1284BESA+ |
Small-Outline IC, Narrow (0.15in)
|
|
|
| MAX1284BESA+T |
Small-Outline IC, Narrow (0.15in)
|
|
- MAX1284BCSA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1284BCSA+T
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1284BESA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1284BESA+T
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 30, 2020
- 1702R2
ASSEMBLY
MAX1284BCSA+
PRODUCTION
MAX1284BCSA+T
PRODUCTION
MAX1284BESA+
PRODUCTION
MAX1284BESA+T
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 30, 2020
- 1702R2
ASSEMBLY
MAX1284BCSA+
PRODUCTION
MAX1284BCSA+T
PRODUCTION
MAX1284BESA+
PRODUCTION
MAX1284BESA+T
PRODUCTION
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Multiplexed A/D Converters7 |
||||
|
PRODUCTION |
300ksps/400ksps, Single-Supply, Low-Power, 8-Channel, Serial 10-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
300ksps/400ksps, Single-Supply, 4-Channel, Serial 10-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
300ksps/400ksps, Single-Supply, 4-Channel, Serial 10-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
400ksps/300ksps, Single-Supply, Low-Power, 8-Channel, Serial 12-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
400ksps/300ksps, Single-Supply, Low-Power, 8-Channel, Serial 12-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
300ksps/400ksps, Single-Supply, 4-Channel, Serial 12-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
300ksps/400ksps, Single-Supply, 4-Channel, Serial 12-Bit ADCs with Internal Reference |
|||
|
Product2 |
||||
|
|
300ksps/400ksps, Single-Supply, Low-Power, 8-Channel, Serial 10-Bit ADCs with Internal Reference |
|||
|
|
1.5V to 3.6V, 312.5ksps, 1-Channel True-Differential/2-Channel Single-Ended, 12-Bit, SAR ADCs |
|||
|
Single Channel A/D Converters4 |
||||
|
Obsolete |
400ksps/300ksps, Single-Supply, Low-Power, Serial 10-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
400ksps/300ksps, Single-Supply, Low-Power, Serial 10-Bit ADCs with Internal Reference |
|||
|
PRODUCTION |
+2.7V, Low-Power, 2-Channel, 108ksps, Serial 12-Bit ADCs in 8-Pin µMAX |
|||
|
PRODUCTION |
150ksps, 12-Bit, 2-Channel Single-Ended, and 1-Channel True-Differential ADCs |
|||
