Features
- Single-Supply Operation:
- +2.7V to +3.6V (MAX1240)
- +2.7V to +5.25V (MAX1241)
- 12-Bit Resolution
- Internal 2.5V Reference (MAX1240)
- Small Footprint: 8-Pin PDIP/SO Packages
- Low Power: 3.7µW (73ksps, MAX1240)
- 3mW (73ksps, MAX1241)
- 66µW (1ksps, MAX1241)
- 5µW (power-down mode)
- Internal Track/Hold
- SPI/QSPI/MICROWIRE 3-Wire Serial Interface
- Internal Clock
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

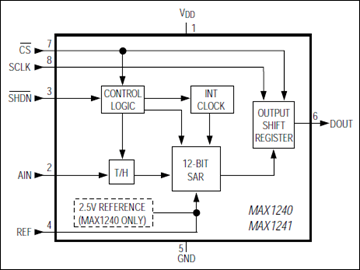

The MAX1240/MAX1241 low-power, 12-bit analog-to-digital converters (ADCs) are available in 8-pin packages. The MAX1240 operates with a single +2.7V to +3.6V supply, and the MAX1241 operates with a single +2.7V to +5.25V supply. Both devices feature a 7.5µs successive-approximation ADC, a fast track/hold (1.5µs), an on-chip clock, and a high-speed, 3-wire serial interface.
Power consumption is only 37mW (VDD = 3V) at the 73ksps maximum sampling speed. A 2µA shutdown mode reduces power at slower throughput rates.
The MAX1240 has an internal 2.5V reference, while the MAX1241 requires an external reference. The MAX1241 accepts signals from 0V to VREF, and the reference input range includes the positive supply rail. An external clock accesses data from the 3-wire interface, which connects directly to standard microcontroller I/O ports. The interface is compatible with SPI™, QSPI™, and MICROWIRE™.
Excellent AC characteristics and very low power combined with ease of use and small package size make these converters ideal for remote-sensor and data-acquisition applications, or for other circuits with demanding power consumption and space requirements. The MAX1240/MAX1241 are available in 8-pin PDIP and SO packages.
Applications
- Battery-Powered Applications
- Instrumentation
- Isolated Data Acquisition
- Portable Data Logging
- Process Control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX1240
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Reliability Data
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
3
MAX1240-MAX1241: +2.7V, Low-Power, 12-Bit Serial ADCs in 8-Pin SO Data Sheet (Rev.5)
Reliability Data
1
25.49K
Documentation
Data Sheet 1
Reliability Data 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
- MAX1240ACSA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240AESA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240AESA+T
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240AESA/V+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240AESA/V+T
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240BCSA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240BESA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240BESA+T
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240BESA/V+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240BESA/V+T
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX1240CCSA+
- Pin/Package Drawing
-
Small-Outline IC, Narrow (0.15in)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
May 1, 2020
- 1702R
ASSEMBLY
MAX1240ACSA+
LAST TIME BUY
May 22, 2018
- 1702N
ASSEMBLY
MAX1240AESA+
PRODUCTION
MAX1240AESA+T
PRODUCTION
Oct 30, 2020
- 1702R2
ASSEMBLY
MAX1240BCSA+
PRODUCTION
MAX1240BESA+
PRODUCTION
MAX1240BESA+T
PRODUCTION
MAX1240CCSA+
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
May 1, 2020
- 1702R
ASSEMBLY
May 22, 2018
- 1702N
ASSEMBLY
Oct 30, 2020
- 1702R2
ASSEMBLY
MAX1240BCSA+
PRODUCTION
MAX1240BESA+
PRODUCTION
MAX1240BESA+T
PRODUCTION
MAX1240CCSA+
PRODUCTION
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Multiplexed A/D Converters1 |
||||
|
PRODUCTION |
+2.7V, Low-Power, 2-Channel, 108ksps, Serial 12-Bit ADCs in 8-Pin µMAX |
|||
|
Single Channel A/D Converters3 |
||||
|
PRODUCTION |
+2.7V, Low-Power, 2-Channel, 108ksps, Serial 12-Bit ADCs in 8-Pin µMAX |
|||
|
PRODUCTION |
+5V, Low-Power, 12-Bit Serial ADCs |
|||
|
PRODUCTION |
Fault-Protected, 12-Bit ADCs with Software-Selectable Input Range |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 2

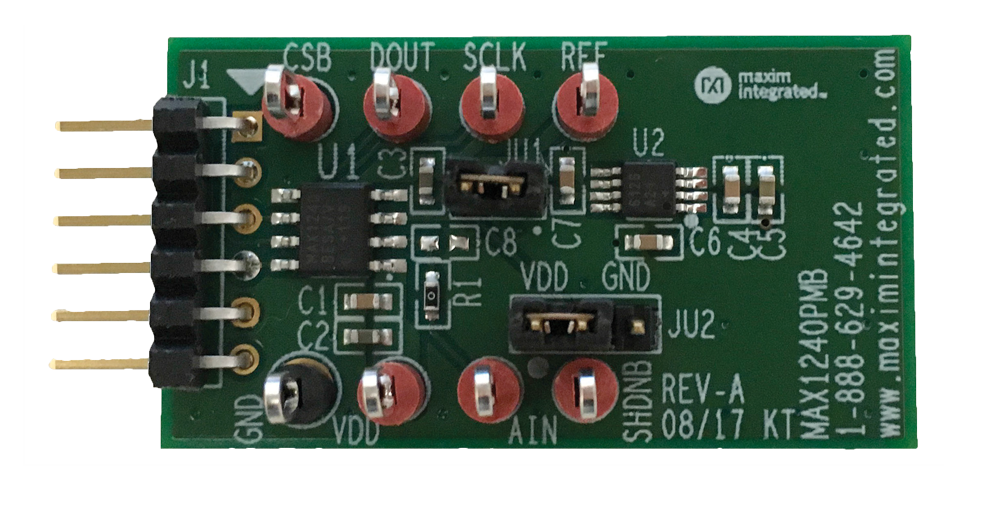

MAX1240PMB
Evaluation Kit for the MAX1240/MAX1241
Product Detail
The MAX1240 evaluation kit (EV kit) demonstrates the MAX1240, low-power, 12-bit serial ADC. The MAX1240 peripheral module (Pmod™) and the USB2PMB2 module form a system, the MAX1240 EV kit. Windows XP, and Windows® 7/8/8.1/10-compatible software provides a user friendly interface that demonstrates features of the MAX1240.
The MAX1240 peripheral module comes installed with the 8-pin SO package, MAX1240ACSA++.
Applications
- Battery-Powered Applications
- Instrumentation
- Isolated Data Acquisition
- Portable Data Logging
- Process Control

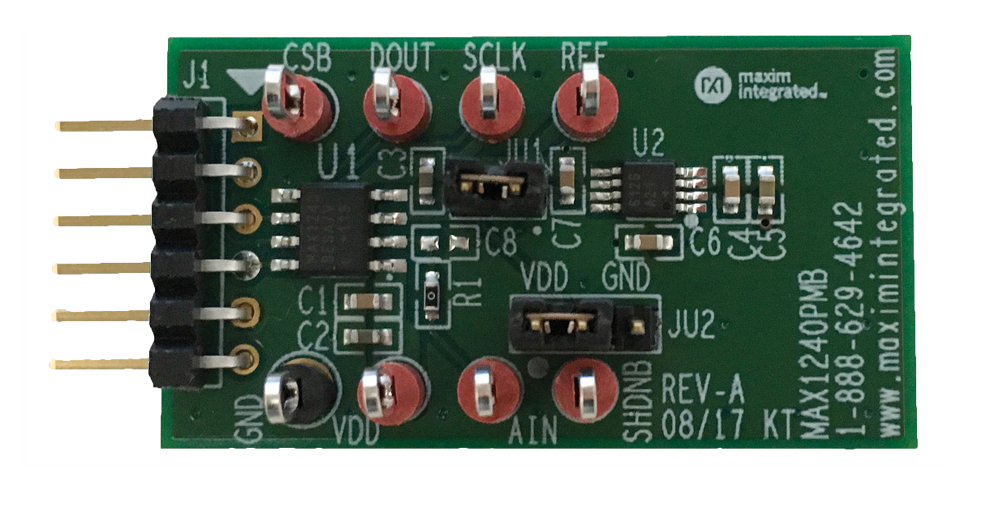

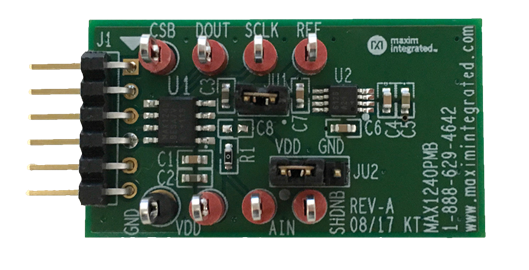

MAX1240EVKIT
Evaluation Kit for the MAX1240/MAX1241
Product Detail
The MAX1240 evaluation kit (EV kit) demonstrates the MAX1240, low-power, 12-bit serial ADC. The MAX1240 peripheral module (Pmod™) and the USB2PMB2 module form a system, the MAX1240 EV kit. Windows XP, and Windows® 7/8/8.1/10-compatible software provides a user friendly interface that demonstrates features of the MAX1240.
The MAX1240 peripheral module comes installed with the 8-pin SO package, MAX1240ACSA++.
Applications
- Battery-Powered Applications
- Instrumentation
- Isolated Data Acquisition
- Portable Data Logging
- Process Control
