Features and Benefits
- Single Supply
- +2.7V to +3.6V (MAX1117)
- +2.7V to +5.5V (MAX1118)
- +4.5V to +5.5V (MAX1119)
- Internal Track/Hold: 100kHz Sampling Rate
- Internal Reference
- +2.048V (MAX1117)
- +4.096V (MAX1119)
- Reference Input Range: 0 to VDD (MAX1118)
- SPI/QSPI/MICROWIRE-Compatible Serial Interface
- Small 8-Pin SOT23 Package
- Automatic Power-Down
- Analog Input Range: 0 to VREF
- Low Power
- 175µA at 100ksps (typ) (MAX1117/MAX1119)
- 135µA at 100ksps (typ) (MAX1118)
- 18µA at 10ksps (typ)
- 1µA (typ) in Power-Down Mode
The MAX1117/MAX1118/MAX1119 low-power, 8-bit, dual-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H) voltage reference (MAX1117/MAX1119), clock, and serial interface. The MAX1118 is specified from +2.7V to +5.5V and consumes only 135µA at 100ksps. The MAX1117 is specified from +2.7V to +3.6V, and the MAX1119 is specified from +4.5V to +5.5V, each consumes only 175µA at 100ksps.

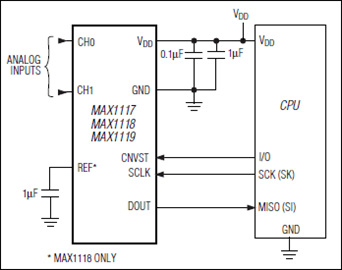

The full-scale analog input range is determined by the internal reference of +2.048V (MAX1117) or +4.096V (MAX1119), or by an externally applied reference ranging from +1V to VDD (MAX1118). All devices feature an automatic shutdown mode that reduces supply current to < 1µA when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 100ksps are performed using an internal clock.
The MAX1117/MAX1118/MAX1119 are available in an 8-pin SOT23 package with a footprint that is only 11% of an 8-pin plastic DIP.
- 4mA to 20mA Powered Remote Data Acquisition Systems
- Battery-Powered Test Equipment
- Low-Power, Handheld Portable Devices
- Receive Signal Strength Indicators
- Solar-Powered Remote Systems
- System Diagnostics
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The MAX1117 evaluation system (EV system) is a complete two-channel data-acquisition system consisting of a MAX1117 evaluation kit (EV kit) and a Maxim 68L11DMODULE microcontroller (µC) module. The MAX1117 is a high-speed, 8-bit data-acquisition system. Windows® 95/98 software provides a handy user interface to exercise the MAX1117's features.
Order the complete EV System (MAX1117EVL11) for comprehensive evaluation of the MAX1117 using a personal computer. Order the EV kit (MAX1117EVKIT) if the 68L11DMODULE module has already been purchased with a previous Maxim EV system, or for custom use in other µC-based systems.
Features & Benefits
- Proven PC Board Layout
- Convenient On-Board Test Points
- Data-Logging Software
- Fully Assembled and Tested
