MAX1109
Single-Supply, Low-Power, 2-Channel, Serial 8-Bit ADCs
Show More
Lowest-Power 8-Bit Serial 2-Channel ADCs Have Internal Reference
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Single Supply:
- +2.7V to +3.6V (MAX1108)
- +4.5V to +5.5V (MAX1109)
- Low Power:
- 105µA at +3V and 50ksps
- 0.5µA in Power-Down Mode
- Software-Configurable Unipolar or Bipolar Inputs
- Input Voltage Range: 0 to VDD
- Internal Track/Hold
- Internal Reference:
- +2.048V (MAX1108)
- +4.096V (MAX1109)
- Reference Input Range: 1V to VDD
- SPI/QSPI/MICROWIRE-Compatible Serial Interface
- VDD Monitoring Mode
- Small 10-Pin µMAX Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The MAX1108/MAX1109 low-power, 8-bit, dual-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H) voltage reference, clock, and serial interface. The MAX1108 is specified from +2.7V to +3.6V and consumes only 105µA. The MAX1109 is specified from +4.5V to +5.5V and consumes only 130µA. The analog inputs are software configurable, allowing unipolar/bipolar and single-ended/differential operation; battery monitoring capability is also included.

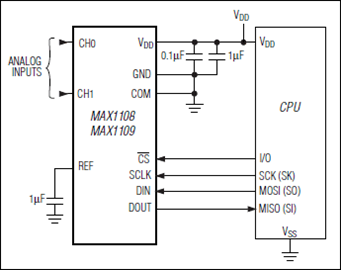

The full-scale analog input range is determined by the internal reference of +2.048V (MAX1108) or +4.096V (MAX1109), or by an externally applied reference ranging from 1V to VDD. The MAX1108/MAX1109 also feature a software power-down mode that reduces power consumption to 0.5µA when the device is not in use. The 4-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 50ksps are performed using either the internal clock or an external serial-interface clock.
The MAX1108 and MAX1109 are available in a 10-pin µMAX package with a footprint that is just 20% of an 8-pin plastic DIP.
Applications
- 4mA- to 20mA-Powered Remote Systems
- Handheld Measurement Devices
- Medical Instruments
- Portable Data Logging
- Receive Signal Strength Indicators
- Solar-Powered Remote Systems
- System Diagnostics
