Overview

Features and Benefits

  • Single Supply:
    • +2.7V to +3.6V (MAX1106)
    • +4.5V to +5.5V (MAX1107)
  • Low Power:
    • 96µA at +3V and 25ksps
    • 0.5µA in Power-Down Mode
  • Pin-Programmable Configuration
  • 0 to VDD Input Voltage Range
  • Internal Track/Hold
  • Internal Reference:
    • +2.048V (MAX1106)
    • +4.096V (MAX1107)
  • 1V to VDD Reference Input Range
  • SPI/QSPI/MICROWIRE-Compatible Serial Interface
  • Small 10-Pin µMAX Package

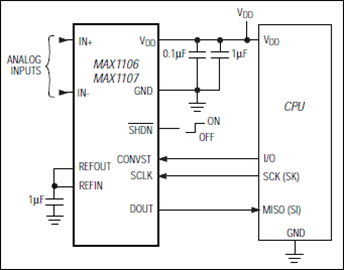

Product Details

The MAX1106/MAX1107 low-power, 8-bit, single-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H), voltage reference, clock, and serial interface. The MAX1106 is specified from +2.7V to +3.6V and consumes only 96µA. The MAX1107 is specified from +4.5V to +5.5V and consumes only 107µA. The analog inputs are pin-configurable, allowing unipolar and single-ended or differential operation.

The full-scale analog input range is determined by the internal reference of +2.048V (MAX1106) or +4.096V (MAX1107), or by an externally applied reference ranging from 1V to VDD. The MAX1106/MAX1107 also feature a pin-selectable power-down mode that reduces power consumption to 0.5µA when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 25ksps are performed using the internal clock.

The MAX1106/MAX1107 are available in a 10-pin µMAX® package with a footprint that is just 20% of an 8-pin plastic DIP.

Applications

  • 4mA- to 20mA-Powered Remote Systems
  • Handheld Measurement Devices
  • Medical Instruments
  • Receive Signal Strength Indicators
  • System Diagnostics
