MAT01

NOT RECOMMENDED FOR NEW DESIGNS

Matched Monolithic Dual Transistor

Data Sheet (Rev. D) Product Selection Table

Part Models: 4
1ku List Price: Starting From $16.14

Viewing:

Overview

Low V_OS (V_BE match): 40 μV typical, 100 μV maximum
Low TCV_OS: 0.5 μV/°C maximum
High h_FE: 500 minimum

Low noise voltage:
0.23 μV p-p from 0.1 Hz to 10 Hz
High breakdown: 45 V min
Excellent h_FE linearity from 10 nA to 10 mA

The MAT01 is a monolithic dual NPN transistor. An exclusive Silicon Nitride "Triple-Passivation" process provides excellent stability of critical parameters over both temperature and time. Matching characteristics include offset voltage of 40µV, temperature drift of 0.15µV/°C, and h_FE matching of 0.7%.

Very high h is provided over a six decade range of collector current, including an exceptional h_FE of 590 at a collector current of only 10nA. The high gain at lower collector current makes the MAT01 ideal for use in low-power, low-level input stages.

APPLICATIONS

Weigh scales
Low noise, op amp, front end
Current mirror and current sink/source
Low noise instrumentation amplifiers
Voltage controlled attenuators
Log amplifiers

Part Models: 4
1ku List Price: Starting From $16.14

Documentation

Data Sheet 1

MAT01: Matched Monolithic Dual Transistor Data Sheet (Rev.D) 10/30/1973

Application Note 1

AN-139: A Low Voltage Power Supply Watch-Dog Monitor Circuit 03/08/2008

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

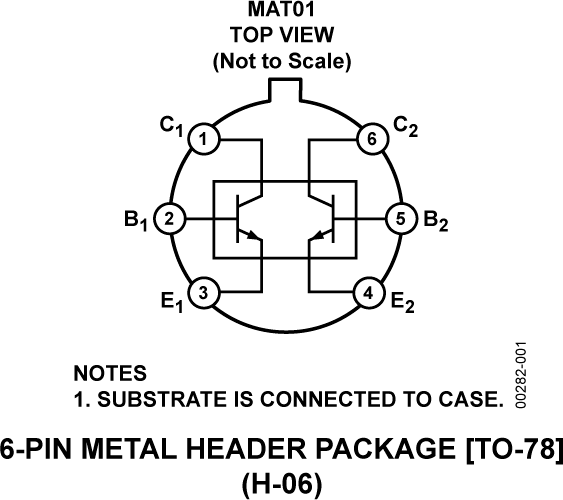

MAT01AH	6-Lead TO-78	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAT01AHZ	6-Lead TO-78	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAT01GH	6-Lead TO-78	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAT01GHZ	6-Lead TO-78	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
MAT01AH	PRODUCTION
MAT01AHZ
MAT01GH	PRODUCTION
MAT01GHZ
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
MAT01AH	PRODUCTION
MAT01AHZ
MAT01GH	PRODUCTION
MAT01GHZ
Jun 1, 2011 - 11_0088 Top and Bottom Mark Standardization for Certain LCC (Leadless Chip Carrier) and Metal Can Packages
		PCN11_0088_Form Material_Report Marking Comparison
MAT01AH	PRODUCTION
MAT01AHZ
MAT01GH	PRODUCTION
MAT01GHZ

This is the most up-to-date revision of the Data Sheet.
