μModule (Power Module) Boost LED Driver and Current Source

PRODUCTION

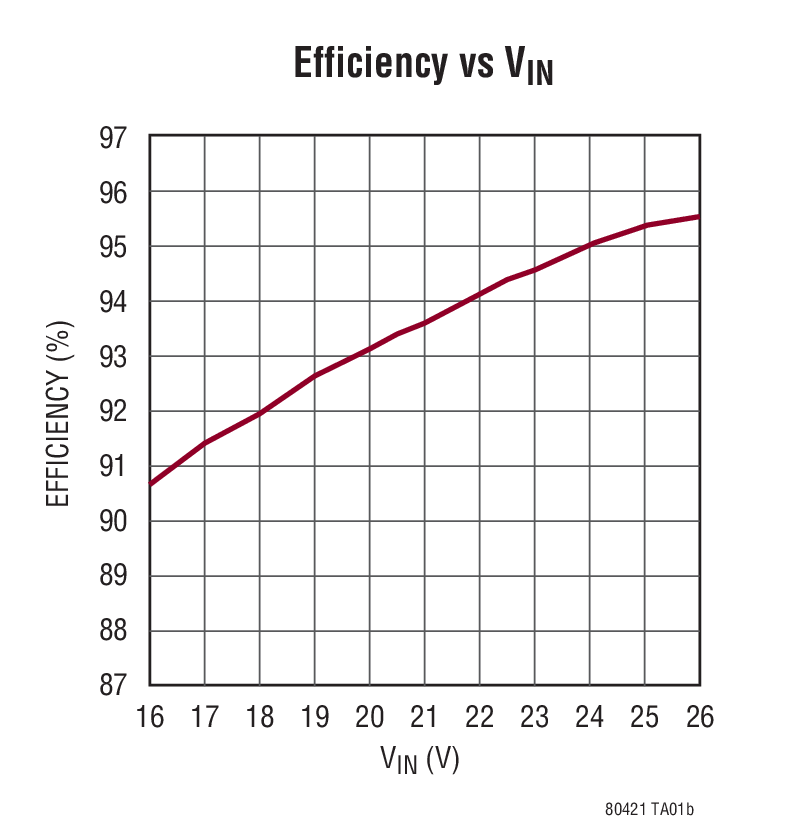

μModule Boost LED Driver, Driving 8 White LEDs at 1A slide

μModule Boost LED Driver, Driving 8 White LEDs at 1A

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $10.31

Features

True Color PWM^™ with 3000:1 Dimming Ratio
Operates in Boost, Buck Mode or Buck-Boost Mode
Wide Input Voltage Range:
- Operation from 3V to 30V
- Transient Protection to 40V
Gate Driver for Optional PWM Dimming with P-channel MOSFET
Adjustable Frequency: 250kHz to 2MHz
Constant-Current and Constant-Voltage Regulation
Low Shutdown Current: <1μA
RoHS Compliant Package with Gold Pad Finish

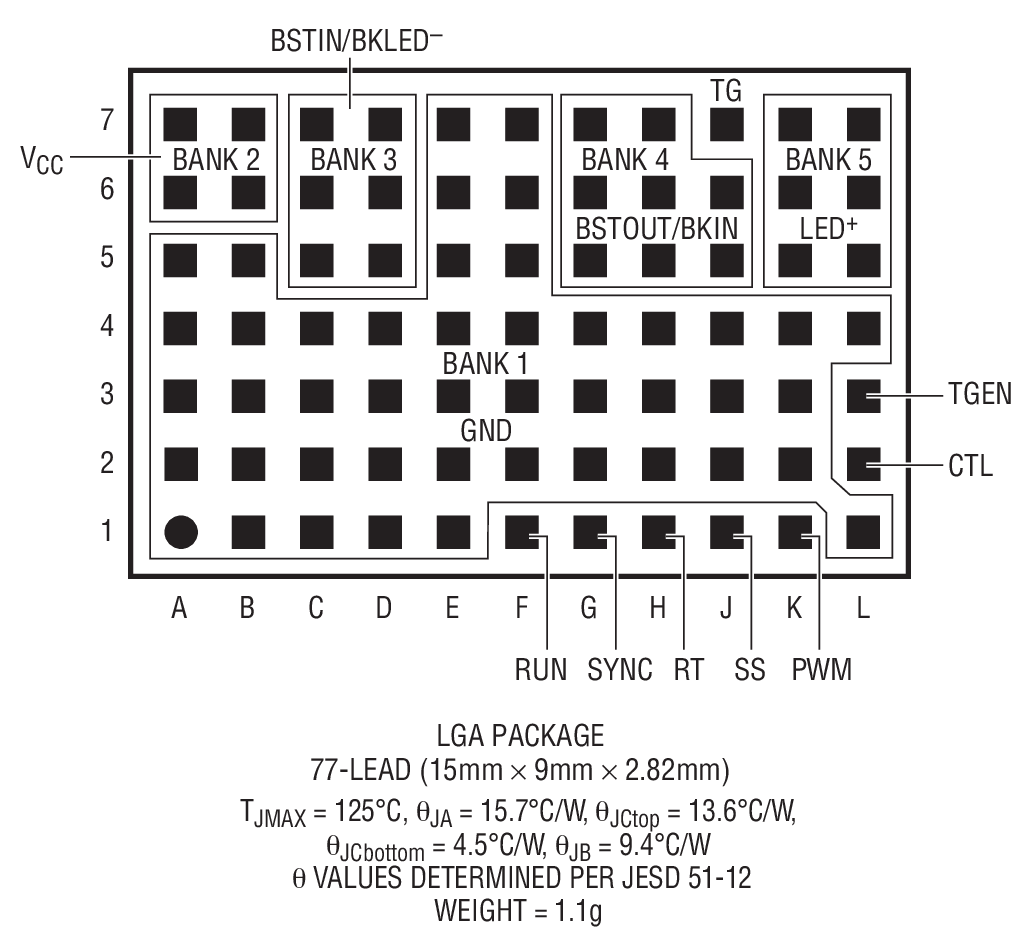

Tiny, Low Profile (9mm × 15mm × 2.82mm) Surface Mount LGA Package

Additional Details

The LTM8042 is a complete μModule^® (power module) Boost LED Driver specifically designed to drive LEDs up to 1A, while the LTM8042-1 drives up to 350mA. It combines a boost power topology with a unique current loop to operate as a constant-current source. The PWM input provides as much as 3000:1 LED dimming, while 10:1 analog dimming can be accomplished by a single resistor or analog voltage applied to the CTL pin. As with any boost topology, the LTM8042/LTM8042-1 has an uninterrupted current path between its input and output and is thus intolerant to a short-circuit or overload from the output to ground.


# WHITE LEDS	LED CURRENT	12V_IN	24V_IN
6	1A	LTM8042
7	350mA	LTM8042-1
8	1A		LTM8042
9	350mA		LTM8042-1

The LTM8042/LTM8042-1 is packaged in a thermally enhanced, compact overmolded land grid array (LGA) package. The LTM8042/LTM8042-1 is Pb-free and a RoHS compliant.

Applications

Display Backlighting
Automotive and Avionic Lighting
Illumination
Scanners

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $10.31

Technical Documents 4

LTM8042/LTM8042-1: μModule (Power Module) Boost LED Driver and Current Source Data Sheet 11/05/2014

R598 Reliability Data 03/26/2018

DC1511A - Demo Manual 10/22/2010

Versatile LED Driver Can Be Used with Input Voltages Above or Below the Level of the LED String 06/01/2019

Reference Materials 2

μModule Power Products 04/04/2017

Simplify Power Designs with Micromodule Products 04/10/2018

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM8042EV#PBF	77-Lead LGA (15mm x 9mm x 2.82mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM8042EV-1#PBF	77-Lead LGA (15mm x 9mm x 2.82mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM8042IV#PBF	77-Lead LGA (15mm x 9mm x 2.82mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM8042IV-1#PBF	77-Lead LGA (15mm x 9mm x 2.82mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTM8042EV#PBF
Pin/Package Drawing
77-Lead LGA (15mm x 9mm x 2.82mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM8042EV-1#PBF
Pin/Package Drawing
77-Lead LGA (15mm x 9mm x 2.82mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM8042IV#PBF
Pin/Package Drawing
77-Lead LGA (15mm x 9mm x 2.82mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM8042IV-1#PBF
Pin/Package Drawing
77-Lead LGA (15mm x 9mm x 2.82mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8042EV#PBF

PRODUCTION

LTM8042EV-1#PBF

PRODUCTION

LTM8042IV#PBF

PRODUCTION

LTM8042IV-1#PBF

PRODUCTION

pdf

PCN21_0159_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8042EV#PBF

PRODUCTION

LTM8042EV-1#PBF

PRODUCTION

LTM8042IV#PBF

PRODUCTION

LTM8042IV-1#PBF

PRODUCTION

pdf

PCN20_0123_Form

xls

Material_Report

Test Correlation Report

Other

pdf

Qualification Results Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8042EV#PBF

PRODUCTION

LTM8042EV-1#PBF

PRODUCTION

LTM8042IV#PBF

PRODUCTION

LTM8042IV-1#PBF

PRODUCTION

pdf

PCN21_0159_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8042EV#PBF

PRODUCTION

LTM8042EV-1#PBF

PRODUCTION

LTM8042IV#PBF

PRODUCTION

LTM8042IV-1#PBF

PRODUCTION

pdf

PCN20_0123_Form

xls

Material_Report

Test Correlation Report

Other

pdf

Qualification Results Summary

Companion Parts 5

Parts	Product Life Cycle	Description
Current Sources1
LTM8040	PRODUCTION	36V, 1A μModule (Power Module) LED Driver and Current Source
Digital Temperature Sensors1
LTC2991	RECOMMENDED FOR NEW DESIGNS	Octal I²C Voltage, Current, and Temperature Monitor
Multichannel Voltage Output D/A Converters1
LTC2655	PRODUCTION	Quad I²C 16-/12-Bit Rail-to-Rail DACs with 10ppm/°C Max Reference
Silicon Oscillators1
LTC6902	PRODUCTION	Multiphase Oscillator with Spread Spectrum Frequency Modulation
TimerBlox1
LTC6992		TimerBlox: Voltage-Controlled Pulse Width Modulator (PWM)

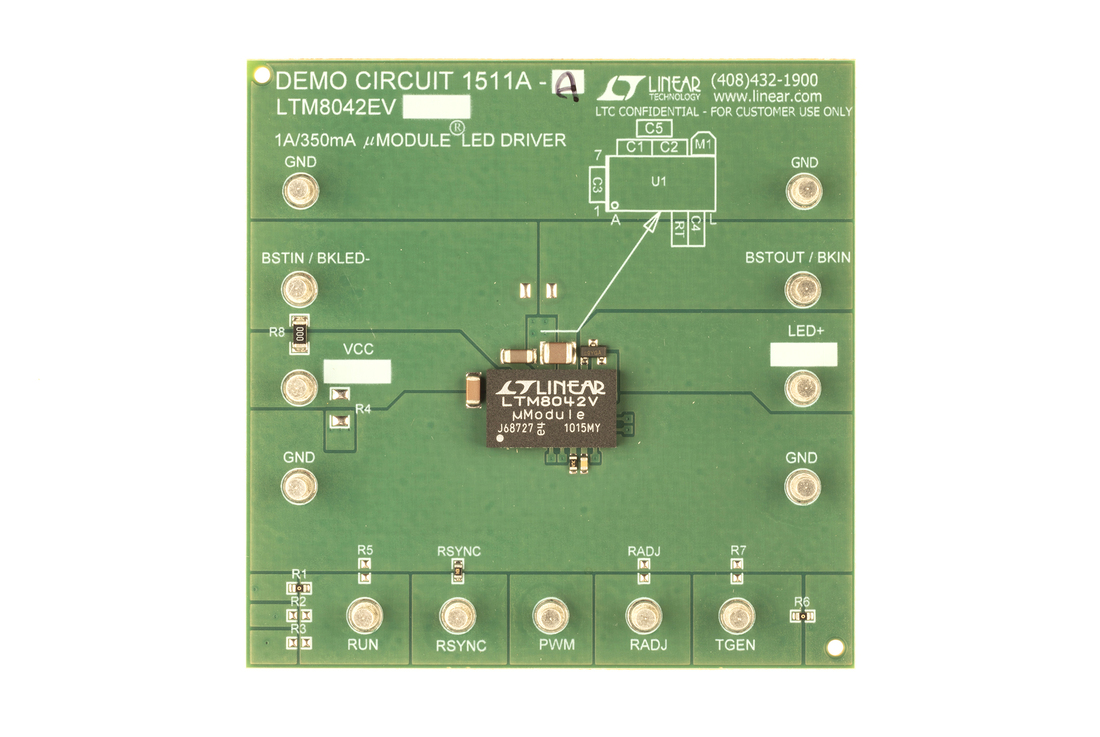

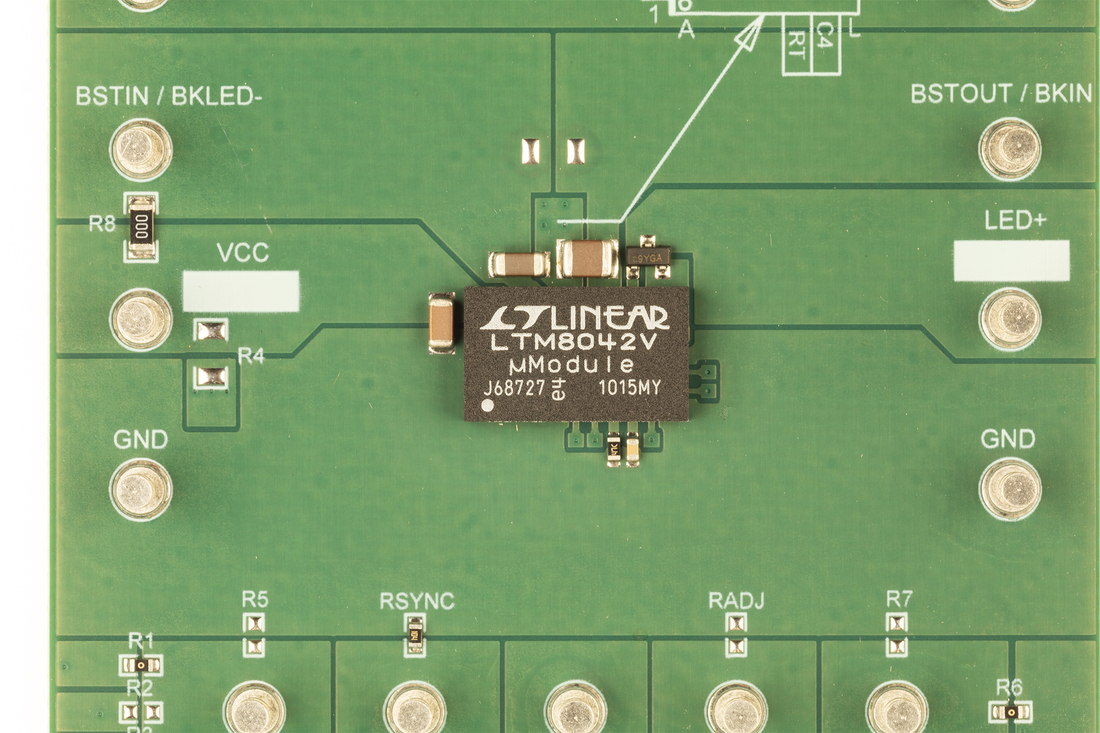

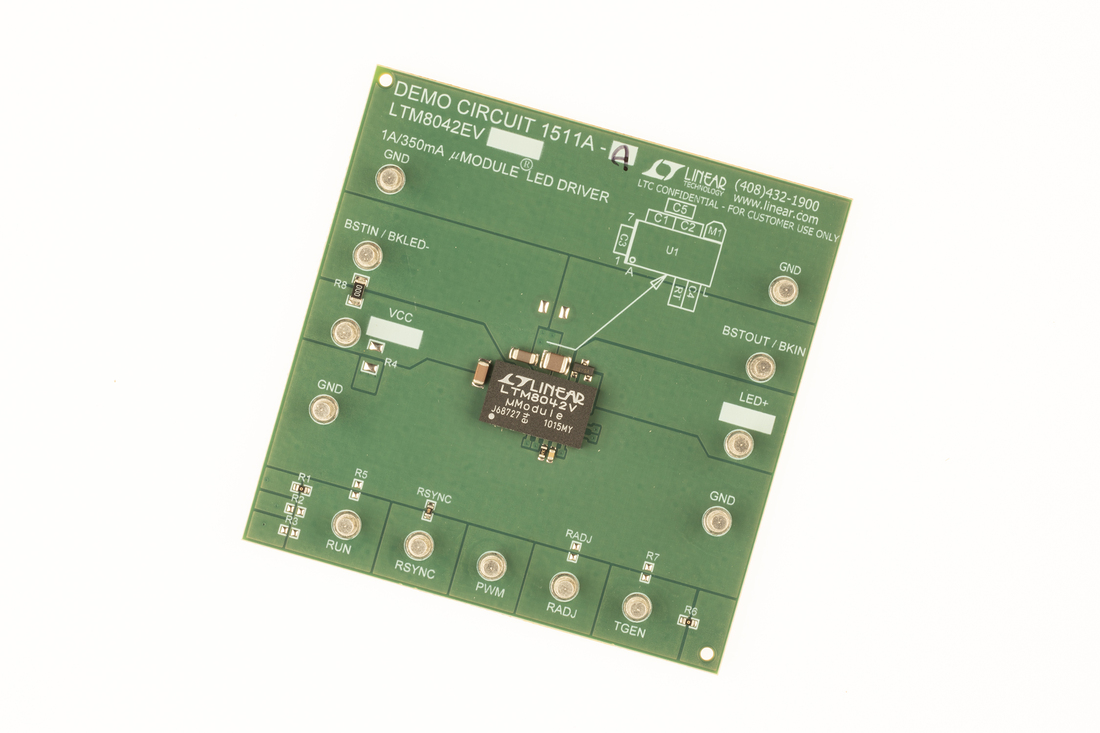

DC1511A-A

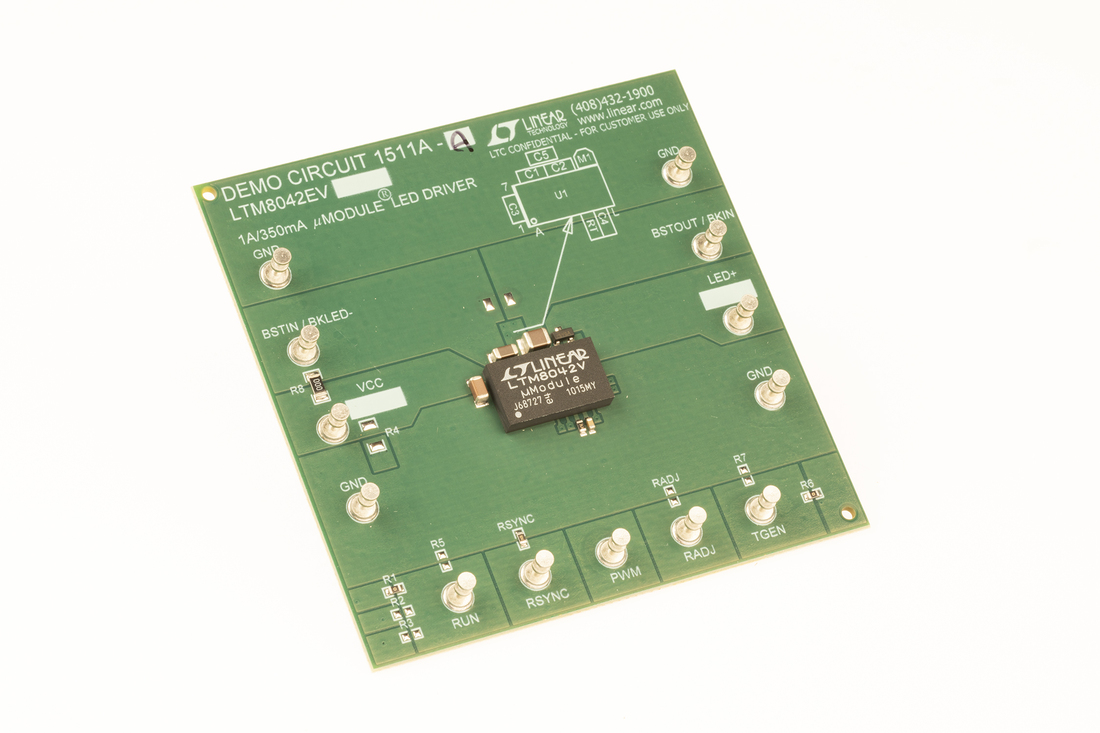

LTM8042EV Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 1A

LTM8042EV Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 1A

Download

DC1511A-A

LTM8042EV Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 1A

Buy Now View Details

Product Detail

Demonstration circuits 1511A-A features the LTM8042, which is a complete 1A µModule LED driver. The demonstration circuit is configured using the boost topology, accepting an input voltage from 3V to 30V and supporting an output up to 32V. The default switching frequency is 600kHz for the DC1511A-A, but can be adjusted by changing the value of the RT resistor. DC1511A is easily configured to support other features, including PWM dimming and analog dimming; It also supports buck-boost mode and buck mode (step-down) topologies.

Resources

ZIP

DC1511A - Design Files

1.00M

PDF

DC1511A - Demo Manual

0.00M

PDF

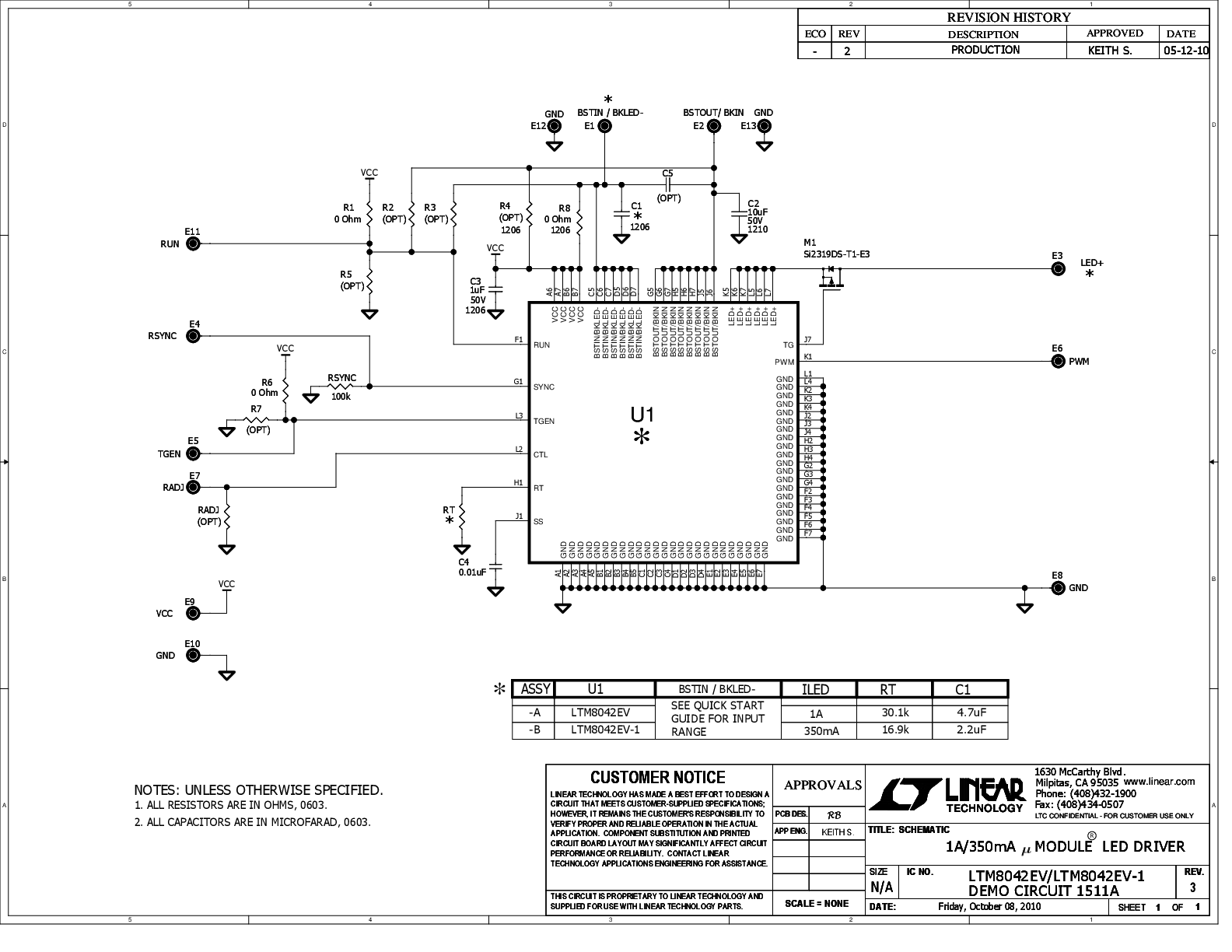

DC1511A - Schematic

69.00K

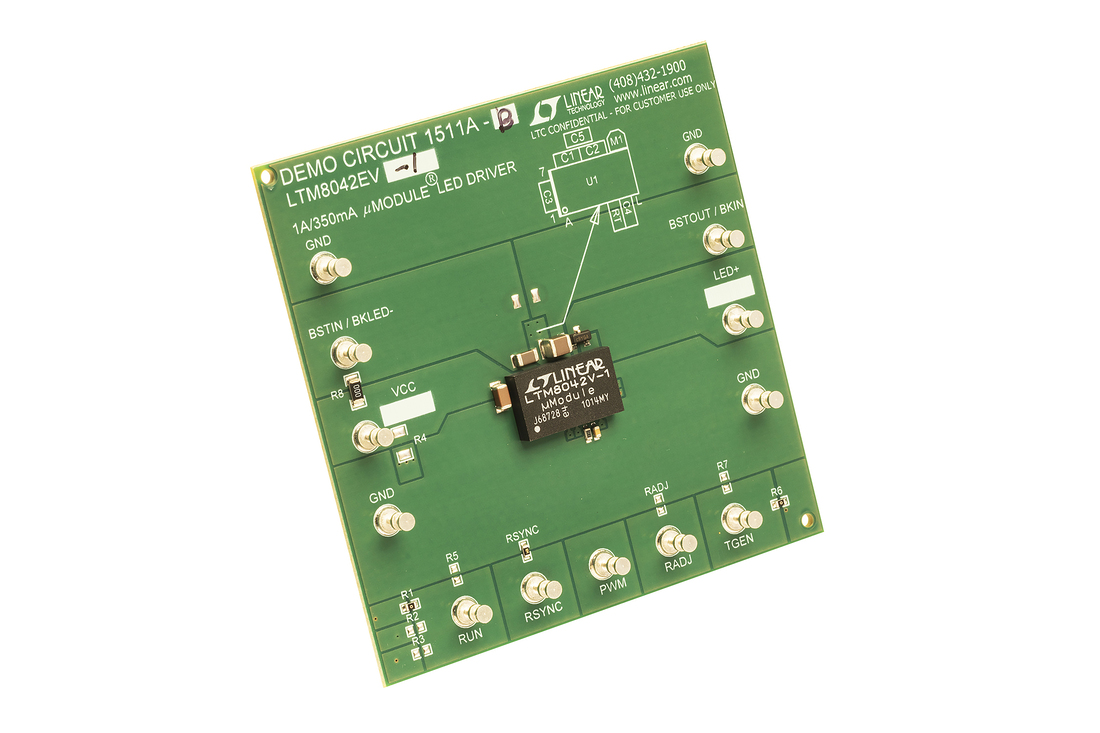

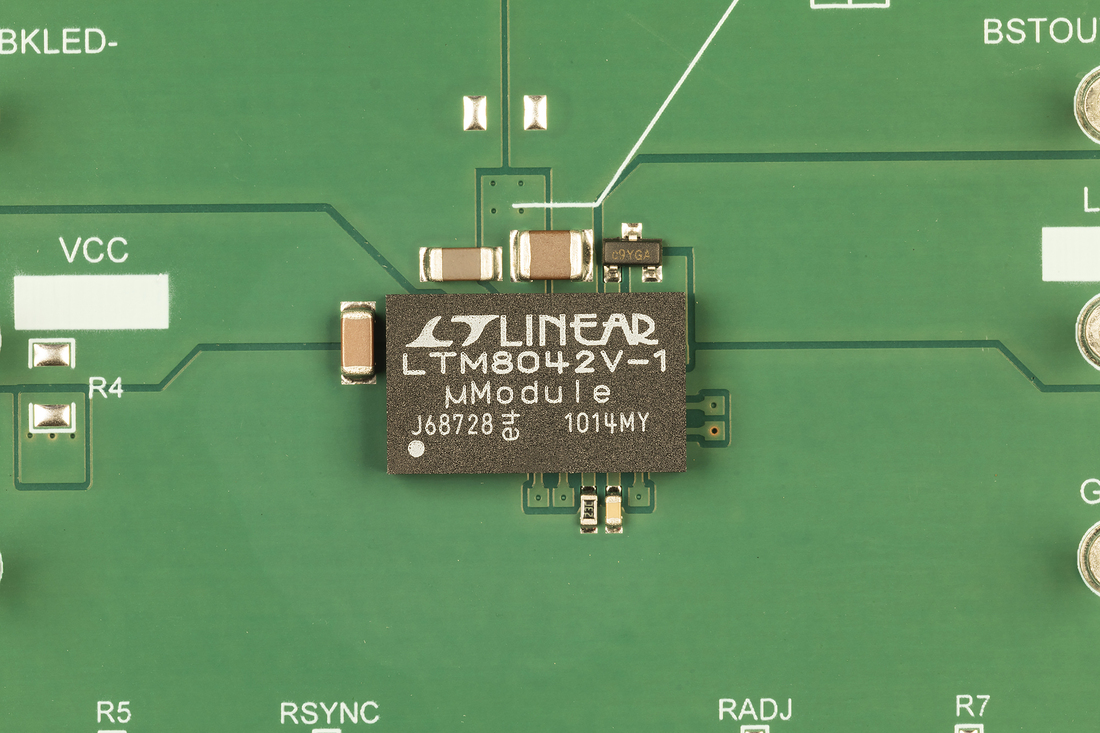

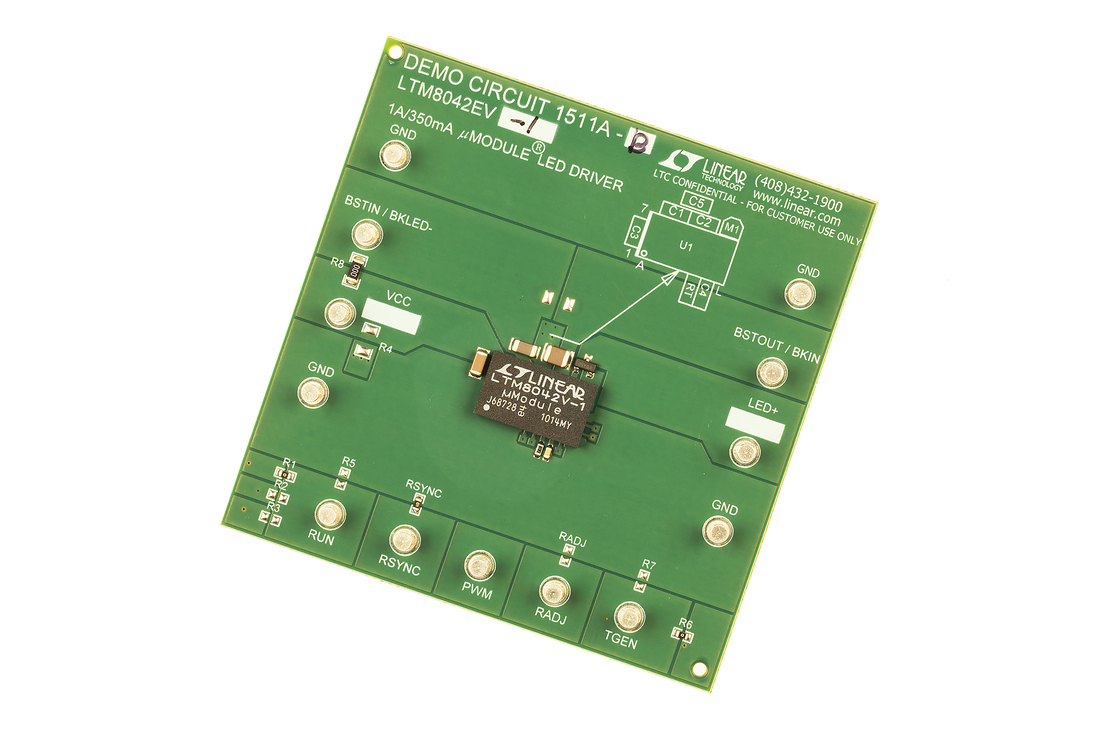

DC1511A-B

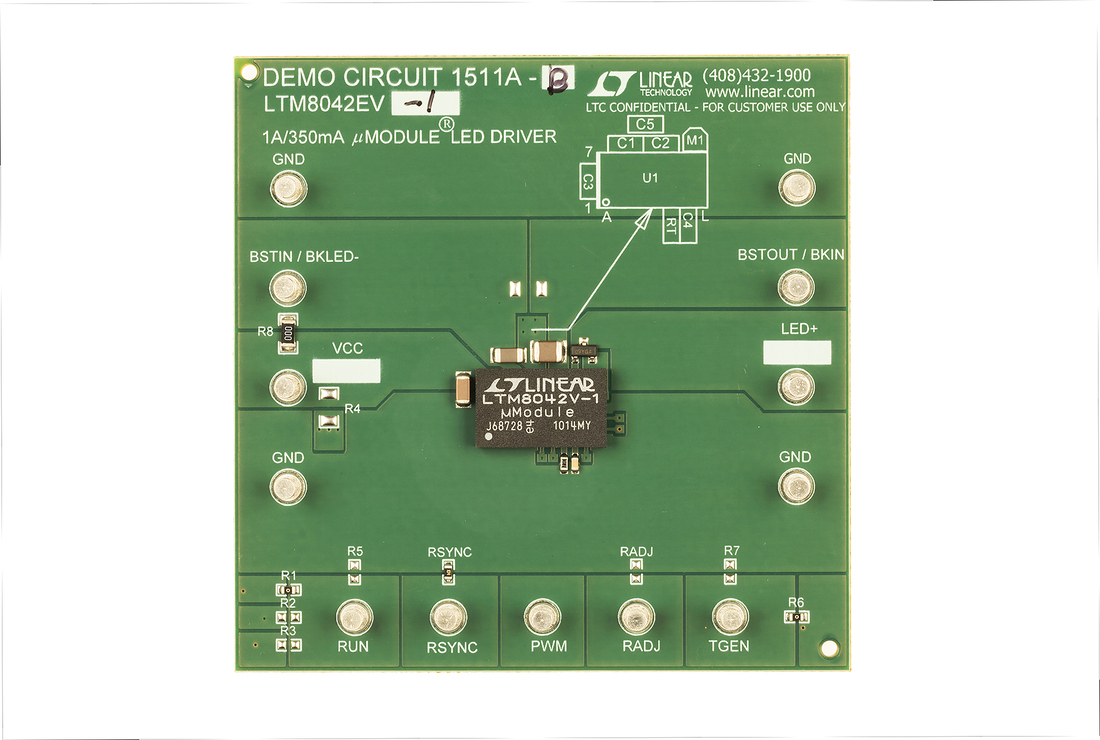

LTM8042EV-1 Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 350mA

LTM8042EV-1 Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 350mA

Download

DC1511A-B

LTM8042EV-1 Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 350mA

Buy Now View Details

Product Detail

Demonstration circuits 1511A-B features the LTM8042-1, which is a complete 350mA µModule LED driver. The demonstration circuit is configured using the boost topology, accepting an input voltage from 3V to 30V and supporting an output up to 32V. The default switching frequency is 950kHz for the DC1511A-B, but can be adjusted by changing the value of the RT resistor. DC1511A is easily configured to support other features, including PWM dimming and analog dimming; It also supports buck-boost mode and buck mode (step-down) topologies.

Resources

ZIP

DC1511A - Design Files

1.00M

PDF

DC1511A - Demo Manual

0.00M

PDF

DC1511A - Schematic

69.00K

DC1511A-A

LTM8042EV Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 1A

DC1511A-B

LTM8042EV-1 Demo Board | µModule Boost LED Driver, 3V ≤ VIN ≤ 30V, VOUT up to 32V @ 350mA
