LTM8027

60V, 4A DC/DC μModule (Power Module) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $19.42
Features
  • Complete Switch Mode Power Supply
  • Wide Input Voltage Range: 4.5V to 60V
  • (7.5V Minimum Voltage to Start)
  • Wide Output Voltage Range: 2.5V to 24V (See Table 2)
  • 4A Output Current
  • Programmable Soft-Start
  • 9μA Shutdown Supply Current
  • Selectable Switching Frequency Current Mode Control
  • Up to 95% Efficiency
  • SnPb (BGA) or RoHS Compliant (LGA and BGA) Finish
  • Surface Mount LGA (15mm × 15mm × 4.32mm) and (15mm × 15mm × 4.92mm) BGA Packages
Additional Details
show more Icon

The LTM8027 is a complete 4A, DC/DC step-down power supply. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 4.5V to 60V (7.5V minimum voltage to start), the LTM8027 supports output voltages up to 24V, and a switching frequency range of 100kHz to 500kHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

The low profile package (4.32mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. A built-in soft-start timer is adjustable with a small capacitor.

The LTM8027 is packaged in a compact (15mm × 15mm × 4.32mm) over-molded land grid array (LGA) and (15mm × 15mm × 4.92mm) BGA package suitable for automated assembly by standard surface mount equipment. The LTM8027 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

  • 12V and 42V Automotive and Heavy Equipment
  • 48V Telecom Power Supplies
  • Avionics and Industrial Control Systems
  • Distributed Power Converters
Part Models 8
1ku List Price Starting From $19.42

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM8027EV#PBF
  • HTML
  • HTML
LTM8027EY#PBF
  • HTML
  • HTML
LTM8027IV#PBF
  • HTML
  • HTML
LTM8027IY
  • HTML
  • HTML
LTM8027IY#PBF
  • HTML
  • HTML
LTM8027MPV#PBF
  • HTML
  • HTML
LTM8027MPY
  • HTML
  • HTML
LTM8027MPY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8027EV#PBF

PRODUCTION

LTM8027EY#PBF

PRODUCTION

LTM8027IV#PBF

PRODUCTION

LTM8027IY

PRODUCTION

LTM8027IY#PBF

PRODUCTION

LTM8027MPV#PBF

PRODUCTION

LTM8027MPY

PRODUCTION

LTM8027MPY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8027EV#PBF

PRODUCTION

LTM8027EY#PBF

PRODUCTION

LTM8027IV#PBF

PRODUCTION

LTM8027IY

PRODUCTION

LTM8027IY#PBF

PRODUCTION

LTM8027MPV#PBF

PRODUCTION

LTM8027MPY

PRODUCTION

LTM8027MPY#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM8027EV#PBF

PRODUCTION

LTM8027EY#PBF

PRODUCTION

LTM8027IV#PBF

PRODUCTION

LTM8027IY

PRODUCTION

LTM8027IY#PBF

PRODUCTION

LTM8027MPV#PBF

PRODUCTION

LTM8027MPY

PRODUCTION

LTM8027MPY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8027EV#PBF

PRODUCTION

LTM8027EY#PBF

PRODUCTION

LTM8027IV#PBF

PRODUCTION

LTM8027IY

PRODUCTION

LTM8027IY#PBF

PRODUCTION

LTM8027MPV#PBF

PRODUCTION

LTM8027MPY

PRODUCTION

LTM8027MPY#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC1307B

LTM8027EV Demo Board | 16V ≤ VIN ≤ 60V, VOUT = 12V @ 4A

zoom

DC1307B

LTM8027EV Demo Board | 16V ≤ VIN ≤ 60V, VOUT = 12V @ 4A

LTM8027EV Demo Board | 16V ≤ VIN ≤ 60V, VOUT = 12V @ 4A

Product Detail

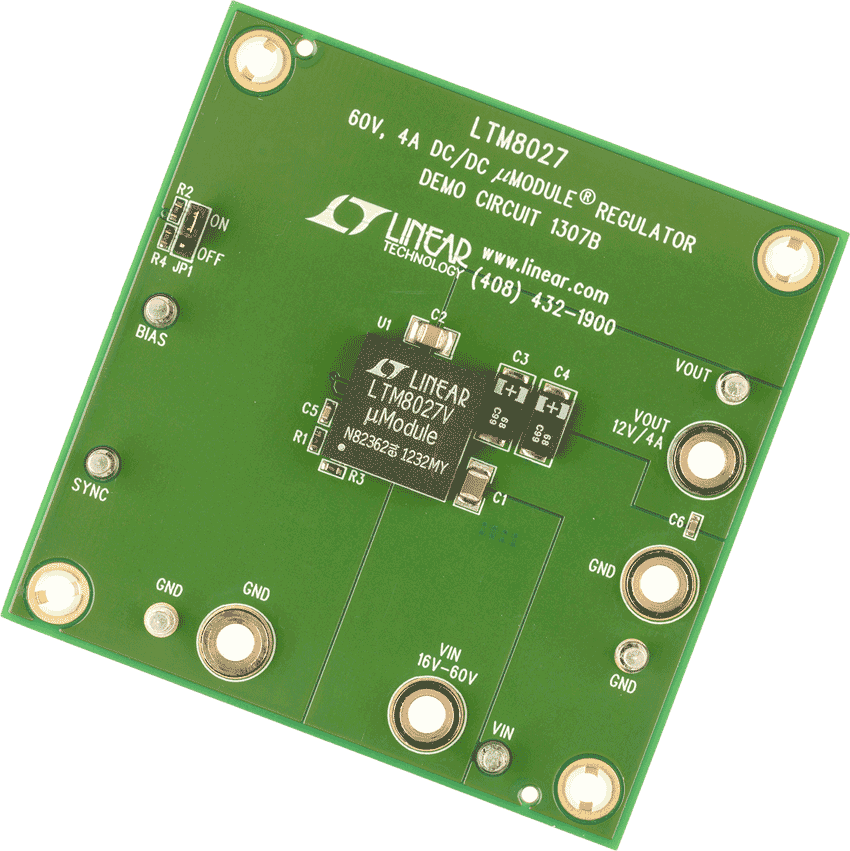

Demonstration circuit 1307B features the LTM8027 configured to deliver 12V/4A from a 16V to 60V input. The wide input range of the LTM8027 allows a variety of input sources such as automotive batteries, wall adaptors and industrial supplies. The LTM8027 is a step down converter, so a minimum amount of headroom is required to keep the output in regulation. A soft-start feature controls the output voltage slew rate at start-up, reducing current surges and voltage overshoots.

reference details image

DC2125A

LT4275/LT4321/LTM8027 Demo Board | LTPoE++ PD Plus Diode Bridge and DC/DC Controller

zoom

DC2125A

LT4275/LT4321/LTM8027 Demo Board | LTPoE++ PD Plus Diode Bridge and DC/DC Controller

LT4275/LT4321/LTM8027 Demo Board | LTPoE++ PD Plus Diode Bridge and DC/DC Controller

Product Detail

Demonstration circuit 2125 is a small, highly-integrated, non-isolated PoE Powered Device (PD) solution. It features a PD Interface Controller (LT4275), which interfaces with a PoE Power Sourcing Equipment (PSE), an ideal diode bridge controller (LT4321), which minimizes bridge losses, and a DC/DC μModule® regulator (LTM8027).
