Overview
Features and Benefits
- Complete Step-Down Switch Mode Power Supply
- Wide Input Voltage Range: 3.6V to 36V
- 2A Output Current
- 0.8V to 10V Output Voltage
- Selectable Switching Frequency: 200kHz to 2.4MHz
- Current Mode Control
- Programmable Soft-Start
- SnPb (BGA) or RoHS Compliant (LGA and BGA) Finish
- Tiny, Low Profile, Surface Mount LGA (9mm × 11.25mm × 2.82mm) and BGA (9mm × 11.25mm × 3.42mm) Packages
Product Details
The LTM8023 is a complete 2A, DC/DC step-down power supply. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8023 supports an output voltage range of 0.8V to 10V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.
The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation.
The LTM8023 is packaged in a thermally enhanced, compact and low profile over-molded land grid array (LGA) and ball grid array (BGA) packages suitable for automated assembly by standard surface mount equipment. The LTM8023 is available with SnPb (BGA) or RoHS compliant terminal finish.
Applications
- Automotive Battery Regulation
- Power for Portable Products
- Distributed Supply Regulation
- Industrial Supplies
- Wall Transformer Regulation
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R598 Reliability Data3/26/2018
-

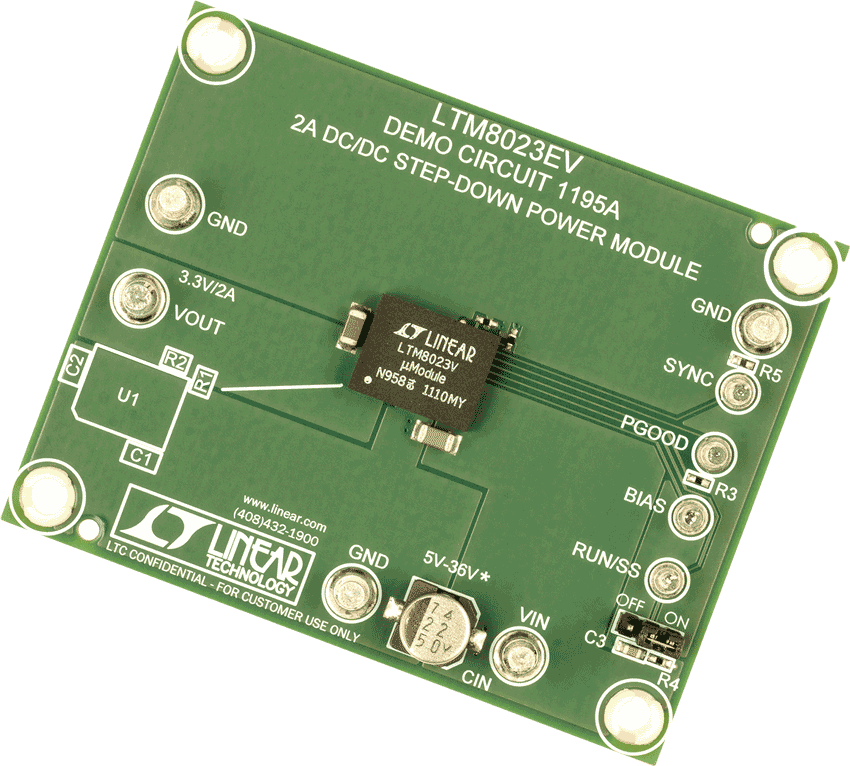

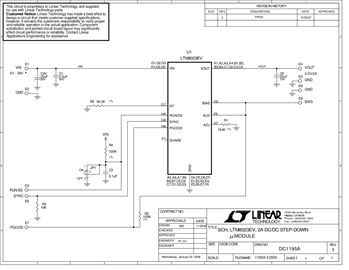

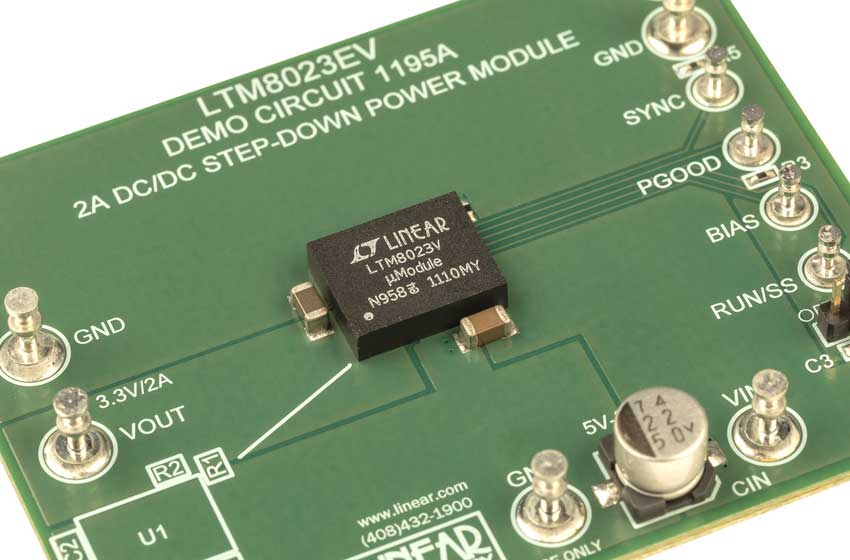

DC1195A - Demo Manual10/21/2010
-
μModule Power Products Simplify Power4/11/2018
-
SnPb (Tin-Lead) BGA Packages μModule Power Products7/13/2017
-
μModule Power Products4/4/2017
-
μModule Regulators Shrink Power Supply Size and Design Effort1/1/2008 LT Journal
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
LTspice Simulations
Models for the following parts are available in LTspice:
LTM8023
Product Recommendations
LTM8023 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTM8023EV#PBF | Material Declaration | Reliability Data | 50-Lead LGA (11.25mm x 9mm x 2.82mm) | |
| LTM8023EY#PBF | Material Declaration | Reliability Data | 50-Lead BGA (11.25mm x 9mm x 3.42mm) | |
| LTM8023IV#PBF | Material Declaration | Reliability Data | 50-Lead LGA (11.25mm x 9mm x 2.82mm) | |
| LTM8023IY | Material Declaration | Reliability Data | 50-Lead BGA (11.25mm x 9mm x 3.42mm) | |
| LTM8023IY#PBF | Material Declaration | Reliability Data | 50-Lead BGA (11.25mm x 9mm x 3.42mm) | |
| LTM8023MPV#PBF | Material Declaration | Reliability Data | 50-Lead LGA (11.25mm x 9mm x 2.82mm) | |
| LTM8023MPY | Material Declaration | Reliability Data | 50-Lead BGA (11.25mm x 9mm x 3.42mm) | |
| LTM8023MPY#PBF | Material Declaration | Reliability Data | 50-Lead BGA (11.25mm x 9mm x 3.42mm) | |
| Wafer Fabrication Data | R598 Reliability Data |
