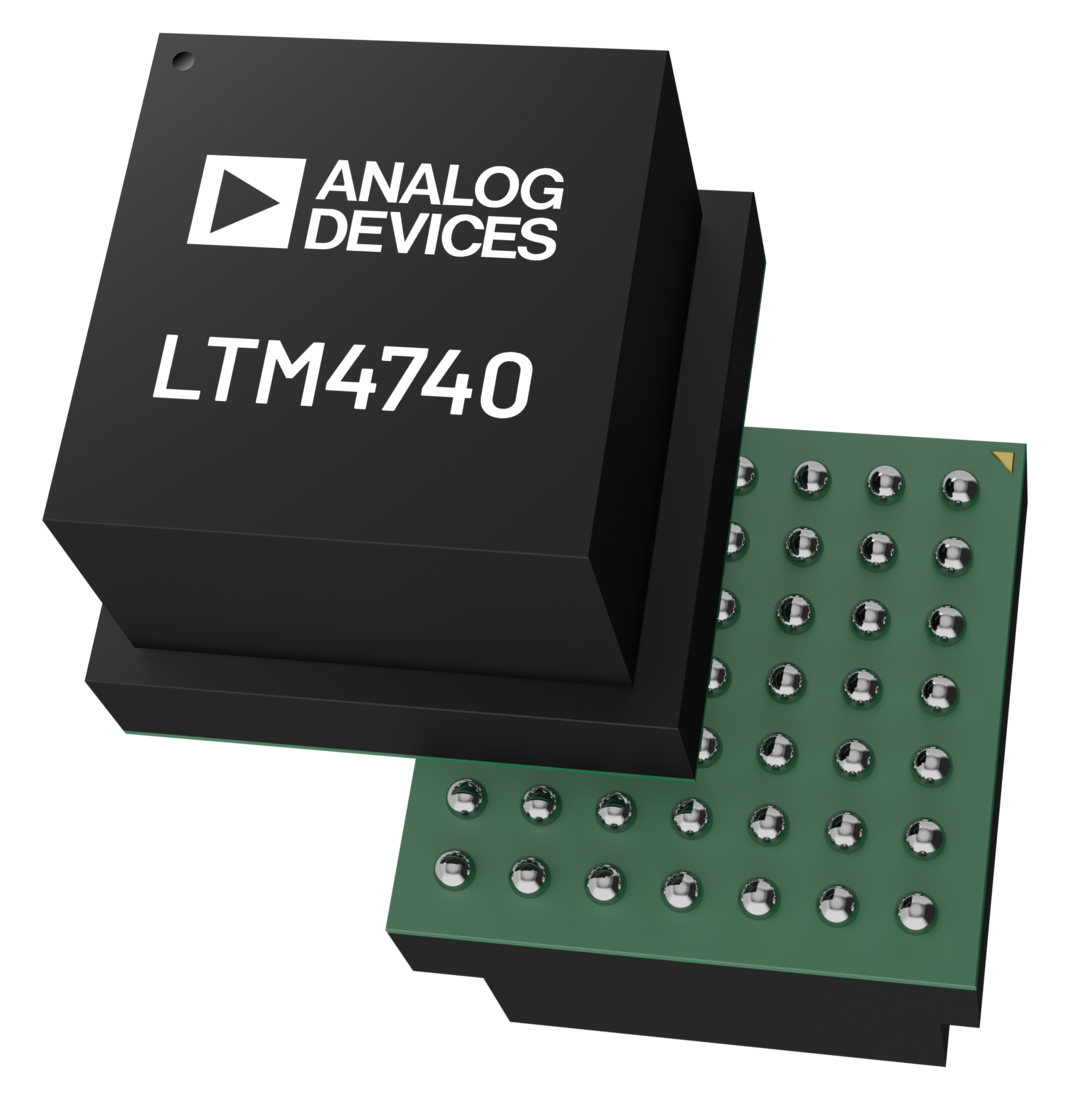

LTM4740

RECOMMENDED FOR NEW DESIGNS

15VIN, Single 15A Step-Down μModule Regulator with PMBus

Viewing:

Overview

  • Complete Solution in <1cm2 (Single-Sided PCB) or 0.5cm2 (Dual-Sided PCB)
  • PMBus Telemetry of Output Current, Output Voltage, Input Voltage, and Junction Temperature
  • Pin-to-Pin Compatible with LTM4739
  • Input Voltage Range: 3V to 15V
  • Output Voltage Range: 0.4V to 5.5V
  • Adjustable Reference Voltage: 0.4V to 0.8V (Default 0.5V)
  • 90% Full-Load Efficiency from 12VIN to 1.5VOUT at 15A
  • ±1% Maximum DC Output Error Over Temperature
  • Wide Frequency Range: 500kHz to 2MHz
  • Internal Compensation
  • Power Good Indicator
  • Constant Frequency Peak Current Mode Control
  • Differential Remote Sense
  • Single-Phase Point-of-Load Operation
  • 49-Lead 6.25mm × 6.25mm × 5.07mm BGA Package

The LTM4740 is a complete 15A step-down switchingmode power μModule® (micromodule) regulator with a PMBus interface in a tiny 6.25mm × 6.25mm × 5.07mm Ball Grid Array (BGA) package. The package includes the switching controller, the power MOSFETs, an inductor, and the supporting components. Operating over an input voltage range of 3V to 15V, the LTM4740 supports an output voltage range of 0.4V to 5.5V. Its highefficiency design delivers up to 15A of continuous output current. Only bulk input and output capacitors are needed. The switching frequency of the LTM4740 can be configured from 500kHz to 2MHz to provide the capability of optimizing the design in terms of size and performance. Pin-compatible with LTM4739, which is a 10A μModule regulator with PMBus. Therefore, one layout could fit different power-level requests with flexibility. The LTM4740 has an optional BIAS input pin, allowing connection from a 2.8V to 5.5V bias input supply for optimized efficiency. Operation settings and configurable features can be selected by connecting two pin-strap resistors from the PGMn pins to ground and then adjusted using PMBus commands. The LTM4740 has multiple protections, including positive and negative overcurrent (POC/NOC), output overvoltage (OV), and overtemperature (OT) to ensure a robust design. It is available with a RoHS-compliant terminal finish.

APPLICATIONS

  • Data Center Power, Servers, and Storage
  • Telecom, Networking, and Industrial Equipment
  • Point-of-Load (POL) Voltage Regulators

LTM4740
15VIN, Single 15A Step-Down μModule Regulator with PMBus

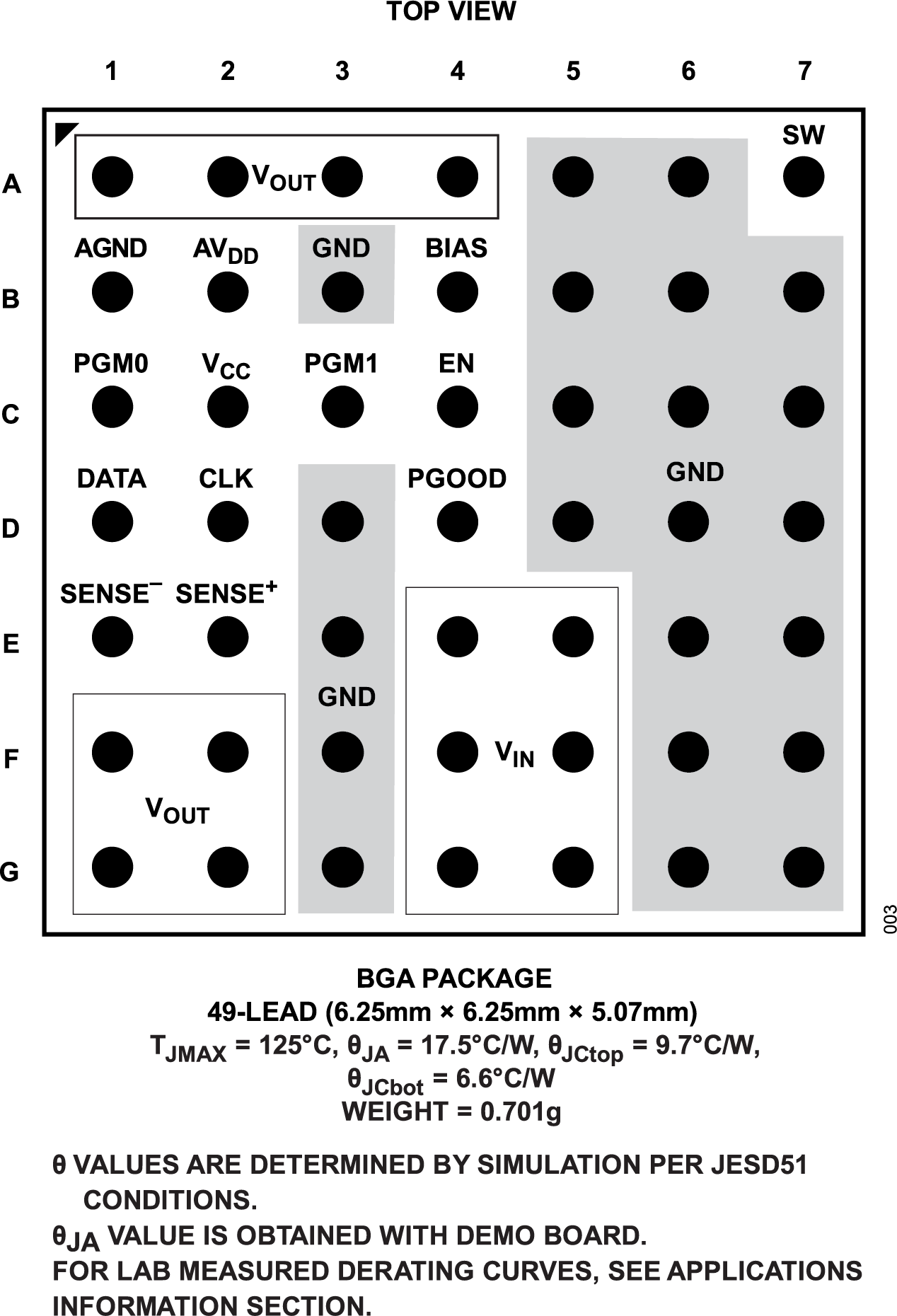

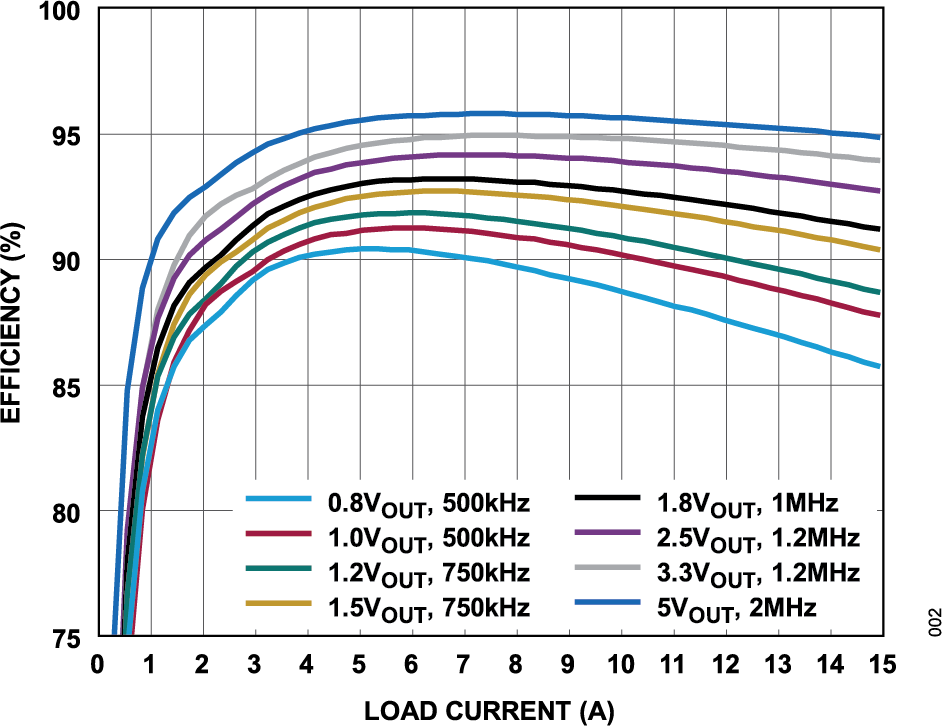

LTM4740 Typical Application LTM4740 Efficiency LTM4740 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

eval board
EVAL-LTM4740-AZ

LTM4740: 15VIN, Single 15A Step-Down μModule Regulator with PMBus

Features and Benefits

  • Complete Single-Phase Point-of-Load (POL) Solution.
  • 87.8% Full-Load Efficiency from 12VIN to 1VOUT at 15A.
  • PMBus Telemetry of Output Current, Reference Voltage, Input Voltage, and Junction Temperature.

Product Details

The EVAL-LTM4740-AZ evaluation board features the LTM®4740: a complete, high-efficiency, high-power-density, single 15A DC-to-DC step-down power μModule® (micromodule) regulator with power management bus (PMBus) interface. The LTM4740 is available in a 49-lead 6.25mm × 6.25mm × 5.07mm ball grid array (BGA) package. Read the LTM4740 data sheet before using or making any hardware changes to the EVAL-LTM4740-AZ evaluation board.

The EVAL-LTM4740-AZ input voltage range is 3V to 15V, and the output voltage range is 0.4V to 5.5V. The maximum load current is 15A. The output voltage is adjusted through the feedback resistor divider or the PMBus VOUT_COMMAND (the factory default output voltage is 1V). The switching frequency range is 500kHz to 2MHz (factory default frequency is 500kHz), configured through the pin-strap resistor at the PGM1 or with PMBus commands. The resistor value at the PGM1 pin is also used to adjust the control loop compensation parameters. The resistor value at the PGM0 pin is used to configure the positive overcurrent (POC) protection triggering level and the factory-default PMBus address (0x39h). The factory default POC protection sets the peak inductor current limit to 20A. At a high ambient temperature, the current output may need to be derated (refer to the LTM4740 data sheet for more details).

The onboard 12-pin connector, the I2C/PMBus/System management bus (SMBus) DC1613A dongle controller, and the LTpowerPlay® development tool provide an easy way to communicate and program the EVAL-LTM4740-AZ evaluation board.

EVAL-LTM4740-AZ
LTM4740: 15VIN, Single 15A Step-Down μModule Regulator with PMBus

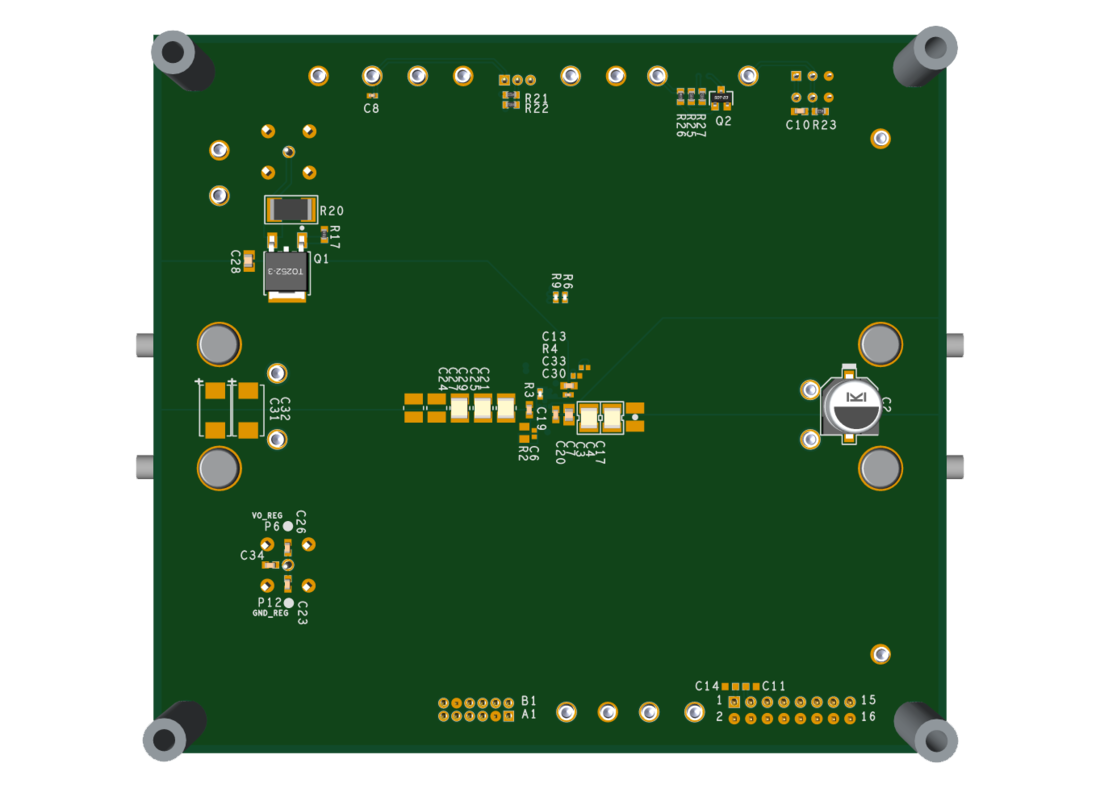

EVAL-LTM4740-AZ Evaluation Board Angel View EVAL-LTM4740-AZ Evaluation Board Top View EVAL-LTM4740-AZ Evaluation Board Bottom View
