Part Details
Features
  • 4.7V to 15V Input Voltage Range
  • 0.6V to 1.8V Output Voltage Range
  • 25A DC Output Current
  • 1.2% Total DC Output Voltage Error (–40°C to 125°C)
  • High Reliability N + 1 Phase Redundancy Supported
  • Internal or External Control Loop Compensation
  • Differential Remote Sense Amplifier for Precision Regulation
  • Current Mode Control/Fast Transient Response
  • Multiphase Current Sharing Up to 150A
  • Built-In Temperature Monitoring
  • Selectable Pulse-Skipping, Burst Mode® Operation
  • Soft-Start/Voltage Tracking
  • Frequency Synchronization
  • Output Overvoltage Protection
  • Output Overcurrent Foldback Protection
  • 9mm × 15mm × 3.51mm BGA Package
Additional Details
show more Icon

The LTM4645 is a 25A output switching mode step-down DC/DC µModule® (power module) regulator. Included in the package are the switching controller, power FETs, inductor and all supporting components. Operating over an input voltage range of 4.7V to 15V, the LTM4645 supports an output voltage range of 0.6V to 1.8V, set by a single external resistor. Only a few input and output capacitors are needed.

Its high efficiency design delivers about 86% efficiency from 12V input to 1.0V output with 25A continuous load current. High switching frequency and a current-mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation, N+1 phase redundancy, and output voltage tracking for supply rail sequencing.

Fault protection features include overvoltage and overcurrent protection. The power module is offered in a space saving 9mm × 15mm × 3.51mm BGA package. The LTM4645 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

  • Telecom, Networking and Industrial Equipment
  • Point of Load Regulation

close icon
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 4

reference details image

DC2616A-B

LTM4645 High Efficiency, PolyPhase 75A Step-Down Power µModule Regulator

zoom

DC2616A-B

LTM4645 High Efficiency, PolyPhase 75A Step-Down Power µModule Regulator

LTM4645 High Efficiency, PolyPhase 75A Step-Down Power µModule Regulator

Product Detail

Demonstration circuit 2616A-B features a polyphase design using the LTM4645EY, a 25A high efficiency, switch mode step-down power µModule regulator. The input voltage range is from 6V to 15V. To use DC2616A-B for input voltage range from 4.7V to 6V, connect INTVCC to SVIN (change R22, R42, R55 from OPT to 0Ω), DRVCC to VIN (change R21, R38, R52 from 0Ω to OPT, R2, R39, R53 from OPT to 0Ω). The output voltage range is 0.6V to 1.8V. The DC2616A-B can deliver a nominal 75A output current with three LTM4645 modules in parallel. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE_PLLIN jumper selects pulse-skipping mode for noise sensitive applications or burst mode operation in less noise sensitive applications. The MODE_PLLIN pin also allows the LTM4645 to synchronize to an external clock signal. The phase shift between two adjacent phases is 120 degrees. DC2616A-B has the option of choosing both internal and external compensation circuit for LTM4645. The LTM4645 data sheet must be read in conjunction with this demo manual prior to working on or modifying demo circuit DC2616A-B.
reference details image

DC2616A-C

LTM4645 High Efficiency, PolyPhase 100A Step-Down Power µModule Regulator

zoom

DC2616A-C

LTM4645 High Efficiency, PolyPhase 100A Step-Down Power µModule Regulator

LTM4645 High Efficiency, PolyPhase 100A Step-Down Power µModule Regulator

Product Detail

Demonstration circuit 2616A-C features a polyphase design using the LTM4645EY, a 25A high efficiency, switch mode step-down power µModule regulator. The input voltage range is from 6V to 15V. To use DC2616A-C for input voltage range from 4.7V to 6V, connect INTVCC to SVIN (change R22, R42, R55, R68 from OPT to 0Ω), DRVCC to VIN (change R21, R38, R52, R65 from 0Ω to OPT, R2, R39, R53, R66 from OPT to 0Ω). The output voltage range is 0.6V to 1.8V. The DC2616A-C can deliver a nominal 100A output current with four LTM4645 modules in parallel. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE_PLLIN jumper selects pulseskipping mode for noise sensitive applications or burst mode operation in less noise sensitive applications. The MODE_PLLIN pin also allows the LTM4645 to synchronize to an external clock signal. The phase shift between two adjacent phases is 90 degrees. DC2616A-C has the option of choosing both internal and external compensation circuit for LTM4645. The LTM4645 data sheet must be read in conjunction with this demo manual prior to working on or modifying demo circuit DC2616A-C.
reference details image

DC2681A-A

LTM4645 25A DC/DC Step-Down µModule Regulator

zoom

DC2681A-A

LTM4645 25A DC/DC Step-Down µModule Regulator

LTM4645 25A DC/DC Step-Down µModule Regulator

Product Detail

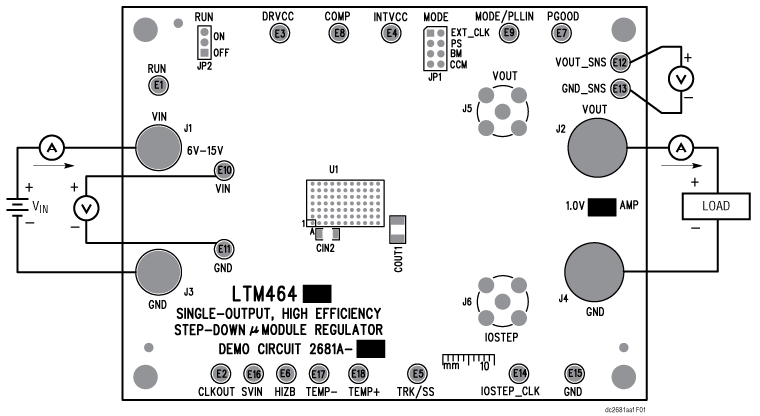

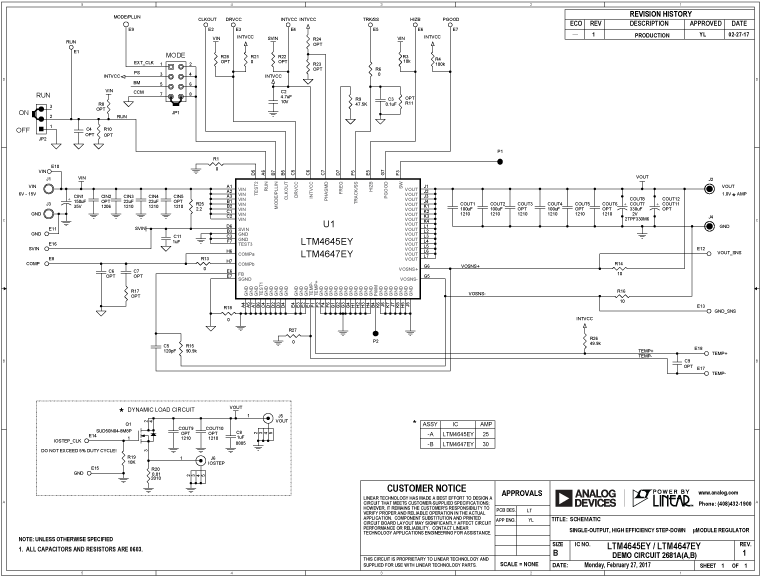

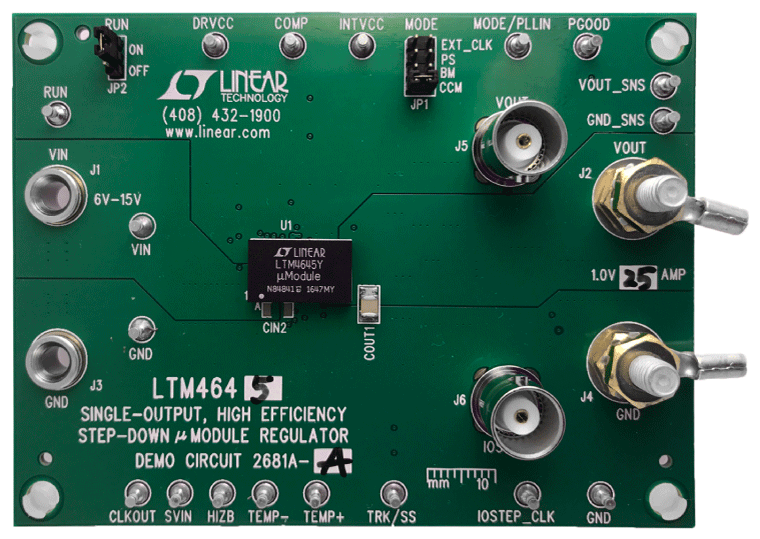

Demonstration circuit DC2681A-A features the LTM4645EY, a 25A high efficiency, switch mode stepdown power µModule® regulator. The input voltage range is from 6V to 15V. To use DC2681A-A for input voltage range from 4.7V to 6V, connect INTVCC to SVIN (change R22 from OPT to 0Ω), DRVCC to VIN (change R21 from 0Ω to OPT, R28 from OPT to 0Ω). The output voltage range is 0.6V to 1.8V. Derating is necessary for certain VIN, VOUT, frequency and thermal conditions. The DC2681A-A offers the TRK/SS pin allowing the user to program output tracking or soft-start period. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE_PLLIN jumper selects pulse-skipping mode for noise sensitive applications or burst mode operation in L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks of Analog Devices, Inc. All other trademarks are the property of their respective owners. BOARD PHOTO less noise sensitive applications. The MODE_PLLIN pin also allows the LTM4645 to synchronize to an external clock signal (between 400kHz and 800kHz). DC2681A-A has the option of choosing both internal and external compensation circuit for LTM4645. Tying the PHASMD pin to different voltage generates certain phase difference between MODE_PLLIN and CLKOUT. The LTM4645 data sheet must be read in conjunction with this demo manual prior to working on or modifying demo circuit DC2681A-A.
reference details image

DC2616A-A

LTM4645 Demo Board | High Efficiency, PolyPhase 50A Step-Down Power µModule Regulator

zoom

DC2616A-A

LTM4645 Demo Board | High Efficiency, PolyPhase 50A Step-Down Power µModule Regulator

LTM4645 Demo Board | High Efficiency, PolyPhase 50A Step-Down Power µModule Regulator

Product Detail

Demonstration circuit 2616A-A features a polyphase design using the LTM4645EY, a 25A high efficiency, switch mode step-down power µModule regulator. The input voltage range is from 6V to 15V. To use DC2616A-A for input voltage range from 4.7V to 6V, connect INTVCC to SVIN (change R22, R42 from OPT to 0Ω), DRVCC to VIN (change R21, R38 from 0Ω to OPT, R2, R39 from OPT to 0Ω). The output voltage range is 0.6V to 1.8V. The DC2616A-A can deliver a nominal 50A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE_PLLIN jumper selects pulse-skipping mode for noise sensitive applications or burst mode operation in less noise sensitive applications. The MODE_PLLIN pin also allows the LTM4645 to synchronize to an external clock signal. The phase shift between the two phases is 180 degrees. DC2616A-A has the option of choosing both internal and external compensation circuit for LTM4645. The LTM4645 data sheet must be read in conjunction with this demo manual prior to working on or modifying demo circuit DC2616A-A.
