LTM2885

6500VRMS Isolated RS485/RS422 μModule Transceiver + Power

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model LTM2885 IBIS Model Download 297.03 KB
Part Models 3
1ku List Price Starting From $14.10
Features
  • RS485/RS422 Transceiver: 6500VRMS for 1 Minute
  • CSA (IEC/UL) Approved, File #255632
  • Isolated DC Power: 5V at 200mA
  • No External Components Required
  • 20Mbps or Low EMI 250kbps Data Rate
  • High ESD: ±15kV HBM on Transceiver Interface

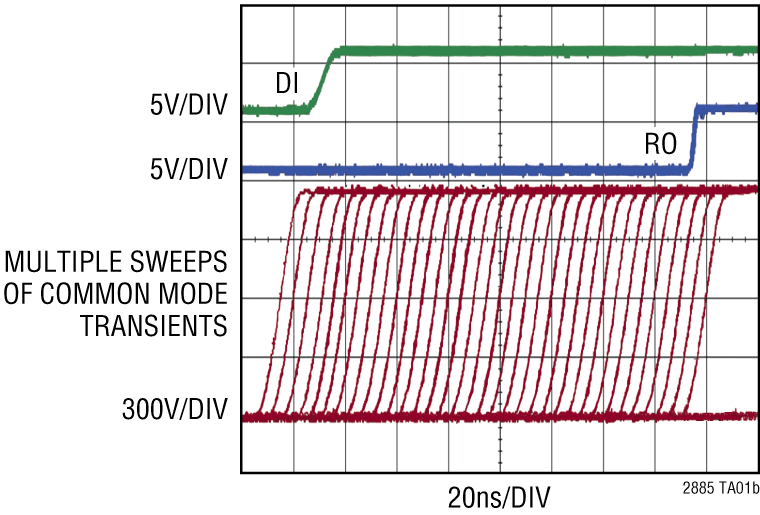

  • High Common Mode Transient Immunity: 50kV/μs
  • Integrated Selectable 120Ω Termination
  • Extended Creepage and Clearance ~14.6mm
  • 1.62V to 5.5V Logic Supply Pin for Flexible Digital Interface
  • Maximum Continuous Working Voltage: 690VRMS
  • High Input Impedance Failsafe RS485 Receiver
  • Current Limited Drivers and Thermal Shutdown
  • Compatible with TIA/EIA-485-A and PROFIBUS
  • High Impedance Output During Internal Fault Condition
  • Low Current Shutdown Mode (< 10μA)
  • General Purpose CMOS Isolated Channel
  • 22mm × 9mm × 5.16mm Surface Mount BGA Package
Additional Details
show more Icon

The LTM2885 is a complete galvanically isolated full-duplex RS485/RS422 μModule® (micromodule) transceiver. No external components are required. A single supply powers both sides of the interface through an integrated, isolated, low noise, efficient 5V output DC/DC converter.

Coupled inductors and an isolation power transformer provide 6500VRMS of isolation between the line transceiver and the logic interface. This device is ideal for systems where the ground loop is broken allowing for large common mode voltage variation. Uninterrupted communication is guaranteed for common mode transients up to 50kV/μs.

Maximum data rates are 20Mbps or 250kbps in slew limited mode. Transmit data, DI, and receive data, RO, are implemented with event driven low jitter processing. The receiver has a one-eighth unit load supporting up to 256 nodes per bus. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.

Enhanced ESD protection allows this part to withstand up to ±15kV (human body model) on the transceiver interface pins to isolated supplies and ±25kV through the isolation barrier to logic supplies without latch-up or damage.

APPLICATIONS

  • Isolated RS485/RS422 Interface
  • Industrial Networks
  • Breaking RS485 Ground Loops
  • Isolated PROFIBUS-DP Networks
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model LTM2885 IBIS Model Download 297.03 KB
Part Models 3
1ku List Price Starting From $14.10
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTM2885

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Safety and Regulatory Compliance
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 04/27/2017
English

LTM2885: 6500VRMS Isolated RS485/RS422 μModule Transceiver + Power Data Sheet (Rev.B)

Open PDF File

redirect
1.59 M
download

Download PDF

PDF Vector

PDF

UPDATED 01/04/2017
Japanese

LTM2885: 6500VRMS、絶縁型RS485/RS422 μModuleトランシーバ＋電源 データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 12/13/2016
English
DC1794A - Demo Manual redirect icon

281.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R596 Reliability Data redirect icon

22.85 K

download

Download PDF

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Product Selector Card 3

Digital Isolator Product Selection Guide
6.5kV Isolated RS485 + 1W Power
μModule Isolators

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Video

2

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Thumbnail Image

Video

2017-09-18

03:14

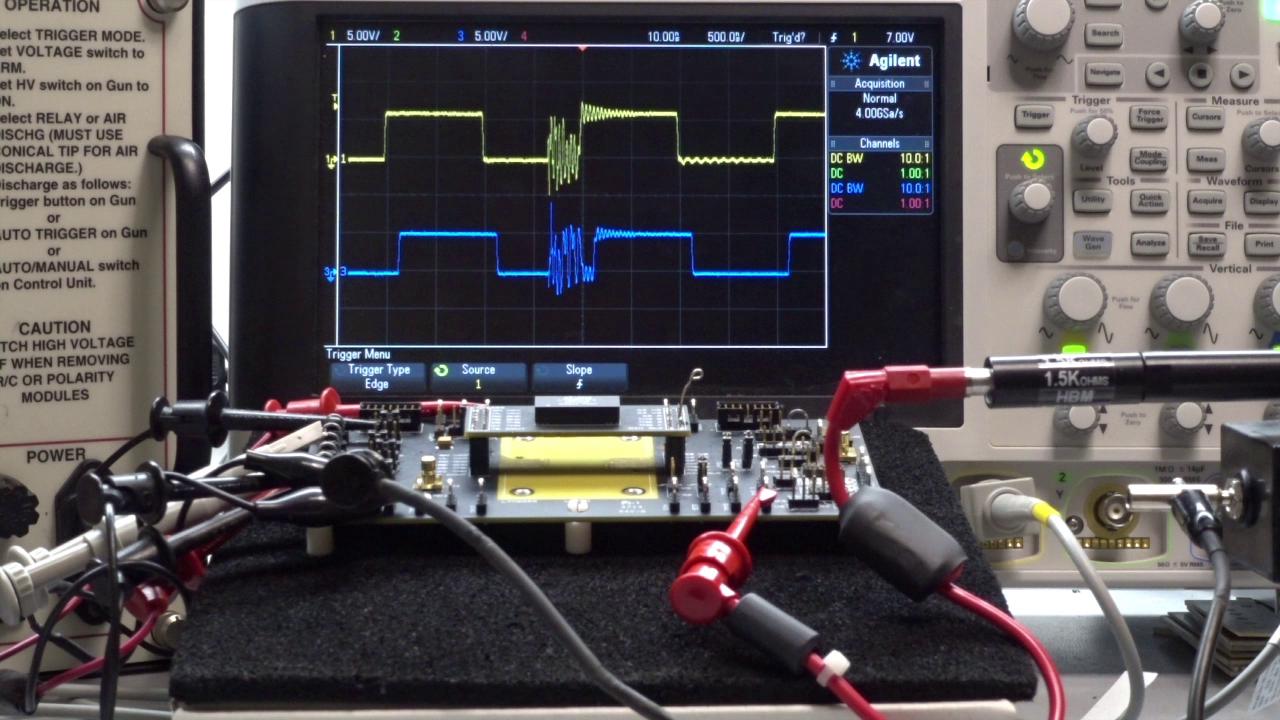

Rugged ESD Demonstration

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM2885CY#PBF 42-Lead BGA (22mm x 9mm x 5.16mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM2885HY#PBF 42-Lead BGA (22mm x 9mm x 5.16mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM2885IY#PBF 42-Lead BGA (22mm x 9mm x 5.16mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM2885CY#PBF

PRODUCTION

LTM2885HY#PBF

PRODUCTION

LTM2885IY#PBF

PRODUCTION

pdf

PCN21_0159_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM2885CY#PBF

PRODUCTION

LTM2885HY#PBF

PRODUCTION

LTM2885IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download

Test Correlation Report

Other

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM2885CY#PBF

PRODUCTION

LTM2885HY#PBF

PRODUCTION

LTM2885IY#PBF

PRODUCTION

pdf

PCN21_0159_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM2885CY#PBF

PRODUCTION

LTM2885HY#PBF

PRODUCTION

LTM2885IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download
Test Correlation Report
Other

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Isolated RS-4851
LTC1535
popup image
Cart

PRODUCTION

Isolated RS485 Transceiver

Parts Product Life Cycle Description
LTM2881
popup image
Cart

PRODUCTION

Complete Isolated RS485/RS422 μModule Transceiver + Power

Evaluation Kits 1

reference details image

DC1794A

LTM2885 Demo Board | 6.5kV Isolated RS485/RS422 μModule Transceiver + Power

zoom

DC1794A

LTM2885 Demo Board | 6.5kV Isolated RS485/RS422 μModule Transceiver + Power

download icon

Download

 print icon

Print
DC1794A
LTM2885 Demo Board | 6.5kV Isolated RS485/RS422 μModule Transceiver + Power
Buy Now View Details

Product Detail

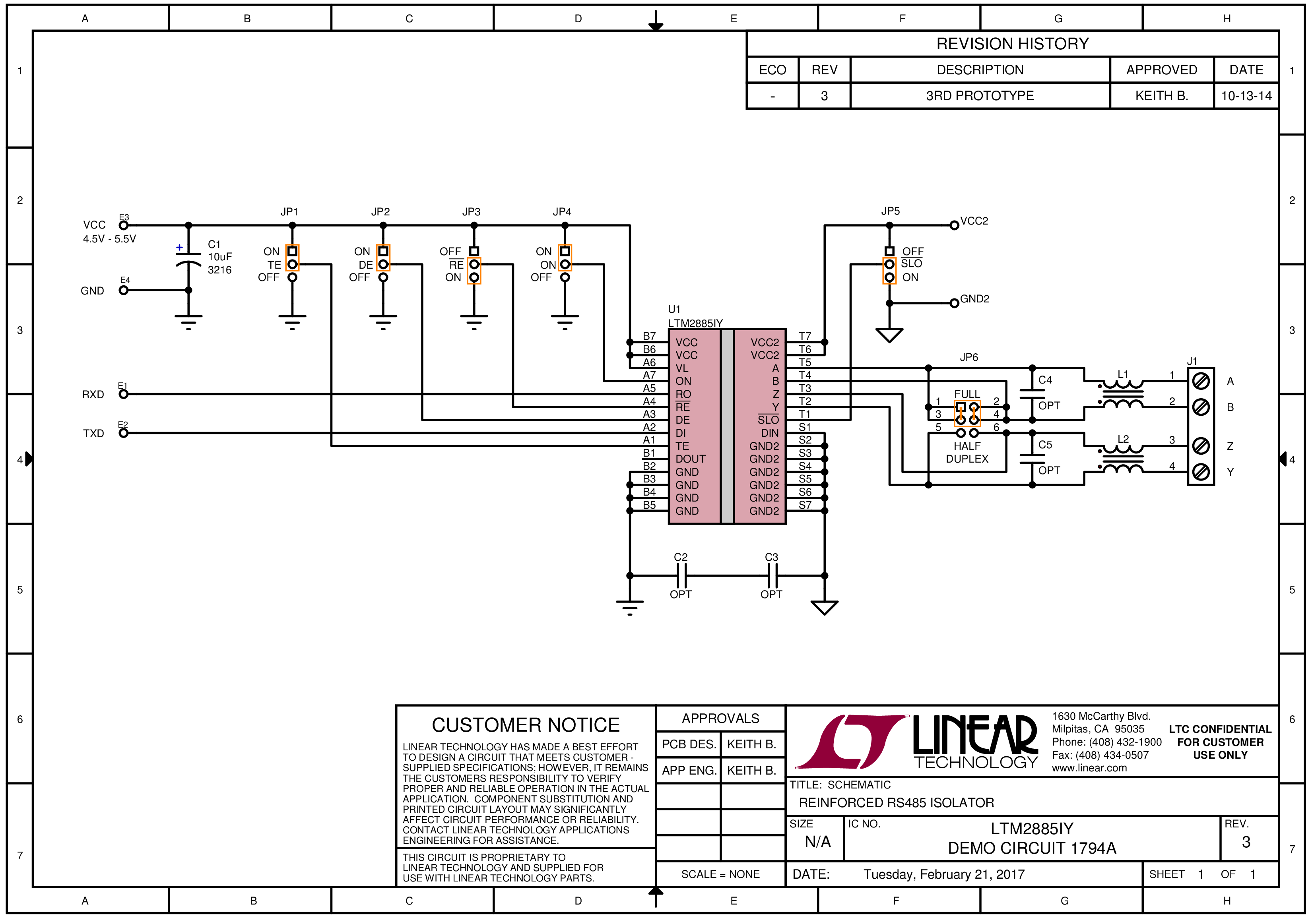

Demonstration circuit 1794A is an isolated RS485/RS422 μModule® transceiver + power featuring the LTM2885. The demo circuit is a 6500VRMS galvanically isolated RS485/ RS422 transceiver interface. The demo circuit features an EMI optimized circuit configuration and printed circuit board layout. The demo circuit operates from a single external supply on VCC. The part generates the output voltage VCC2 and communicates all necessary signaling across the isolation barrier using LTC’s isolator μModule technology.
