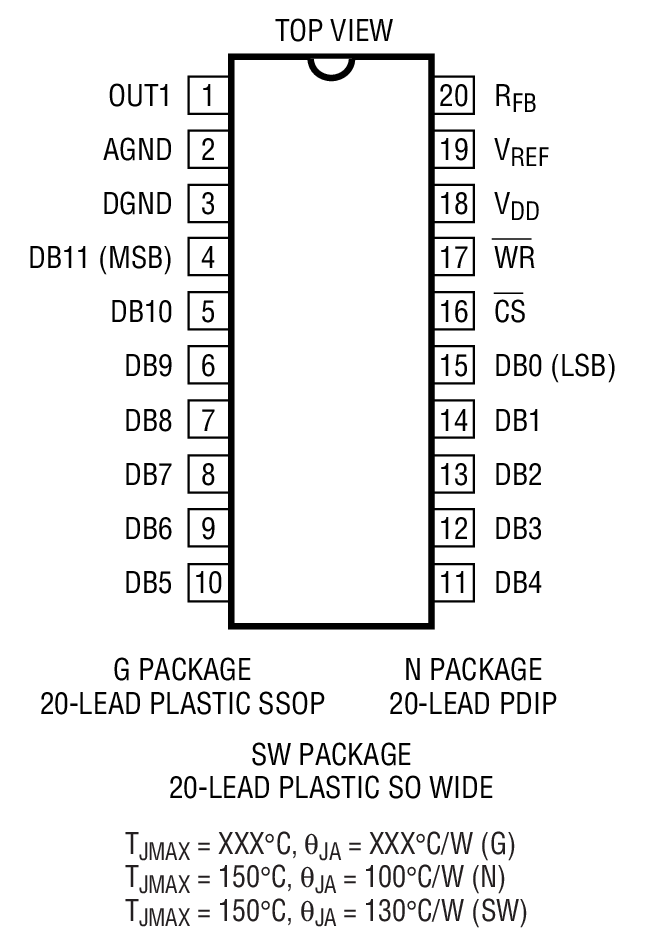

Improved Industry Standard Parallel 12-Bit Multiplying DAC

PRODUCTION

2-Quadrant Multiplying DAC Has Less Than 0.5LSB (Typ) Total Unadjusted Error slide

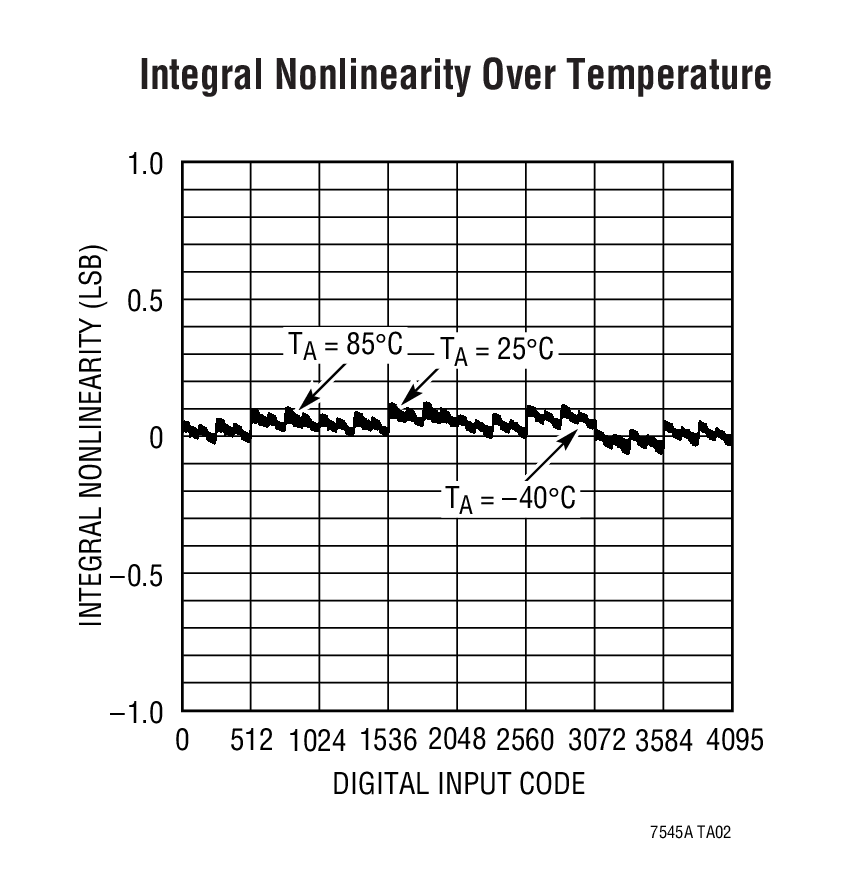

Integral Nonlinearity Over Temperature slide

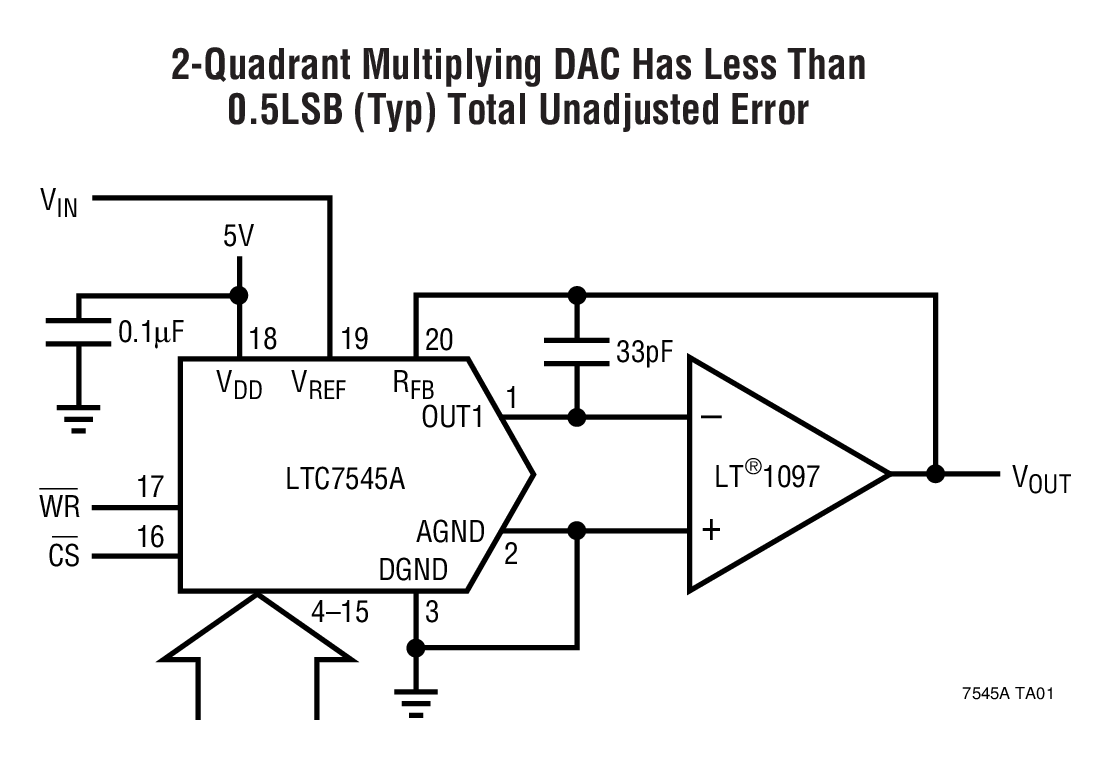

2-Quadrant Multiplying DAC Has Less Than 0.5LSB (Typ) Total Unadjusted Error
