Features and Benefits

  • Improved Direct Replacement for AD7543 and DAC-8143
  • Low Cost

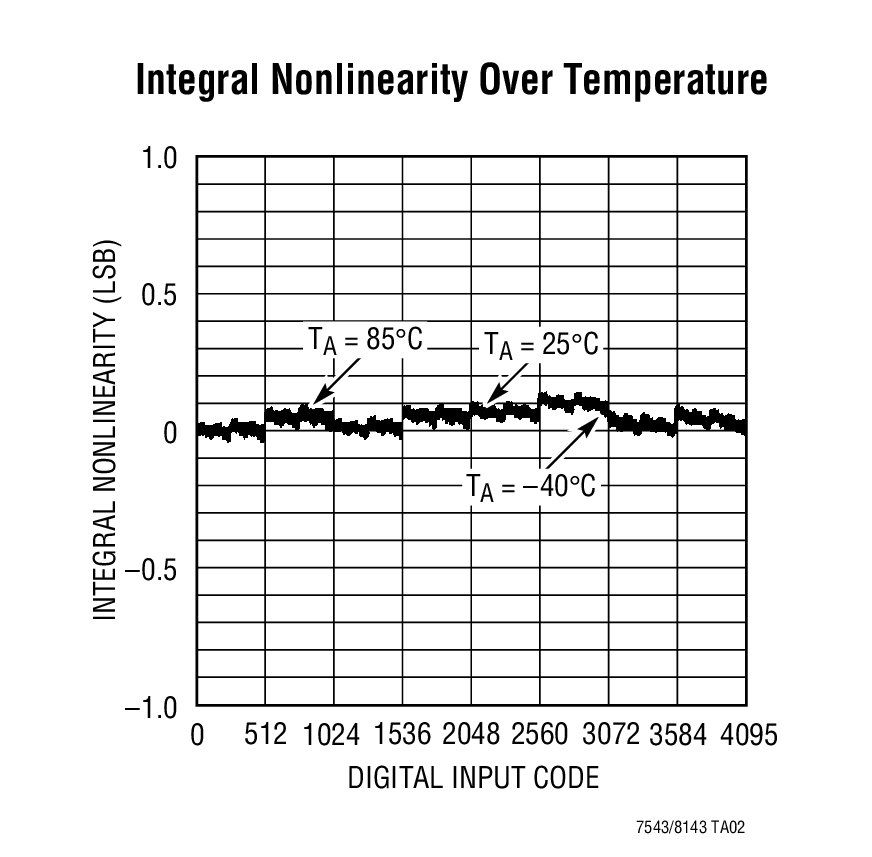

  • DNL and INL Over Temperature: ±0.5LSB
  • Easy, Fast and Flexible Serial Interface
  • Daisy-Chain 3-Wire Interface for Multiple DAC Systems (LTC8143)
  • 1LSB Maximum Gain Error Over Temperature Eliminates Adjustment
  • Asynchronous Clear Input for Initialization
  • Four-Quadrant Multiplication
  • Low Power Consumption

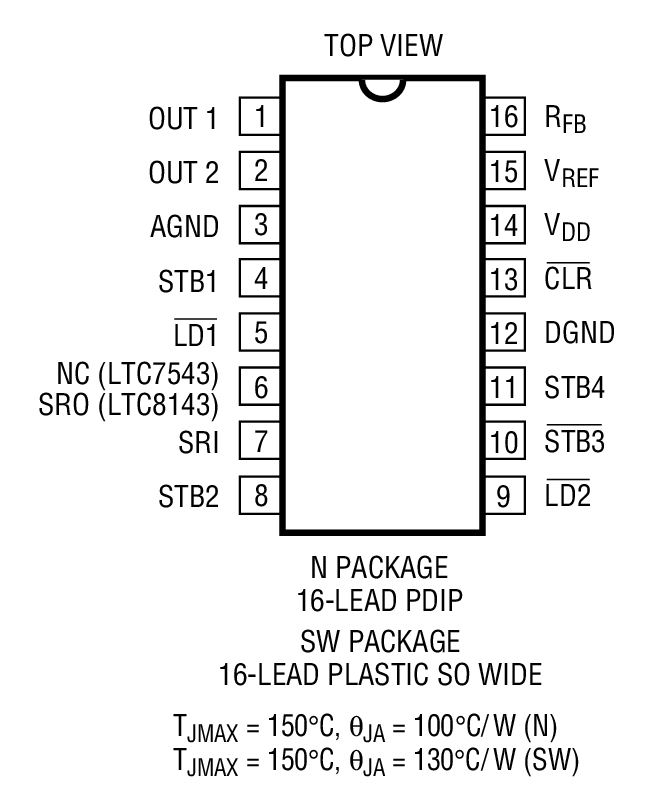

  • 16-Pin PDIP and SO Packages

Product Details

The LTC7543/LTC8143 are serial-input 12-bit multiplying digital-to-analog converters (DACs). They are superior pin compatible replacements for the AD7543 and DAC-8143. Improvements include better accuracy, better stability over temperature and supply variations, lower sensitivity to output amplifier offset, tighter timing specifications and lower output capacitance.

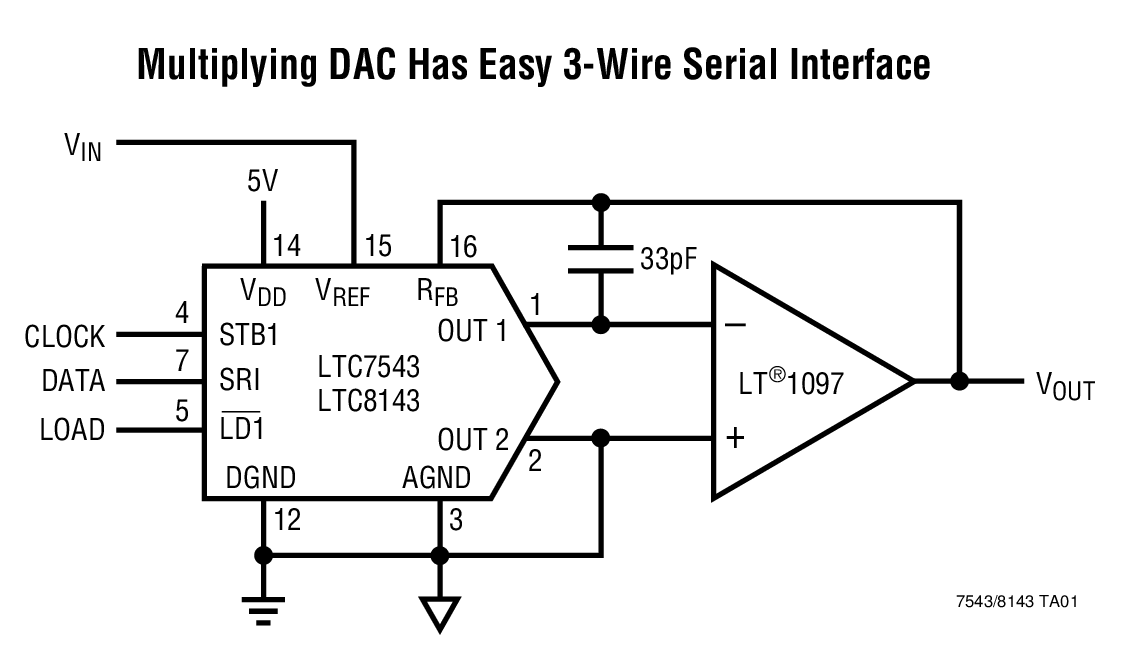

An easy-to-use serial interface includes an asynchronous CLEAR input for systems requiring initialization to a known state. The LTC8143 has a serial data out put to allow daisy-chaining multiple DACs on a 3-wire interface bus.

These DACs are extremely versatile. They can be used for 2-quadrant and 4-quadrant multiplying, programmable gain and single supply applications, such as noninverting voltage output and biased or offset ground mode.

Parts are available in 16-pin PDIP and SO packages and are specified over the extended industrial temperature range, −40°C to 85°C.


  • Process Control and Industrial Automation
  • Remote Microprocessor-Controlled Systems
  • Digitally Controlled Filters and Power Supplies
  • Programmable Gain Amplifiers
  • Automatic Test Equipment

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

Precision DAC Error Budget Tool

The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
