LTC7106

A 7-Bit Current DAC with PMBus Interface

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.A)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $1.53
Features
  • ±0.8% IDAC Positive Output Current Accuracy (Over Temp)
  • ±1.5% IDAC Negative Output Current Accuracy (Over Temp)
  • PMBus/I2C Compliant Serial Interface
  • Input Voltage Range: 2.5V to 5.5V
  • High Impedance at IDAC Output When Disabled
  • Wide IDAC Operation Voltage (0.4V to 2.0V)
  • 7-Bit Programmable DAC Output Current for DC/DC VOUT Control
  • Wide Range IDAC Output Current: ±16μA to ±256μA
  • Programmable Slew Rate: 500ns ~ 3ms per Bit

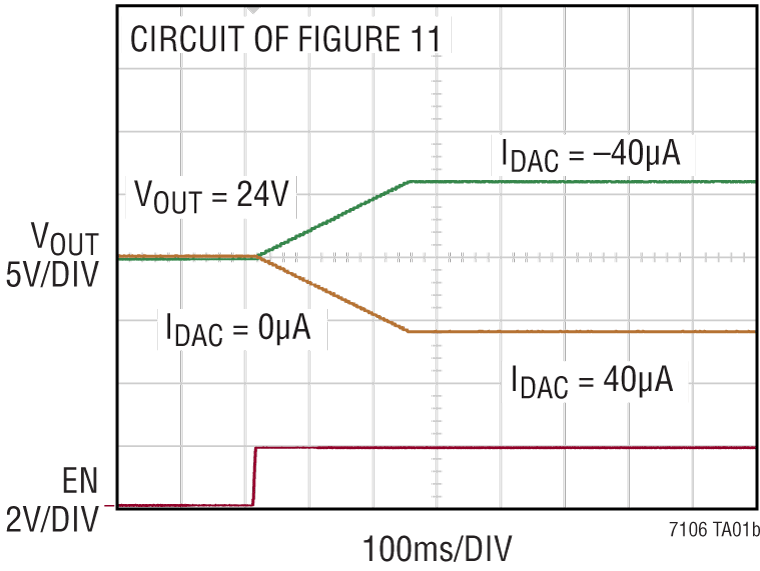

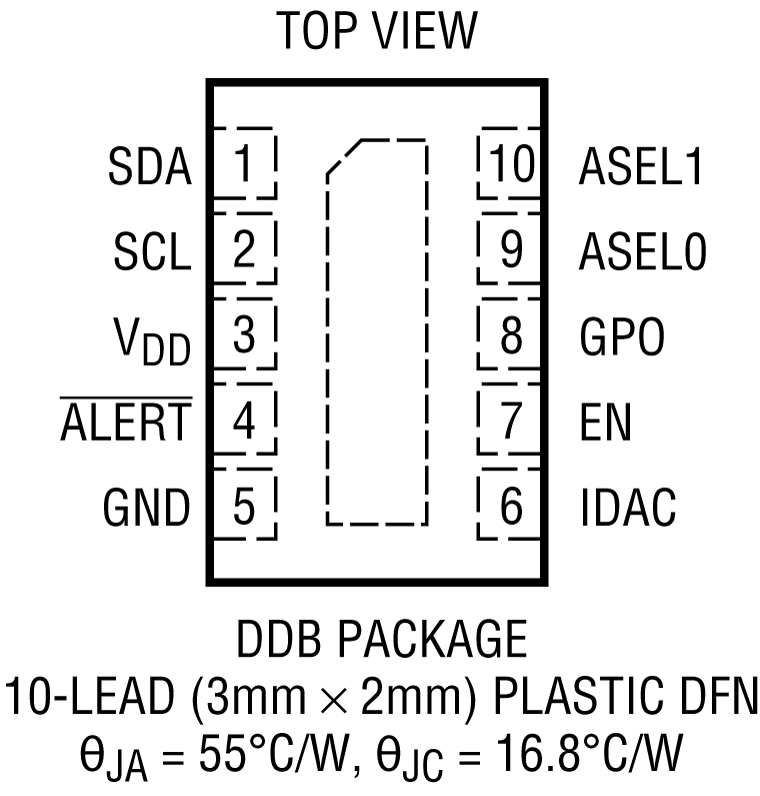

  • Available in a 10-Lead (3mm × 2mm) DFN Package
Additional Details
show more Icon

The LTC7106 is a precision, PMBus controlled, bidirectional current digital-to-analog converter that adjusts the output voltage of any conventional VFB referenced regulator. The LTC7106 can work with the vast majority of power management controllers or regulators to enable digital control of the output voltage. Internal power-on reset circuitry keeps the DAC output current at zero (high impedance IDAC) until a valid write takes place. Features include a range bit for easy interfacing to almost any impedance resistor divider, and an open-drain GPO output for controlling the Run or Enable pin of the DC/DC regulator. For most applications, the current DAC error is significantly attenuated with proper design. See more detail about VOUT accuracy in the Applications Information section of this data sheet. The LTC7106 is supported by the ADI LTpowerPlay® development tool with graphical user interface (GUI).

Applications

  • General Purpose Power Systems
  • Telecom Systems
  • Industrial Applications
Show More Arrow image
file View Data Sheet (Rev.A)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $1.53
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC7106

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Evaluation Design File
  • Informational
  • Data Sheet
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/01/2017
English

LTC7106: A 7-Bit Current DAC with PMBus Interface Data Sheet (Rev.A)

Open PDF File

redirect
1.66 M
download

Download PDF

PDF Vector

PDF

UPDATED 02/01/2018
Japanese

LTC7106: PMBusインタフェースを備えた 7ビット電流D/Aコンバータ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 07/09/2019
English
DC2830A - Demo Manual (Rev.0) redirect icon

740.62 K

download

Download PDF

PDF Vector

PDF

UPDATED 02/08/2018
English
DC2620A - Demo Board Manual (Rev.B) redirect icon

1.00M

download

Download PDF

Evaluation Design File

1

PDF Vector

ZIP

UPDATED 05/01/2019
English
DC2830A - Design File redirect icon

4.4 M

download

Download PDF

Informational

2

PDF Vector

HTML

UPDATED 02/12/2018
English
Power Systems Management redirect icon

PDF Vector

HTML

UPDATED 02/12/2018
Japanese
パワー・システム・マネージメント(PSM) redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC7106EDDB#TRMPBF 10-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7106EDDB#TRPBF 10-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7106IDDB#TRMPBF 10-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC7106IDDB#TRPBF 10-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 18, 2020

- 20_0151

LTC7106 DIE REVISION

LTC7106EDDB#TRMPBF

PRODUCTION

LTC7106EDDB#TRPBF

PRODUCTION

LTC7106IDDB#TRMPBF

PRODUCTION

LTC7106IDDB#TRPBF

PRODUCTION

pdf

PCN20_0151_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 18, 2020

- 20_0151

arrow down

LTC7106 DIE REVISION

LTC7106EDDB#TRMPBF

PRODUCTION

LTC7106EDDB#TRPBF

PRODUCTION

LTC7106IDDB#TRMPBF

PRODUCTION

LTC7106IDDB#TRPBF

PRODUCTION

pdf

PCN20_0151_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2975
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Input Current and Energy Measurement

Evaluation Kits 2

reference details image

DC2830A

LTC7106 and LTM4636 Demo Board | 7-Bit DAC with PMBus Controlled Step-Down μModule Regulator

zoom

DC2830A

LTC7106 and LTM4636 Demo Board | 7-Bit DAC with PMBus Controlled Step-Down μModule Regulator

download icon

Download

 print icon

Print
DC2830A
LTC7106 and LTM4636 Demo Board | 7-Bit DAC with PMBus Controlled Step-Down μModule Regulator
Buy Now View Details

Product Detail

Demonstration circuit 2830A features the LTM4636EY, a 40A high efficiency, switch mode step-down µModule® regulator which is controlled by the LTC7106EDDB, a precision, bidirectional, 7-Bit current DAC with PMBus interface. The LTC7106 is used to adjust the output voltage of the LTM4636 by way of the PMBus. The LTM4636’s input voltage range is from 4.7V to 15V and the output voltage range is from 0.6V to 3.3V. De-rating is necessary for certain VIN, VOUT, frequency and thermal conditions. The LTC7106 requires an input voltage from 2.5V to 5.5V and on DC2830A it’s powered directly from the DC1613A dongle. The LTC7106 provides three ranges of IDAC output current: Nominal Range (–64µA to 63µA), Range High (–256µA to 252µA) and Range Low (–16µA to 15.75µA). The nominal range is optimized with the highest accuracy. It is recommended that users design the resistor divider using the nominal range of the IDAC setting.

To explore the power system management features of the LTC7106, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus Dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly, view IDAC current value and fault status.

The LTM4636 and LTC7106 data sheets must be read in conjunction with this demo manual prior to working on or modifying demo circuit DC2830A.

Resources

pdf icon

PDF

DC2830A - Schematic Download

35.08 K

pdf icon

PDF

DC2830A - Demo Manual (Rev.0) Download

740.62 K

pdf icon

ZIP

DC2830A - Design File Download

4.4 M

Show More Arrow image
reference details image

DC2620A

LTC7106 A 7-Bit Current DAC with Digital PMBus Interface

zoom

DC2620A

LTC7106 A 7-Bit Current DAC with Digital PMBus Interface

download icon

Download

 print icon

Print
DC2620A
LTC7106 A 7-Bit Current DAC with Digital PMBus Interface
Buy Now View Details

Product Detail

Demonstration circuit 2620A-A uses the LTC7106, a precision, bidirectional, 7-Bit current DAC with PMBus interface and can be used to adjust the output voltage of any conventional VFB referenced regulator. The LTC7106 can work with the vast majority of power management controllers, regulators or modules to enable digital control of the output voltage.

The DC2620A-A requires input voltage range from 2.5V to 5.5V, which can be powered either by external supply or directly from the DC1613A dongle. The LTC7106 provides three ranges of IDAC output current: Nominal Range (–64µA to 63µA), Range High (–256µA to 252µA) and Range Low (–16µA to 15.75µA). Only the nominal range is optimized with the highest accuracy. It is recommended that users design the resistor divider using the nominal range of the IDAC setting.

To explore the power system management features of the parts, download the GUI software LTpowerPlay onto your PC and use ADI’s I2C/SMBus/PMBus Dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly, view IDAC current value and fault status.

Resources

pdf icon

ZIP

DC2620A - Design Files Download

6.1 M

pdf icon

PDF

DC2620A - Demo Board Manual (Rev.B) Download

1.00M

pdf icon

PDF

DC2620A - Schematics Download

87.4 K

Show More Arrow image

Evaluation Kits2

evaluation kit item images

DC2830A

LTC7106 and LTM4636 Demo Board | 7-Bit DAC with PMBus Controlled Step-Down μModule Regulator
evaluation kit item images

DC2620A

LTC7106 A 7-Bit Current DAC with Digital PMBus Interface
