LTC6912

PRODUCTION

Dual Programmable Gain Amplifiers with Serial Digital Interface

Part Models: 20
1ku List Price: Starting From $2.86

Viewing:

Overview

2 Channels with Independent Gain Control
- LTC6912-1: (0, 1, 2, 5, 10, 20, 50, and 100V/V)
- LTC6912-2: (0, 1, 2, 4, 8, 16, 32, and 64V/V)
Offset Voltage = 2mV Max (–40°C to 85°C)
Channel-to-Channel Gain Matching of 0.1dB Max
3-Wire SPI^TM Interface
Extended Gain-Bandwidth at High Gains
Wired-OR Outputs Possible (2:1 Analog MUX Function)
Low Power Hardware Shutdown (GN-16 Only, 2µA Max at 2.7V)
Rail-to-Rail Input Range
Rail-to-Rail Output Swing
Single or Dual Supply: 2.7V to 10.5V Total
Input Noise: 12.6nV/√Hz
Total System Dynamic Range to 115dB
16-Pin GN (SSOP) or 12-Pin DFN Package Options

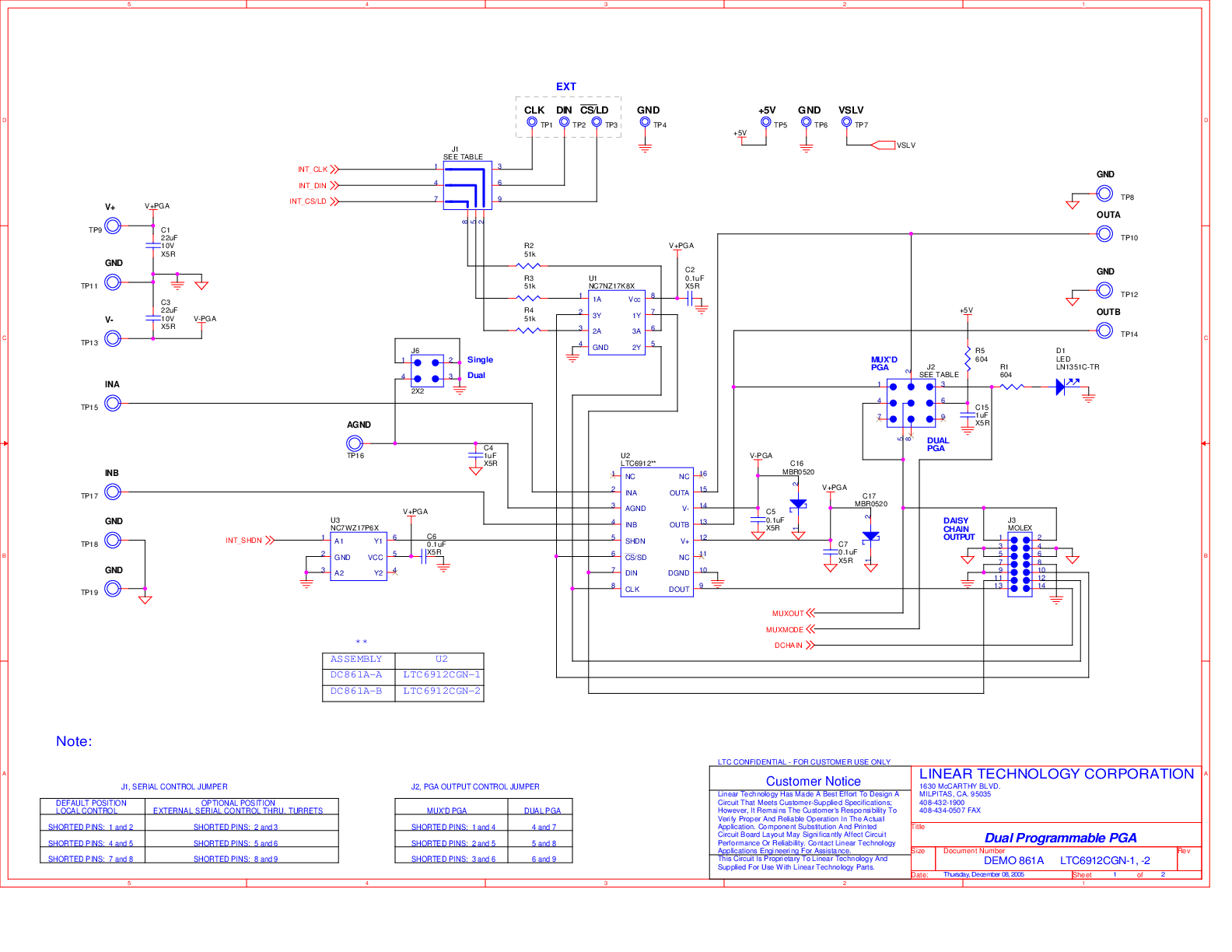

The LTC6912 is a family of dual channel, low noise, digitally programmable gain amplifiers (PGA) that are easy to use and occupy very little PC board space. The gains for both channels are independently programmable using a 3-wire SPI interface to select voltage gains of 0, 1, 2, 5, 10, 20, 50, and 100V/V (LTC6912-1 ); and 0, 1, 2, 4, 8, 16, 32, and 64V/V (LTC6912-2). All gains are inverting.

The LTC6912 family consists of 2 matched amplifiers with rail-to-rail outputs. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V total, the LTC6912-X family is offered in tiny SSOP and DFN-12 Packages.

Applications

Data Acquisition Systems
Dynamic Gain Changing
Automatic Ranging Circuits
Automatic Gain Control

Part Models: 20
1ku List Price: Starting From $2.86

Documentation
