Features and Benefits
- Wide Supply Range: 4V to 60V with 70V Absolute Maximum
- Low Offset Voltage: ±450µV Maximum
- Fast Response: 1µs Response Time
- Gain Configurable with External Resistors; Each Direction is Gain Configurable
- Low Input Bias Current: 170nA Maximum
- PSRR: 110dB Minimum
- Output Current: ±1mA Maximum
- Low Supply Current: 520µA, VS = 12V
- Specified for –40°C to 125°C Temperature Range
- Available in an 8-Lead MSOP Package
The LTC6104 is a versatile, high voltage, high side, bidirectional current sense amplifier. Design flexibility is provided by the excellent device characteristics: ±450µV maximum offset and only 520µA of current consumption (typical at 12V). The LTC6104 operates on supplies from 4V to 60V.
The LTC6104 monitors bi-directional current via the voltage across an external sense resistor (shunt resistor). This sense voltage is then translated into a ground referenced signal. Gain is set with three external resistors and can be separately configured for both directions. Low DC offset allows the use of a small shunt resistor and large gain-setting resistors. As a result, power loss in the shunt is minimal.
The wide operating supply range and high accuracy make the LTC6104 ideal for a wide variety of automotive, industrial and power management applications. A maximum input sense voltage of 500mV allows a wide range of currents to be monitored. The fast response makes the LTC6104 the perfect choice for load current warnings and shutoff protection control. With very low supply current, the LTC6104 is suitable for power sensitive applications.
The LTC6104 is available in an 8-lead MSOP package.
- Current Shunt Measurement
- Battery Monitoring
- Remote Sensing
- Power Management
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

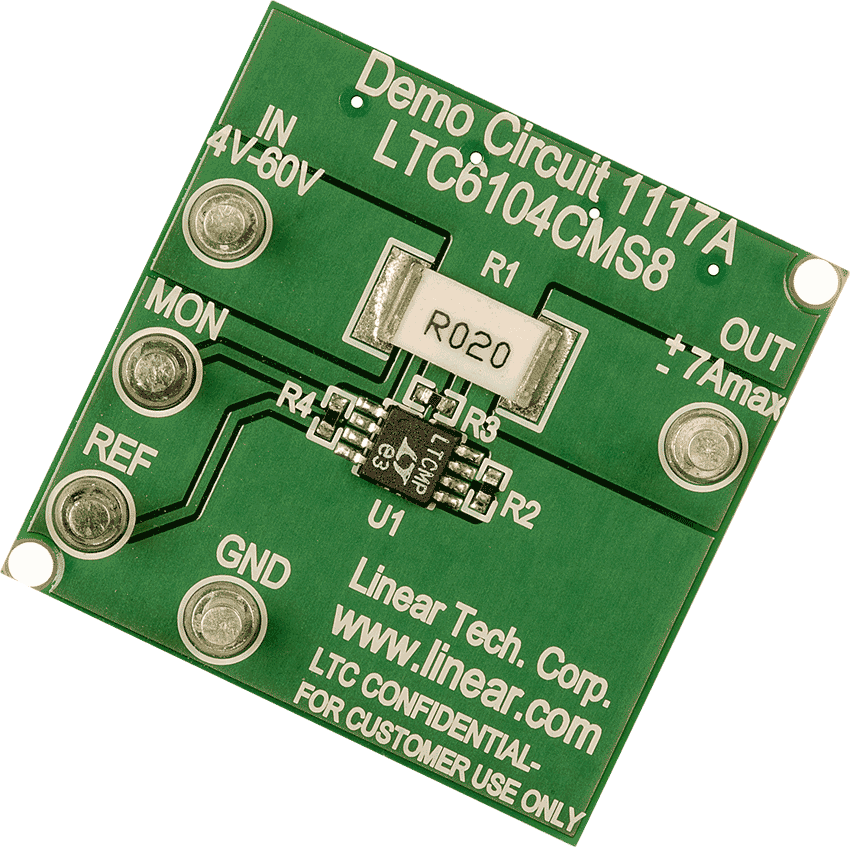

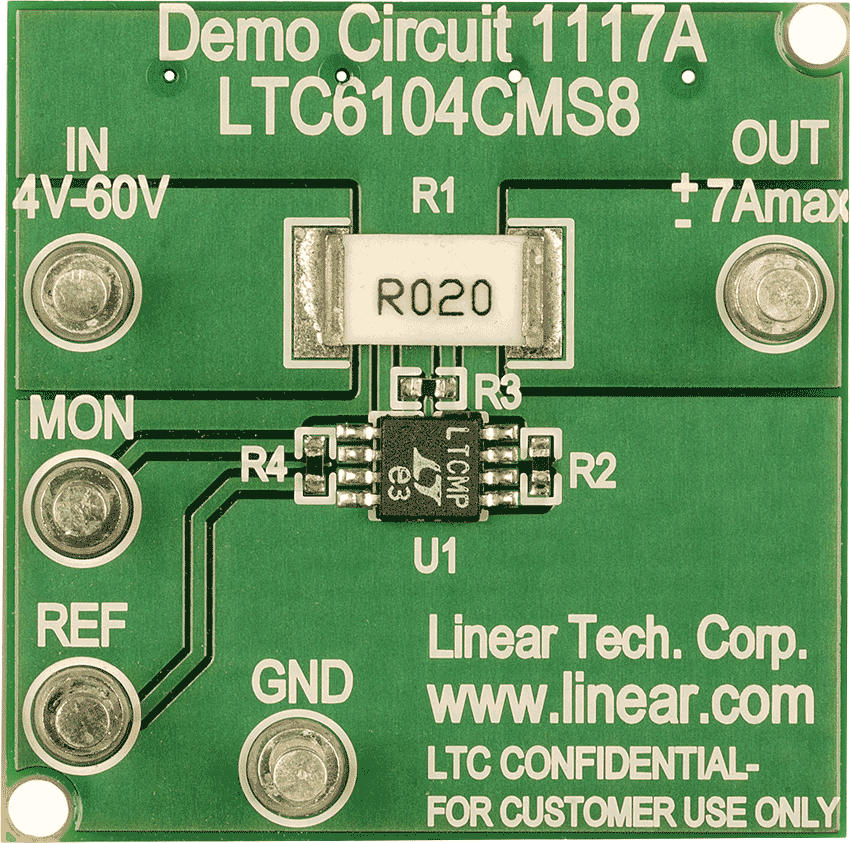

DC1117A: Demo Board for the LTC6104 High Voltage, High Side, Bi-Directional Current Sense Amplifier
