Overview

Features and Benefits

  • Temperature Compensated Internal Schottky Diode RF Detector
  • Wide Input Frequency Range: 300MHz to 7GHz*
  • Wide Input Power Range: -32dBm to 10dBm
  • Buffered Detector Output with External Gain Control
  • Low Starting Voltage: 120mV ±35mV for Gain = 2X
  • Wide VCC Range of 2.7V to 6V
  • Low Operating Current: 500µA
  • Low Shutdown Current: <2µA
  • Available in a Low Profile (1mm) SOT-23 Package

Product Details

The LTC5530 is an RF power detector for RF applications operating in the 300MHz to 7GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small ThinSOT package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3xNiMH.

The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the VOUT pin. The output buffer gain is set via external resistors. A power saving shutdown mode reduces current to less than 2µA.

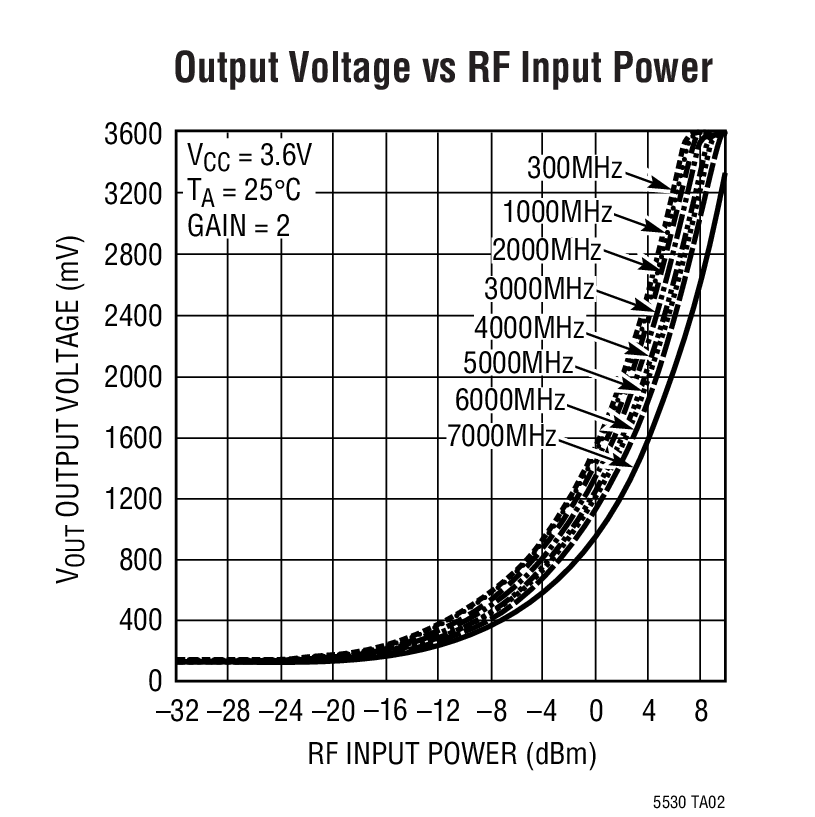

The LTC5530 operates with input power levels from -32dBm to 10dBm.

*Higher frequency operation is achievable with reduced performance. Consult factory for more information.

Applications

  • 802.11a, 802.11b, 802.11g, 802.15, 802.16
  • Multimode Mobile Phone Products
  • Optical Data Links
  • Wireless Data Modems
  • Wireless and Cable Infrastructure
  • RF Power Alarm
  • Envelope Detector

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Product Recommendations

LTC5530 Companion Parts

Recommended ADCs

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

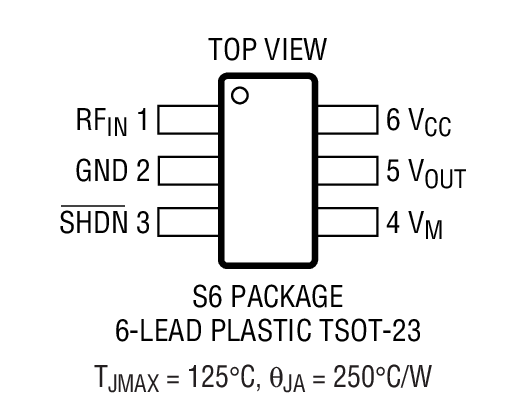

LTC5530ES6#TRMPBF Material Declaration Reliability Data 6-Lead TSOT-23
LTC5530ES6#TRPBF Material Declaration Reliability Data 6-Lead TSOT-23
Wafer Fabrication Data R450 Reliability Data
