LTC5507
PRODUCTION100kHz to 1GHz RF Power Detector
- Part Models
- 2
- 1ku List Price
- Starting From $2.38
Viewing:
Overview
- Temperature Compensated Internal Schottky Diode RF Detector
- Wide Input Power Range: -34dBm to 14dBm
- Ultra Wide Input Frequency Range: 100kHz to 1000MHz
- Buffered Output
- Wide VCC Range of 2.7V to 6V
- Low Operating Current: 550µA
- Low Shutdown Current: <2µA
- Low Profile (1mm) ThinSOT™ Package

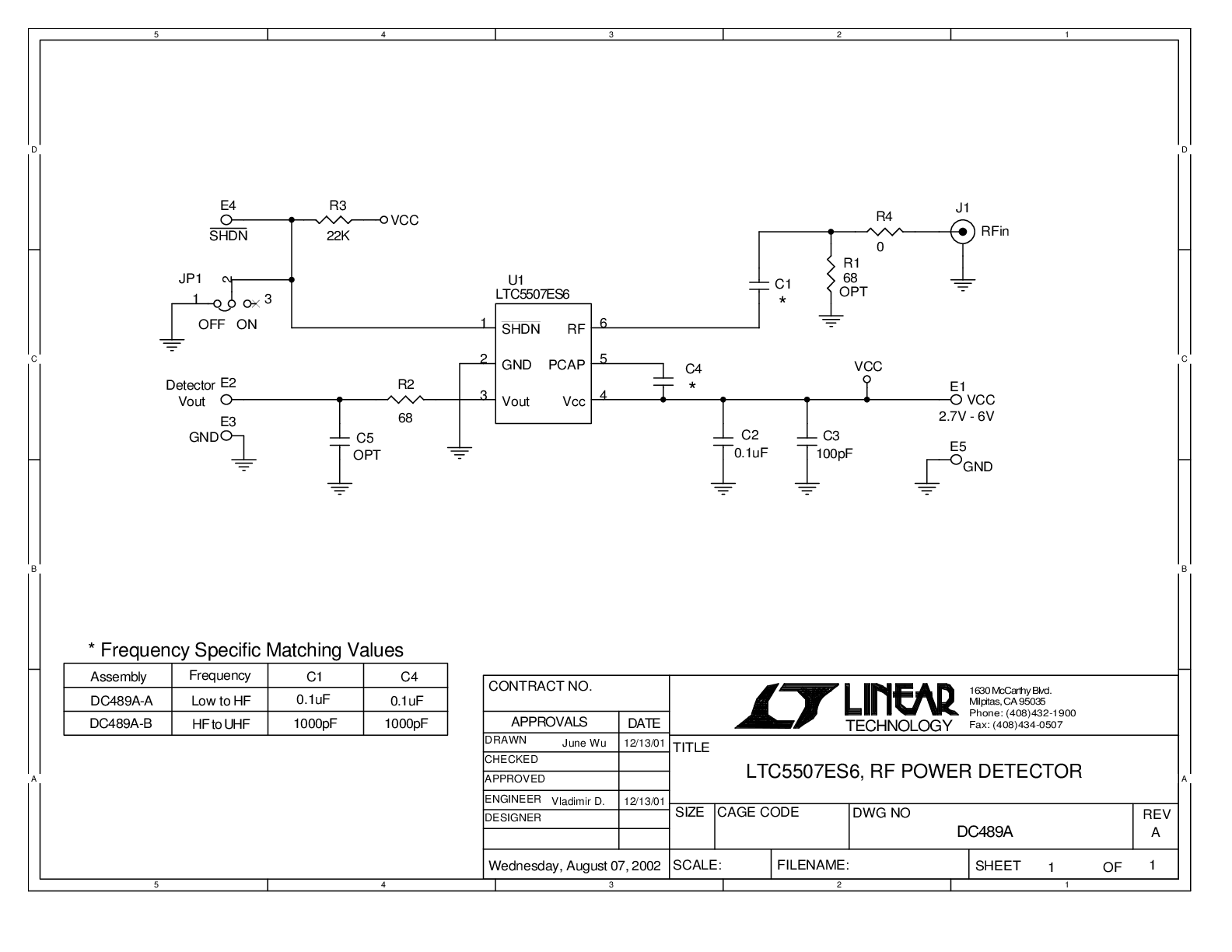

The LTC5507 is an RF power detector for applications operating from 100kHz to 1000MHz. The input frequency range is determined by an external capacitor. A temperature-compensated Schottky diode peak detector and buffer amplifier are combined in a small 6-pin ThinSOT package.
The RF input voltage is peak detected using an on-chip Schottky diode and external capacitor. The detected voltage is buffered and supplied to the VOUT pin. A power saving shutdown mode reduces supply current to less than 2µA.
Applications
- Wireless Transceivers
- Wireless and Cable Infrastructure
- RF Power Alarm
- Envelope Detector
Documentation
Data Sheet 1

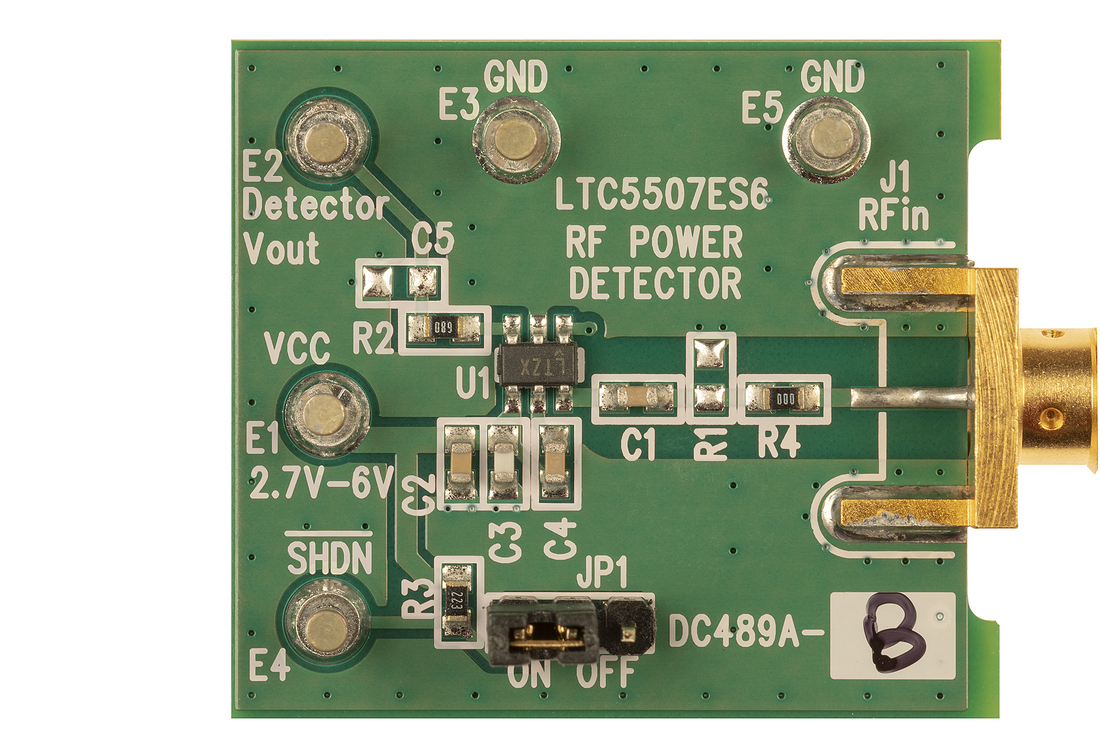

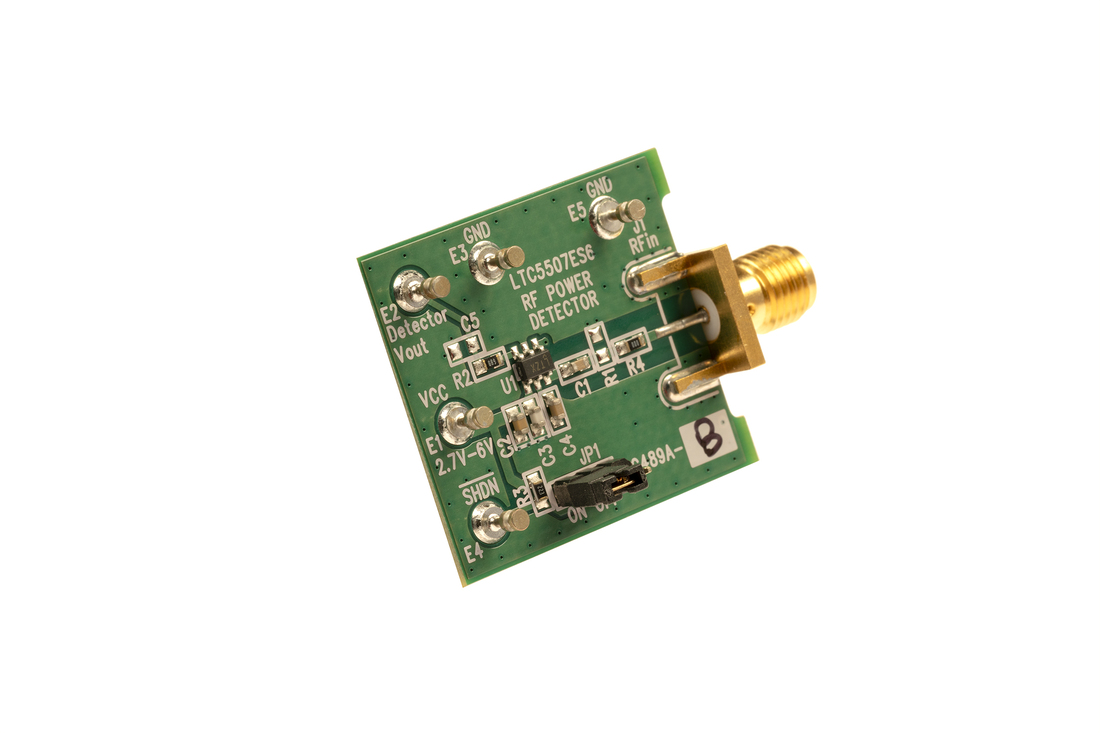

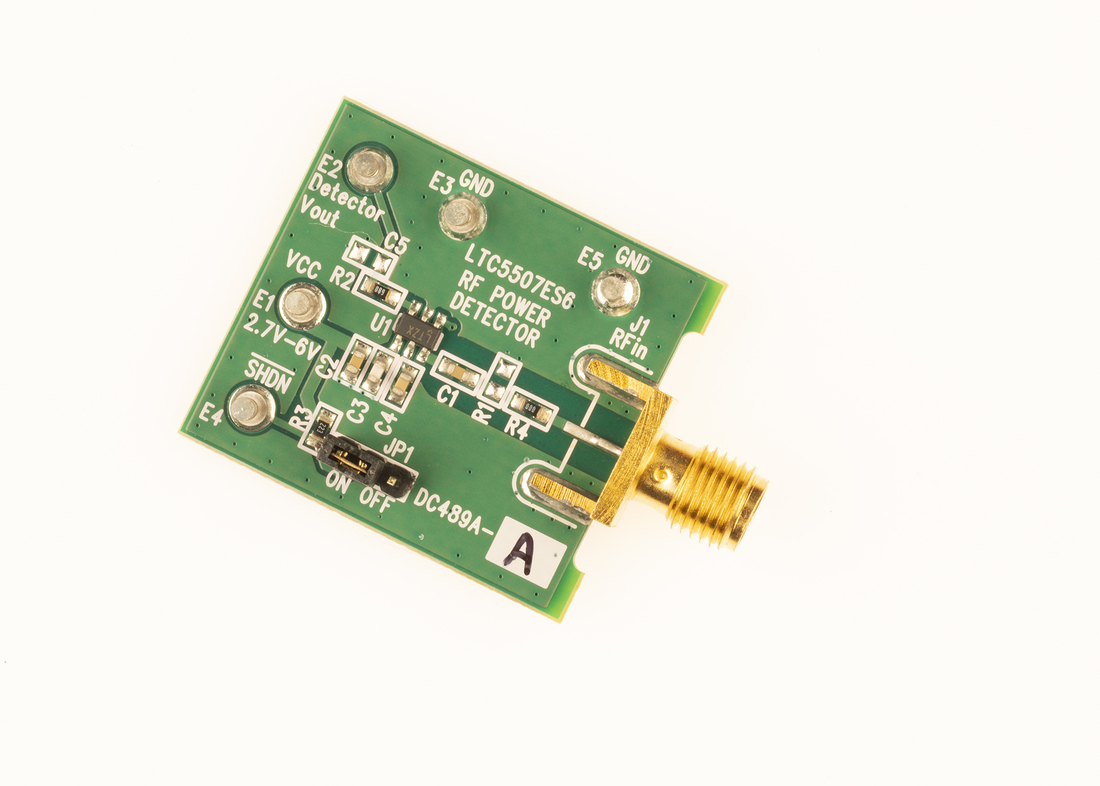

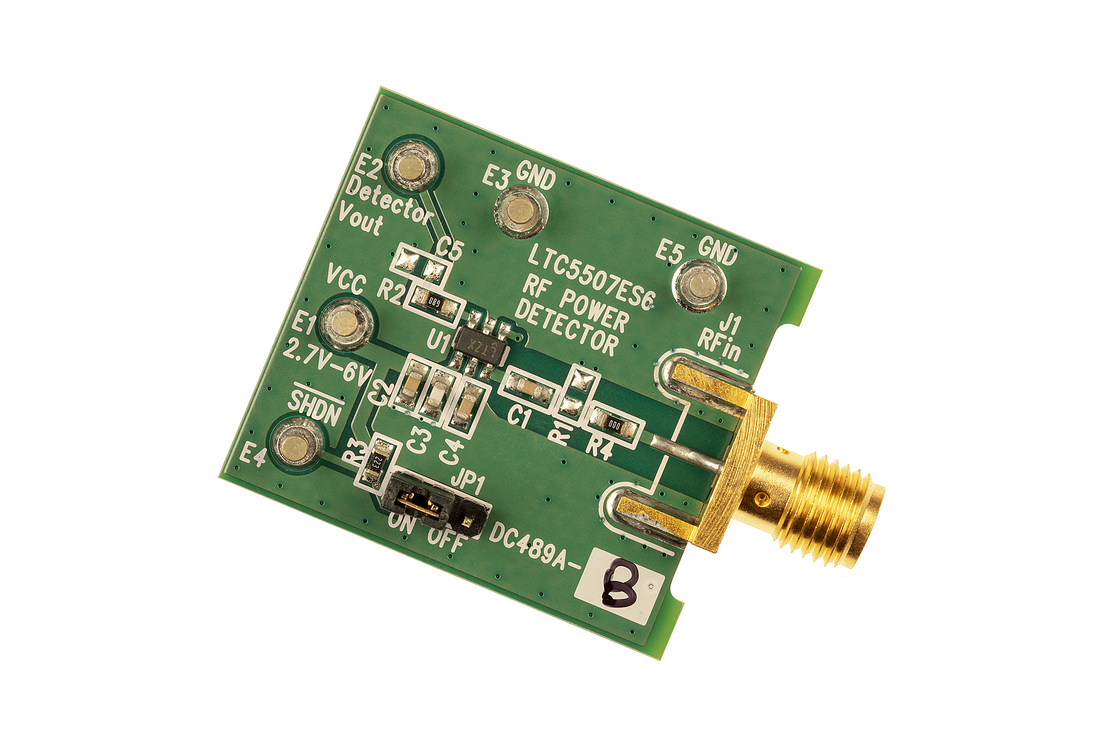

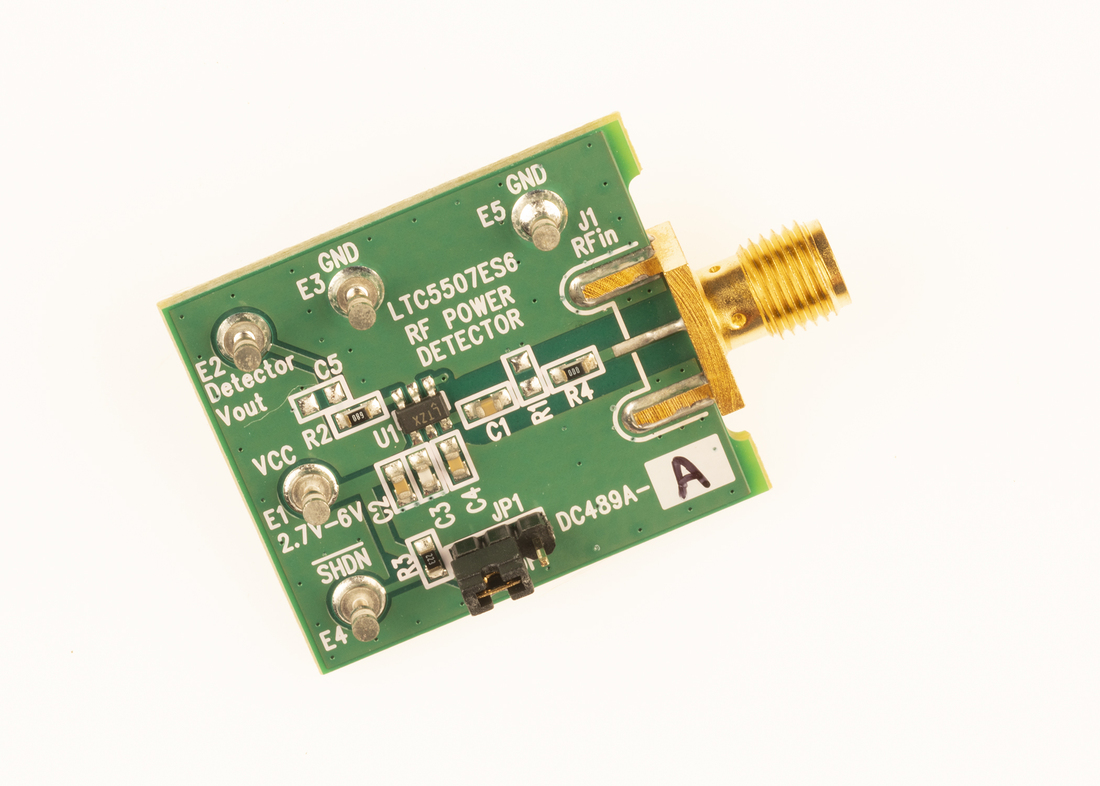

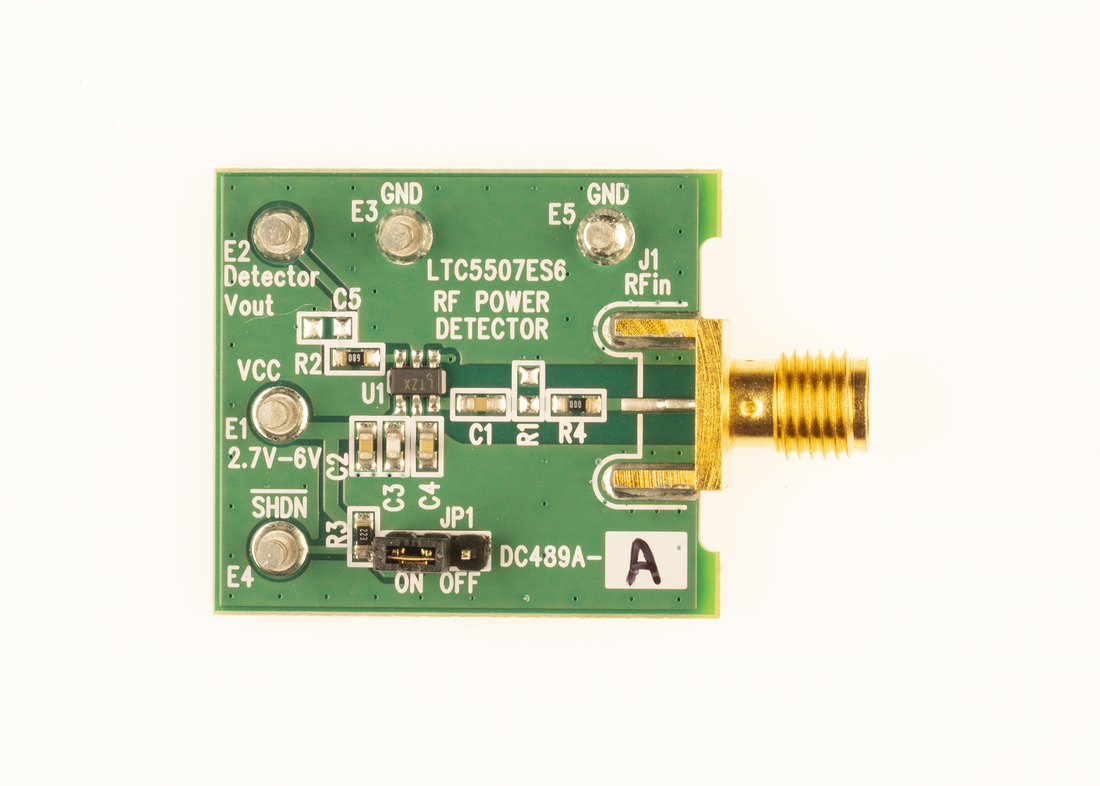

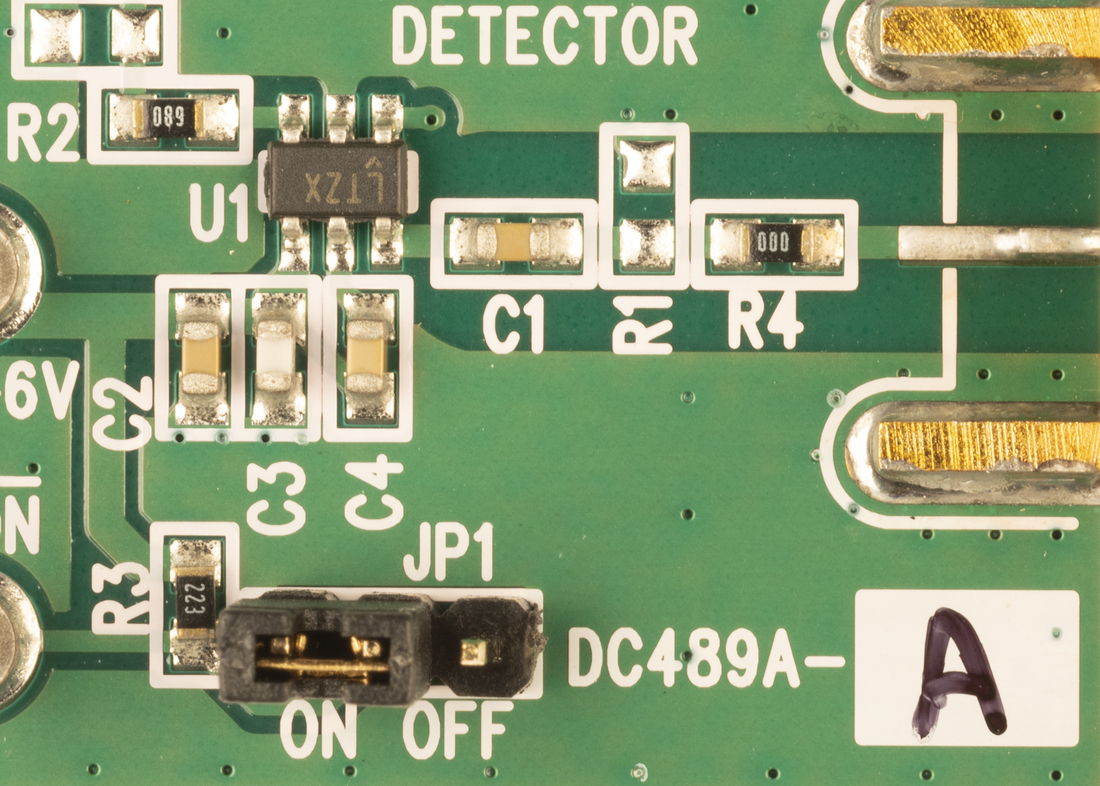

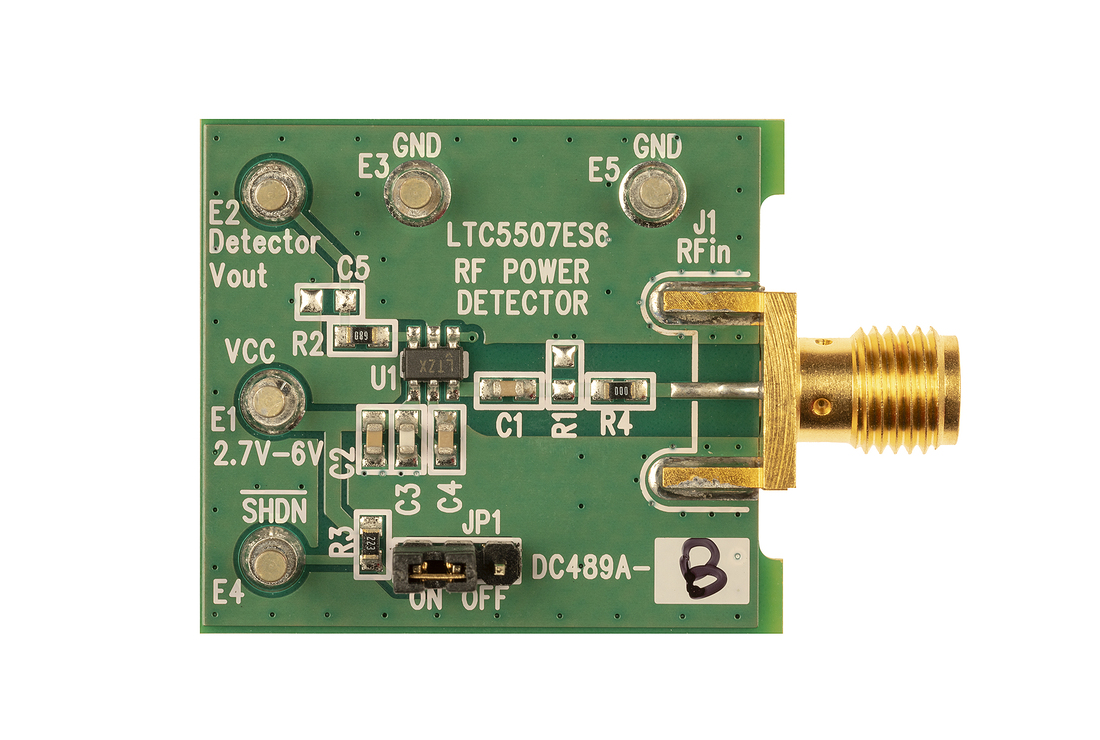

User Guide 1
Design Note 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC5507ES6#TRMPBF | 6-Lead TSOT-23 | ||
| LTC5507ES6#TRPBF | 6-Lead TSOT-23 |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| RF Power Detectors 1 | ||
| LT5537 | PRODUCTION | Wide Dynamic Range RF/IF Log Detector |
Tools & Simulations
LTspice
Models for the following parts are available in LTspice:
- LTC5507
S-Parameter 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
