Overview
Features and Benefits
- Low Frequency to 1000MHz Operation
- 83dB Dynamic Range with ±1dB Nonlinearity at 200MHz
- Sensitivity –76dBm or Better at 200MHz
- Log-Linear Transfer Slope of 20mV/dB
- Supply Voltage Range: 2.7V to 5.25V
- Supply Current: 13.5mA at 3V
- Tiny 8-Lead (3mm × 2mm) DFN Package
Product Details
The LT5537 is a wide dynamic range RF/IF detector, operational from below 10MHz to 1000MHz. The lower limit of the operating frequency range can be extended to near DC by the use of an external capacitor. The input dynamic range at 200MHz with ±3dB nonlinearity is 90dB (from –76dBm to 14dBm, single-ended 50Ω input). The detector output voltage slope is nominally 20mV/dB, and the typical temperature coefficient is 0.01dB/°C at 200MHz.
Applications
- Linear-to-Log Signal Level Conversion
- Received Signal Strength Indication (RSSI)
- RF Power Control
- RF/IF Power Detection
- Receiver RF/IF Gain Control
- Envelope Detection
- ASK Receiver
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R409 Reliability Data3/23/2018
-

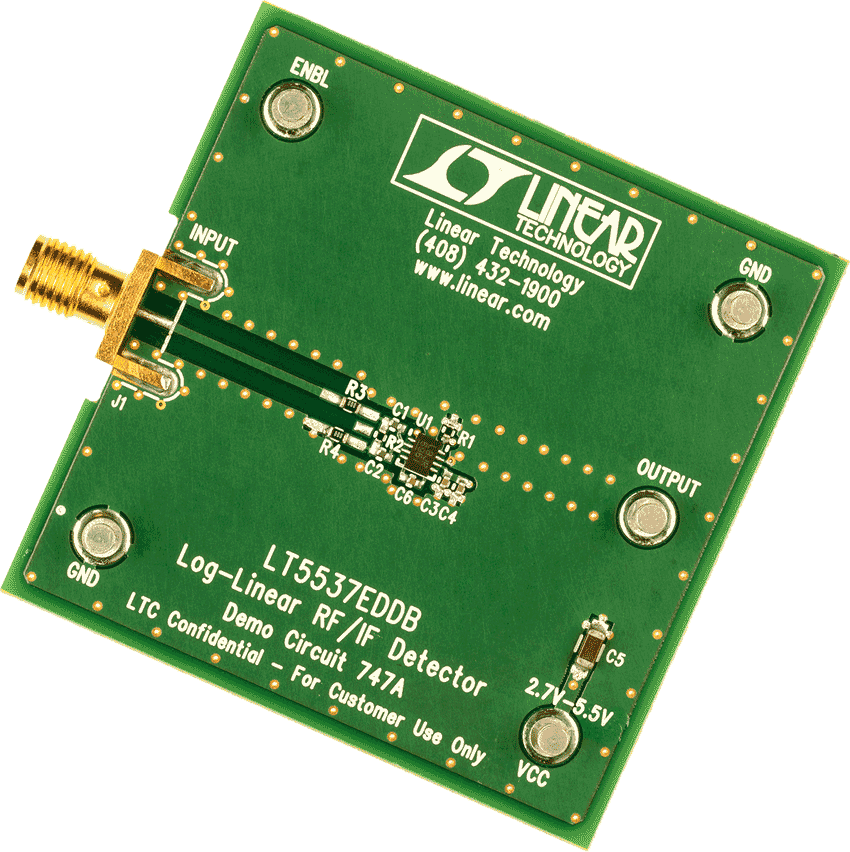

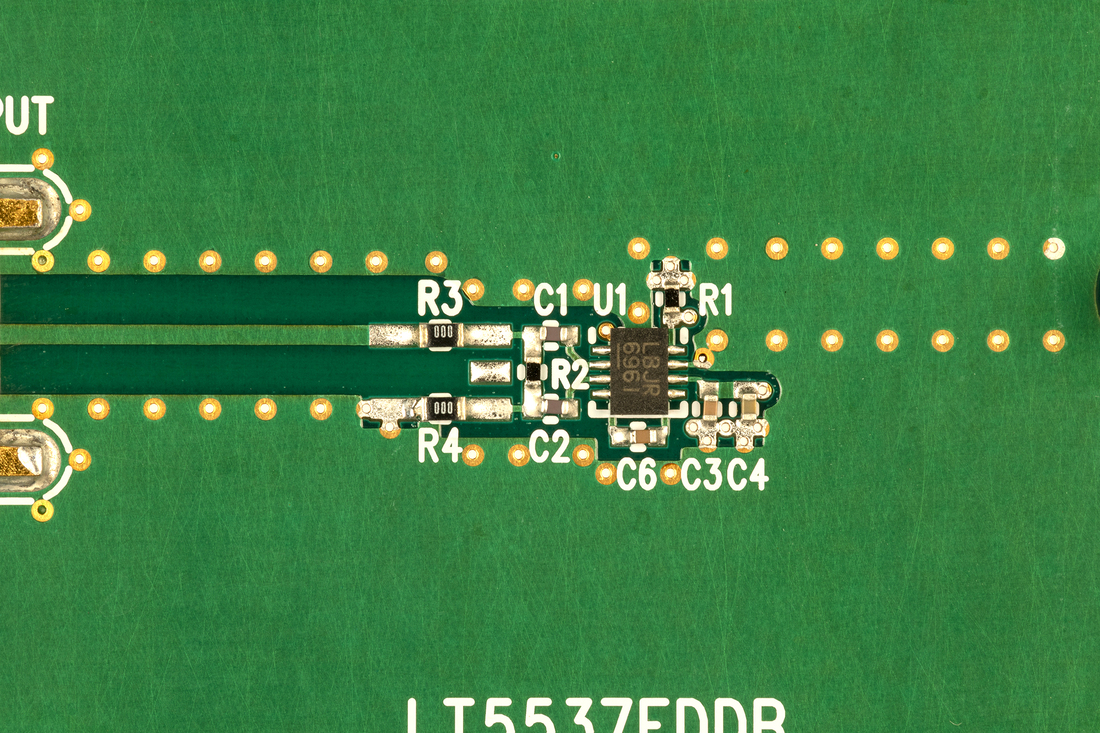

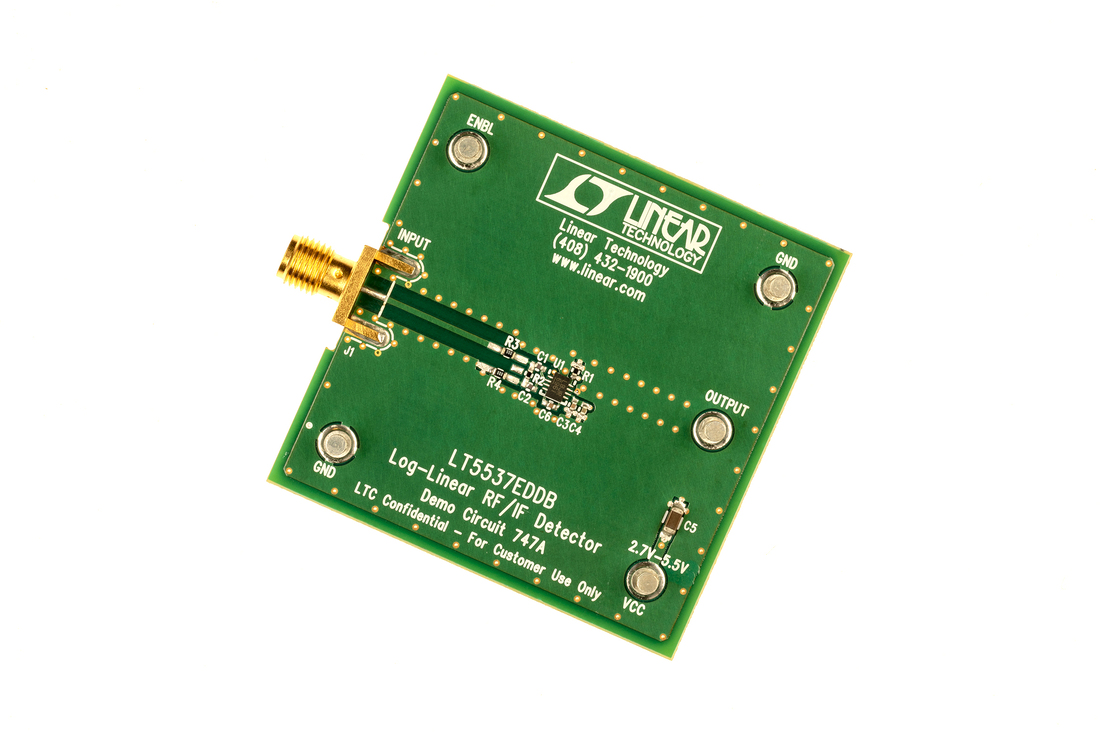

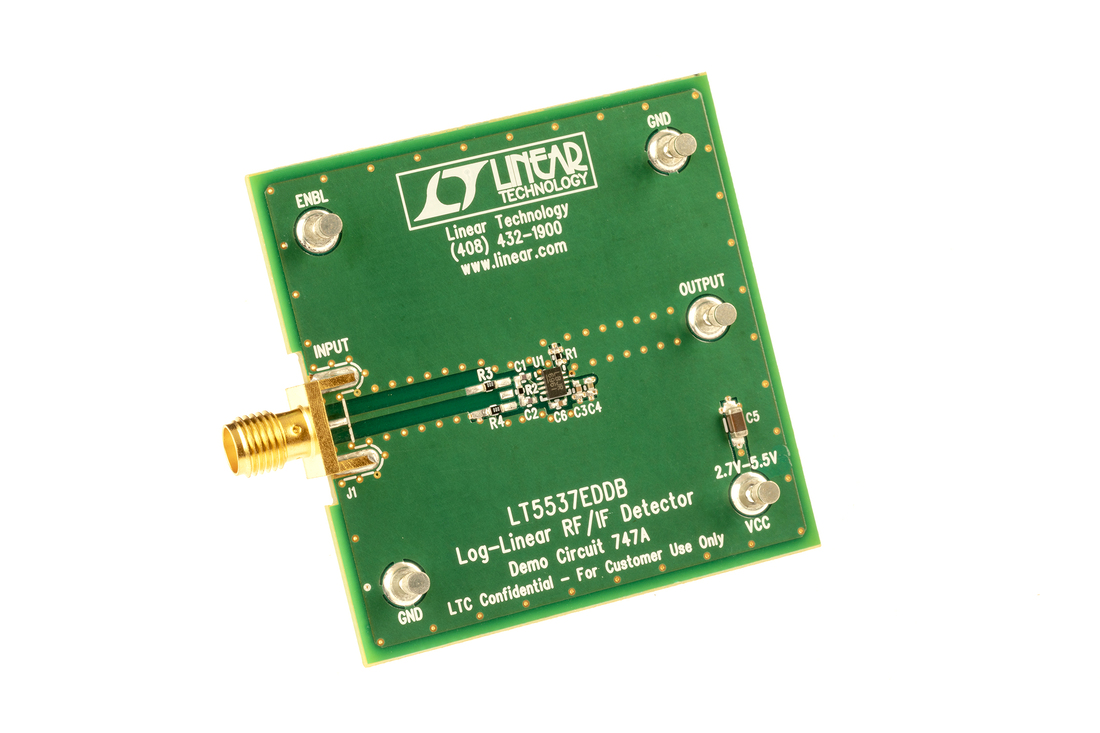

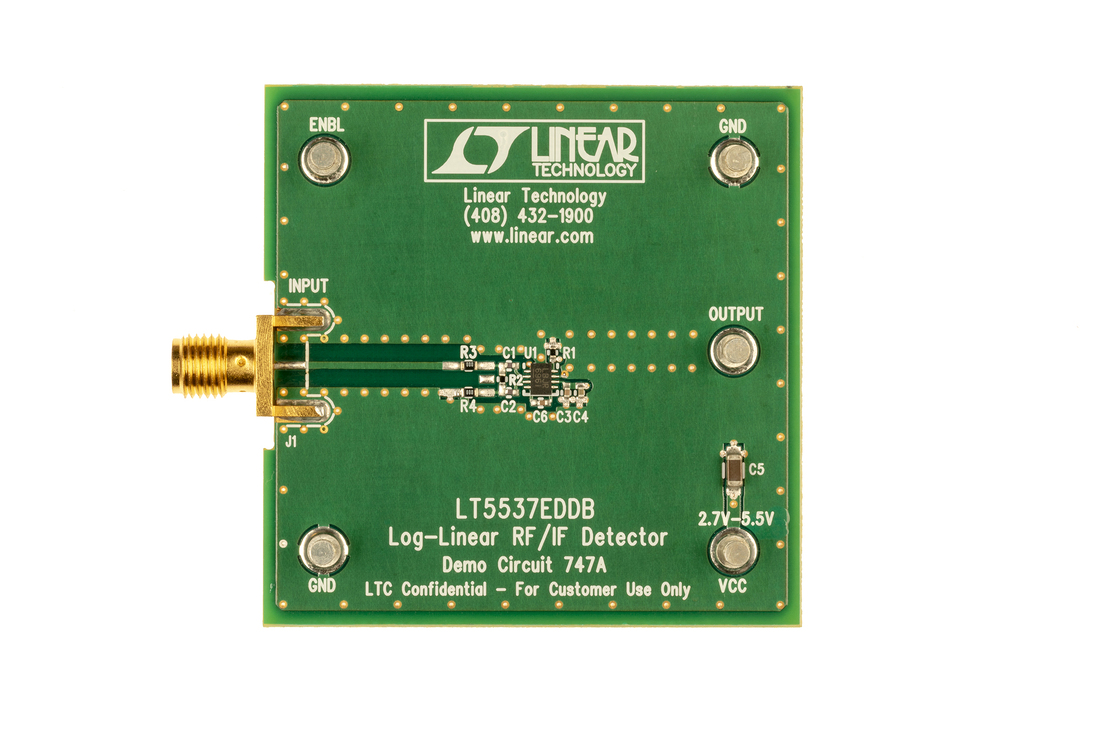

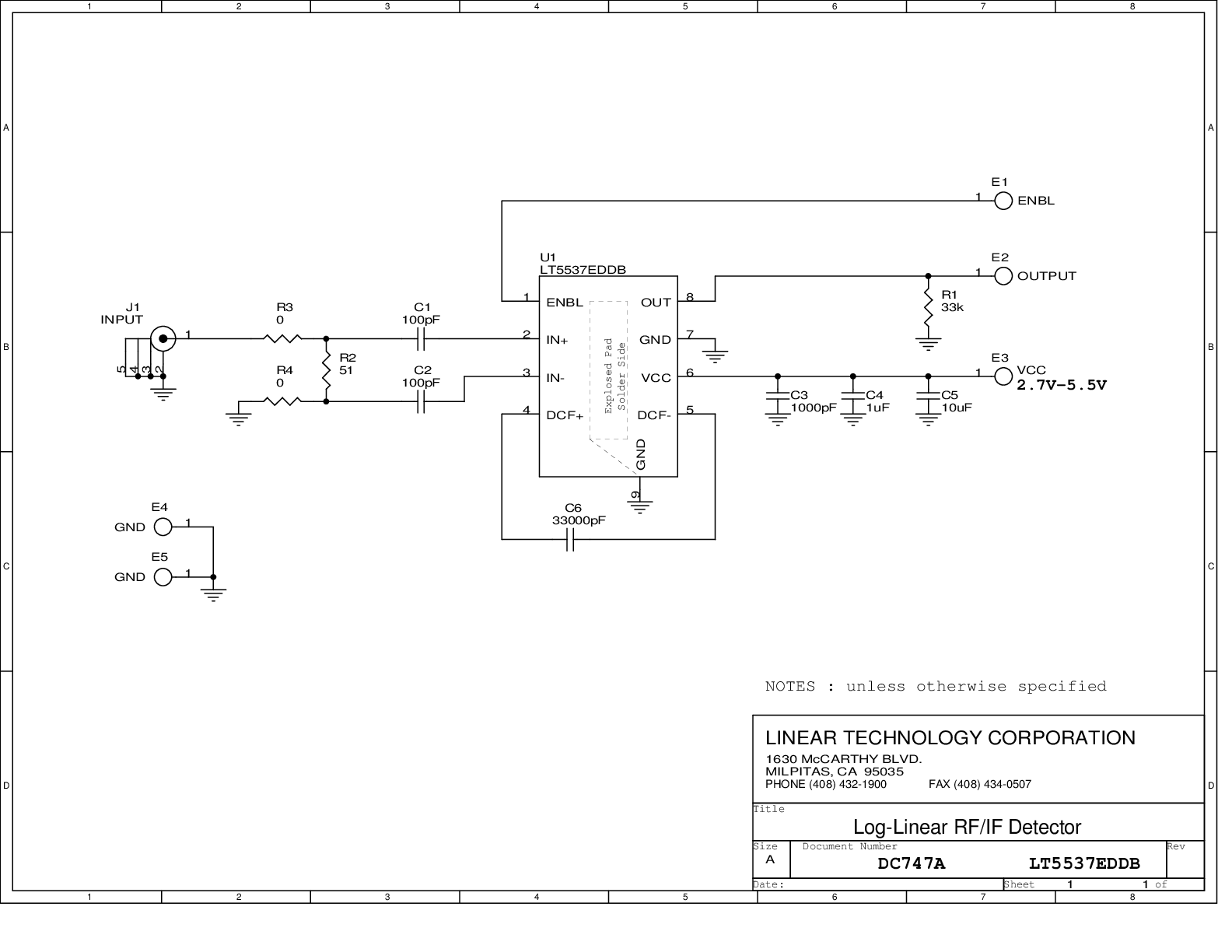

DC747A - Demo Manual9/24/2009
Product Recommendations
LT5537 Companion Parts
Recommended ADCs
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT5537EDDB#TRMPBF | Material Declaration | Reliability Data | 8-Lead DFN (3mm x 2mm w/ EP) | |
| LT5537EDDB#TRPBF | Material Declaration | Reliability Data | 8-Lead DFN (3mm x 2mm w/ EP) | |
| Wafer Fabrication Data | R409 Reliability Data |
