  5. LTC5507


Overview

Features and Benefits

  • Temperature Compensated Internal Schottky Diode RF Detector
  • Wide Input Power Range: -34dBm to 14dBm
  • Ultra Wide Input Frequency Range: 100kHz to 1000MHz
  • Buffered Output
  • Wide VCC Range of 2.7V to 6V
  • Low Operating Current: 550µA
  • Low Shutdown Current: <2µA
  • Low Profile (1mm) ThinSOT Package

Product Details

The LTC5507 is an RF power detector for applications operating from 100kHz to 1000MHz. The input frequency range is determined by an external capacitor. A temperature-compensated Schottky diode peak detector and buffer amplifier are combined in a small 6-pin ThinSOT package.

The RF input voltage is peak detected using an on-chip Schottky diode and external capacitor. The detected voltage is buffered and supplied to the VOUT pin. A power saving shutdown mode reduces supply current to less than 2µA.

Applications

  • Wireless Transceivers
  • Wireless and Cable Infrastructure
  • RF Power Alarm
  • Envelope Detector

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

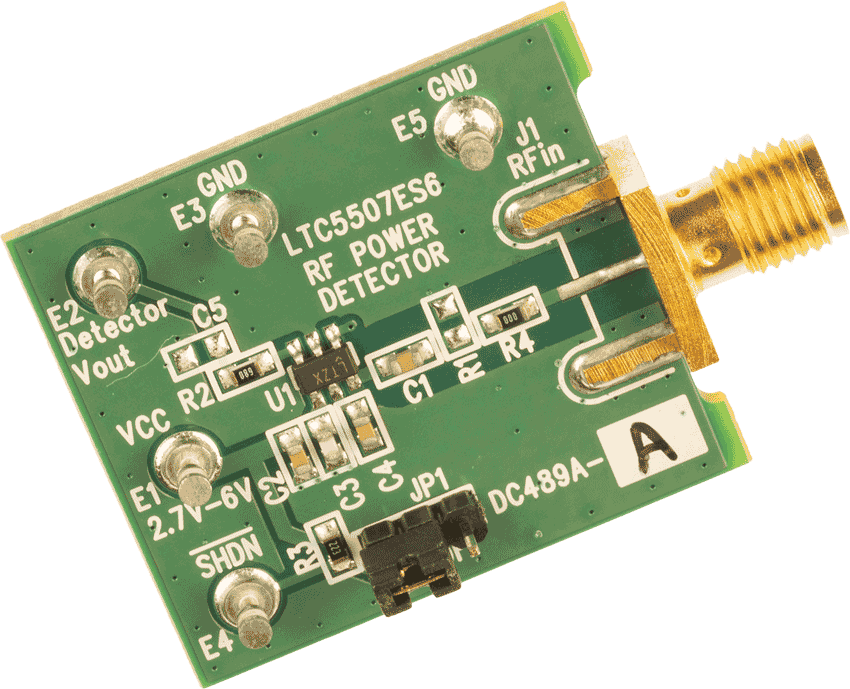

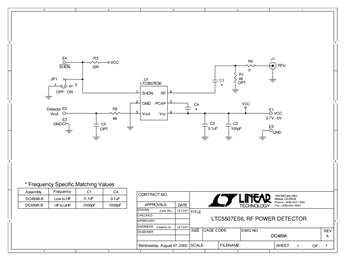

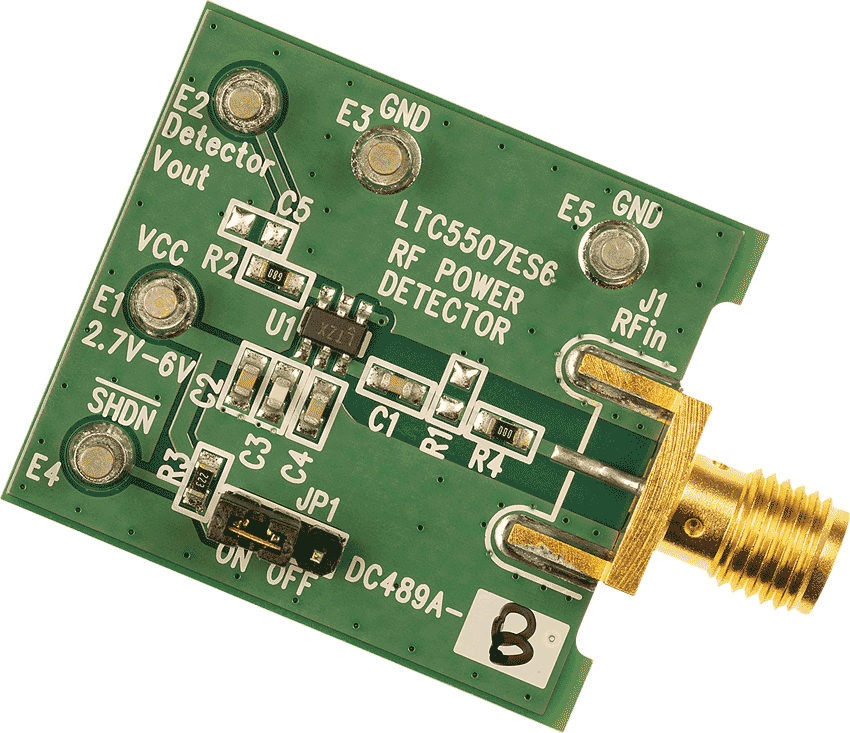

Evaluation Kits (2)
