  • LTC5532

    Precision 300MHz to 7GHz RF Detector with Gain and Offset Adjustment


Features and Benefits

  • RF Power Amplifier Control in ThinSOT Package
  • Internal Schottky Diode Detector with > 45dB Range
  • Wide Input Frequency Range:
    • 300MHz to 2.7GHz (LTC4400-1)
    • 300MHz to 2GHz (LTC4400-2)
  • Autozero Loop Cancels Offset Errors and Temperature Dependent Offsets
  • Wide VCC Range: 2.7V to 6V
  • Automatic Bandwidth Control Improves Low Power Ramp Response
  • Allows Direct Connection to Battery
  • RF Output Power Set by External DAC
  • Internal Frequency Compensation
  • Rail-to-Rail Power Control Output
  • Power Control Signal Overvoltage Protection
  • Low Operating Current: 1mA
  • Low Shutdown Current: 10µA
  • Two Pole PCTL Input Filtering

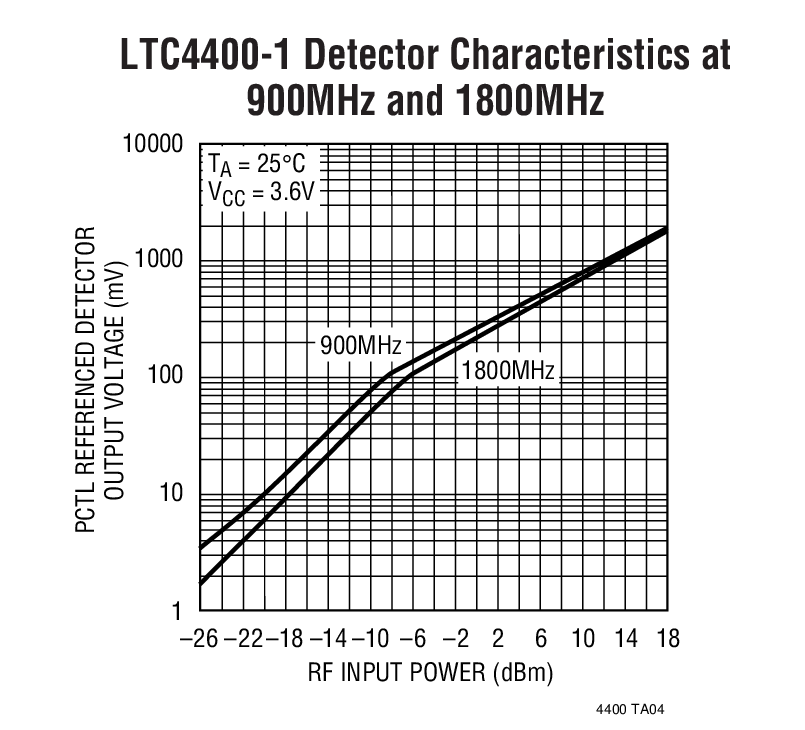

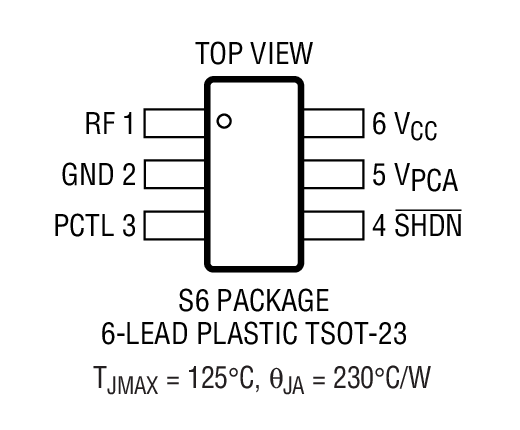

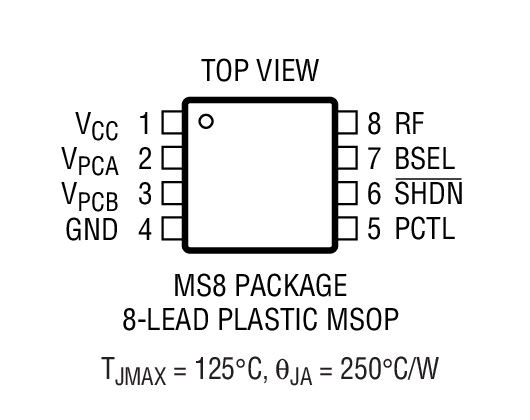

  • Low Profile (1mm) ThinSOT (LTC4400-1) and 8-Pin MSOP (LTC4400-2) Packages

Product Details

The LTC4400-1 is a SOT-23 RF power controller for fast turn-on RF power amplifiers operating in the 300MHz to 2.7GHz range. Examples include the Hitachi PF08109B, PF08122B, PF08123B, PF08107B and RF Micro Devices RF3108. For slow turn-on RF power amplifiers refer to the LTC4401-1/LTC4401-2.

RF power is controlled by driving the RF amplifier power control pin and sensing the resultant RF output power via a directional coupler or capacitive tap. The RF input voltage is peak detected using an on-chip Schottky diode. This detected voltage is compared to the DAC voltage at the PCTL pin to control the output power. The RF power amplifier is protected against high power control pin voltages.

Internal and external offsets are cancelled over temperature by an autozero control loop, allowing accurate low power programming. The shutdown feature disables the part and reduces the supply current to <10µA.

A dual control channel version (LTC4400-2) is also available in an 8-pin MSOP package.


  • GSM/GPRS Cellular Telephones
  • PCS Devices
  • Wireless Data Modems
  • U.S. TDMA Cellular Phones

Product Lifecycle icon-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

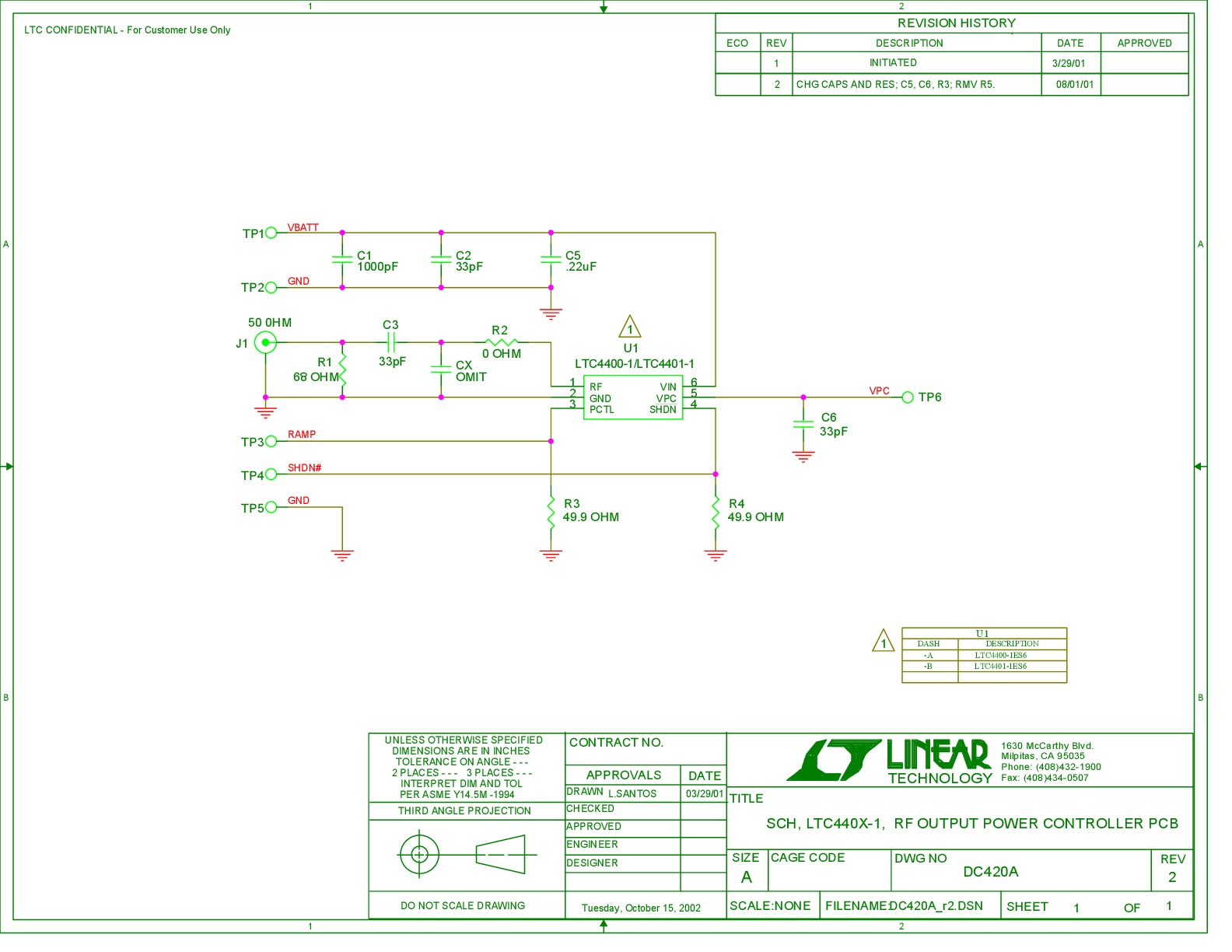

Evaluation Kits (2)
