LTC4366
RECOMMENDED FOR NEW DESIGNSHigh Voltage Surge Stopper
- Part Models
- 32
- 1ku List Price
- Starting From $4.03
Overview
- Rugged Floating Topology
- Wide Operating Voltage Range: 9V to >500V
- Adjustable Output Clamp Voltage
- Controls N-Channel MOSFET
- Adjustable Protection Timer
- Internal 9 Second Cool-Down Timer
- Shutdown IQ < 14μA
- Available in 8-Lead TSOT and 8-Lead 3mm × 2mm DFN Packages
The LTC4366 surge stopper protects loads from high voltage transients. By controlling the gate of an external N-channel MOSFET, the LTC4366 regulates the output during an overvoltage transient. The load may remain operational while the overvoltage is dropped across the MOSFET. Placing a resistor in the return line isolates the LTC4366 and allows it to float up with the supply; therefore, the upper limit on the output voltage depends only on the availability of high valued resistors and MOSFET ratings.
An adjustable overvoltage timer prevents MOSFET damage during the surge while an additional 9-second timer provides for MOSFET cool down. A shutdown pin reduces the quiescent current to less than 14μA during shutdown. After a fault the LTC4366-1 latches off while the LTC4366-2 will auto-retry.
Applications
- Industrial, Automotive and Avionic Surge Protection
- High Voltage DC Distribution
- 28V Vehicle Systems
Documentation
Data Sheet 1
User Guide 2
Technical Articles 3
Video 1
Press Release 1
Product Selector Card 1
Brochure 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC4366CDDB-1#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366CDDB-1#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366CDDB-2#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366CDDB-2#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366CTS8-1#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366CTS8-1#TRPBF | 8-Lead SOT-23 | ||
| LTC4366CTS8-2#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366CTS8-2#TRPBF | 8-Lead SOT-23 | ||
| LTC4366HDDB-1#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366HDDB-1#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366HDDB-2#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366HDDB-2#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366HTS8-1#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366HTS8-1#TRPBF | 8-Lead SOT-23 | ||
| LTC4366HTS8-2#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366HTS8-2#TRPBF | 8-Lead SOT-23 | ||
| LTC4366IDDB-1#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366IDDB-1#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366IDDB-2#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366IDDB-2#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366ITS8-1#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366ITS8-1#TRPBF | 8-Lead SOT-23 | ||
| LTC4366ITS8-2#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366ITS8-2#TRPBF | 8-Lead SOT-23 | ||
| LTC4366MPDDB-1#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366MPDDB-1#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366MPDDB-2#TRMPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366MPDDB-2#TRPBF | 8-Lead DFN (3mm x 2mm w/ EP) | ||
| LTC4366MPTS8-1#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366MPTS8-1#TRPBF | 8-Lead SOT-23 | ||
| LTC4366MPTS8-2#TRMPBF | 8-Lead SOT-23 | ||
| LTC4366MPTS8-2#TRPBF | 8-Lead SOT-23 |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Oct 7, 2021 - 21_0074 LTC4366 Datasheet Limit Change |
||
| LTC4366CDDB-1#TRMPBF | PRODUCTION | |
| LTC4366CDDB-1#TRPBF | PRODUCTION | |
| LTC4366CDDB-2#TRMPBF | PRODUCTION | |
| LTC4366CDDB-2#TRPBF | PRODUCTION | |
| LTC4366CTS8-1#TRMPBF | PRODUCTION | |
| LTC4366CTS8-1#TRPBF | PRODUCTION | |
| LTC4366CTS8-2#TRMPBF | PRODUCTION | |
| LTC4366CTS8-2#TRPBF | PRODUCTION | |
| LTC4366HDDB-1#TRMPBF | PRODUCTION | |
| LTC4366HDDB-1#TRPBF | PRODUCTION | |
| LTC4366HDDB-2#TRMPBF | PRODUCTION | |
| LTC4366HDDB-2#TRPBF | PRODUCTION | |
| LTC4366HTS8-1#TRMPBF | PRODUCTION | |
| LTC4366HTS8-1#TRPBF | PRODUCTION | |
| LTC4366HTS8-2#TRMPBF | PRODUCTION | |
| LTC4366HTS8-2#TRPBF | PRODUCTION | |
| LTC4366IDDB-1#TRMPBF | PRODUCTION | |
| LTC4366IDDB-1#TRPBF | PRODUCTION | |
| LTC4366IDDB-2#TRMPBF | PRODUCTION | |
| LTC4366IDDB-2#TRPBF | PRODUCTION | |
| LTC4366ITS8-1#TRMPBF | PRODUCTION | |
| LTC4366ITS8-1#TRPBF | PRODUCTION | |
| LTC4366ITS8-2#TRMPBF | PRODUCTION | |
| LTC4366ITS8-2#TRPBF | PRODUCTION | |
| LTC4366MPDDB-1#TRMPBF | PRODUCTION | |
| LTC4366MPDDB-1#TRPBF | PRODUCTION | |
| LTC4366MPDDB-2#TRMPBF | PRODUCTION | |
| LTC4366MPDDB-2#TRPBF | PRODUCTION | |
| LTC4366MPTS8-1#TRMPBF | PRODUCTION | |
| LTC4366MPTS8-1#TRPBF | PRODUCTION | |
| LTC4366MPTS8-2#TRMPBF | PRODUCTION | |
| LTC4366MPTS8-2#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
Tools & Simulations
LTspice 1
Models for the following parts are available in LTspice:
- LTC4366-1
- LTC4366-2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits

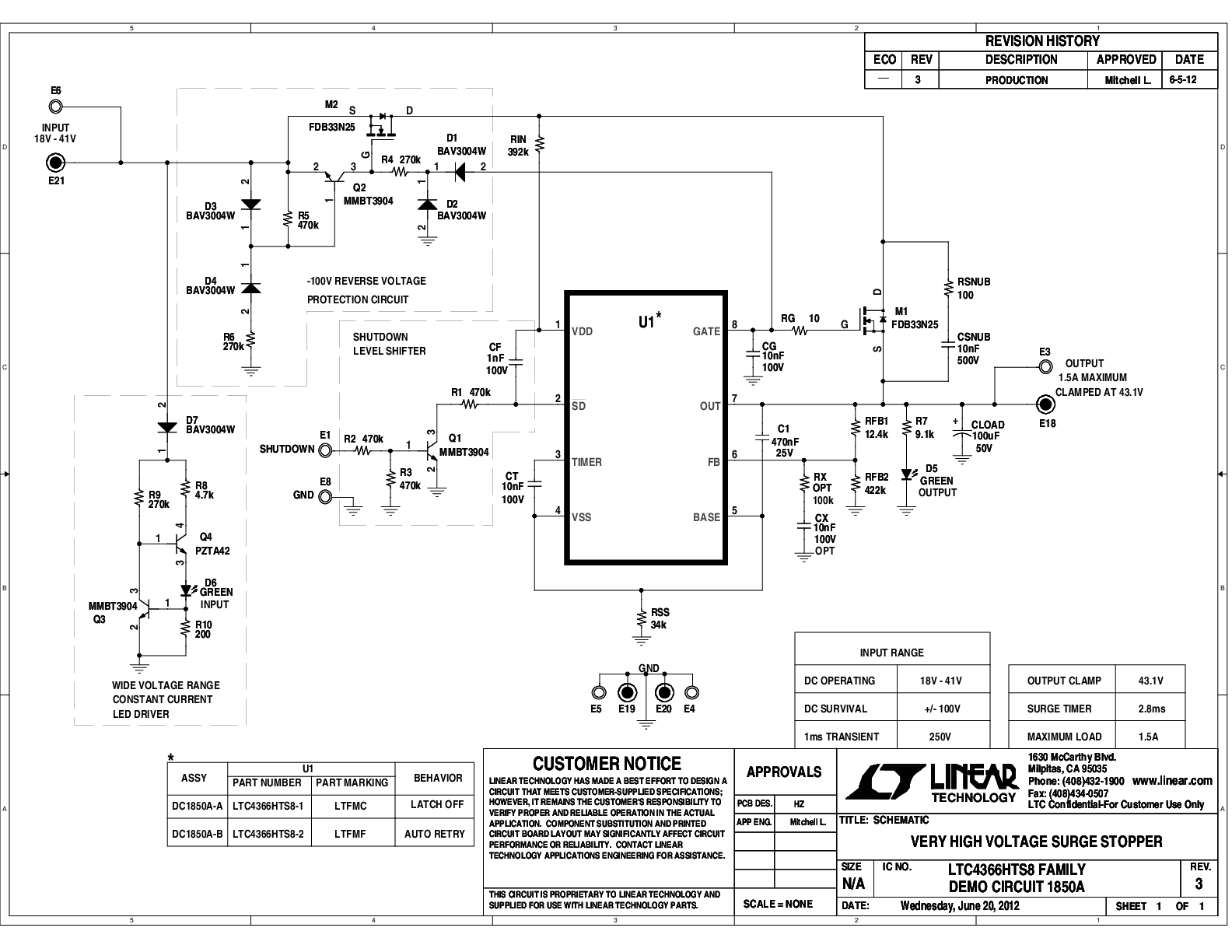

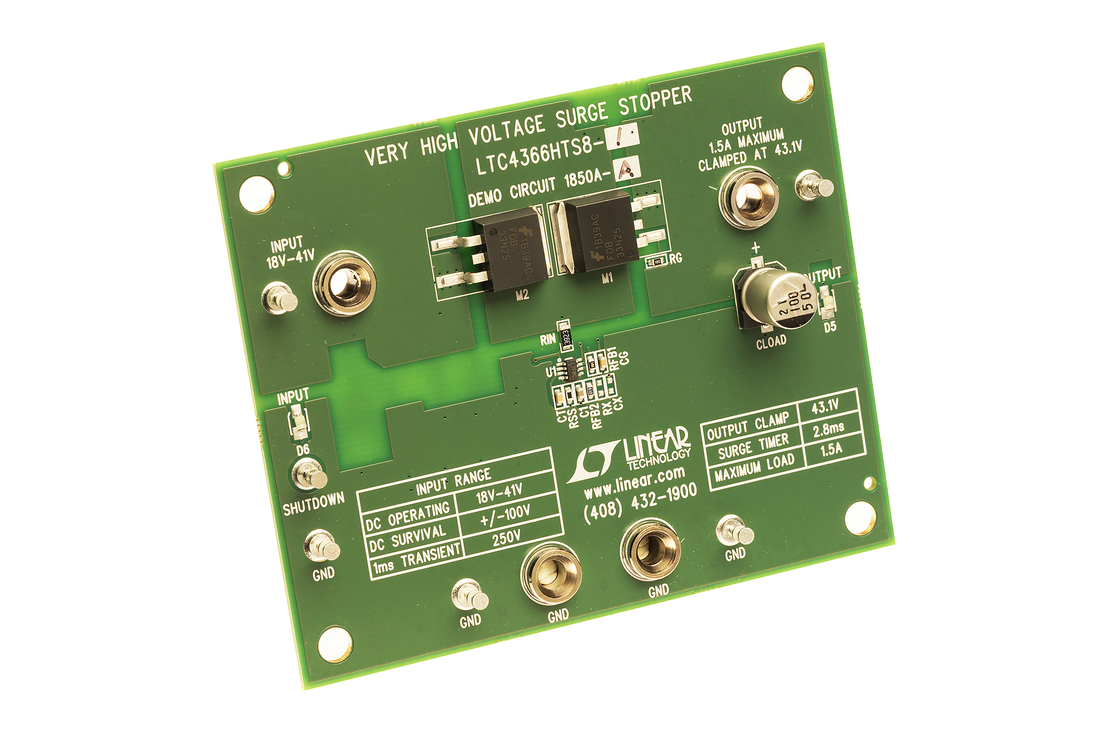

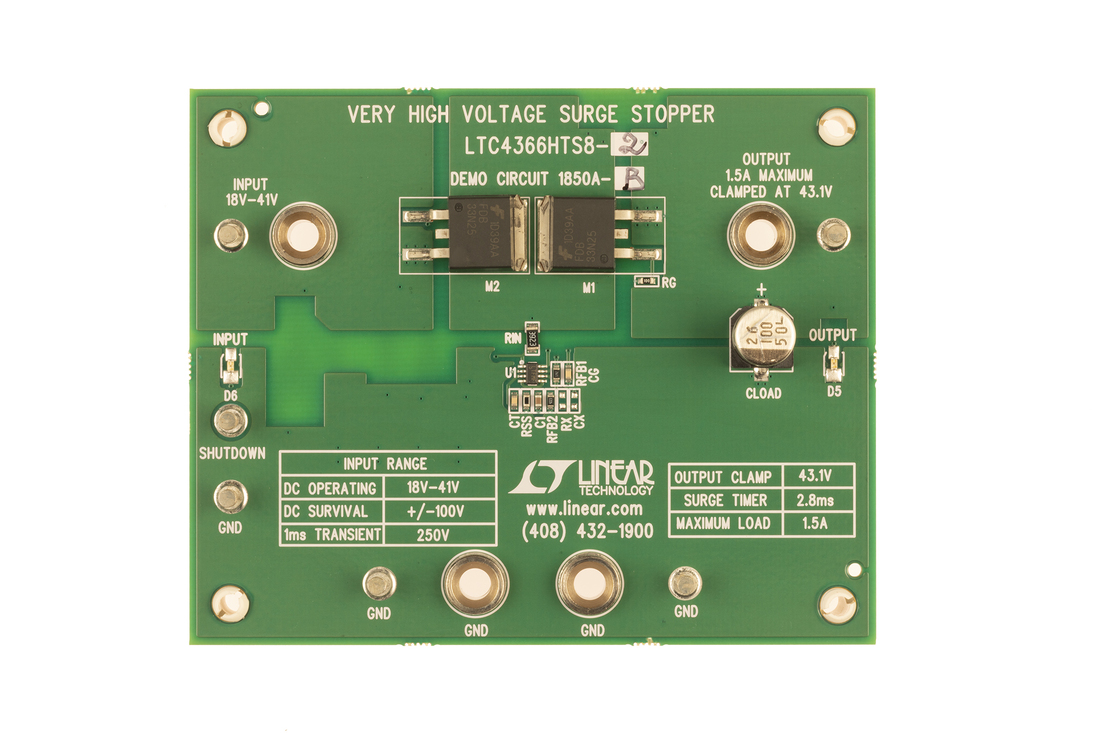

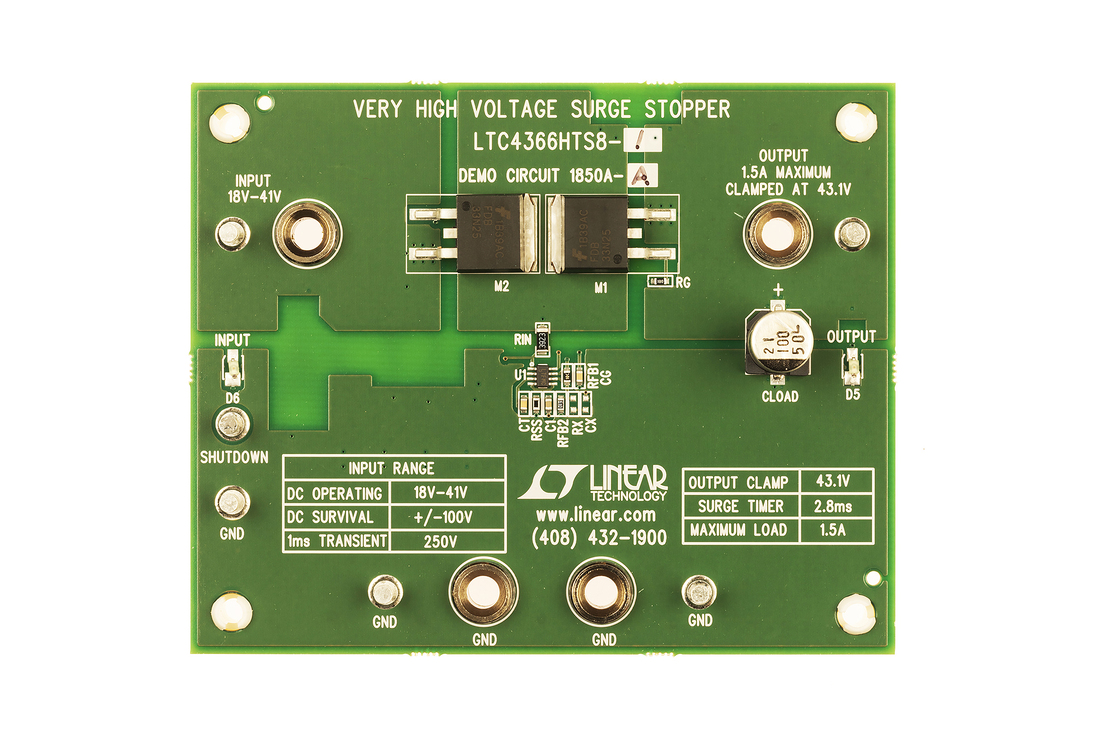

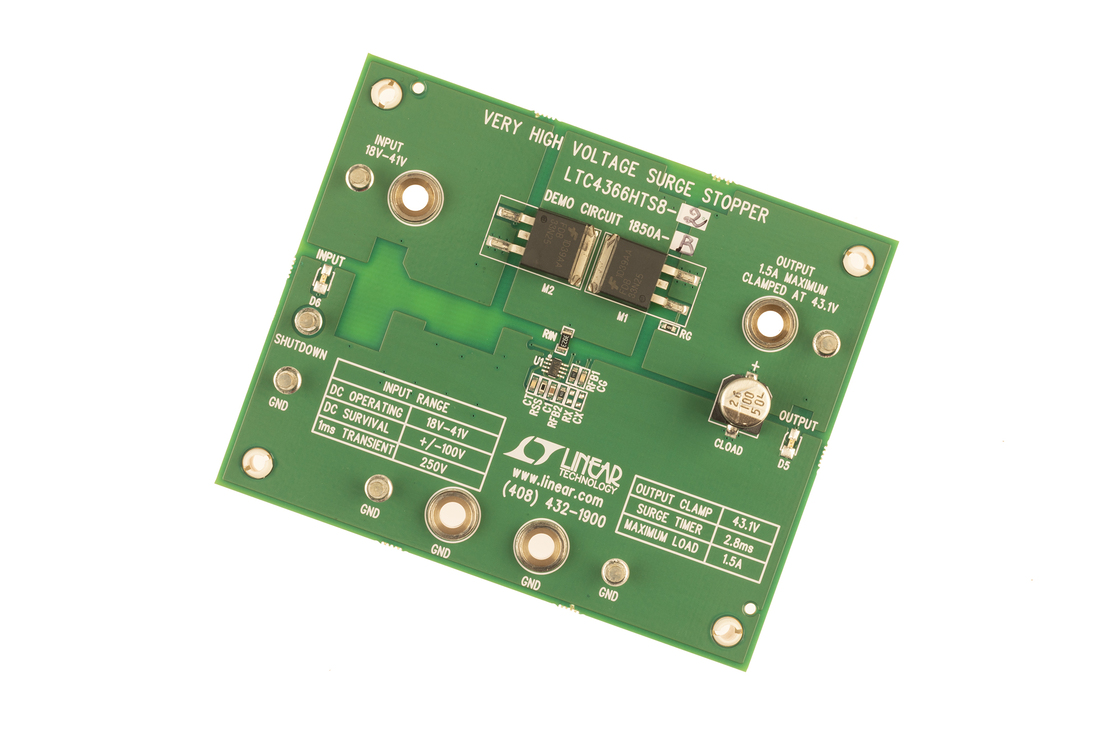

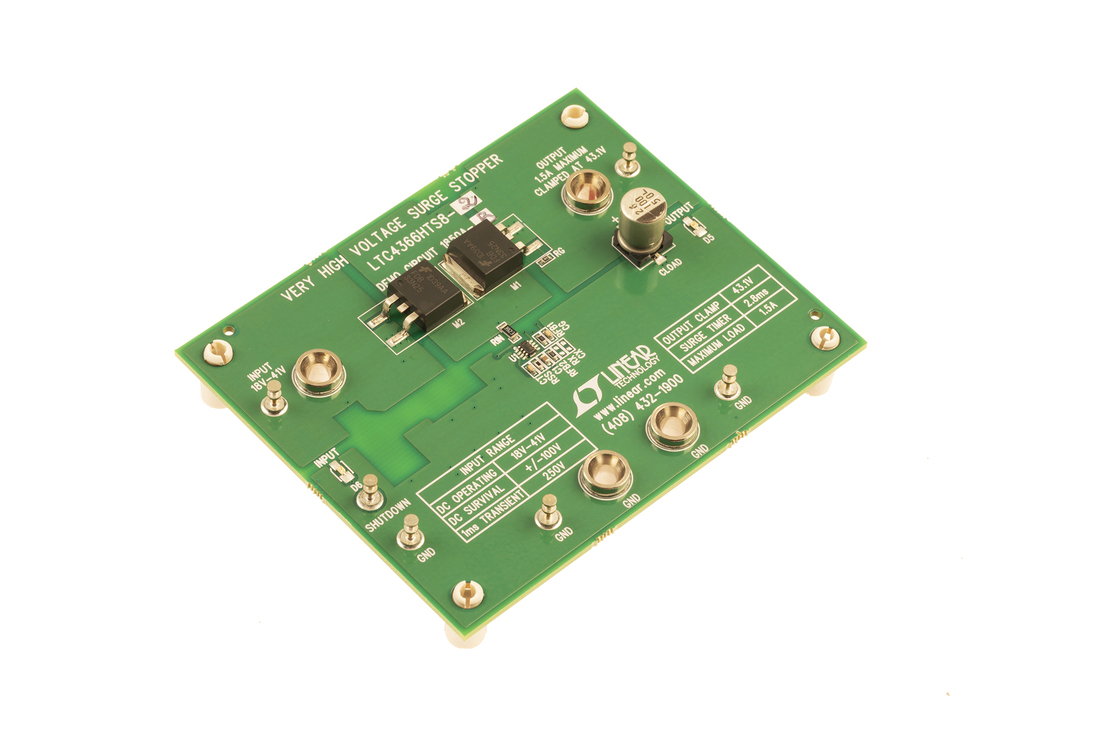

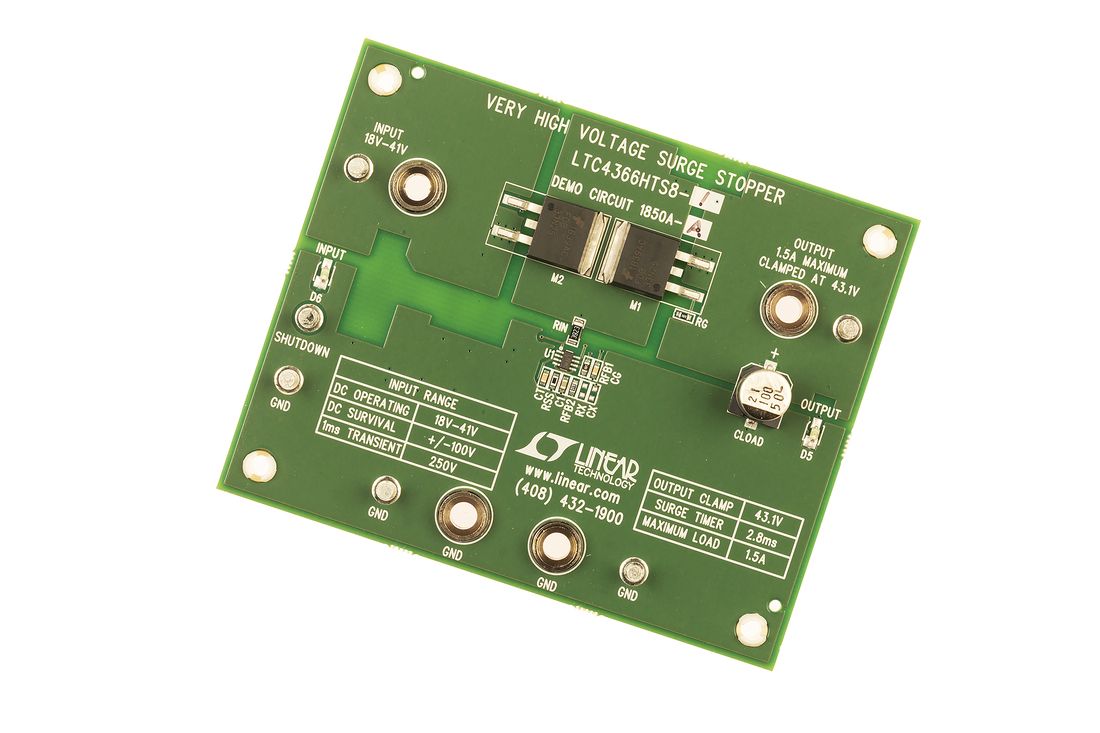

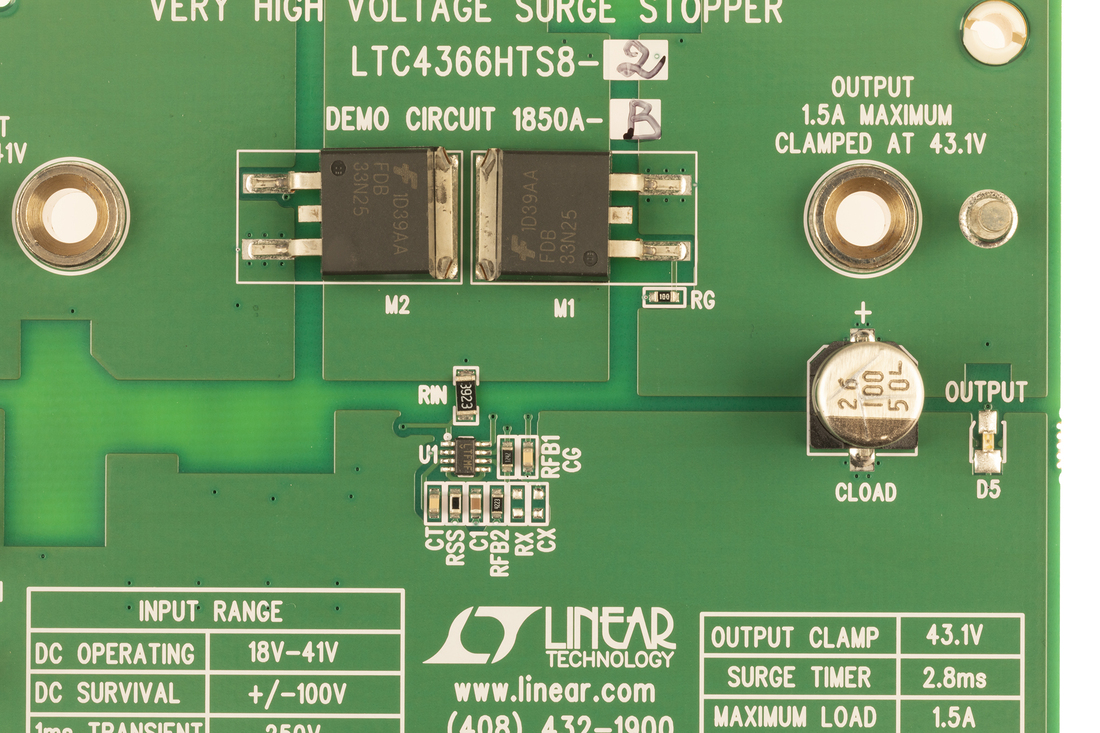

28V, 5A MIL-STD-1275D Surge Stopper (Featuring LTC4366HTS8-2 and LT4363HS-2)
Resources
28V, 5A MIL-STD-1275D Surge Stopper (Featuring LTC4366HTS8-2 and LT4363HS-2)
Resources

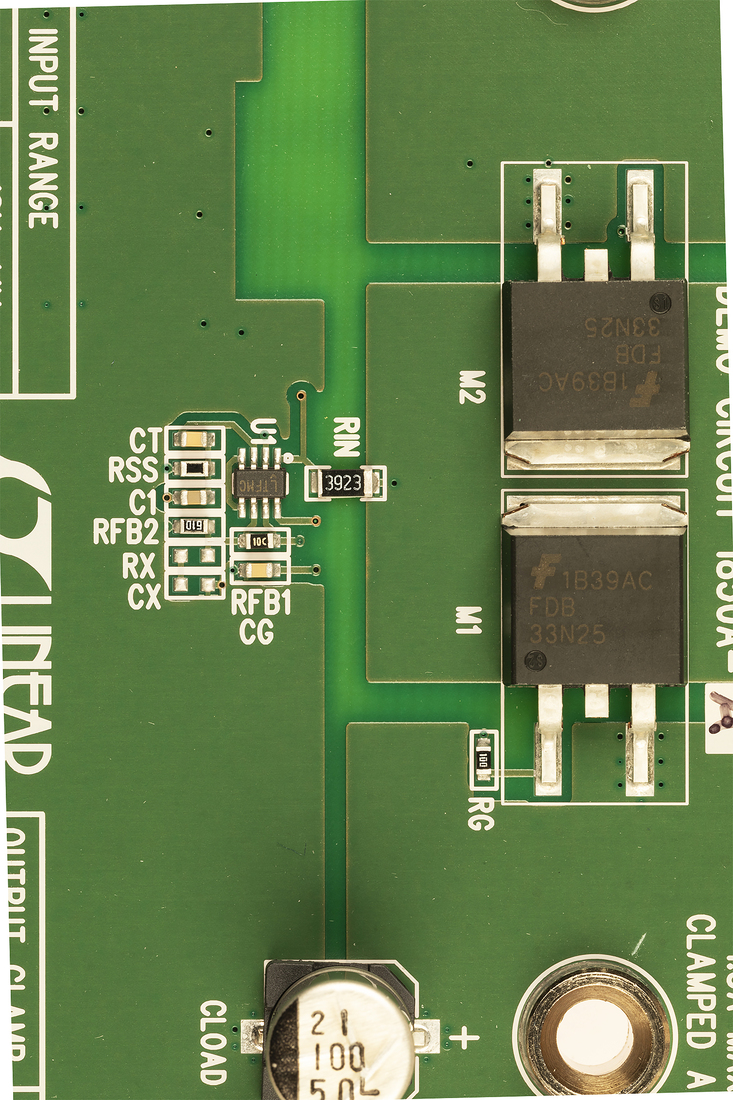

LTC4366-1 Demoboard | Very High Voltage Surge Stopper with Latchoff
