Features and Benefits
- Four PSE Ports
- Two Power Channels Per Port
- Fully Compliant IEEE 802.3bt Type 3 and 4 PSE
- Compliant Support for Type 1, 2, 3, and 4 PDs
- Low Power Path Dissipation per Channel
- 150mΩ Sense Resistance
- 30mΩ or Lower MOSFET RDS(ON)
- Chipset Provides Electrical Isolation
- Eliminates Optos and Isolated 3.3V Supply
- Very High Reliability Multipoint PD Detection
- Connection Check Distinguishes Single-Signature and Dual-Signature PDs
- Continuous, Dedicated Per-Port Power and Current Monitoring
- Per-Port Power Policing
- 1MHzI2C Compatible Serial Control Interface
- Pin or I2C Programmable PD Power Up to 71.3W

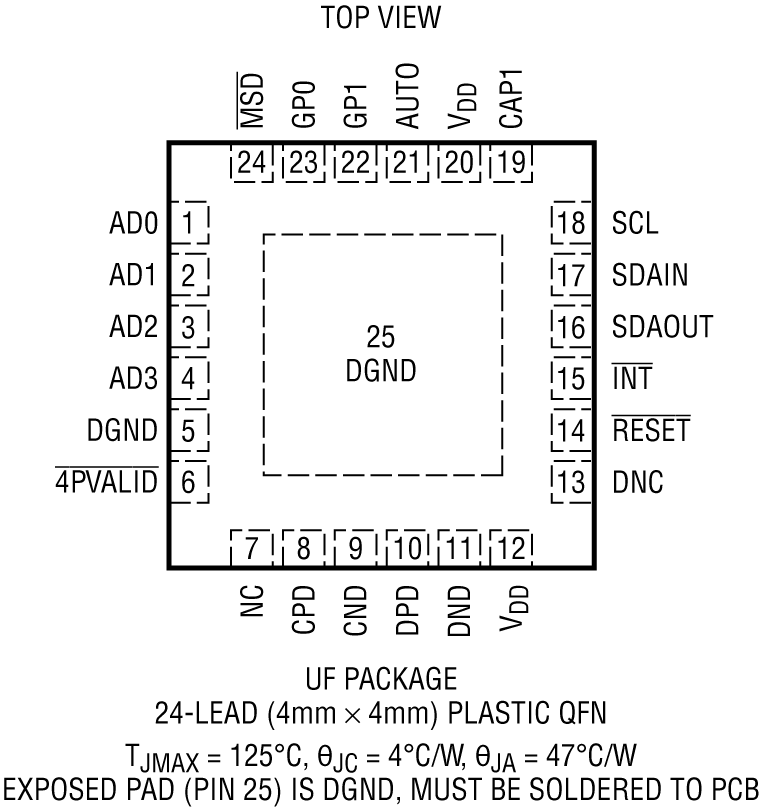

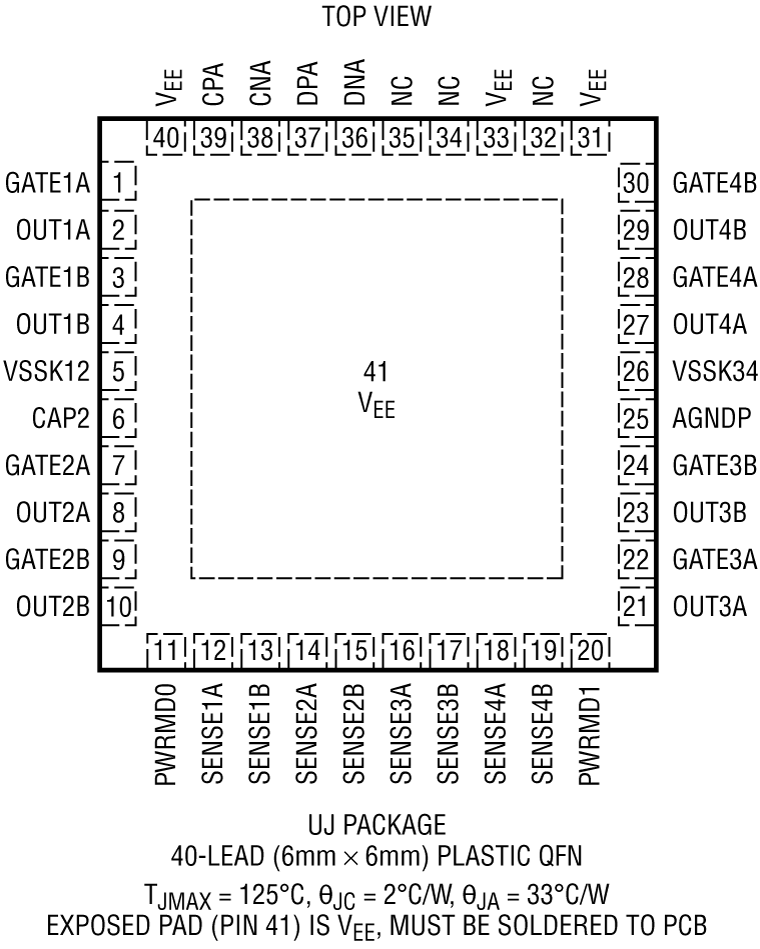

- Available in a 24-Lead 4mm × 4mm QFN Package

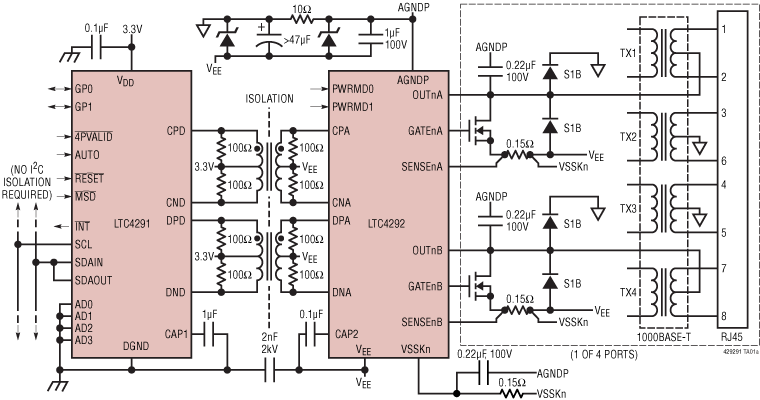

The LTC4292/LTC4291 chipset is a 4-port power sourcing equipment (PSE) controller designed for use in IEEE 802.3bt Type 3 and 4 compliant Power over Ethernet (PoE) systems. The LTC4292/LTC4291 is designed to power compliant 802.3af, 802.3at, and 802.3bt PDs. The LTC4292/LTC4291 chipset delivers lowest-in-industry heat dissipation by utilizing low-RDS(ON) external MOSFETs and 0.15Ω sense resistance per power channel. A transformer-isolated communication protocol replaces expensive opto-couplers and complex isolated 3.3V supply, resulting in significant BOM cost savings.
Advanced power management features include perport 14-bit current monitoring, programmable current limit, and versatile fast shut-down of preselected ports. Advanced power management host software is available under a no-cost license. PD detection uses a proprietary multipoint detection mechanism ensuring excellent immunity from false PD identification. Autoclass and 5-event physical classification are supported. The LTC4292/LTC4291 includes an I2C serial interface operable up to 1MHz. The LTC4292/LTC4291 is pin or I2C programmable to negotiate PD delivered power up to 71.3W.
Product Lifecycle Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
