Overview

Features and Benefits

  • Complete Linear Battery Charger with Integrated Buck Converter
Battery Charger:
  • Constant-Current/Constant-Voltage Operation with Thermal Feedback to Maximize Charge Rate Without Risk of Overheating
  • Internal 4.5-Hour Safety Timer for Termination
  • Charge Current Programmable Up to 500mA with 5% Accuracy
  • C/10 Charge Current Detection Output
  • 5µA Supply Current in Shutdown Mode
Switching Regulator:
  • High Efficiency Synchronous Buck Converter
  • 300mA Output Current
  • 2.7V to 4.5V Input Range (Powered from BAT Pin)
  • 0.8V to VBAT Output Range
  • MODE Pin Selects Fixed (2.25MHz) Constant-Frequency PWM Mode or Low ICC (23µA) Burst Mode®  Operation
  • 2µA BAT Current in Shutdown Mode

Product Details

The LTC4080 is a complete constant-current/constant-voltage linear battery charger for a single-cell 4.2V lithium-ion battery with an integrated 300mA synchronous buck converter. The small packages and low external component count make the LTC4080 especially suitable for portable applications. Furthermore, LTC4080 is specifically designed to work within USB power specifications.

The CHRG pin indicates when charge current has dropped to ten percent of its programmed value (C/10). An internal 4.5-hour timer terminates the charge cycle. The full-featured LTC4080 battery charger also includes trickle charge, automatic recharge and soft-start (to limit inrush current)

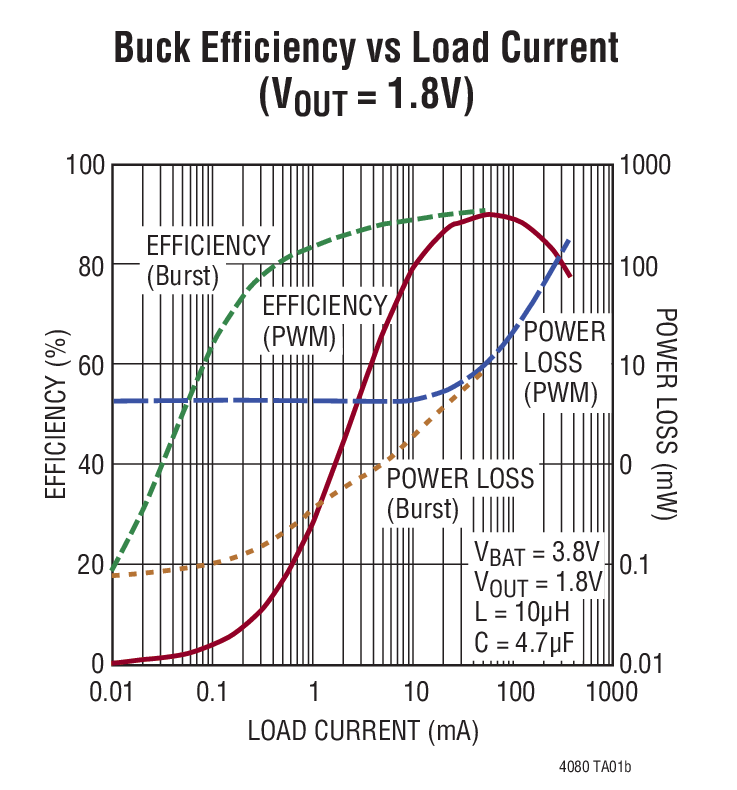

The LTC4080 integrates a synchronous buck converter that is powered from the BAT pin. It has an adjustable output voltage and can deliver up to 300mA of load current. The buck converter also features low current high-efficiency Burst Mode operation that can be selected by the MODE pin.

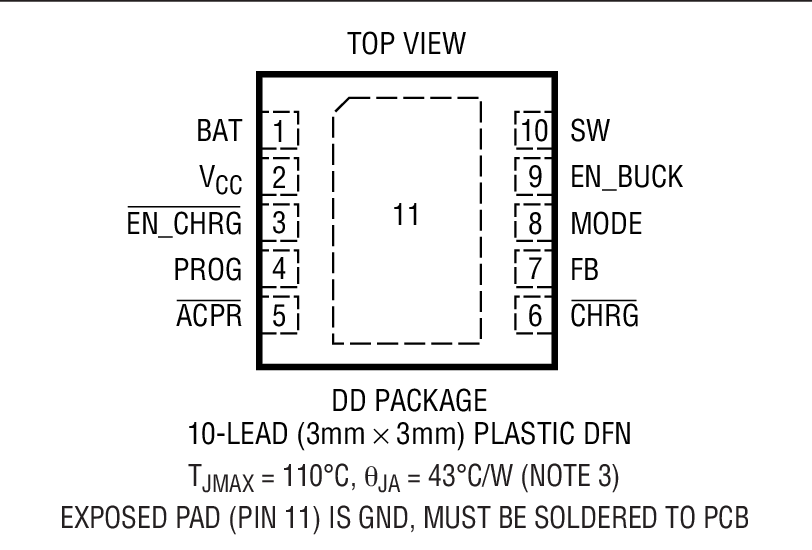

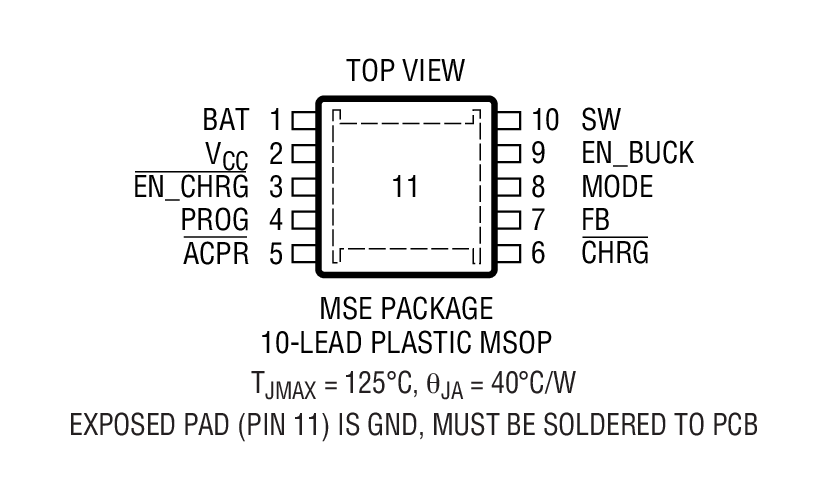

The LTC4080 is available in 10-lead, low profile (0.75 mm) 3mm × 3mm DFN and MSOP Exposed Pad packages.

Trickle Charge Package
LTC4080 Yes DFN-10
LTC4080X No DFN-10, MS-10

Applications

  • Wireless Headsets
  • Bluetooth Applications
  • Portable MP3 Players
  • Multifunction Wristwatches

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

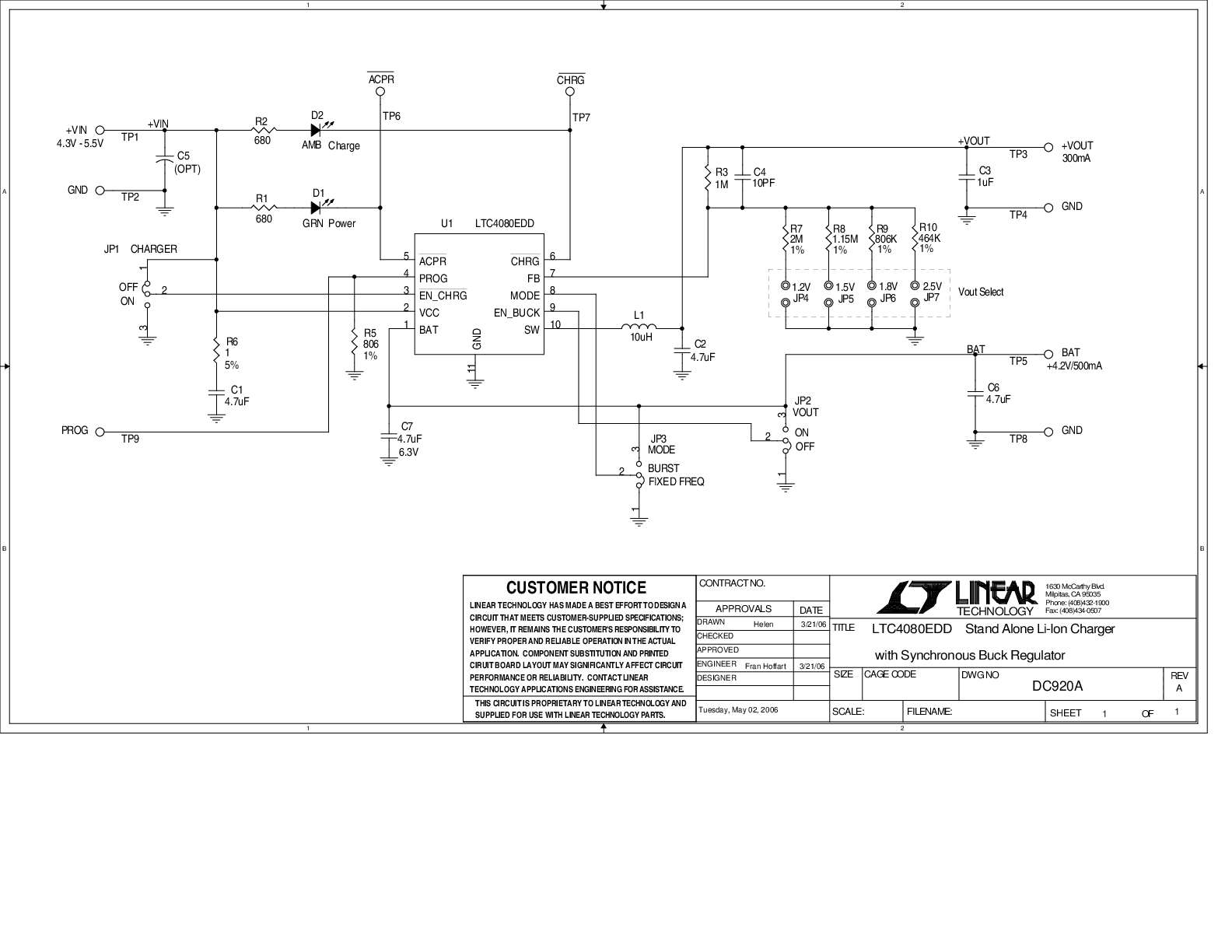

Evaluation Kits (1)
