Overview

Features and Benefits

  • Programmable Charge Current Up to 950mA
  • Complete Linear Charger in DFN Package
  • No MOSFET, Sense Resistor or Blocking Diode Required
  • Thermal Regulation Maximizes Charge Rate Without Risk of Overheating*
  • Charges Directly from a USB Port
  • Programmable Charge Current Termination
  • Preset 4.2V Charge Voltage with ±1% Accuracy
  • Charge Current Monitor Output for Gas Gauging*
  • Automatic Recharge
  • Charge Status Output
  • “AC Present” Output
  • 2.9V Trickle Charge Threshold (LTC4068)
  • Available Without Trickle Charge (LTC4068X)
  • Soft-Start Limits Inrush Current

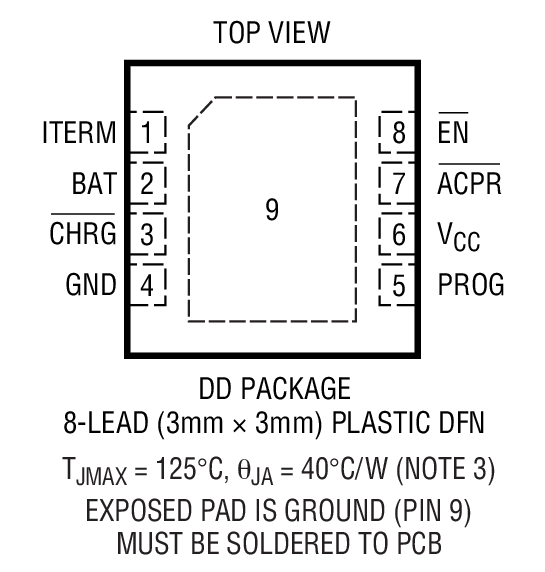

  • Low Profile (3mm x 3mm x 0.75mm) DFN Package

Product Details

The LTC4068 is a complete constant-current/constantvoltage linear charger for single cell lithium-ion batteries. Its DFN package and low external component count make the LTC4068 ideally suited for portable applications. Furthermore, the LTC4068 is designed to work within USB power specifications.

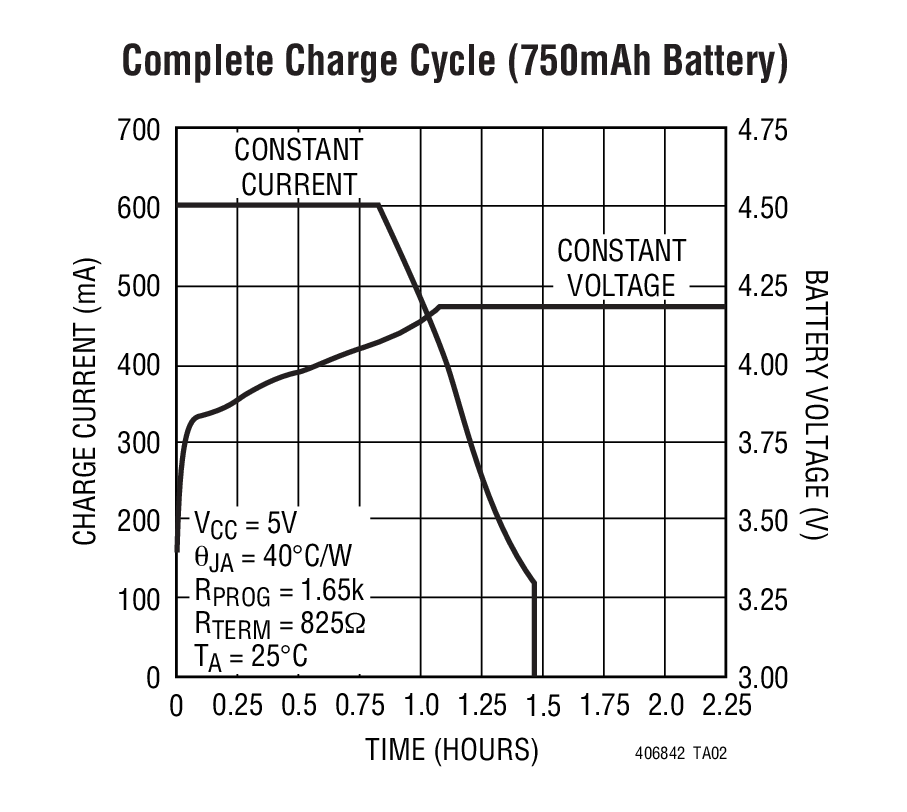

No external sense resistor or external blocking diode are required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature conditions. The charge voltage is fixed at 4.2V and the charge current is programmed with a resistor. The LTC4068 terminates the charge cycle when the charge current drops below the programmed termination threshold after the final float voltage is reached.

When the input supply (wall adapter or USB supply) is removed, the LTC4068 enters a low current state dropping the battery drain current to less than 2µA. Other features include charge current monitor, undervoltage lockout, automatic recharge and status pins to indicate charge termination and the presence of adequate input voltage.

Protected by U.S. Patents, including 6522118.

Applications

  • Cellular Telephones, PDAs, MP3 Players
  • Bluetooth Applications

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

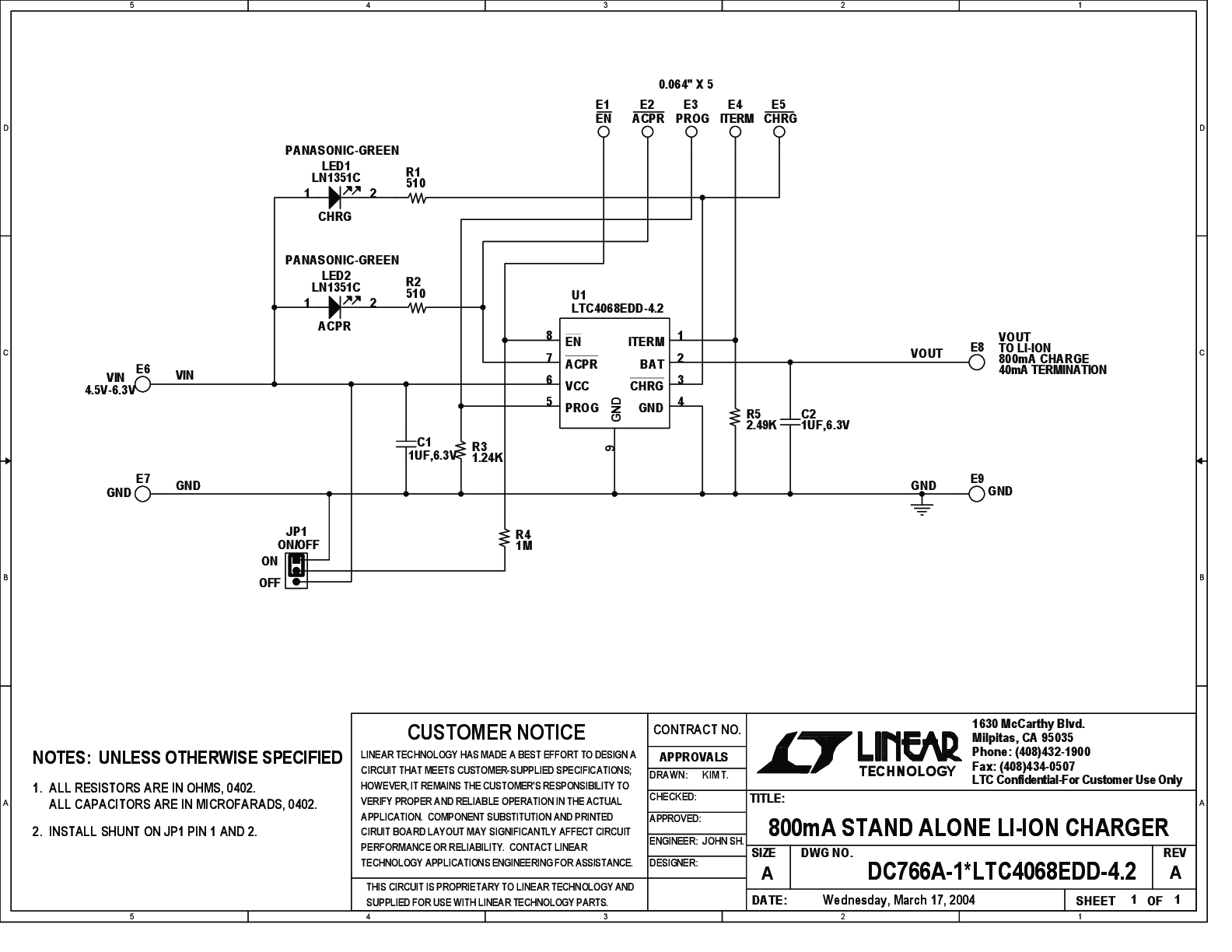

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (2)
  • User Guides (1)
  • Application Notes (1)
    • Document Type

    Product Recommendations

    LTC4068-4.2 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC4068EDD-4.2#PBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4068EDD-4.2#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4068XEDD-4.2#PBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
    LTC4068XEDD-4.2#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R421 Reliability Data
