Overview

Features and Benefits

  • Programmable Charge Current up to 800mA
  • No External MOSFET, Sense Resistor or Blocking Diode Required
  • Constant-Current/Constant-Voltage Operation with Thermal Regulation Maximizes Charge Rate Without Risk of Overheating*
  • Charges Single Cell Li-Ion Batteries Directly from USB Port
  • Preset 4.2V Charge Voltage with ±1% Accuracy
  • Current Monitor Pin for Charge Termination
  • 25µA Supply Current in Shutdown Mode
  • Low Battery Charge Conditioning (Trickle Charging)
  • Soft-Start Limits Inrush Current
  • Available in a Low Profile (1mm) SOT-23 Package

Product Details

The LTC4057 is a constant-current/constant-voltage linear charger for single-cell lithium-ion batteries. Its ThinSOT™ package and low external component count make the LTC4057 especially well suited for portable applications. Furthermore, the LTC4057 is specifically designed to work within USB power specifications.

No external sense resistor is needed and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback prevents overheating by regulating the charge current to limit the die temperature during high power operation or high ambient temperature conditions. The charge voltage is preset at 4.2V and the charge current can be programmed externally with a single resistor.

When the input supply (wall adapter or USB supply) is removed, the LTC4057 automatically enters a low current state, dropping the battery drain current to less than 2µA. With power applied, the LTC4057 can be put into shutdown mode, reducing the supply current to 25µA.

For the standalone version (on-board charge termination) of the LTC4057, refer to the LTC4054.

Applications

  • Wireless PDAs
  • Cellular Phones
  • Portable Electronics

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

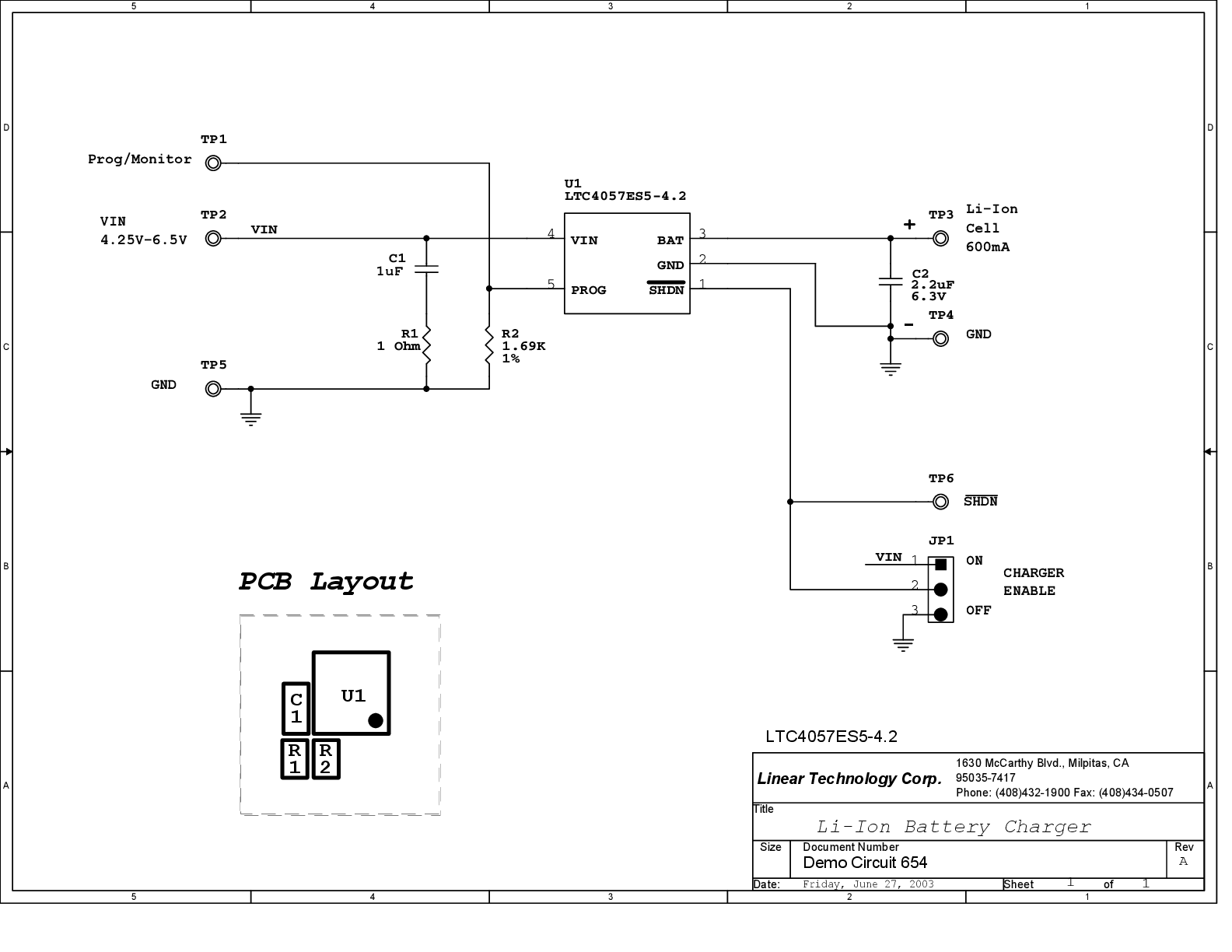

Evaluation Kits (1)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Application Notes (1)
    • Document Type

    Product Recommendations

    LTC4057-4.2 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC4057ES5-4.2#TRMPBF Material Declaration Reliability Data 5-Lead TSOT-23
    LTC4057ES5-4.2#TRPBF Material Declaration Reliability Data 5-Lead TSOT-23
    Wafer Fabrication Data R421 Reliability Data
