LTC3869

Dual, 2-Phase Synchronous Step-Down DC/DC Controllers

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Features
  • Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
  • Accurate Multiphase Current Matching
  • RSENSE or DCR Current Sensing
  • ±0.75% 0.6V Output Voltage Accuracy
  • Phase-Lockable Fixed Frequency 250kHz to 780kHz
  • High Efficiency: Up to 95%
  • Dual N-channel MOSFET Synchronous Drive
  • Wide VIN Range: 4V to 38V (40V Max) Operation
  • Wide VOUT Range: 0.6V to 12.5V Operation
  • Adjustable Soft-Start Current Ramping or Tracking
  • Foldback Output Current Limiting
  • Output Overvoltage Protection
  • Power Good Output Voltage Monitor
  • 5V Low Dropout Regulator
  • Small 28-Lead QFN and Narrow SSOP Packages
Additional Details
show more Icon

The LTC3869 is a high performance dual synchronous step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 780kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out-of-phase.

OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. A wide 4V to 38V input supply range encompasses most battery chemistries. Independent TK/SS pins for each controller ramp the output voltage during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode® operation, pulse-skipping mode, or continuous inductor current mode and allows the IC to be synchronized to an external clock.

The LTC3869 is available in low profile 4mm × 4mm and 4mm × 5mm QFN packages. The LTC3869-2 is available in an SSOP-28 package. The LTC3869 is pin-compatible with the LTC3850.

Applications

  • Server Systems
  • Telecom Systems
  • Industrial and Medical Instruments
  • High Power Battery-Operated Devices
  • DC Power Distribution Systems

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3869EUF#PBF
  • HTML
  • HTML
LTC3869EUF#TRPBF
  • HTML
  • HTML
LTC3869EUFD#PBF
  • HTML
  • HTML
LTC3869EUFD#TRPBF
  • HTML
  • HTML
LTC3869IGN-2#PBF
  • HTML
  • HTML
LTC3869IGN-2#TRPBF
  • HTML
  • HTML
LTC3869IUF#PBF
  • HTML
  • HTML
LTC3869IUF#TRPBF
  • HTML
  • HTML
LTC3869IUFD#PBF
  • HTML
  • HTML
LTC3869IUFD#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3869EUF#PBF

PRODUCTION

LTC3869EUF#TRPBF

PRODUCTION

LTC3869EUFD#PBF

PRODUCTION

LTC3869EUFD#TRPBF

PRODUCTION

LTC3869IUF#PBF

PRODUCTION

LTC3869IUF#TRPBF

PRODUCTION

LTC3869IUFD#PBF

PRODUCTION

LTC3869IUFD#TRPBF

PRODUCTION

Dec 28, 2020

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3869EUF#PBF

PRODUCTION

LTC3869EUF#TRPBF

PRODUCTION

LTC3869EUFD#PBF

PRODUCTION

LTC3869EUFD#TRPBF

PRODUCTION

LTC3869IGN-2#PBF

PRODUCTION

LTC3869IGN-2#TRPBF

PRODUCTION

LTC3869IUF#PBF

PRODUCTION

LTC3869IUF#TRPBF

PRODUCTION

LTC3869IUFD#PBF

PRODUCTION

LTC3869IUFD#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0177

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC3869IGN-2#PBF

PRODUCTION

LTC3869IGN-2#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3869EUF#PBF

PRODUCTION

LTC3869EUF#TRPBF

PRODUCTION

LTC3869EUFD#PBF

PRODUCTION

LTC3869EUFD#TRPBF

PRODUCTION

LTC3869IUF#PBF

PRODUCTION

LTC3869IUF#TRPBF

PRODUCTION

LTC3869IUFD#PBF

PRODUCTION

LTC3869IUFD#TRPBF

PRODUCTION

Dec 28, 2020

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3869EUF#PBF

PRODUCTION

LTC3869EUF#TRPBF

PRODUCTION

LTC3869EUFD#PBF

PRODUCTION

LTC3869EUFD#TRPBF

PRODUCTION

LTC3869IGN-2#PBF

PRODUCTION

LTC3869IGN-2#TRPBF

PRODUCTION

LTC3869IUF#PBF

PRODUCTION

LTC3869IUF#TRPBF

PRODUCTION

LTC3869IUFD#PBF

PRODUCTION

LTC3869IUFD#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0177

arrow down

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC3869IGN-2#PBF

PRODUCTION

LTC3869IGN-2#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 4

reference details image

DC1798A-B

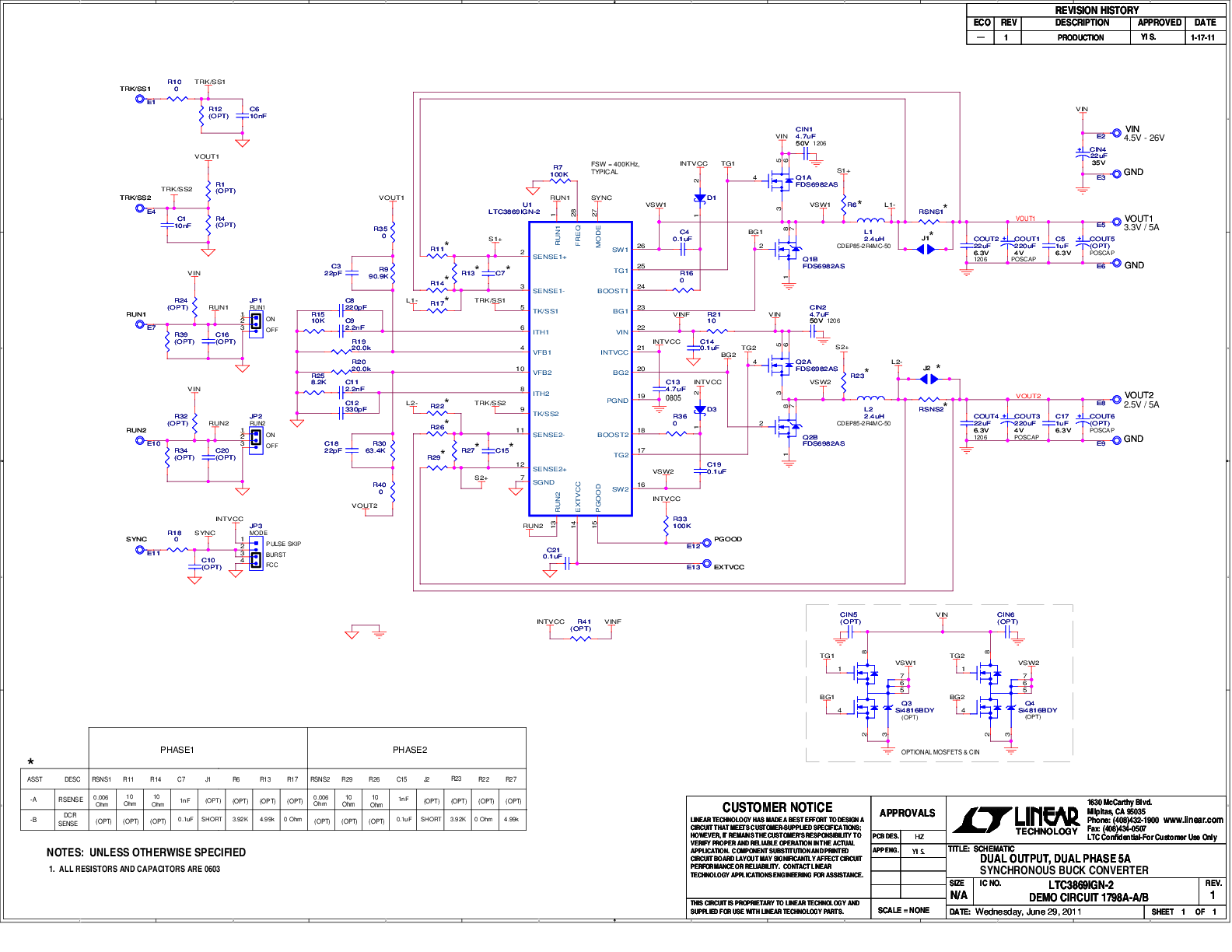

LTC3869IGN-2 Demo Board | VIN = 4.5V to 26V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A, with DCR Sense

zoom

DC1798A-B

LTC3869IGN-2 Demo Board | VIN = 4.5V to 26V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A, with DCR Sense

LTC3869IGN-2 Demo Board | VIN = 4.5V to 26V, VOUT1 = 3.3V @ 5A, VOUT2 = 2.5V @ 5A, with DCR Sense

Product Detail

Demonstration circuit 1798A is a Dual Output, Dual Phase 5A Synchronous Buck Converter featuring the LTC3869IGN-2. It provides 2.5V/5A and 3.3V/5A outputs. The input voltage range is 4.5V to 26V. DC1798A-A has an on-board sense resistor for current feedback, while the DC1798A-B is configured with a DCR sense circuit that allows the converter to use the inductors DCR as the sense element instead of the on-board sense resistors to save cost and board space and improves efficiency.

reference details image

DC1807A-A

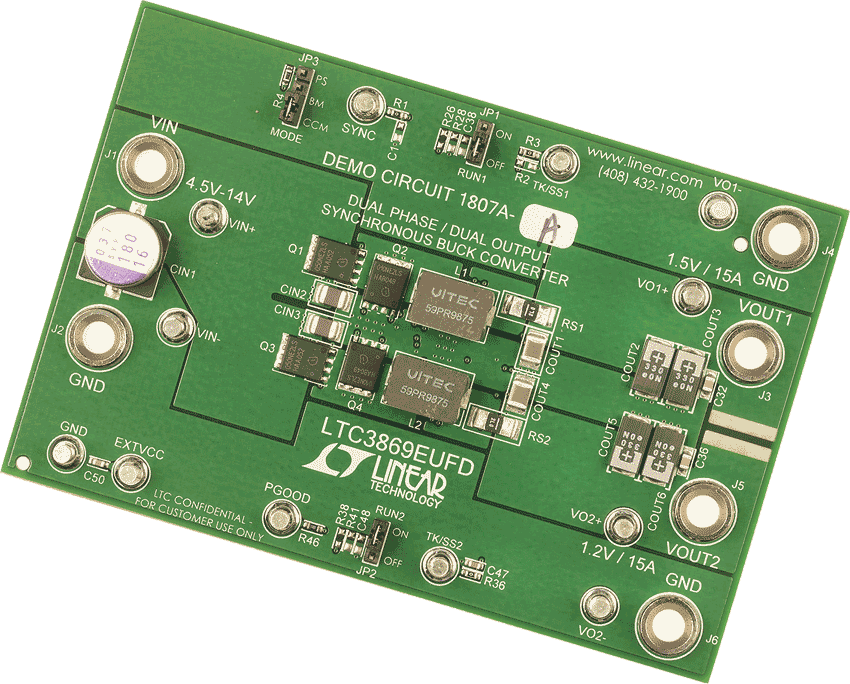

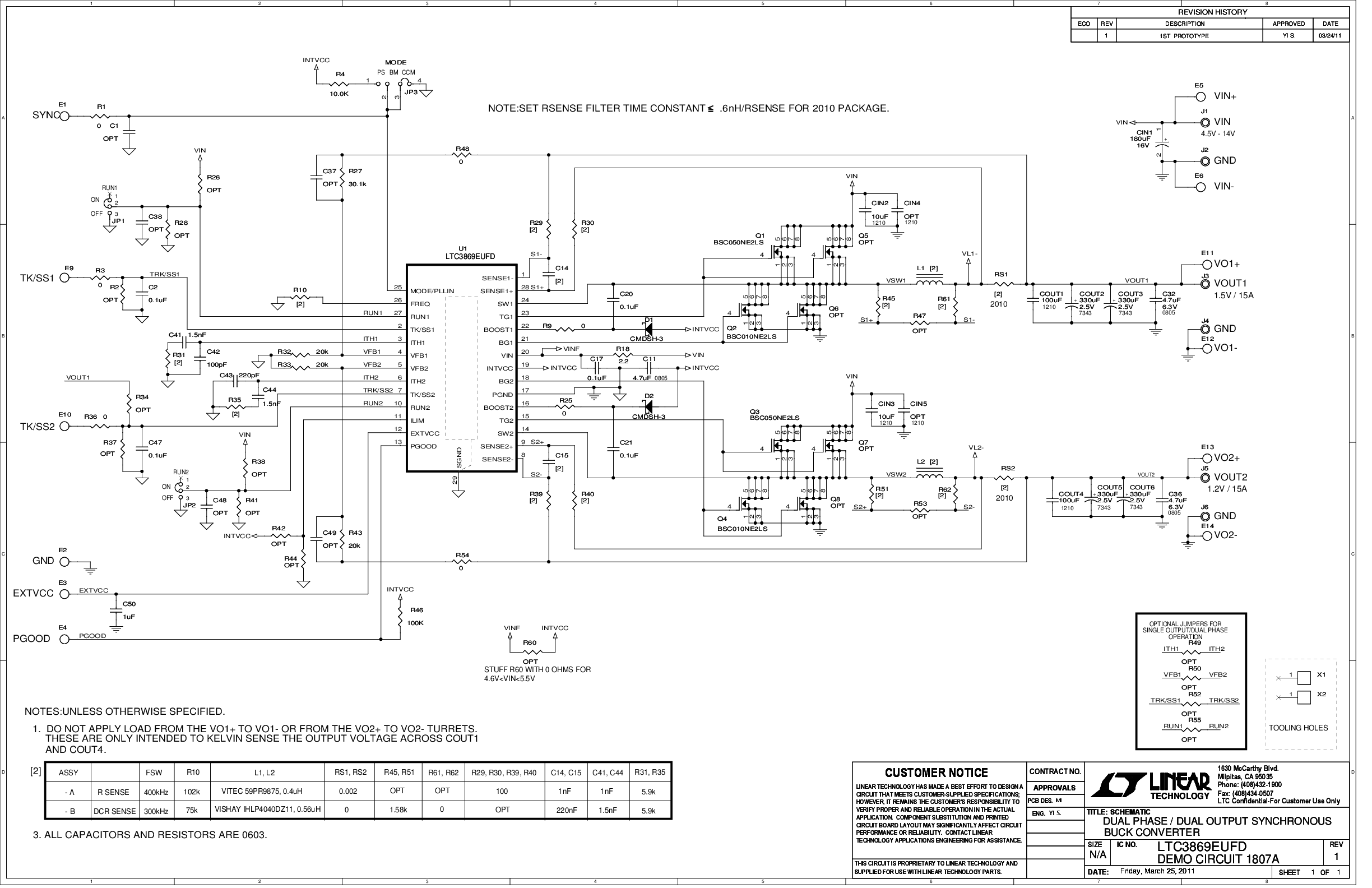

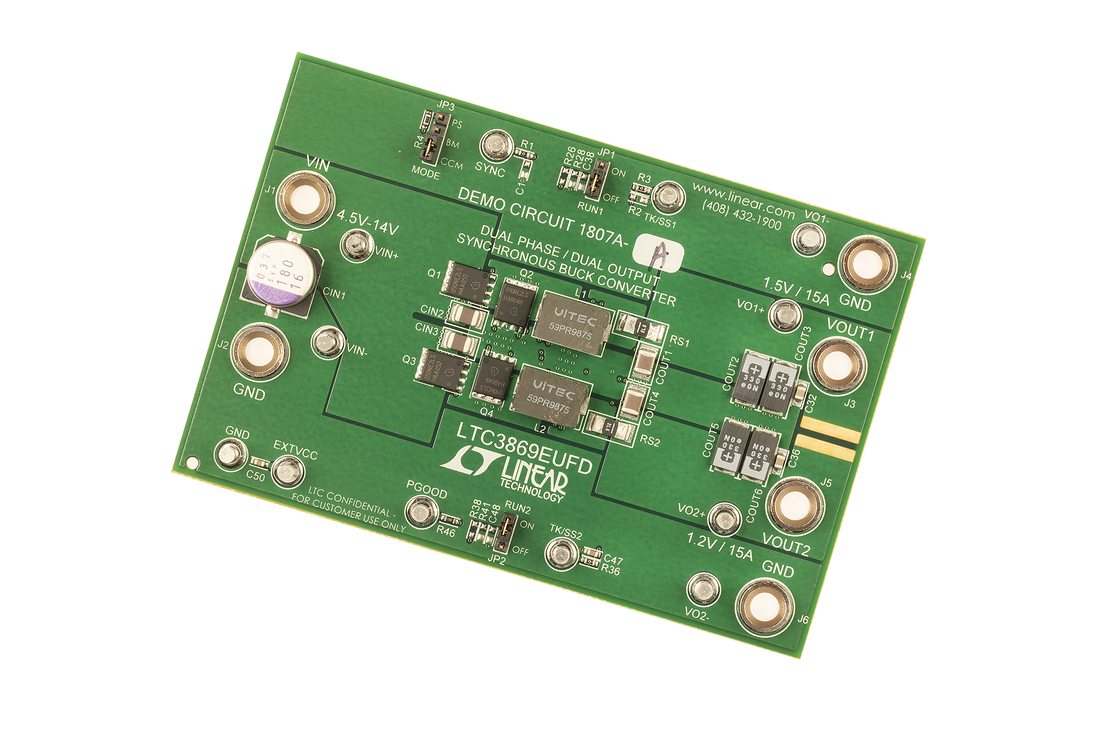

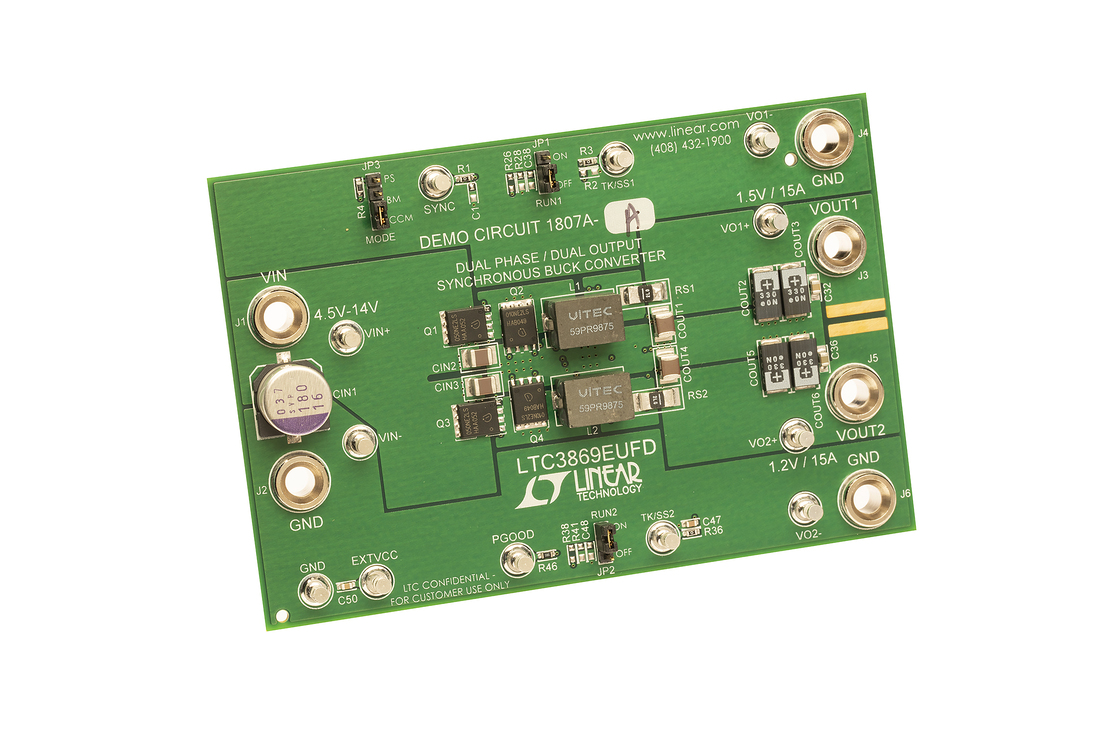

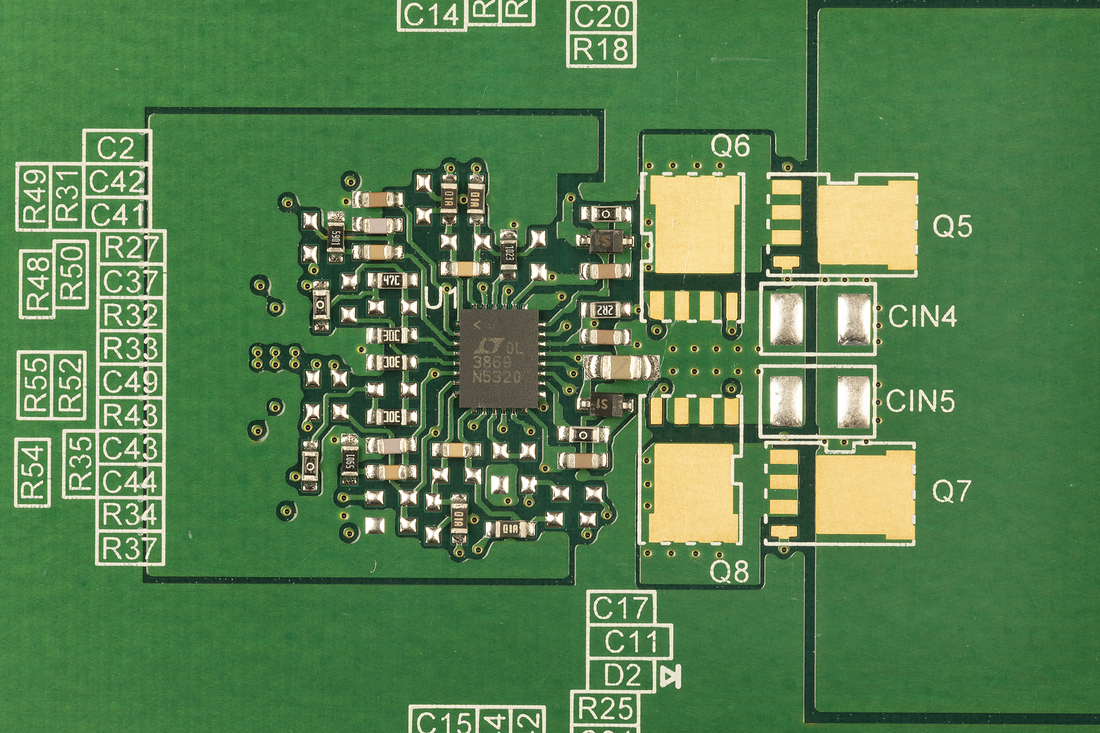

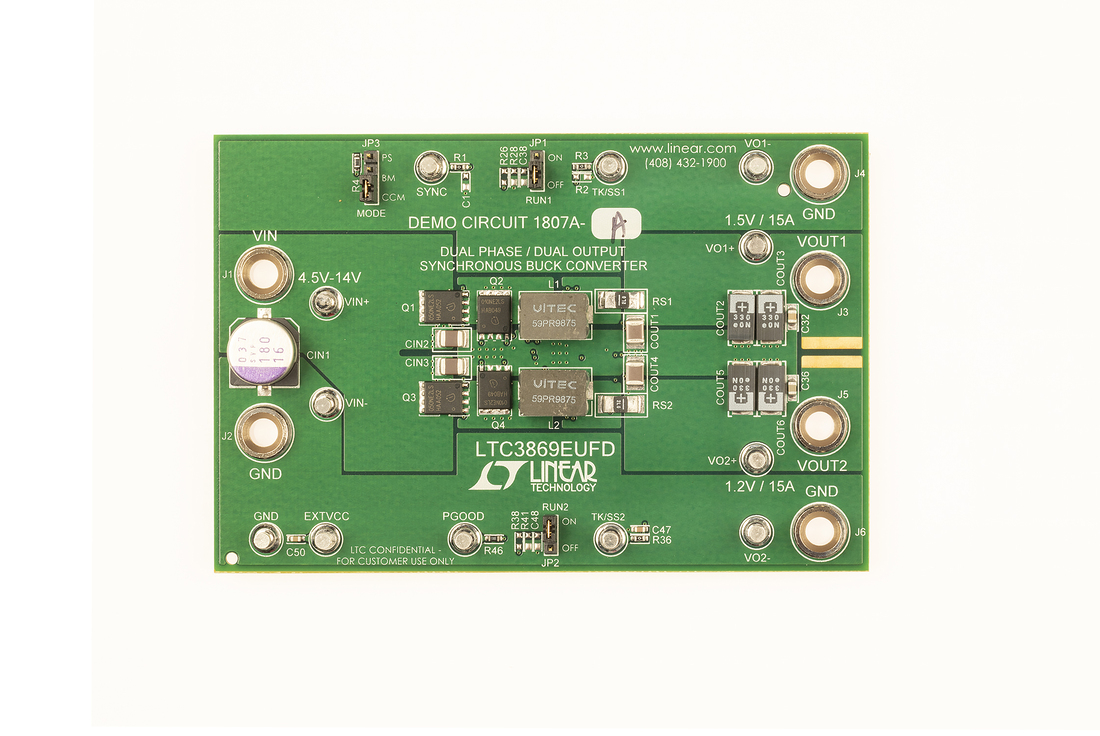

LTC3869EUFD Demo Board | VIN = 4.5V to 14V, VOUT1 = 1.5V @15A, VOUT2 = 1.2V @ 15A, with RSENSE

zoom

DC1807A-A

LTC3869EUFD Demo Board | VIN = 4.5V to 14V, VOUT1 = 1.5V @15A, VOUT2 = 1.2V @ 15A, with RSENSE

LTC3869EUFD Demo Board | VIN = 4.5V to 14V, VOUT1 = 1.5V @15A, VOUT2 = 1.2V @ 15A, with RSENSE

Product Detail

Demonstration circuit 1807A is a dual output, dual phase synchronous buck converter featuring the LTC3869EUFD. The input voltage range is 4.5V to 14V, output voltages and currents are 1.5V/15A and 1.2V/15A. Two versions of the board are available. DC1807A-A has an on-board sense resistor for current feedback, while the DC1807A-B is configured with a DCR sense circuit that allows the converter to use the inductors DCR as the sense element instead of the on-board sense resistors to save cost and board space and improves efficiency.

reference details image

DC1798A-A

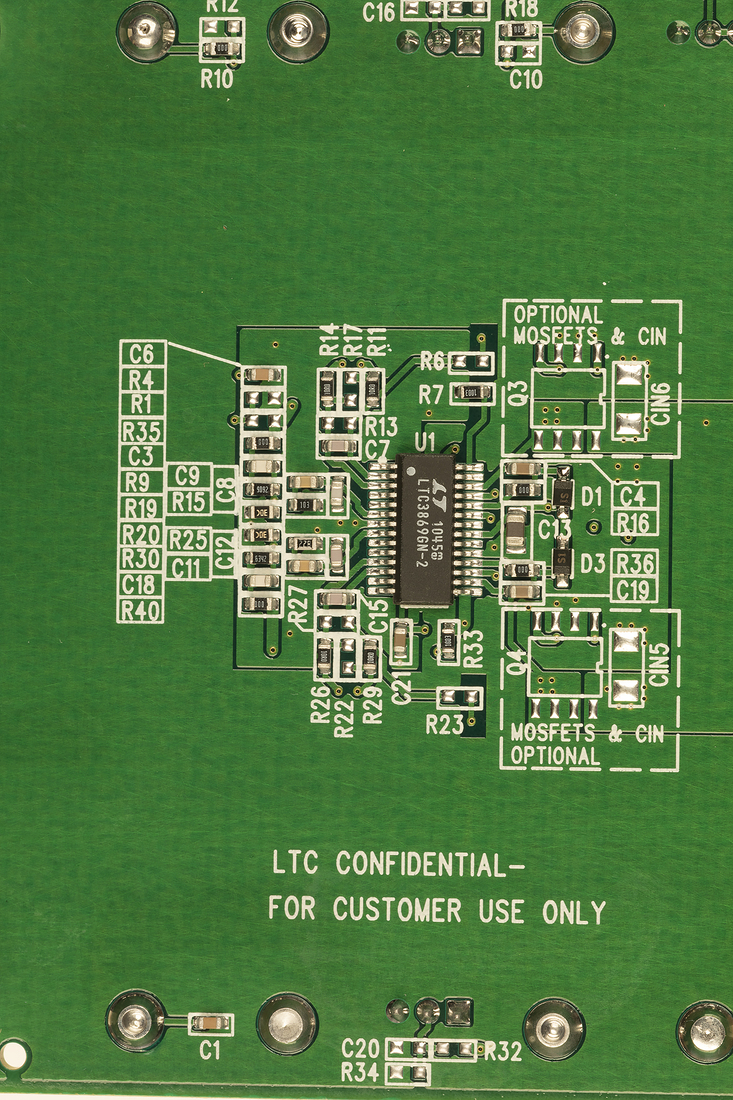

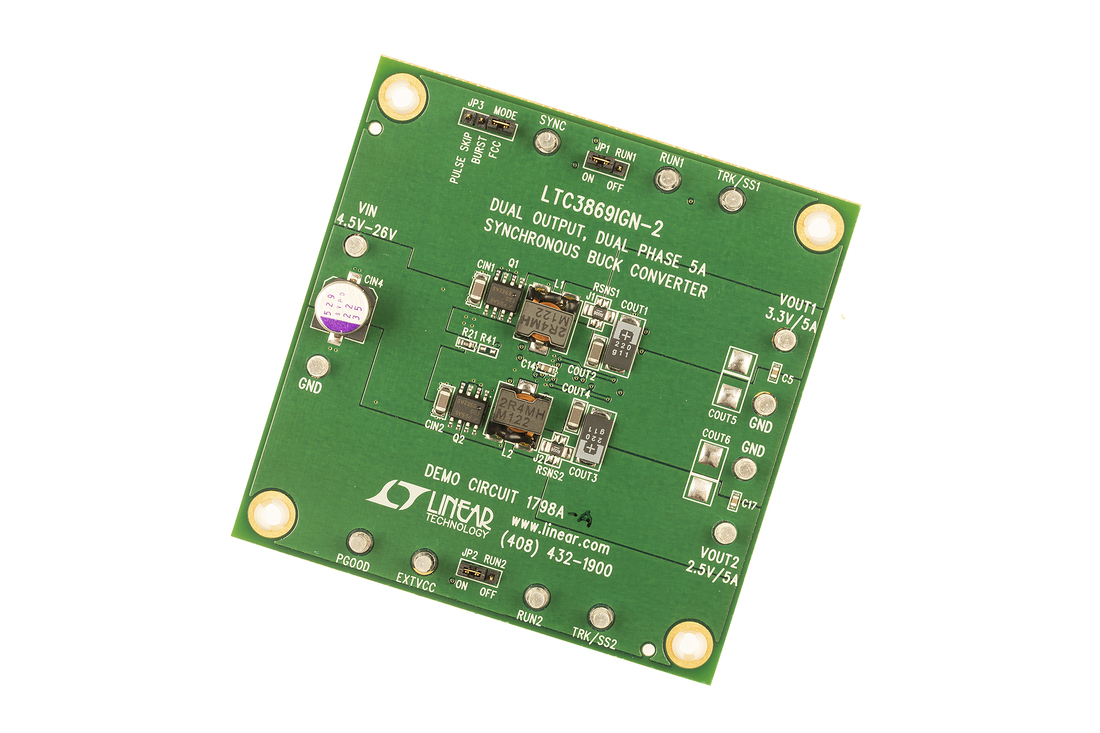

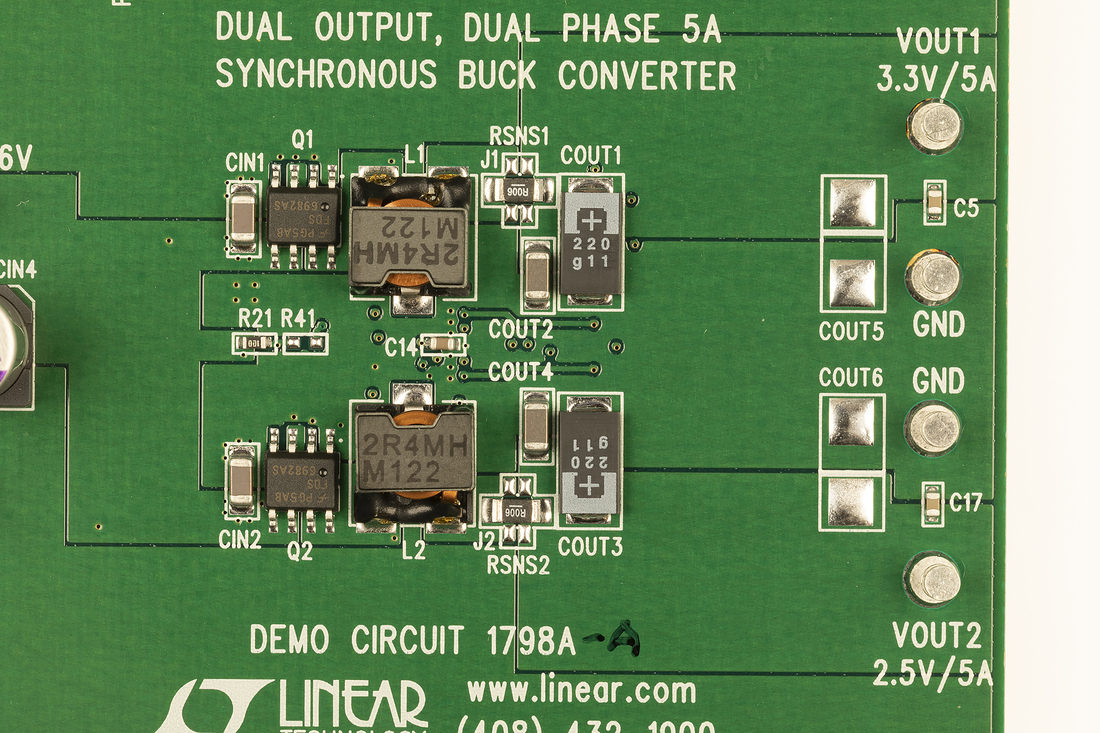

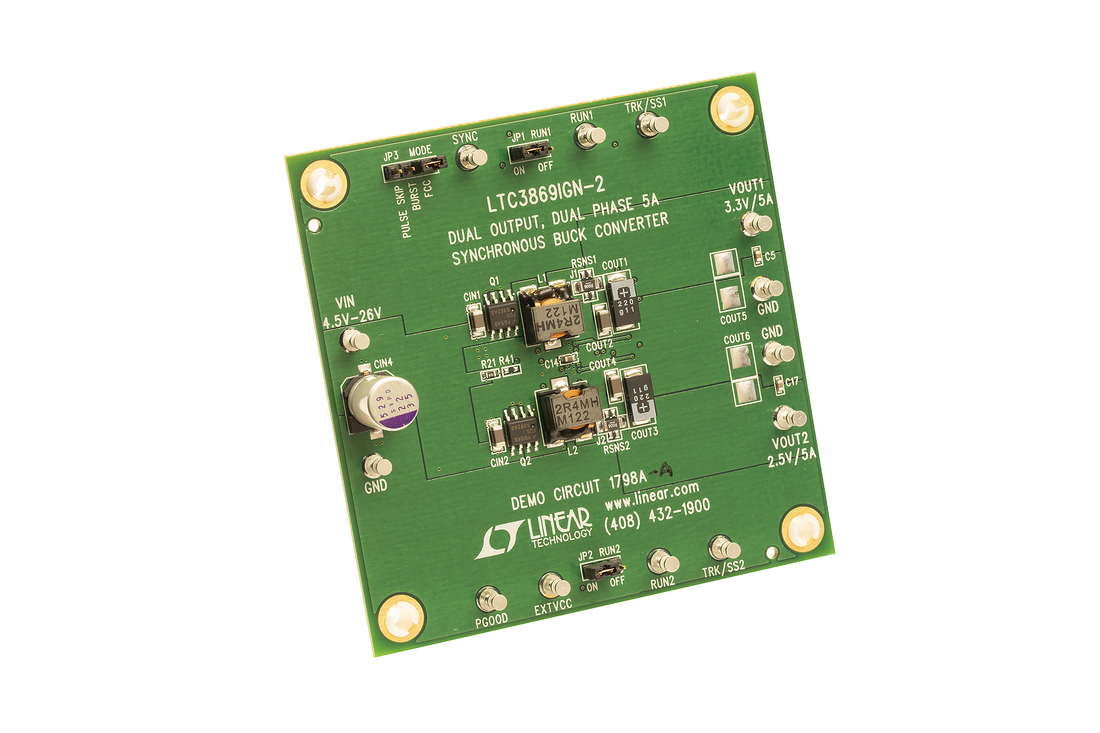

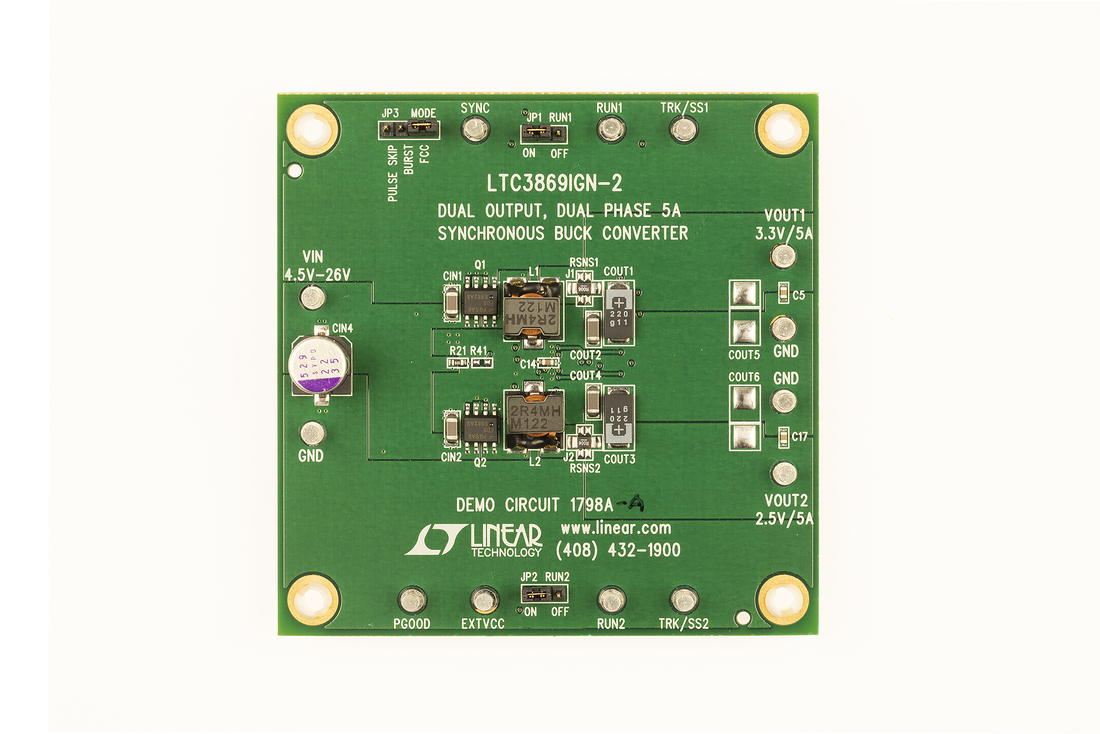

LTC3869IGN-2 Demo Board | VIN = 4.5V to 26V, VOUT1= 3.3V @ 5A, VOUT2 = 2.5V @ 5A, with RSENSE

zoom

DC1798A-A

LTC3869IGN-2 Demo Board | VIN = 4.5V to 26V, VOUT1= 3.3V @ 5A, VOUT2 = 2.5V @ 5A, with RSENSE

LTC3869IGN-2 Demo Board | VIN = 4.5V to 26V, VOUT1= 3.3V @ 5A, VOUT2 = 2.5V @ 5A, with RSENSE

Product Detail

Demonstration circuit 1798A is a Dual Output, Dual Phase 5A Synchronous Buck Converter featuring the LTC3869IGN-2. It provides 2.5V/5A and 3.3V/5A outputs. The input voltage range is 4.5V to 26V. DC1798A-A has an on-board sense resistor for current feedback, while the DC1798A-B is configured with a DCR sense circuit that allows the converter to use the inductors DCR as the sense element instead of the on-board sense resistors to save cost and board space and improves efficiency.

reference details image

DC1807A-B

LTC3869EUFD Demo Board | VIN = 4.5V to 14V, VOUT1 = 1.5V @15A, VOUT2 = 1.2V @ 15A, with DCR Sense

zoom

DC1807A-B

LTC3869EUFD Demo Board | VIN = 4.5V to 14V, VOUT1 = 1.5V @15A, VOUT2 = 1.2V @ 15A, with DCR Sense

LTC3869EUFD Demo Board | VIN = 4.5V to 14V, VOUT1 = 1.5V @15A, VOUT2 = 1.2V @ 15A, with DCR Sense

Product Detail

Demonstration circuit 1807A is a dual output, dual phase synchronous buck converter featuring the LTC3869EUFD. The input voltage range is 4.5V to 14V, output voltages and currents are 1.5V/15A and 1.2V/15A. Two versions of the board are available. DC1807A-A has an on-board sense resistor for current feedback, while the DC1807A-B is configured with a DCR sense circuit that allows the converter to use the inductors DCR as the sense element instead of the on-board sense resistors to save cost and board space and improves efficiency.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
