LTC3867

Synchronous Step-Down DC/DC Controller with Differential Remote Sense and Nonlinear Control

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 4
1ku List Price Starting From $3.19
Features
  • VIN Range: 4V to 38V
  • VOUT Range: 0.6V to 14V
  • Nonlinear Control Architecture Minimizes Output Transient Excursions (Optional)
  • Programmable DCR Temperature Compensation
  • ±0.75% 0.6V Voltage Reference
  • Fixed Frequency Range of 200kHz to 1.2MHz
  • PLL Frequency Synchronization
  • RSENSE or DCR Current Sensing
  • Differential Remote Output Voltage Sense
  • Supports Smooth Start-Up into Pre-Biased Outputs
  • Programmable Soft-Start or VOUT Tracking
  • Hiccup Mode/Soft Recovery from Output Overcurrent
  • 24-Lead (4mm × 4mm) QFN Package
Additional Details
show more Icon

The LTC3867 is a current mode synchronous step-down switching regulator controller that drives all N-channel power MOSFET stages. Output voltage transient excursions are minimized by use of a nonlinear control architecture to eliminate clock latency issues.

The maximum current sense voltage is programmable from 30mV to 75mV, allowing the use of either a discrete sense resistor or the inductor DCR as the sensing element. Programmable DCR temperature compensation allows constant current limit regardless of inductor temperature. Programmable inductor temperature-based thermal shutdown protects the power components from thermal stress. Soft recovery from output shorts or overcurrent minimizes output overshoot.

The LTC3867 features a precision 0.6V reference and can regulate output voltages up to 14V from a wide 4V to 38V input supply range. The LTC3867 includes a high speed differential remote sense amplifier. Burst Mode® operation, continuous and pulse-skipping modes are supported. The LTC3867 is available in a 24-lead (4mm × 4mm) QFN package.

Applications

  • Automotive Systems
  • Telecom Systems
  • Industrial Equipment
  • Distributed DC Power Systems
Part Models 4
1ku List Price Starting From $3.19

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3867EUF#PBF
  • HTML
  • HTML
LTC3867EUF#TRPBF
  • HTML
  • HTML
LTC3867IUF#PBF
  • HTML
  • HTML
LTC3867IUF#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3867EUF#PBF

PRODUCTION

LTC3867EUF#TRPBF

PRODUCTION

LTC3867IUF#PBF

PRODUCTION

LTC3867IUF#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3867EUF#PBF

PRODUCTION

LTC3867EUF#TRPBF

PRODUCTION

LTC3867IUF#PBF

PRODUCTION

LTC3867IUF#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 2

reference details image

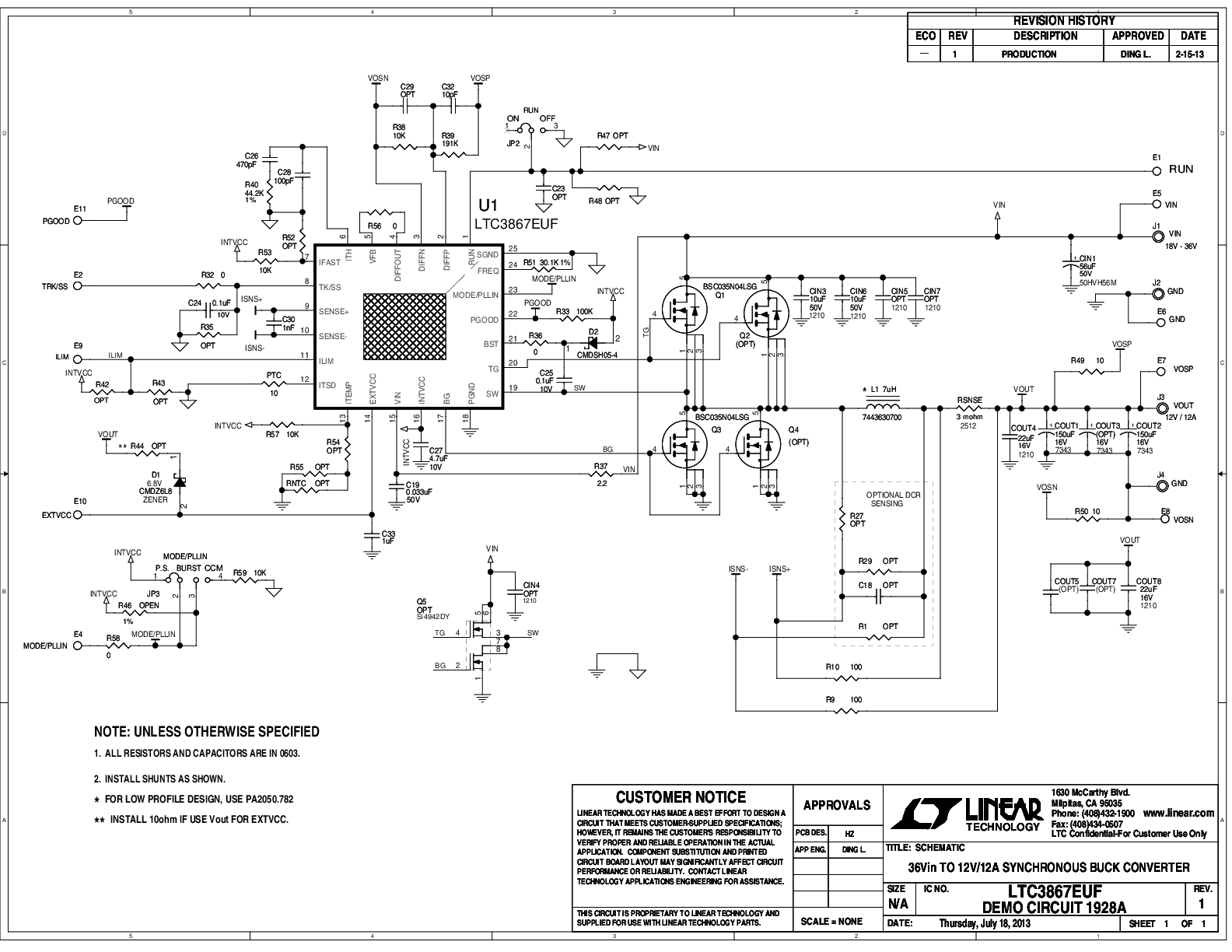

DC1928A

LTC3867EUF Demo Board | 18V ≤ VIN ≤ 36V; VOUT = 12V @ 12A

reference details image

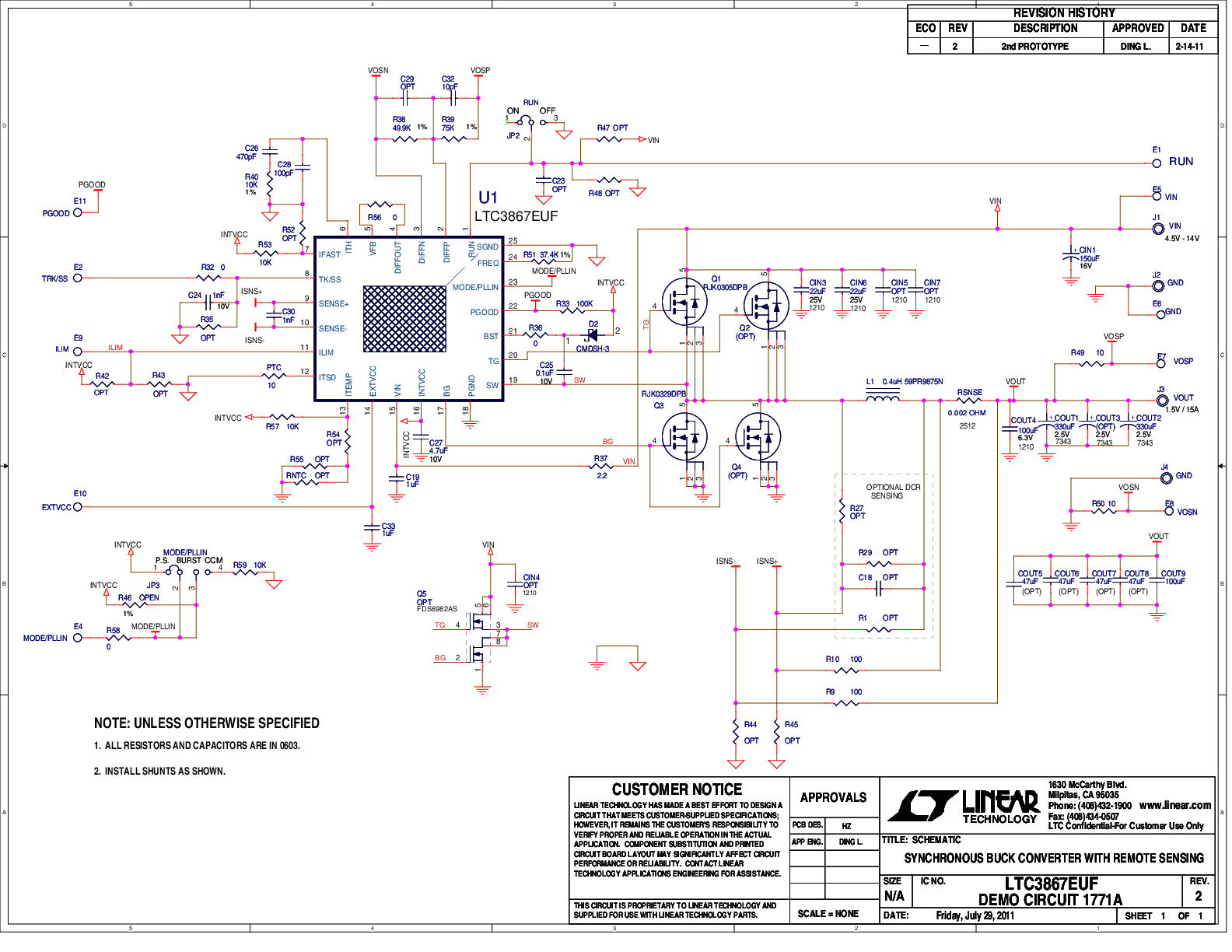

DC1771A

LTC3867EUF Demo Board | 4.5 ≤ VIN ≤ 14V, VOUT = 1.5V @ 15A

zoom

DC1771A

LTC3867EUF Demo Board | 4.5 ≤ VIN ≤ 14V, VOUT = 1.5V @ 15A

LTC3867EUF Demo Board | 4.5 ≤ VIN ≤ 14V, VOUT = 1.5V @ 15A

Product Detail

Demonstration circuit 1771A is a single output synchronous buck converter featuring the LTC3867EUF with a 24-lead 4mm × 4mm QFN package. The input voltage range is from 4.5V to 14V and it provides 1.5V at 15A at the output. The DC1771A is configured with a sense resistor.


DCR sensing circuit is optional. Using the inductor’s DCR as the sense element instead of the on-board sense resistor saves cost and board space while improving full-load efficiency over 2%, though the sense resistor provides a more accurate current limit.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
