LTC3824

PRODUCTION

High Voltage Step-Down Controller With 40µA Quiescent Current

Data Sheet Product Selection Table

Part Models: 8
1ku List Price: Starting From $2.36

Viewing:

Part Details

Wide Input Range: 4V to 60V
Current Mode Constant Frequency PWM
Very Low Dropout Operation: 100% Duty Cycle
Programmable Switching Frequency: 200kHz to 600kHz
Selectable High Efficient Burst Mode^® Operation: 40µA Quiescent Current
Easy Synchronization
8V, 2A Gate Drive (V_CC > 10V) for Industrial High Voltage P-Channel MOSFET
Programmable Soft-Start
Programmable Current Limit
Available in a Small 10-Pin Thermally Enhanced MSE Package

Part Models: 8
1ku List Price: Starting From $2.36

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3824EMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824EMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824HMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824HMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824IMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824IMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824MPMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3824MPMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 18, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices
		PCN22_0050_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC3824EMSE#PBF	PRODUCTION
LTC3824EMSE#TRPBF	PRODUCTION
LTC3824HMSE#PBF	PRODUCTION
LTC3824HMSE#TRPBF	PRODUCTION
LTC3824IMSE#PBF	PRODUCTION
LTC3824IMSE#TRPBF	PRODUCTION
Mar 30, 2021 - 21_0081 Test Platform Conversion for LTC3824 MSOP
		PCN21_0081_Form Material_Report Test Correlation Report
LTC3824EMSE#PBF	PRODUCTION
LTC3824EMSE#TRPBF	PRODUCTION
LTC3824IMSE#PBF	PRODUCTION
LTC3824IMSE#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC3824EMSE#PBF	PRODUCTION
LTC3824EMSE#TRPBF	PRODUCTION
LTC3824HMSE#PBF	PRODUCTION
LTC3824HMSE#TRPBF	PRODUCTION
LTC3824IMSE#PBF	PRODUCTION
LTC3824IMSE#TRPBF	PRODUCTION
LTC3824MPMSE#PBF	PRODUCTION
LTC3824MPMSE#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Oscillators 1
LTC6909	PRODUCTION	1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode

Tools & Simulations

LTspice 1

LTC3824 Demo Circuit - HV Step-Down Controller w/ 40µA Iq (4.5-55V to 3.3V@2A)

Models for the following parts are available in LTspice:

LTC3824

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

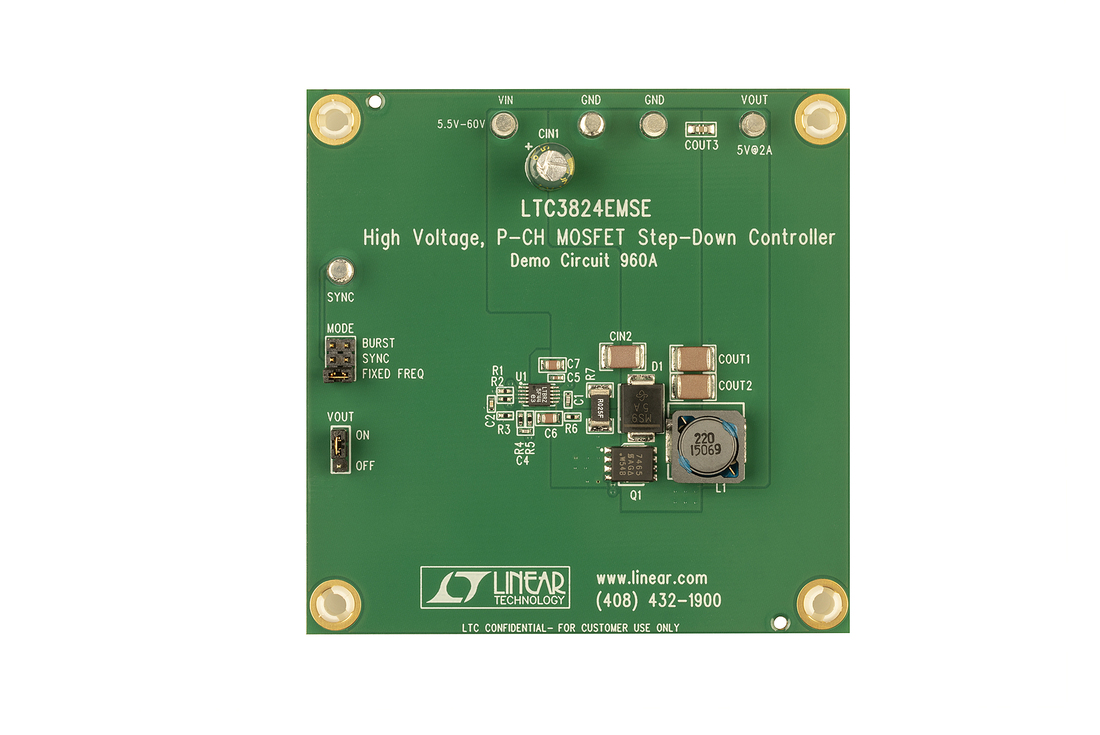

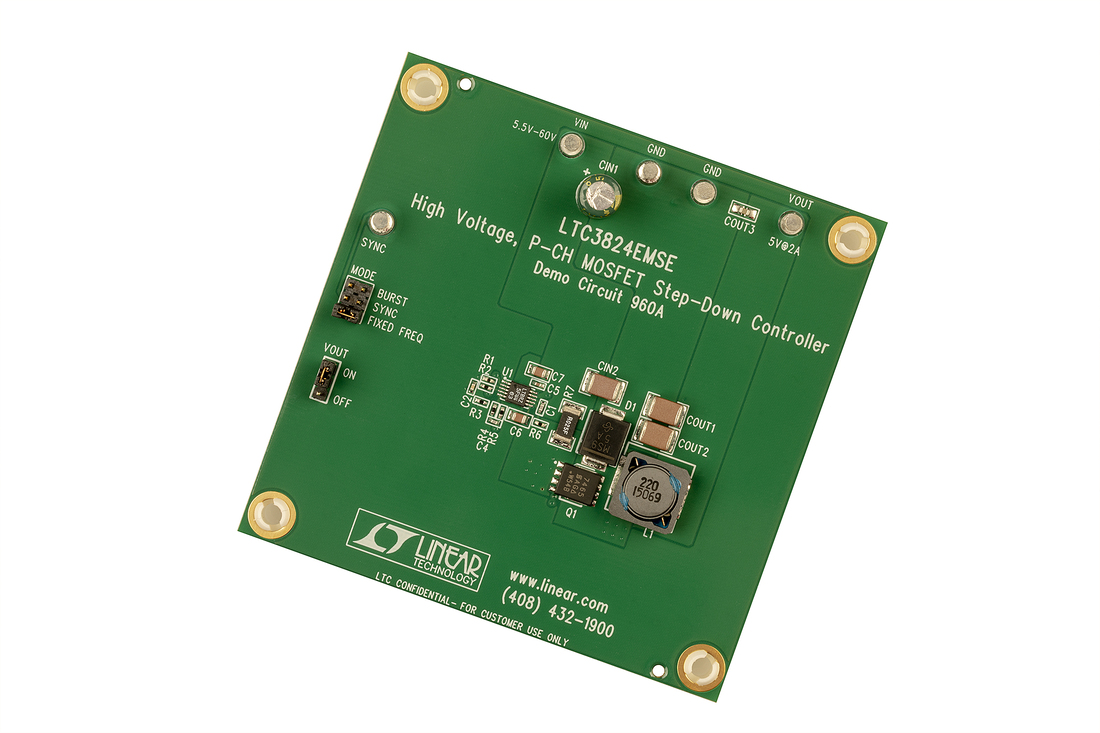

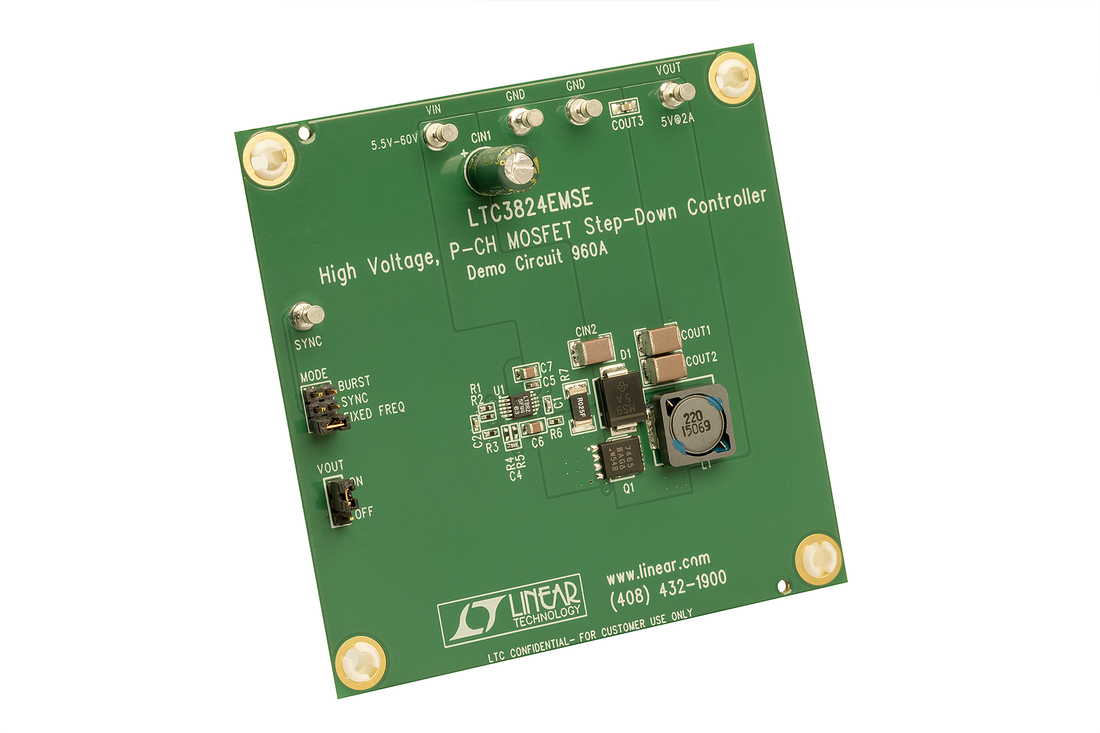

LTC3824EMSE Demo Board | 5.5V ≤ VIN ≤ 60V, VOUT: 5V/2A

Buy Now View Details

Product Details

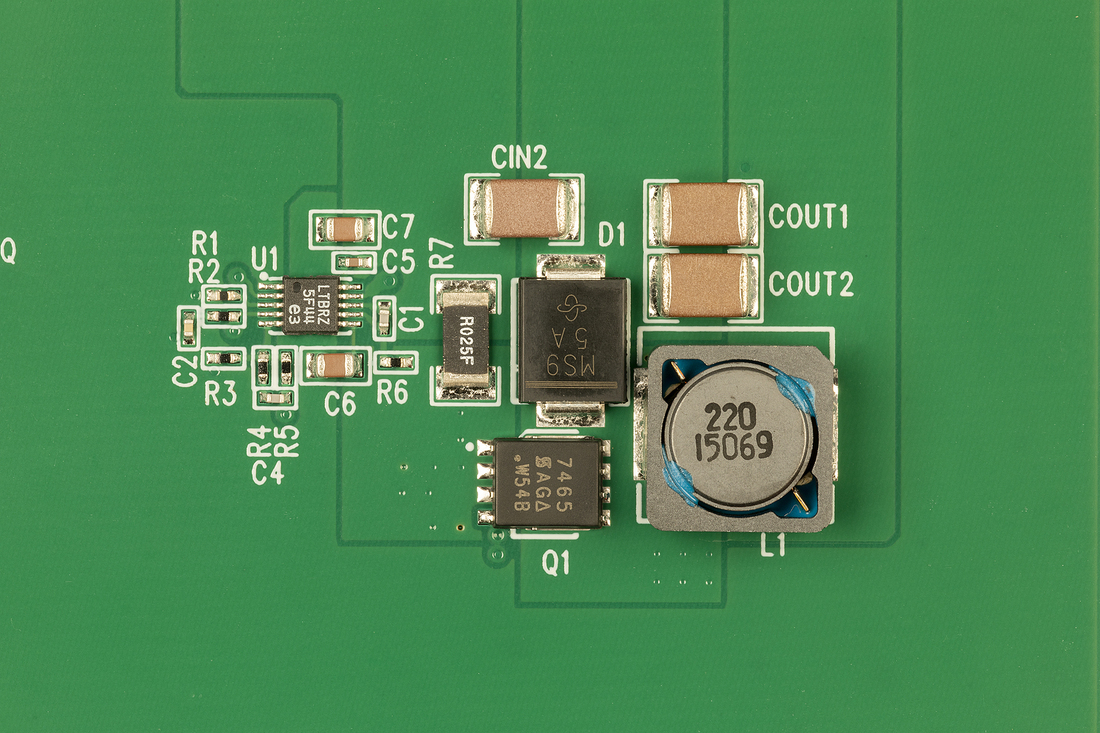

Demonstration circuit 960 is a high voltage, current-mode DC/DC step-down controller featuring the LTC3824 in a small 10-pin MSOP package.

The board operates from an input voltage of 5.5V to 60V and outputs 5V @ 2A. The converter uses a P-channel MOSFET for the main switch resulting in a low parts count design. Operating frequency is set to 200kHz with the option to accept a synchronized external clock.

Resources

DC960A - Demo Manual
1/12/2010

DC960A - Design File
9/24/2009

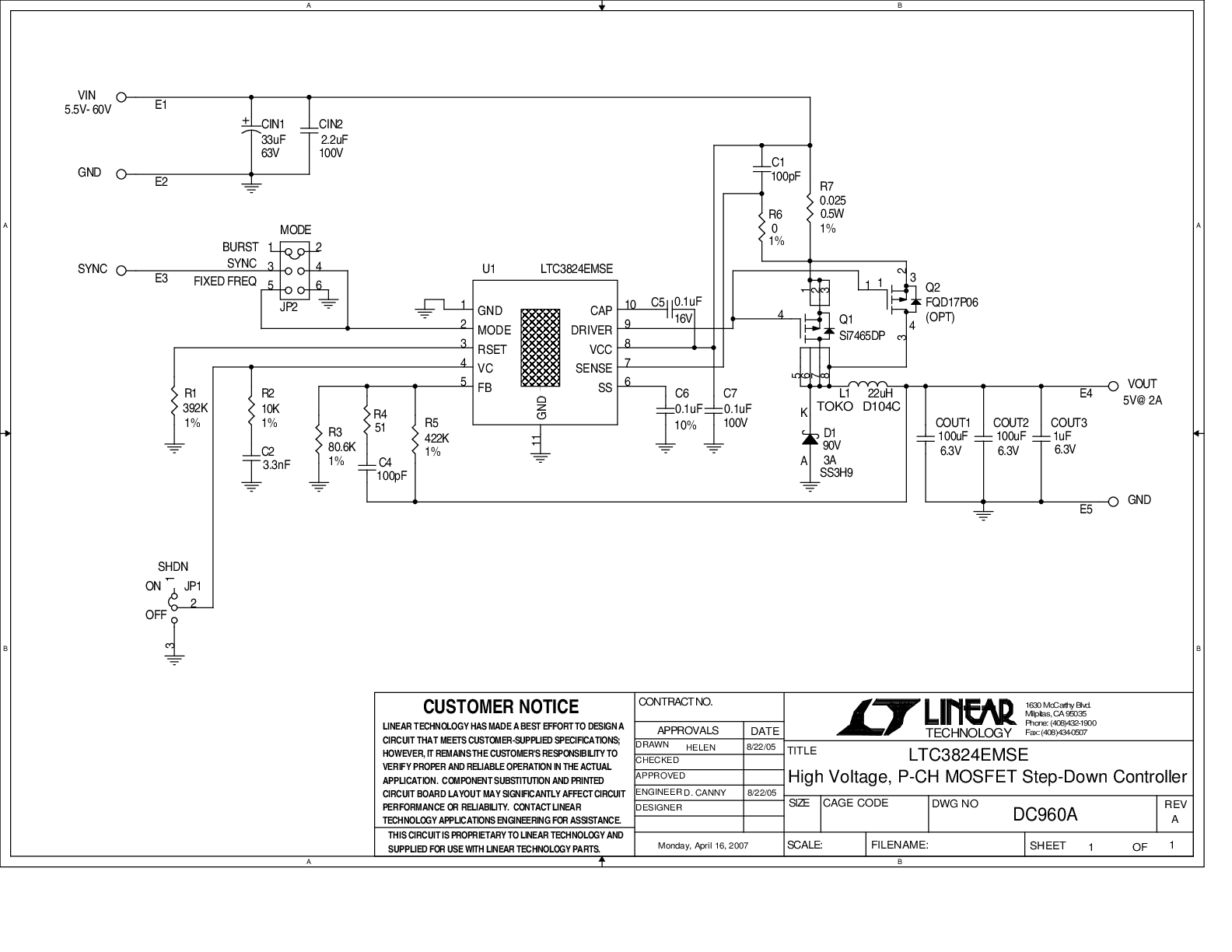

DC960A - Schematic
9/24/2009
