LTC3824

High Voltage Step-Down Controller With 40µA Quiescent Current

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3824 - Step-Down (Buck) Regulators Download 2.69 KB LTspice LTC3824 Demo Circuit - HV Step-Down Controller w/ 40µA Iq (4.5-55V to 3.3V@2A) Download 3.00KB
Part Models 8
1ku List Price Starting From $2.36
Features
  • Wide Input Range: 4V to 60V
  • Current Mode Constant Frequency PWM
  • Very Low Dropout Operation: 100% Duty Cycle
  • Programmable Switching Frequency: 200kHz to 600kHz
  • Selectable High Efficient Burst Mode® Operation: 40µA Quiescent Current
  • Easy Synchronization
  • 8V, 2A Gate Drive (VCC > 10V) for Industrial High Voltage P-Channel MOSFET
  • Programmable Soft-Start
  • Programmable Current Limit

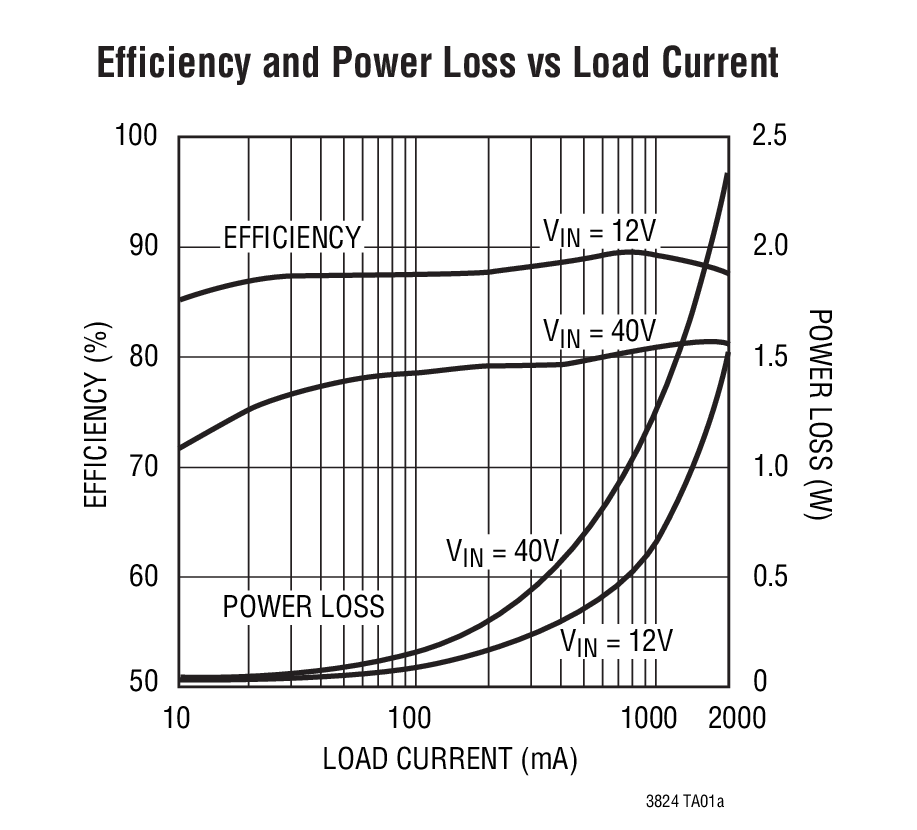

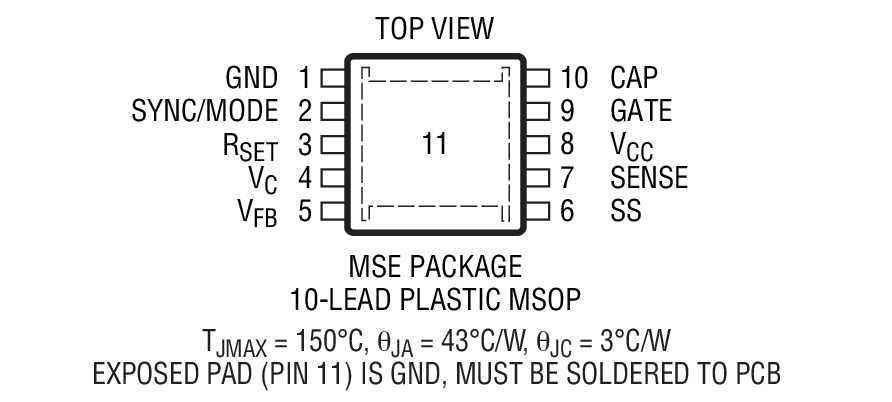

  • Available in a Small 10-Pin Thermally Enhanced MSE Package
Additional Details
show more Icon

The LTC3824 is a step-down DC/DC controller designed to drive an external P-channel MOSFET. With a wide input range of 4V to 60V and a high voltage gate driver, the LTC3824 is suitable for many industrial and automotive high power applications. Constant frequency current mode operation provides excellent performance.

The LTC3824 can be configured for Burst Mode operation. Burst Mode operation enhances low current efficiency (only 40µA quiescent current) and extends battery run time. The switching frequency can be programmed up to 600kHz and is easily synchronizable.

Other features include current limit, soft-start, micropower shutdown, and Burst Mode disable.

The LTC3824 is available in a 10-lead MSE power package.

Applications

  • Industrial and Automotive Power Supplies
  • Telecom Power Supplies
  • Distributed Power Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3824 - Step-Down (Buck) Regulators Download 2.69 KB LTspice LTC3824 Demo Circuit - HV Step-Down Controller w/ 40µA Iq (4.5-55V to 3.3V@2A) Download 3.00KB
Part Models 8
1ku List Price Starting From $2.36
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3824

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 01/12/2016
English

LTC3824: High Voltage Step-Down Controller With 40µA Quiescent Current Data Sheet

Open PDF File

redirect
376.00K
download

Download PDF

PDF Vector

PDF

UPDATED 06/07/2011
Japanese

LTC3824: 消費電流40μAの高電圧降圧コントローラ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 01/12/2010
English
DC960A - Demo Manual redirect icon

615.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R533 Reliability Data redirect icon

17.44 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 09/01/2006
English
High Voltage Step-Down Controller Delivers High Power with Minimum Number of Components redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3824EMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824EMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824HMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824HMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824IMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824IMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824MPMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3824MPMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 18, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LTC3824EMSE#PBF

PRODUCTION

LTC3824EMSE#TRPBF

PRODUCTION

LTC3824HMSE#PBF

PRODUCTION

LTC3824HMSE#TRPBF

PRODUCTION

LTC3824IMSE#PBF

PRODUCTION

LTC3824IMSE#TRPBF

PRODUCTION

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Mar 30, 2021

- 21_0081

Test Platform Conversion for LTC3824 MSOP

LTC3824EMSE#PBF

PRODUCTION

LTC3824EMSE#TRPBF

PRODUCTION

LTC3824IMSE#PBF

PRODUCTION

LTC3824IMSE#TRPBF

PRODUCTION

pdf

PCN21_0081_Form

external-icon

xls

Material_Report

Download

Test Correlation Report

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3824EMSE#PBF

PRODUCTION

LTC3824EMSE#TRPBF

PRODUCTION

LTC3824HMSE#PBF

PRODUCTION

LTC3824HMSE#TRPBF

PRODUCTION

LTC3824IMSE#PBF

PRODUCTION

LTC3824IMSE#TRPBF

PRODUCTION

LTC3824MPMSE#PBF

PRODUCTION

LTC3824MPMSE#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 18, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LTC3824EMSE#PBF

PRODUCTION

LTC3824EMSE#TRPBF

PRODUCTION

LTC3824HMSE#PBF

PRODUCTION

LTC3824HMSE#TRPBF

PRODUCTION

LTC3824IMSE#PBF

PRODUCTION

LTC3824IMSE#TRPBF

PRODUCTION

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Mar 30, 2021

- 21_0081

arrow down

Test Platform Conversion for LTC3824 MSOP

LTC3824EMSE#PBF

PRODUCTION

LTC3824EMSE#TRPBF

PRODUCTION

LTC3824IMSE#PBF

PRODUCTION

LTC3824IMSE#TRPBF

PRODUCTION

pdf

PCN21_0081_Form

external-icon

xls

Material_Report

Download
Test Correlation Report
Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3824EMSE#PBF

PRODUCTION

LTC3824EMSE#TRPBF

PRODUCTION

LTC3824HMSE#PBF

PRODUCTION

LTC3824HMSE#TRPBF

PRODUCTION

LTC3824IMSE#PBF

PRODUCTION

LTC3824IMSE#TRPBF

PRODUCTION

LTC3824MPMSE#PBF

PRODUCTION

LTC3824MPMSE#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

High Voltage Hot Swap Controllers1
LTC4364
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Surge Stopper with Ideal Diode

Silicon Oscillators1
LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Evaluation Kits 1

reference details image

DC960A

LTC3824EMSE Demo Board | 5.5V ≤ VIN ≤ 60V, VOUT: 5V/2A

zoom

DC960A

LTC3824EMSE Demo Board | 5.5V ≤ VIN ≤ 60V, VOUT: 5V/2A

download icon

Download

 print icon

Print
DC960A
LTC3824EMSE Demo Board | 5.5V ≤ VIN ≤ 60V, VOUT: 5V/2A
Buy Now View Details

Product Detail

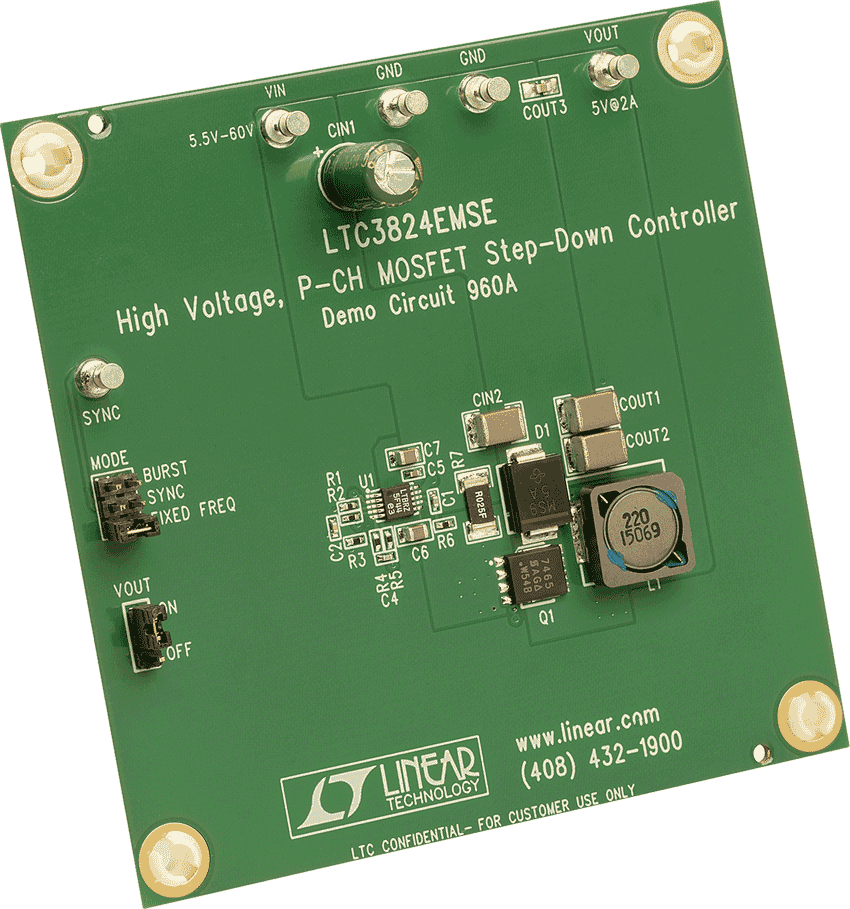

Demonstration circuit 960 is a high voltage, current-mode DC/DC step-down controller featuring the LTC3824 in a small 10-pin MSOP package.


The board operates from an input voltage of 5.5V to 60V and outputs 5V @ 2A. The converter uses a P-channel MOSFET for the main switch resulting in a low parts count design. Operating frequency is set to 200kHz with the option to accept a synchronized external clock.



Resources

pdf icon

PDF

DC960A - Schematic Download

30.00K

pdf icon

ZIP

DC960A - Design File Download

584.00K

pdf icon

PDF

DC960A - Demo Manual Download

615.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC960A

LTC3824EMSE Demo Board | 5.5V ≤ VIN ≤ 60V, VOUT: 5V/2A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3824 - Step-Down (Buck) Regulators Download

2.69 K

spice tool Lt Spice

LTC3824 Demo Circuit - HV Step-Down Controller w/ 40µA Iq (4.5-55V to 3.3V@2A) Download

3.00K
