LTC3738

3-Phase Buck Controller for Intel VRM9/VRM10 with Active Voltage Positioning

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $5.59
Features
  • 3-Phase Controller with Onboard MOSFET Drivers
  • Programmable Active Voltage Positioning (AVP) with True Current Sensing
  • Programmable External Thermal Detection or Internal Thermal Sensing
  • Precise Output Current Matching Optimizes Thermal Performance and Solution Size
  • Supports Starting into Precharged VOUTS
  • Differential Amplifier Accurately Senses VOUT
  • PWM, Pulse Skip and Stage Shedding™ Operation
  • Synchronizable
  • 210kHz to 530kHz Per Phase, Fixed Frequency
  • Output Power Good Indicator with Adaptive Blanking
  • Adjustable Soft-Start Current Ramping
  • Short-Circuit Shutdown Timer with Defeat Option
  • OPTI-LOOP® Compensation Minimizes COUT
  • 38-Lead (5mm × 7mm) QFN Package
Additional Details
show more Icon

The LTC3738 is a 3-phase synchronous step-down switching regulator controller that drives all N-channel external power MOSFET stages in a phase-lockable, fixed frequency architecture. The 3-phase technique effectively triples the fundamental frequency, improving transient response while operating each controller at an optimal frequency for efficiency and ease of thermal design. Light load efficiency is optimized by using a choice of output Stage Shedding or Pulse Skip mode technology.

The LTC3738 also allows users to program load slope via a resistor for AVP control. Both external and internal thermal sensing are available from the on-chip thermal detector and comparator.

A differential amplifier provides sensing of both the high and low sides of the output voltage.

Soft-start and a defeatable, timed short-circuit shutdown protect the MOSFETs and the load. A foldback current circuit also provides protection for the external MOSFETs under short-circuit or overload conditions. An all- “1” VID detector turns off the regulator after a 1µs timeout.

Applications

  • High Performance Notebook Computers
  • Servers, Desktop Computers and Workstations
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $5.59
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3738

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/28/2007
English

LTC3738: 3-Phase Buck Controller for Intel VRM9/VRM10 with Active Voltage Positioning Data Sheet

Open PDF File

redirect
320.00K
download

Download PDF

PDF Vector

PDF

UPDATED 11/29/2006
Japanese

LTC3738: アクティブ電圧ポジショニング付き、インテルVRM9/VRM10向け3フェーズ降圧コントローラ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R384 Reliability Data redirect icon

18.89 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC721A - Demo Manual redirect icon

1.00M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

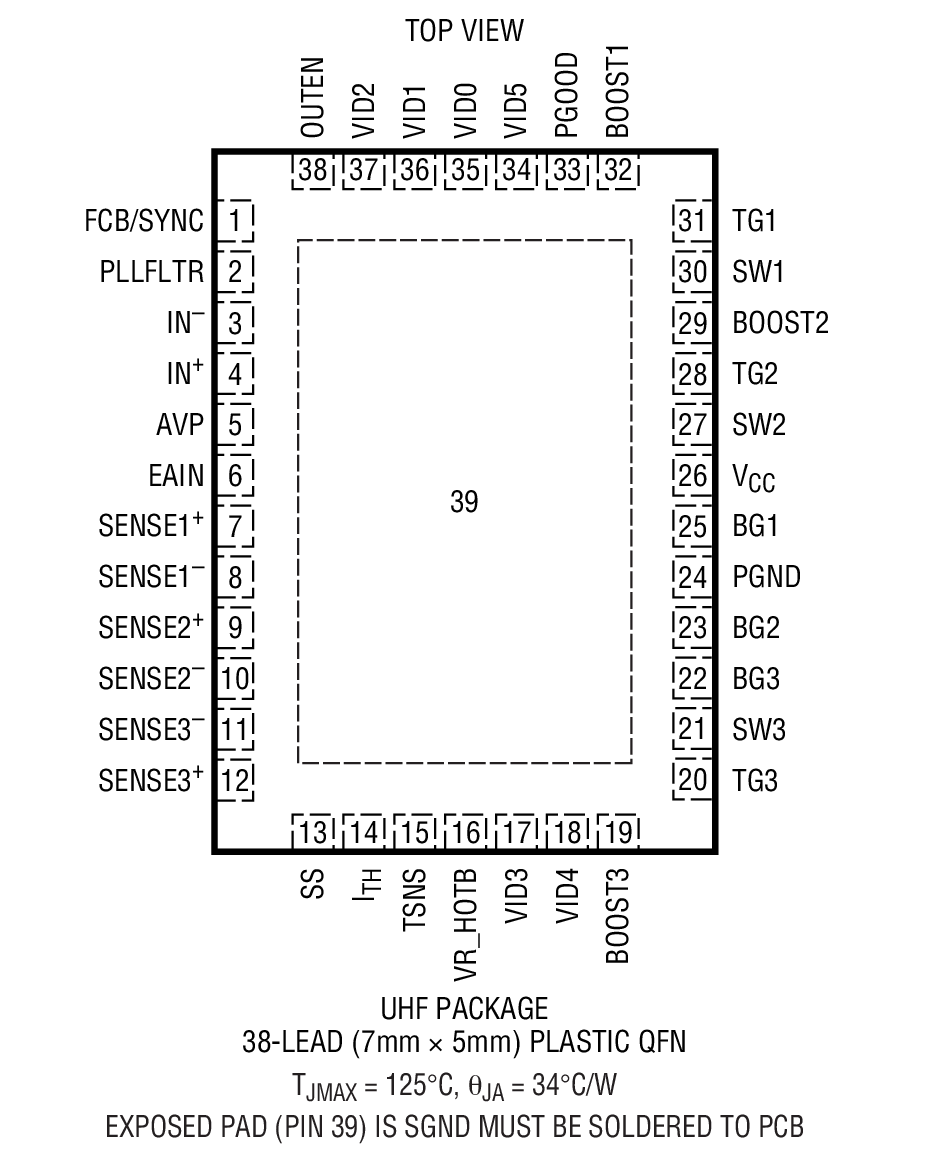

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3738CUHF#PBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3738CUHF#TRPBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Multiple Output Buck Regulators1
LTC3880
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Evaluation Kit

Evaluation Kits 2

reference details image

DC721A-B

LTC3738CUHF Demo Board | 3-Phase, 8V ≤ VIN ≤ 14V, VOUT = VRM9.X/10.X @ 65A

zoom

DC721A-B

LTC3738CUHF Demo Board | 3-Phase, 8V ≤ VIN ≤ 14V, VOUT = VRM9.X/10.X @ 65A

download icon

Download

 print icon

Print
DC721A-B
LTC3738CUHF Demo Board | 3-Phase, 8V ≤ VIN ≤ 14V, VOUT = VRM9.X/10.X @ 65A
Buy Now View Details

Product Detail

Demonstration circuits 721A-A and 721A-B are high current step-down converters for Intel VRM/VRD10 and VRM9 processor power applications. The 6-phase DC721A-A features two current-mode PolyPhaseTM controllers, the LTC3738CUHF (3-Phase Buck Controller for Intel VRM9/VRM10 with Active Voltage Positioning and the the LTC3731CUH (3-Phase, 600kHz, Synchronous Buck Switching Regulator Controller). and provides up to 120A output current. The DC721A-B is a single LTC3738 3-phase 65A output supply. The input voltage range for both demo boards is from 8V to 14V, and the output voltage is controlled by the VID setting.



Resources

pdf icon

PDF

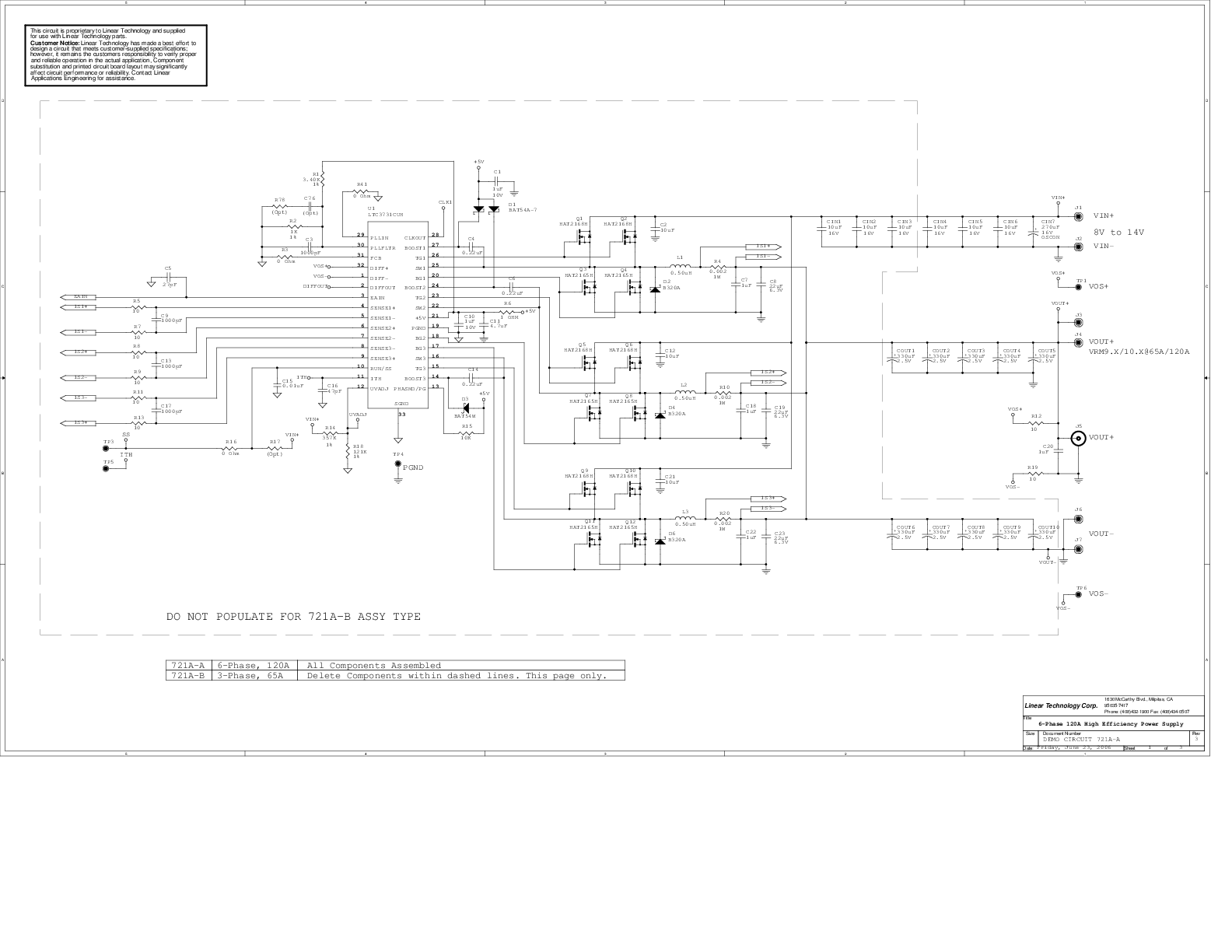

DC721A - Schematic Download
