Features and Benefits

  • Triple Output Supply From a Single 2.9V to 5.5V Input
  • Buck DC/DC: Fixed 1.2V Output, Up to 400mA
  • LDO1: Fixed 2.8V Output, Up to 150mA
  • LDO2: Fixed 1.8V Output, Up to 150mA
  • ±2.5% Reference Accuracy
  • Constant-Frequency 2.25MHz Operation
  • Minimum External Component Count
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Internal Soft-Start for Each Output
  • Single Enable Pin Turns On/Shuts Down All Three Outputs
  • Tiny 2mm × 2mm × 0.75mm DFN Package

Product Details

The LTC3672B-2 is a triple power supply composed of a 400mA synchronous buck regulator and two 150mA low-dropout linear regulators (LDOs). Constant-frequency 2.25MHz operation is maintained down to very light loads. The input supply range of 2.9V to 5.5V is especially well-suited for single-cell Lithium-Ion and Lithium-Polymer applications, and for powering low voltage ASICs from 3.3V or 5V rails.

The LTC3672B-2 regulates 1.2V at the buck output, 2.8V at the LDO1 output, and 1.8V at the LDO2 output. External component count is minimal—all that is needed is a single inductor, an input capacitor, and output capacitors for each of the three outputs. Control loop compensation is internal to the LTC3672B-2.

The LTC3672B-2 is available in a 2mm × 2mm × 0.75mm 8-Lead DFN package.

LTC3672B-1 1.8V 1.2V 2.8V
LTC3672B-2 1.2V 2.8V 1.8V


  • DMB and DVB-H Cellphones
  • Handheld Products (PDA, PMP, GPS)
  • Multivoltage Power for Digital Logic, I/O, FPGAs, CPLDs, ASICs, CPUs, and RF Chipsets

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

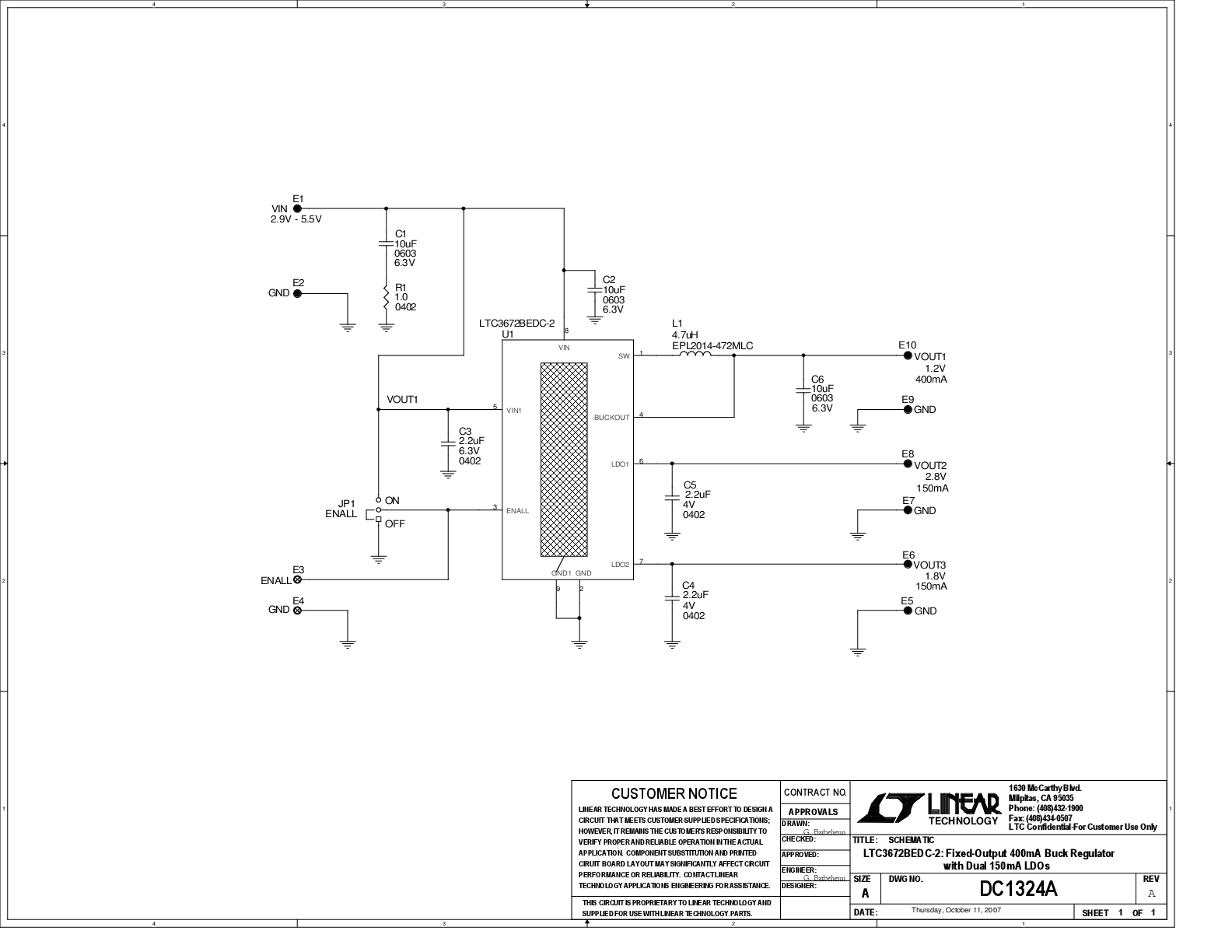

Evaluation Kits (1)
