Features and Benefits
- Programmable Average Input Current Limit: ±5% Accuracy
- Dual Step-Down Outputs: Up to 96% Efficiency
- Low Noise Pulse-Skipping Operation at Light Loads
- Input Voltage Range: 2.5V to 5.5V
- Output Voltage Range: 0.6V to 5V
- 2.25MHz Constant-Frequency Operation
- Power Good Output Voltage Monitor for Each Channel
- Low Dropout Operation: 100% Duty Cycle
- Independent Internal Soft-Start for Each Channel
- Current Mode Operation for Excellent Line and Load Transient Response
- ±2% Output Voltage Accuracy
- Short-Circuit Protected
- Shutdown Current ≤ 1μA

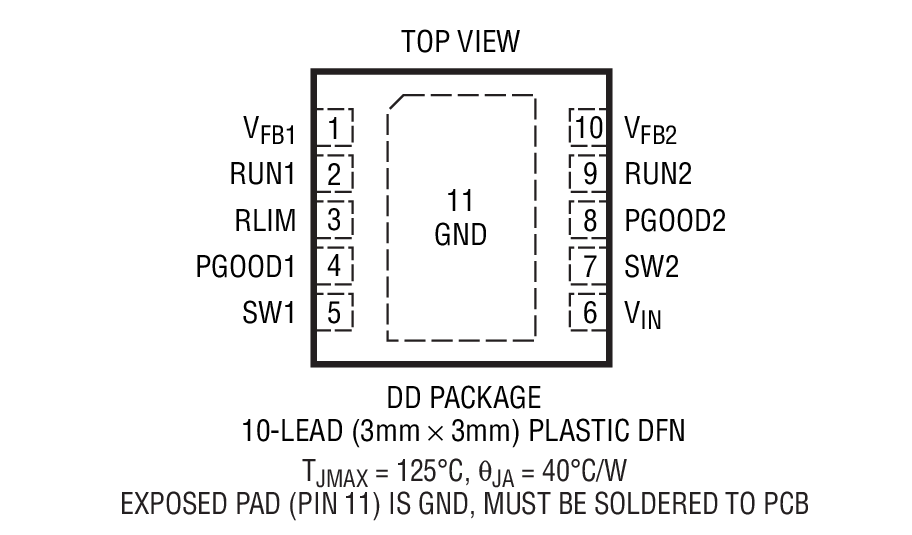

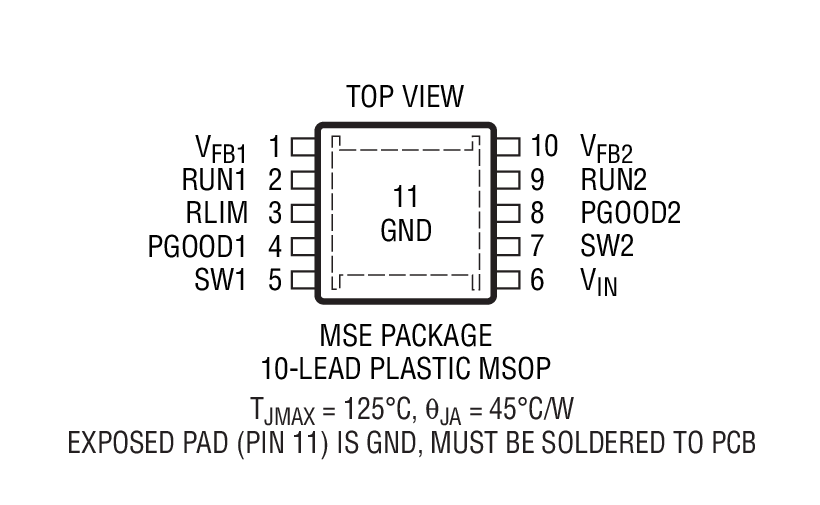

- Available in Small Thermally Enhanced 10-Lead MS and 3mm × 3mm DFN Packages
The LTC3619B is a dual monolithic synchronous buck regulator using a constant frequency current mode architecture.
The input supply voltage range is 2.5V to 5.5V, making it ideal for Li-Ion and USB powered applications. 100% duty cycle capability provides low dropout operation, extending the run time in battery-operated systems. Low output voltages are supported with the 0.6V feedback reference voltage. Channel 1 and channel 2 can supply 400mA and 800mA output current, respectively.

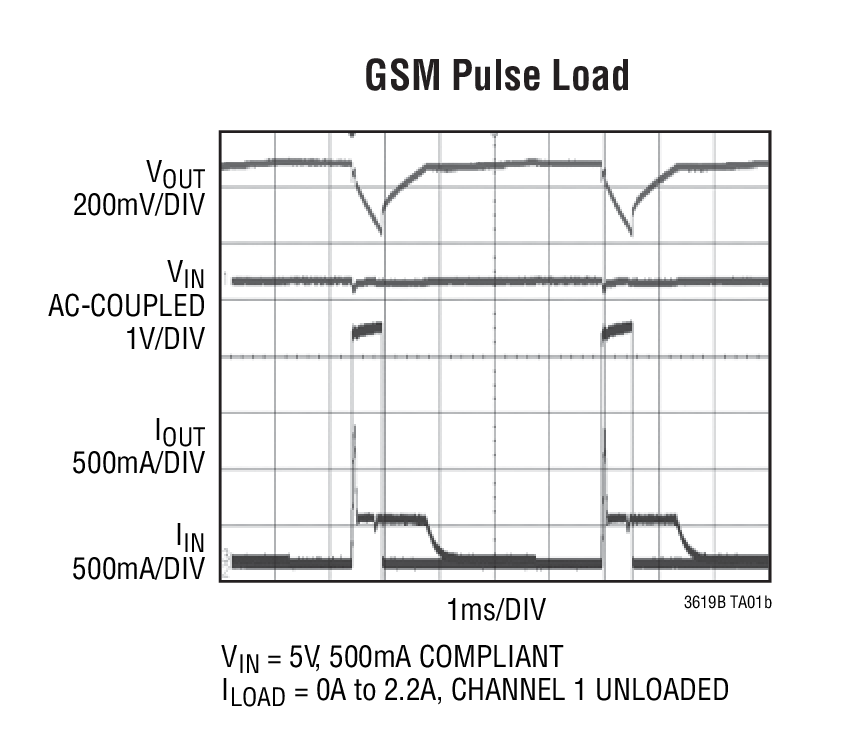

The LTC3619B’s programmable average input current limit is ideal for USB applications and for point-of-load power supplies because the LTC3619B’s limited input current will still allow its output to deliver high peak load currents without collapsing the input supply. When the sum of both channels’ currents exceeds the input current limit, channel 2 is current limited while channel 1 remains regulated. The operating frequency is internally set at 2.25MHz allowing the use of small surface mount inductors. Internal soft-start reduces in-rush current during start-up. The LTC3619B is available in small MSOP and 3mm × 3mm DFN packages. The LTC3619B is also available in a low quiescent current, high efficiency Burst Mode® version, LTC3619.
|Light Load Operation|
|LTC3619||Low Ripple Burst Mode (<20mVpp), IQ < 50μA|
|LTC3619B||Pulse Skip (<5mVpp)|
- High Peak Load Current Applications
- USB Powered Devices
- Supercapacitor Charging
- Radio Transmitters and Other Handheld Devices
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Demonstration circuit 1489A is a synchronous buck dual regulator with adjustable input current limit featuring the LTC3619EDD(Burst mode operation)/LTC3619BEDD(pulse-skip mode) and is ideally suited for pulsed load applications where the input current needs to be limited. The -A board is for the LTC3619 while the -B board is for the LTC3619B. It is configured for 500mA maximum input current limit. The outputs are configured for a 3.3V/400mA continuous current output and a 3.4V output that can handle pulsed load currents up to 2A, with duty cycles up to 15%. The input voltage range is 5V ±10%. The fixed input current limited can be adjusted by replacing one resistor.
Documentation & Resources
R457 Reliability Data3/26/2018
DC1489A - Demo Manual10/23/2009
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LTC3619B Companion Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC3619BEDD#PBF||Material Declaration||Reliability Data||10-Lead DFN (3mm x 3mm w/ EP)|
|LTC3619BEDD#TRPBF||Material Declaration||Reliability Data||10-Lead DFN (3mm x 3mm w/ EP)|
|LTC3619BEMSE#PBF||Material Declaration||Reliability Data||10-Lead MSOP w/ EP|
|LTC3619BEMSE#TRPBF||Material Declaration||Reliability Data||10-Lead MSOP w/ EP|
|LTC3619BIDD#PBF||Material Declaration||Reliability Data||10-Lead DFN (3mm x 3mm w/ EP)|
|LTC3619BIDD#TRPBF||Material Declaration||Reliability Data||10-Lead DFN (3mm x 3mm w/ EP)|
|LTC3619BIMSE#PBF||Material Declaration||Reliability Data||10-Lead MSOP w/ EP|
|LTC3619BIMSE#TRPBF||Material Declaration||Reliability Data||10-Lead MSOP w/ EP|
