LTC3564

2.25MHz, 1.25A Synchronous Step-Down Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 8
1ku List Price Starting From $2.35
Features
  • High Efficiency: Up to 96%
  • Very Low Quiescent Current: Only 20μA
  • 1.25A Output Current
  • 2.5V to 5.5V Input Voltage Range
  • 2.25MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • 0.6V Reference Allows Low Output Voltages
  • Shutdown Mode Draws ≤ 1μA Supply Current
  • Current Mode Operation for Excellent Line and
  • Load Transient Response
  • Overtemperature Protected
  • Low Profile (1mm) ThinSOTand 6-Lead (2mm × 3mm) DFN Packages
Additional Details
show more Icon

The LTC3564 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 20μA, dropping to ≤1μA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3564 ideally suited for single Li-Ion battery-powered or 3.3V to 5V input voltage applications. 100% duty cycle provides low drop- out operation, extending battery life in portable systems. Automatic Burst Mode® operation increases efficiency at light loads, further extending battery runtime.

Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.6V feedback reference voltage. The LTC3564 is available in low profile (1mm) ThinSOT and 6-Lead (2mm × 3mm) DFN packages.

Applications

  • Cellular Telephones
  • Wireless and DSL Modems
  • Digital Still Cameras
  • Media Players
  • Portable Instruments
  • Point of Load Regulation
Part Models 8
1ku List Price Starting From $2.35

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3564EDCB#TRMPBF
  • HTML
  • HTML
LTC3564EDCB#TRPBF
  • HTML
  • HTML
LTC3564ES5#TRMPBF
  • HTML
  • HTML
LTC3564ES5#TRPBF
  • HTML
  • HTML
LTC3564IDCB#TRMPBF
  • HTML
  • HTML
LTC3564IDCB#TRPBF
  • HTML
  • HTML
LTC3564IS5#TRMPBF
  • HTML
  • HTML
LTC3564IS5#TRPBF
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 2

reference details image

DC1343A

LTC3564DCB6 Demo Board (DFN) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A

zoom

DC1343A

LTC3564DCB6 Demo Board (DFN) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A

LTC3564DCB6 Demo Board (DFN) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A

Product Detail

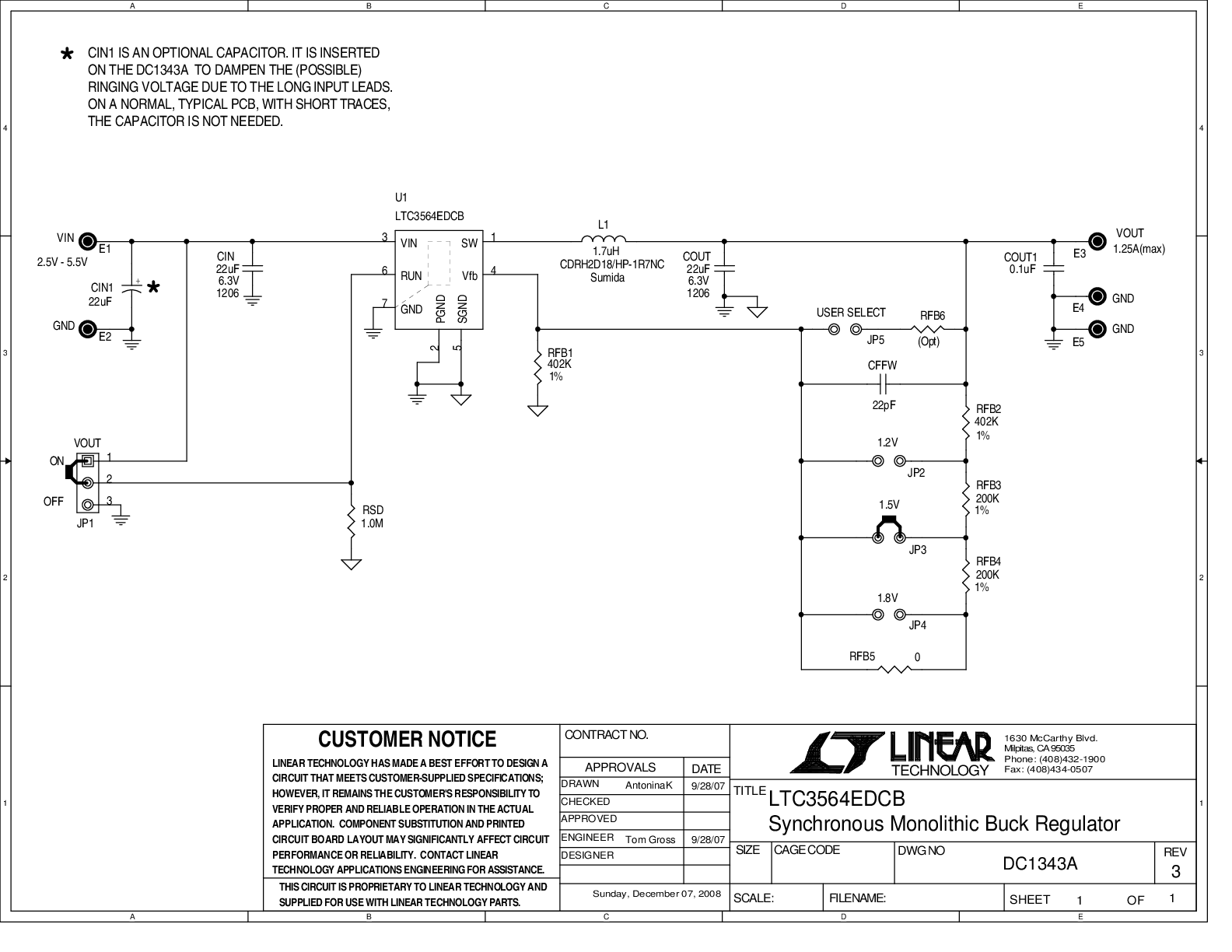

Demonstration circuit DC1343A is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture featuring LTC3564 in the 2×3 DFN-6 package. The demo board features a 2.5V to 5.5V input voltage range and provides a jumper-selectable 1.2V/1.5V/1.8V output at 1.25A. Its high switching frequency of 2.25MHz allows the use of small surface mount inductors and capacitors.





reference details image

DC1158A

LTC3564ES5 Demo Board (TSOT) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A

zoom

DC1158A

LTC3564ES5 Demo Board (TSOT) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A

LTC3564ES5 Demo Board (TSOT) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A

Product Detail

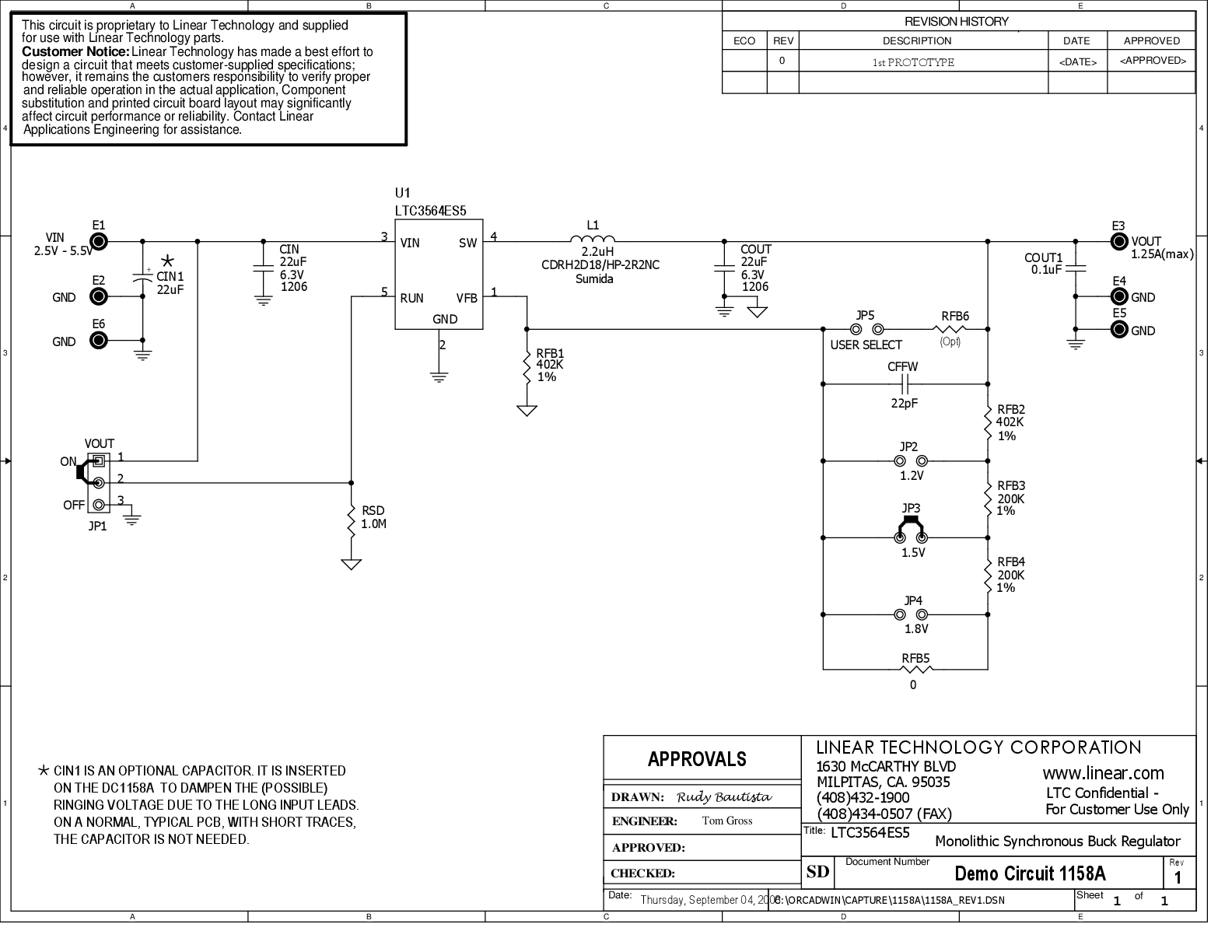

Demonstration circuit DC1158A is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture featuring LTC3564 in the ThinSOT package. The demo board features a 2.5V to 5.5V input voltage range and provides a jumper-selectable 1.2V/1.5V/1.8V output at 1.25A. Its high switching frequency of 2.25MHz allows the use of small surface mount inductors and capacitors.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
