Overview
Features and Benefits
- Uses Tiny Capacitors and Inductor
- High Frequency Operation: Up to 4MHz
- High Switch Current: 1.4A
- Low RDS(ON) Internal Switches: 0.110Ω

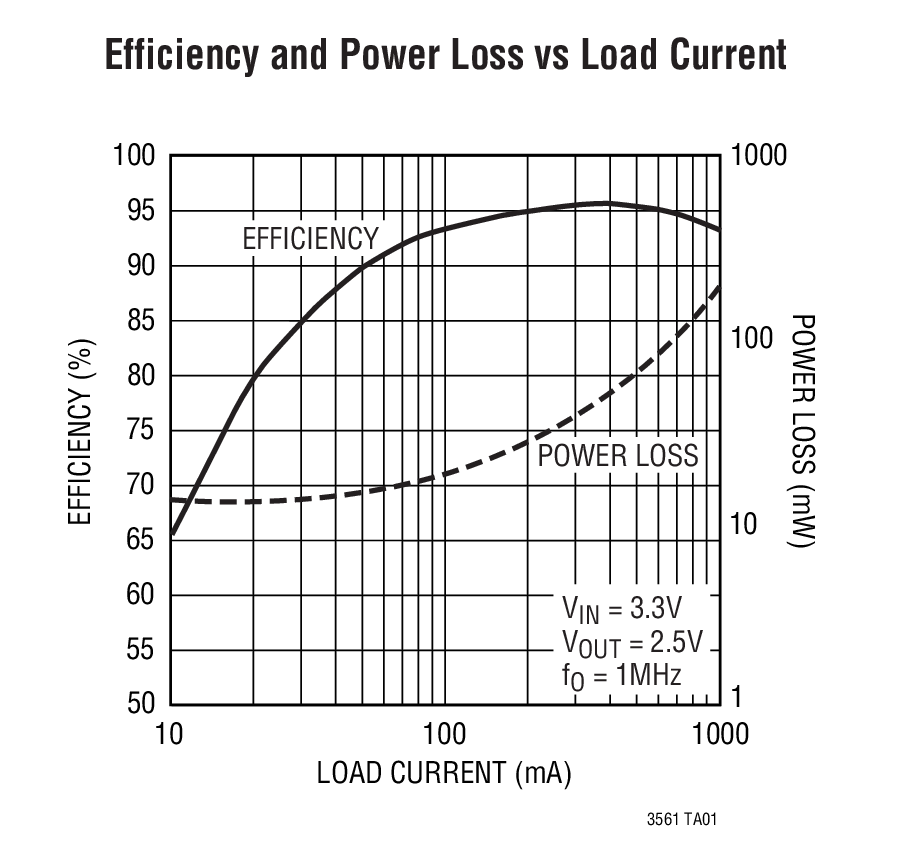

- High Efficiency: Up to 95%
- VIN: 2.63V to 5.5V
- Stable with Ceramic Capacitors
- Current Mode Operation for Excellent Line and Load Transient Response
- Short-Circuit Protected
- Low Dropout Operation: 100% Duty Cycle
- Low Shutdown Current: IQ ≤ 1µA
- Low Quiescent Current: 240µA
- Output Voltages from 0.8V to 5V
- Low Noise Pulse-Skipping Operation

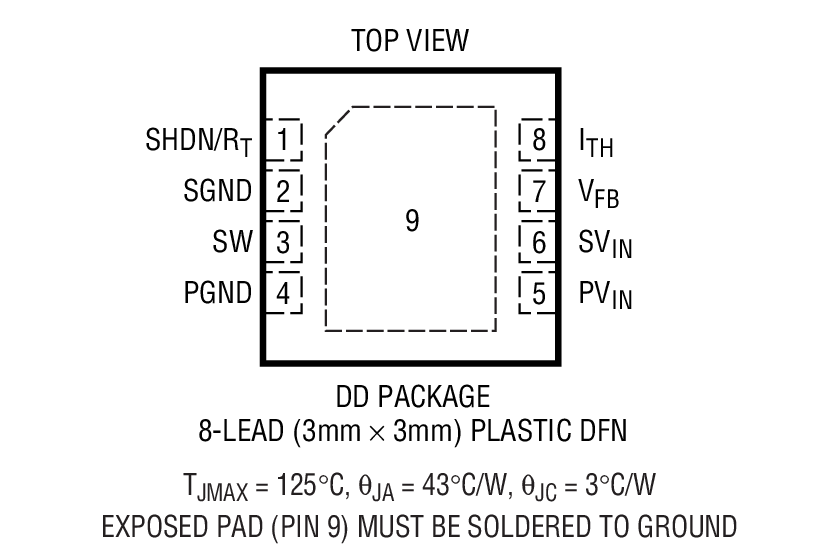

- Small 8-Pin DFN Package
Product Details
The LTC3561 is a constant-frequency, synchronous, step-down DC/DC converter. Intended for medium power applications, it operates from a 2.63V to 5.5V input voltage range and has a user configurable operating frequency up to 4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. The output voltage is adjustable from 0.8V to 5V. Internal synchronous 0.11Ω power switches with 1.4A peak current ratings provide high efficiency. The LTC3561’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors.
To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle). The no-load quiescent current is only 240µA. In shutdown, the device draws <1µA.
Applications
- Wireless LAN Power
- Notebook Computers
- Digital Cameras
- Cellular Phones
- Board Mounted Power Supplies
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
R415 Reliability Data3/23/2018
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LTC3561
LTC3561A
LTpowerCAD
LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.
To open the project file for this circuit:
Step 1: Download and install LTpowerCAD on your computer.
Step 2: Click on the link(s) in the section below to download part-specific project files.
Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.
LTpowerCAD Project Files
Design tools for the following parts are available in LTpowerCAD:
LTC3561
Product Recommendations
LTC3561 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC3561EDD#PBF | Material Declaration | Reliability Data | 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) | |
| LTC3561EDD#TRPBF | Material Declaration | Reliability Data | 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R415 Reliability Data |
