Overview

Features and Benefits

  • Programmable Charge Current Up to 950mA
  • Complete Linear Charger and Dual DC/DC Regulator
  • Buck Converter Output Voltage from 0.6V to 5V
  • No MOSFET, Sense Resistor or Blocking Diode Required
  • Thermal Regulation Maximizes Charge Rate Without Risk of Overheating*
  • Charges Directly from a USB Port
  • Programmable Charge Current Termination
  • Preset 4.2V Charge Voltage with ±1% Accuracy
  • Charge Current Monitor Output for Gas Gauging*
  • Automatic Recharge
  • Charge Status Output
  • “Power Present” Output
  • 2.9V Trickle Charge Threshold
  • Soft-Start Limits Inrush Current
  • Low Quiescent Current Buck Converter (40µA)
  • Current Mode Operation, Constant Frequency (2.25MHz)
  • Low Profile (5mm × 3mm × 0.75mm) DFN Package

Product Details

The LTC3552 is a complete constant-current/constantvoltage linear charger with a dual DC/DC converter for single cell lithium-ion batteries. Its DFN package and low external component count make the LTC3552 ideally suited for portable applications. Furthermore, the LTC3552 is designed to work within USB power specifi cations.

No external sense resistor or external blocking diode is required due to the internal MOSFET architecture. The charge voltage is fixed at 4.2V and the charge current is programmed with a resistor. The charge cycle terminates when the charge current drops below the programmed termination threshold after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the LTC3552 enters a low current state dropping the battery drain current to less than 2µA. Thermal regulation maximizes charge rate without risk of overheating.

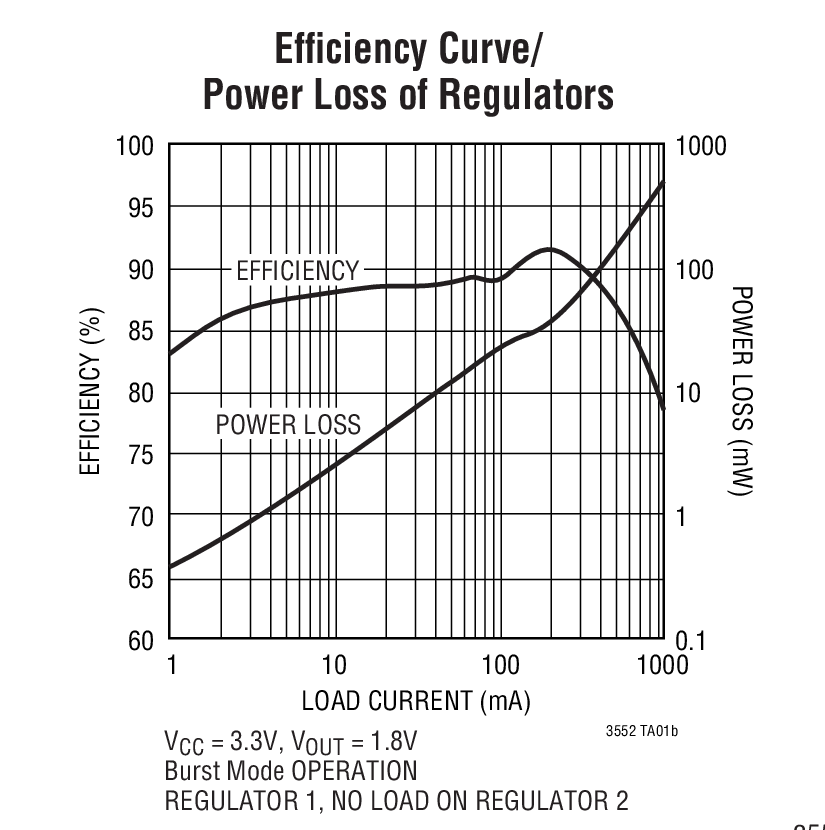

The synchronous step-down switching regulators generate adjustable output voltages from 5V down to 0.6V. The switching frequency is set at 2.25MHz, allowing the use of small surface mount inductors and capacitors.




 Vout
LTC3552 Adjustable (0.6V to 5V)
LTC3552-1 1.8V & 1.575V


Applications

  • Cellular Telephones, PDAs, MP3 Players
  • Bluetooth Applications

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

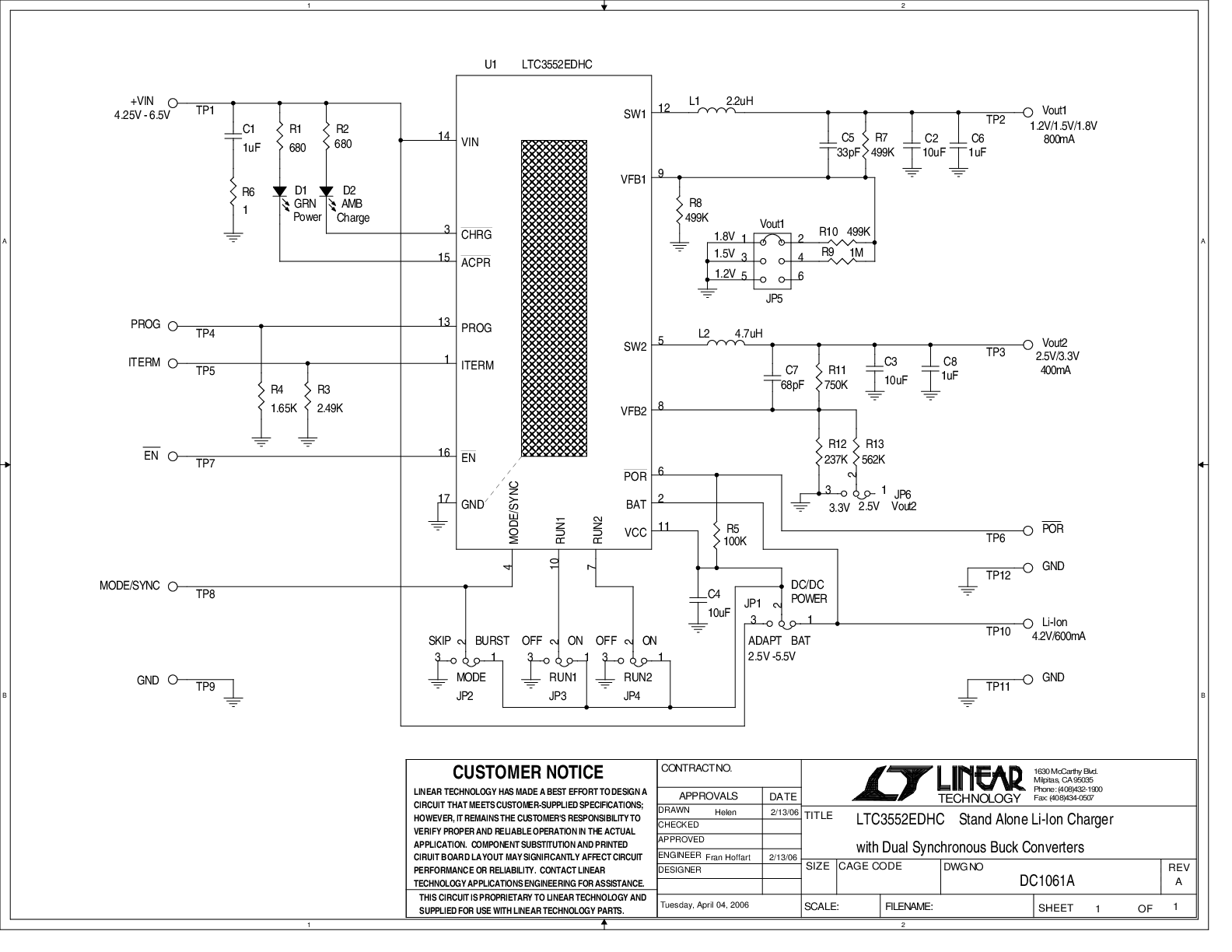

Evaluation Kits (1)

Documentation & Resources

  • View All (3)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC3552
    LTC3552-1

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

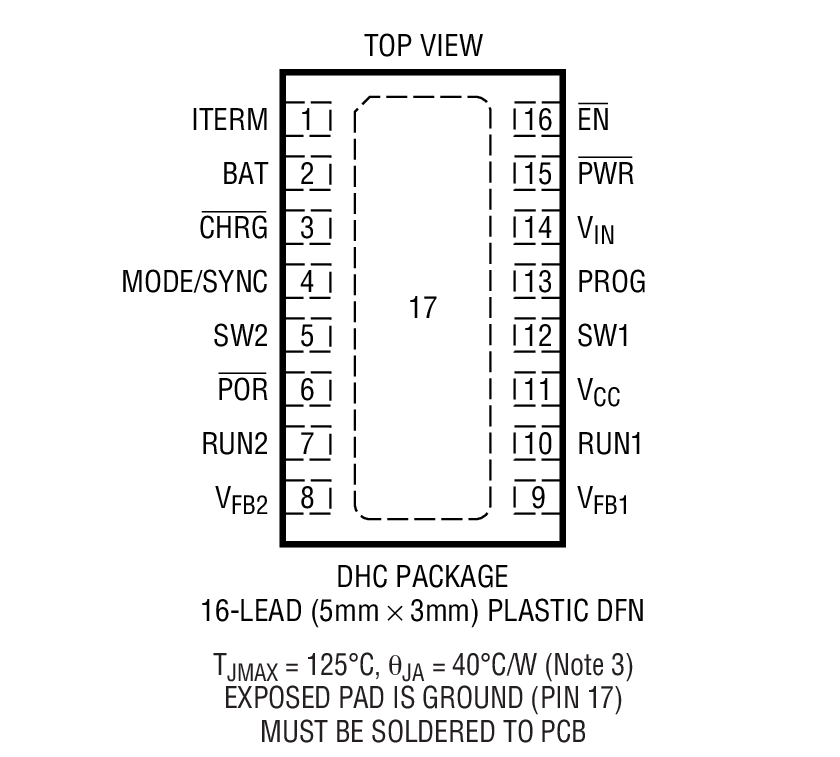

    LTC3552EDHC#PBF Material Declaration Reliability Data 16-Lead DFN (5mm x 3mm w/ EP)
    LTC3552EDHC#TRPBF Material Declaration Reliability Data 16-Lead DFN (5mm x 3mm w/ EP)
    Wafer Fabrication Data R419 Reliability Data
