Features and Benefits

  • High Efficiency: >90% Typical in Torch Mode, >80% in Flash Mode
  • Wide VIN Range: 2.7V to 5.5V
  • Up to 1A Continuous Output Current
  • 3.5% LED Current Programming Accuracy
  • Internal Soft-Start
  • Open/Shorted LED Protection
  • Constant Frequency 1MHz Operation
  • Zero Shutdown Current
  • Overtemperature Protection
  • Small Thermally Enhanced 10-Lead (3mm × 3mm) DFN Package

Product Details

The LTC3454 is a synchronous buck-boost DC/DC converter optimized for driving a single high power LED at currents up to 1A from a single cell Li-Ion battery input. The regulator operates in either synchronous buck, synchronous boost, or buck-boost mode depending on input voltage and LED forward voltage. PLED/PIN efficiency greater than 90% can be achieved over the entire usable range of a Li-Ion battery (2.7V to 4.2V).

LED current is programmable to one of four levels, including shutdown, with dual external resistors and dual enable inputs. In shutdown no supply current is drawn.

A high constant operating frequency of 1MHz allows the use of small external components.

The LTC3454 is offered in a low profile (0.75mm) thermally enhanced 10-lead (3mm × 3mm) DFN package.


  • Cell Phone Camera Flash
  • Cell Phone Torch Lighting
  • Digital Cameras
  • PDAs
  • Misc Li-Ion LED Drivers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

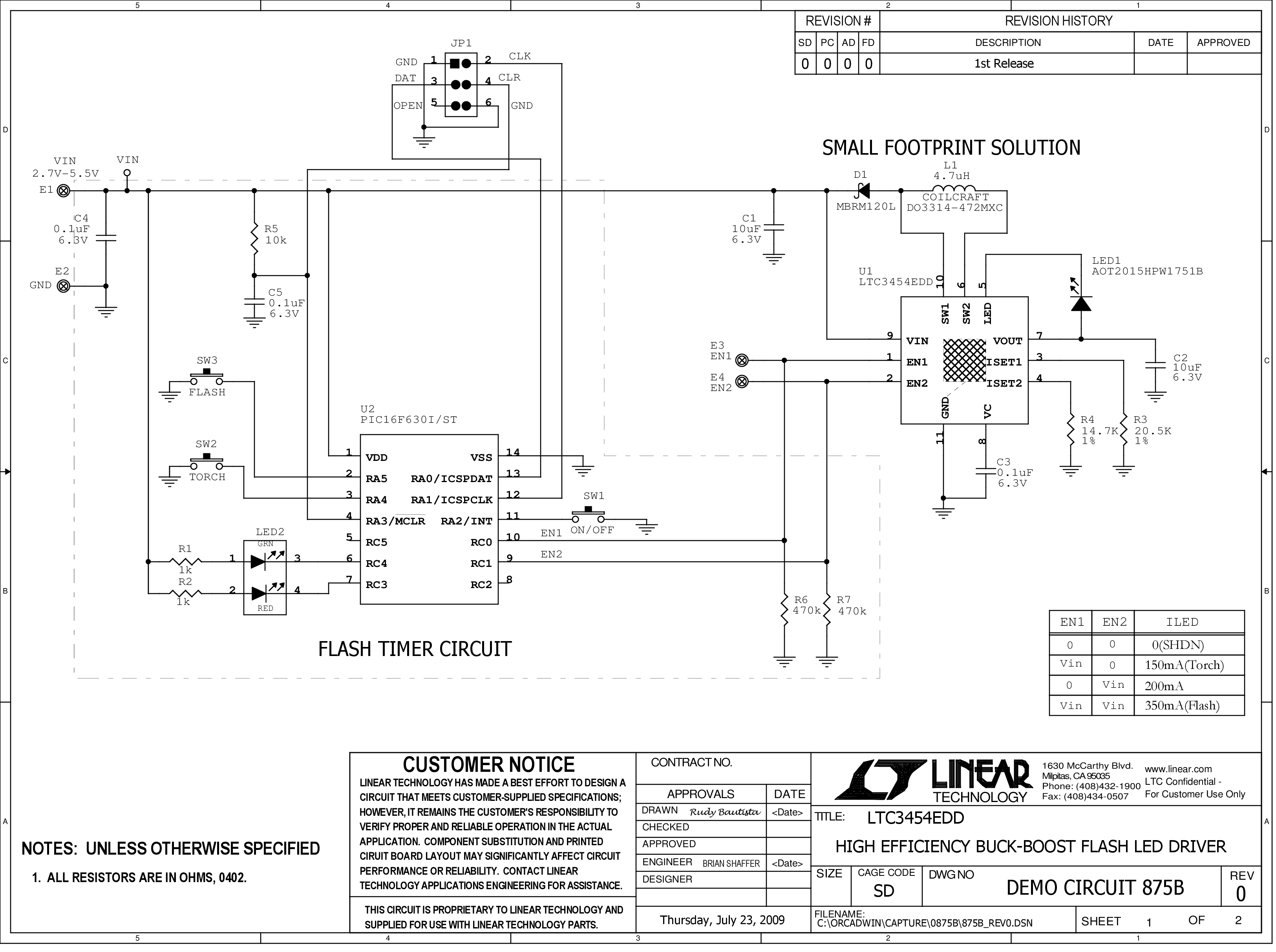

Evaluation Kits (1)

Tools & Simulations


LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Models for the following parts are available in LTspice:
