LTC3447

I2C Controllable Buck Regulator in 3mm × 3mm DFN

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.42
Features
  • I2C Programmable Output with 21.6mV Resolution
  • Overtemperature Protected
  • High Efficiency: Up to 93%
  • Very Low Quiescent Current: Only 33µA
  • 600mA Output Current at VIN = 3V
  • 2.5V to 5.5V Input Voltage Range
  • 1MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • Stable with Ceramic Capacitors
  • Shutdown Mode Draws <1µA Supply Current
  • ±2% Output Voltage Accuracy
  • Standard (100kHz) or Fast Mode (400kHz) I2C
  • 6-Bit Voltage DAC (0.69V to 2.05V)
  • Disable Burst Mode Operation
  • Enable Power Good Blanking
  • Optional External Start-Up Resistors
  • Soft-Start
  • 10 Lead, 3mm × 3mm DFN Package
Additional Details
show more Icon

The LTC3447 is a high efficiency monolithic synchronous current mode buck regulator. Using an I2C interface, the output voltage can be set between 0.69V and 2.05V using an internal 6-bit DAC.

The buck regulator has optional external feedback resistors that can be used for setting the initial start up voltage. The feedback voltage reference for this start-up option is 0.6V. Once the voltage DAC is updated via the I2C, the buck regulator switches from external to internal feedback resistors. When there are no external resistors, the default start-up voltage is 1.38V.

The switching frequency is internally set at 1MHz, allowing the use of small surface mount inductors and capacitors.

In Burst Mode® operation, supply current is only 33µA, dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3447 ideally suited for single cell Li-Ion battery-powered applications. 100% duty cycle capability provides low dropout operation, extending battery life in portable systems. Automatic Burst Mode operation increases efficiency at light loads, further extending battery life.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode.

Protected by U.S. Patents, including 5481178, 6580258, 6304066, 6127815, 6498466, 6611131.

Applications

  • Distributed Power Supplies
  • Notebook Computers
  • PDAs and Other Handheld Devices
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.42
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3447

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 11/09/2007
English

LTC3447: I²C Controllable Buck Regulator in 3mm × 3mm DFN Data Sheet

Open PDF File

redirect
564.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC767A - Demo Manual redirect icon

191.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3447EDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3447EDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Multiple Output Buck Regulators1
LTC3880
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Single-Supply Monitors1
LTC2934
popup image
Cart

PRODUCTION

Ultra-Low Power Adjustable Supervisor with Power-Fail Output

Evaluation Kits 1

reference details image

DC767A

LTC3447EDD Demo Board | I2C-Controllable Buck, 2.5V ≤ VIN ≤ 5.5V, VOUT = 0.7V to 2V @ 0.6A

zoom

DC767A

LTC3447EDD Demo Board | I2C-Controllable Buck, 2.5V ≤ VIN ≤ 5.5V, VOUT = 0.7V to 2V @ 0.6A

download icon

Download

 print icon

Print
DC767A
LTC3447EDD Demo Board | I2C-Controllable Buck, 2.5V ≤ VIN ≤ 5.5V, VOUT = 0.7V to 2V @ 0.6A
Buy Now View Details

Product Detail

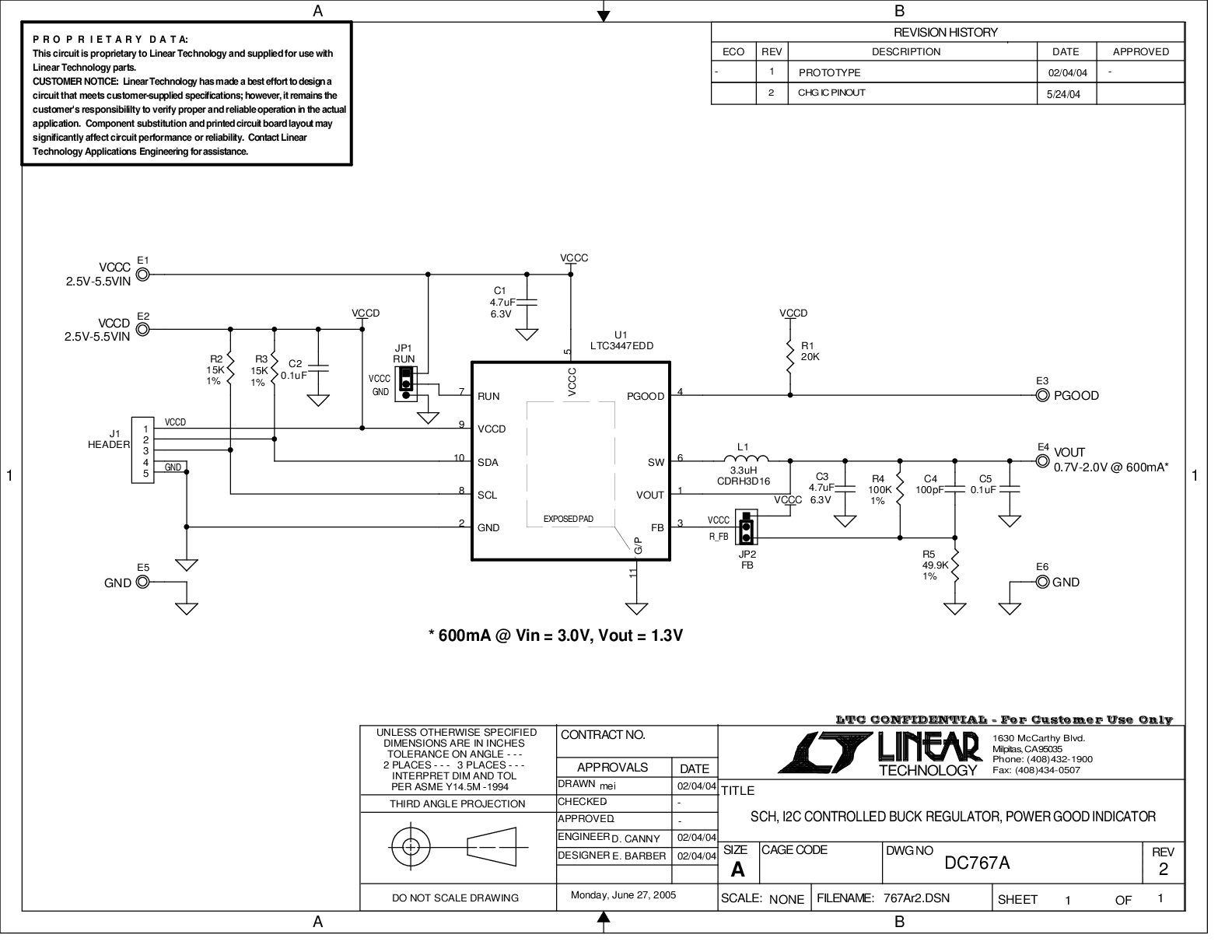

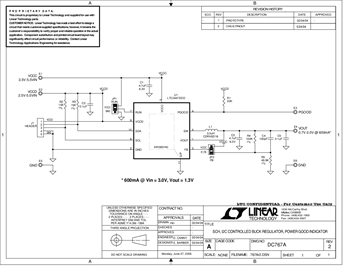

Demonstration Circuit 767 is an I2C-controlled high efficiency synchronous current mode buck regulator featuring the 600mA output LTC3447. The demo board input voltage range is 2.5V to 5.5V. The buck regulator has a programmable output range of 0.7V to 2.00V which is set with an internal 6-bit DAC via the I2C interface. The initial start-up voltage is set to 1.35V but can be change by changing feedback resistors R4 and R5.

Resources

pdf icon

PDF

DC767A - Schematic Download

40.00K

pdf icon

PDF

DC767A - Demo Manual Download

191.00K

pdf icon

ZIP

DC767A - Design File Download

734.00K

Show More Arrow image

Software

pdf icon

ZIP

DC767A - Software Download

3.00M

Evaluation Kits1

evaluation kit item images

DC767A

LTC3447EDD Demo Board | I2C-Controllable Buck, 2.5V ≤ VIN ≤ 5.5V, VOUT = 0.7V to 2V @ 0.6A
