LTC3445

I²C Controllable Buck Regulator with Two LDOs in a 4mm × 4mm QFN

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $3.25
Features
Buck Regulator
  • High Efficiency: Up to 93%
  • 600mA Output Current (VCC1 = 3V, VOUT = 1.3V)
  • Programmable Output Voltage: 0.85V to 1.55V
  • 2.5V to 5.5V Input Voltage Range
  • 1.5MHz Constant Frequency or Spread Spectrum Option
  • Soft-Start
LDOs
  • Two LDO Regulators: 0.3V Dropout at 50mA
PowerPath Controller
  • Dynamically Regulates VCC BATT
I2C
  • Standard (100kHz) or Fast Mode (400kHz)
  • 24-Lead (4mm × 4mm) QFN Package
Additional Details
show more Icon

The LTC3445 contains a high efficiency monolithic synchronous current mode buck regulator, two LDO regulators, a PowerPath™ controller and an I2C™ interface.

The buck regulator has a 6-bit programmable output range of 0.85V to 1.55V. Also, the buck regulator uses either a constant (1.5MHz) or a spread spectrum switching frequency. Using the spread spectrum option allows for a lower noise regulated output as well as low noise at the input. In addition, the regulated output voltage slew rate is programmable via the I2C interface.

The LTC3445 contains two LDO voltage regulators. The regulator output voltages are externally resistor programmable. Each LDO is capable of delivering up to 50mA.

The LTC3445 contains control circuitry (PowerPath) for automatic back-up battery selection. VBACKUP is typically a coin cell.

Typical supply current during operation is only 360µA and drops to 27µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3445 ideal for single Li-Ion battery-powered applications. Automatic Burst Mode® operation increases efficiency at light loads, further extending battery life.

Protected by U.S. Patents, including 5481178, 6580258, 6304066, 6127815, 6498466, 6611131, Spread Spectrum patent pending.

Applications

  • Intel’s Microprocessor Supply (PXA27X)
  • Portable Instruments
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $3.25
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3445

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/17/2008
English

LTC3445: I²C Controllable Buck Regulator with Two LDOs in a 4mm × 4mm QFN Data Sheet

Open PDF File

redirect
475.00K
download

Download PDF

PDF Vector

PDF

UPDATED 04/20/2006
Japanese

LTC3445: 4mm×4mm QFNパッケージに2個のLDOを搭載したI2C制御可能な降圧レギュレータ データシート

Open PDF File

redirect
961.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC698A - Demo Manual redirect icon

1.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3445EUF#PBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3445EUF#TRPBF 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

Multiple Output Buck Regulators1
LTC3880
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Serial Bus Buffers, Extenders, and Accelerators1
LTC4311
popup image
Cart

PRODUCTION

Low Voltage I2C/SMBus Accelerator

Evaluation Kits 1

reference details image

DC698A

LTC3445EUF Demo Board | I2C-Controllable Buck Plus Dual LDO & PowerPath, 2.5V ≤ VIN ≤ 5.5V, VOUT1 = 0.85 to 1.55 @ 0.6A, VOUT2 = 1.3V @ 50mA, VOUT3 = 1.1V @ 50mA

zoom

DC698A

LTC3445EUF Demo Board | I2C-Controllable Buck Plus Dual LDO & PowerPath, 2.5V ≤ VIN ≤ 5.5V, VOUT1 = 0.85 to 1.55 @ 0.6A, VOUT2 = 1.3V @ 50mA, VOUT3 = 1.1V @ 50mA

download icon

Download

 print icon

Print
DC698A
LTC3445EUF Demo Board | I2C-Controllable Buck Plus Dual LDO & PowerPath, 2.5V ≤ VIN ≤ 5.5V, VOUT1 = 0.85 to 1.55 @ 0.6A, VOUT2 = 1.3V @ 50mA, VOUT3 = 1.1V @ 50mA
Buy Now View Details

Product Detail

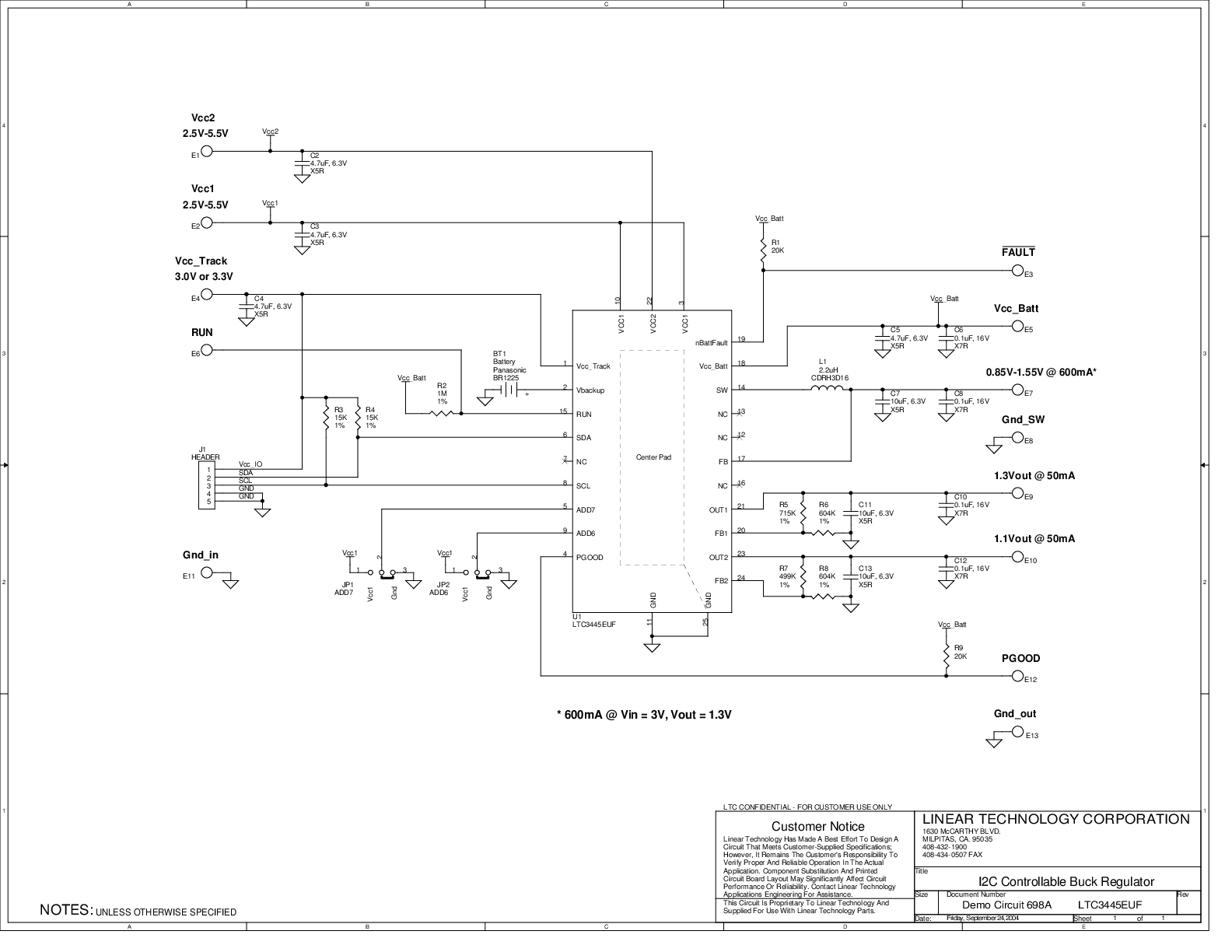

Demonstration Circuit 698 is an I2C-controlled high efficiency 600mA synchronous current mode buck regulator and two 50mA linear regulators featuring the LTC3445. The LTC3445 also features backup/main battery power path selection. The input voltage range is 2.5V to 5.5V. The buck regulator has a programmable output range of 0.85V to 1.55V and the two LDOs provide 1.3V@50mA and 1.1V@ 50mA.
