LTC3410B

2.25MHz, 300mA Synchronous Step-Down Regulator in SC70

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3410B Demo Circuit - 2.25MHz, 300mA, Synchronous Step-Down Regulator (3.3V to 1.5V @ 300mA) Download 2.00KB LTspice LTC3410B - Step-Down (Buck) Regulators Download 0.9 KB
Part Models 10
1ku List Price Starting From $1.86
Features

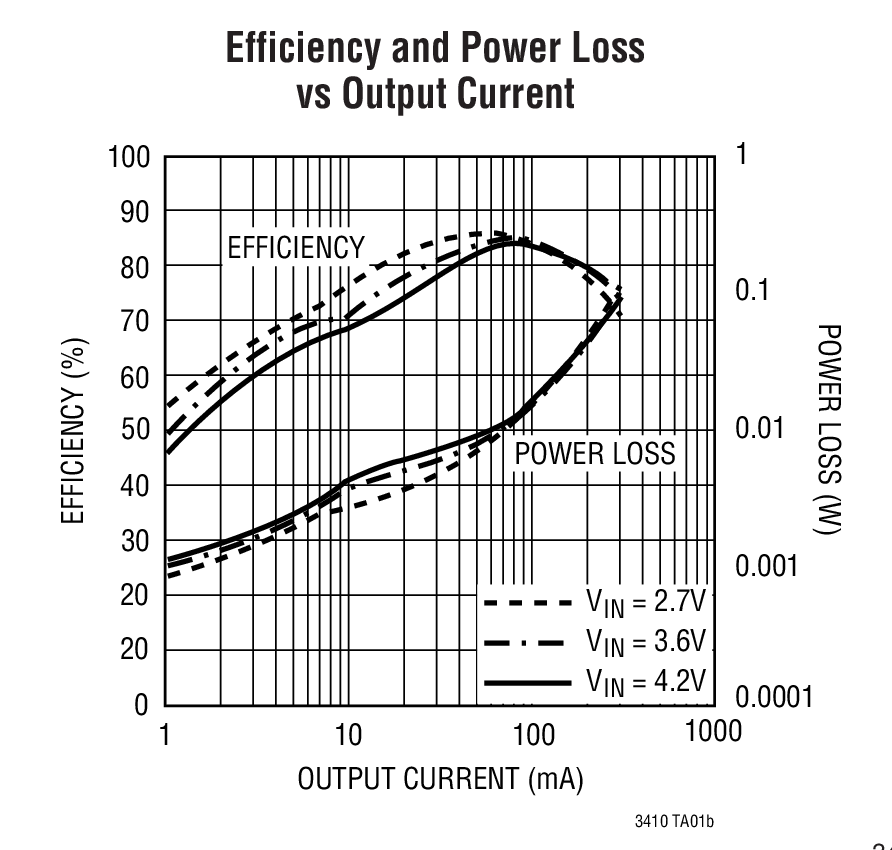

  • High Efficiency: Up to 96%
  • 300mA Output Current at VIN = 3V
  • 380mA Minimum Peak Switch Current
  • 2.5V to 5.5V Input Voltage Range
  • 2.25MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • Stable with Ceramic Capacitors
  • 0.8V Reference Allows Low Output Voltages
  • Shutdown Mode Draws < 1μA Supply Current
  • ±2% Output Voltage Accuracy
  • Current Mode Operation for Excellent Line andLoad Transient Response
  • Overtemperature Protected

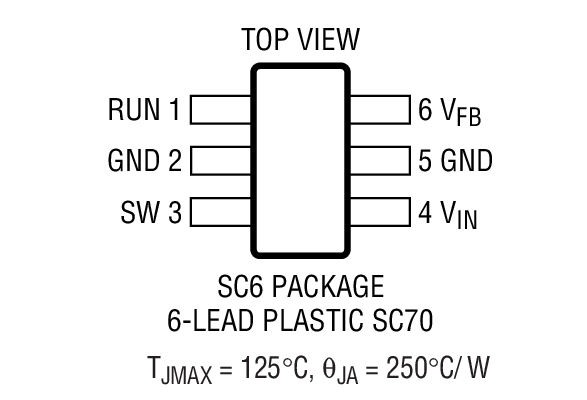

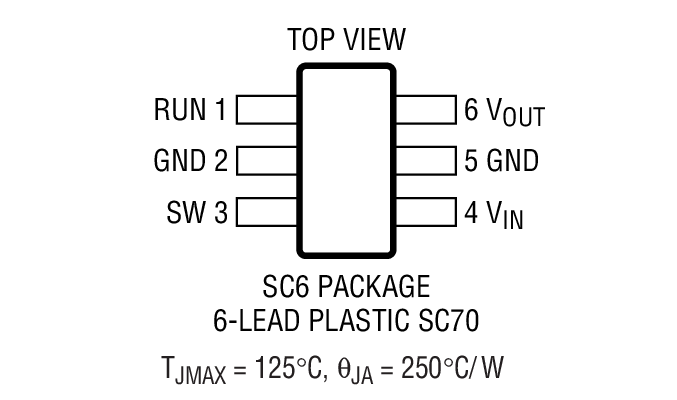

  • Available in Low Profile SC70 Package
Additional Details
show more Icon

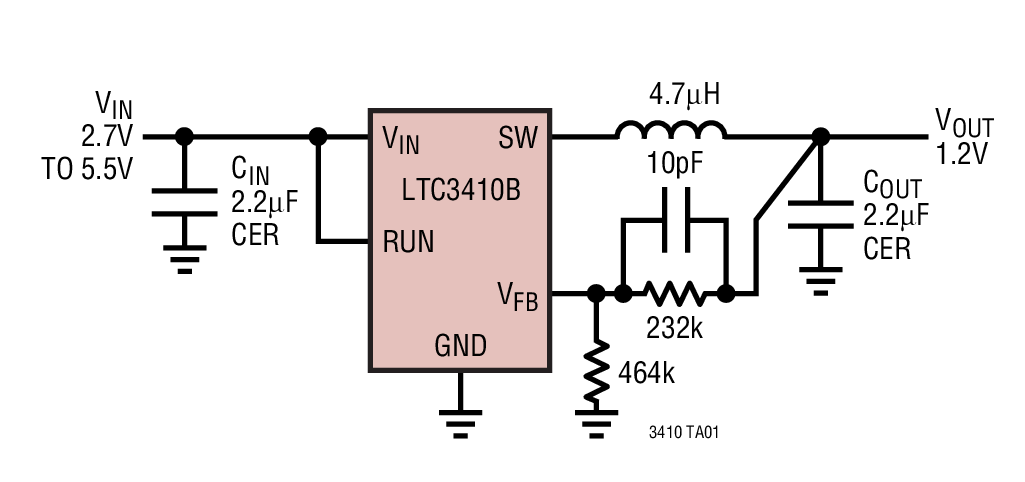

The LTC3410B is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in adjustable and fixed output voltage versions. Supply current during operation is only 200µA, dropping to <1µA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3410B ideally suited for single Li-Ion battery-powered applications.100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM pulse skipping mode operation provides very low output ripple voltage for noise sensitive applications.

Switching frequency is internally set at 2.25MHz, allowing the use of small surface mount inductors and capacitors. The LTC3410B is specifically designed to work well with ceramic output capacitors, achieving very low output voltage ripple and a small PCB footprint.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Low output voltages are easily supported with the 0.8V feedback reference voltage. The LTC3410B is available in a tiny, low profile SC70 package.


 Vout Burst Mode
LTC3410 Adj. Down To 0.8V Yes
LTC3410B Adj. Down To 0.8V No
LTC3410-1.875 Fixed 1.875V Yes


Applications

  • Cellular Telephones
  • Personal Information Appliances
  • Wireless and DSL Modems
  • Digital Still Cameras
  • MP3 Players
  • Portable Instruments
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3410B Demo Circuit - 2.25MHz, 300mA, Synchronous Step-Down Regulator (3.3V to 1.5V @ 300mA) Download 2.00KB LTspice LTC3410B - Step-Down (Buck) Regulators Download 0.9 KB
Part Models 10
1ku List Price Starting From $1.86
