Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Life Extender

RECOMMENDED FOR NEW DESIGNS

Extended Battery Life with Energy Harvesting slide

Extended Battery Life with Energy Harvesting

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $4.25

Features

Dual Input, Single Output DC/DCs with Input Prioritizer
- Energy Harvesting Input: 3.0V to 19V Buck DC/DC
- Primary Cell Input: 1.8V to 5.5V Buck-Boost DC/DC
Zero Battery I_Q When Energy Harvesting Source is Available
Ultralow Quiescent Current: 750nA at No-Load
Low Noise LDO Post Regulator
Integrated Supercapacitor Balancer
Up to 50mA of Output Current
Programmable DC/DC and LDO Output Voltages, Buck UVLO, and Buck-Boost Peak Input Current
Integrated Low Loss Full-Wave Bridge Rectifier
Input Protective Shunt: Up to 25mA at V_IN ≥ 20V
5mm × 5mm QFN-32 Package

Additional Details

The LTC3330 integrates a high voltage energy harvesting power supply plus a DC/DC converter powered by a primary cell battery to create a single output supply for alternative energy applications. The energy harvesting power supply, consisting of an integrated full-wave bridge rectifier and a high voltage buck converter, harvests energy from piezoelectric, solar, or magnetic sources. The primary cell input powers a buck-boost converter capable of operation down to 1.8V at its input. Either DC/DC converter can deliver energy to a single output. The buck operates when harvested energy is available, reducing the quiescent current draw on the battery to essentially zero, thereby extending the life of the battery. The buck-boost powers V_OUT only when harvested energy goes away.

A low noise LDO post regulator and a supercapacitor balancer are also integrated, accommodating a wide range of output storage configurations. Voltage and current settings for both inputs and outputs are programmable via pin-strapped logic inputs. The LTC3330 is available in a 5mm × 5mm QFN-32 package.

Applications

Energy Harvesting
Solar Powered Systems with Primary Cell Backup
Wireless HVAC Sensors and Security Devices
Mobile Asset Tracking

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $4.25

Technical Documents 6

LTC3330: Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Life Extender Data Sheet 08/24/2015

DC2321A - Demo Manual (Rev.B) 11/23/2016

DC2048A - Demo Manual 03/31/2015

Product How-to: Precise Wireless Temperature Sensor Powers Itself 06/13/2014

Wireless Precision Temperature Sensor Powers Itself, Forms Own Network, Enabling Easy Deployment in Industrial Environments 07/01/2014

Powering a Dust Mote from a Piezoelectric Transducer 07/01/2015

Reference Materials 5

Practical Ambient Energy Harvesting for WSNs 04/05/2017

Practical Ambient Energy Harvesting for WSNs 09/05/2017

Extend Battery Life With Harvested Energy 04/22/2014

SmartMesh Brochure 04/04/2017

Enablement of Batteryless Applications with Wireless Power 02/01/2019

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3330EUH#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3330EUH#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3330IUH#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3330IUH#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC3330EUH#PBF
Pin/Package Drawing
32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3330EUH#TRPBF
Pin/Package Drawing
32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3330IUH#PBF
Pin/Package Drawing
32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC3330IUH#TRPBF
Pin/Package Drawing
32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3330EUH#PBF

PRODUCTION

LTC3330EUH#TRPBF

PRODUCTION

LTC3330IUH#PBF

PRODUCTION

LTC3330IUH#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Qualification Results Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3330EUH#PBF

PRODUCTION

LTC3330EUH#TRPBF

PRODUCTION

LTC3330IUH#PBF

PRODUCTION

LTC3330IUH#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Qualification Results Summary

Companion Parts 2

Parts	Product Life Cycle	Description
PowerPath, Ideal Diodes, and Load Switches1
LTC4417	RECOMMENDED FOR NEW DESIGNS	Prioritized PowerPath^™ Controller
Pushbutton Controllers1
LTC2956	RECOMMENDED FOR NEW DESIGNS	Wake-Up Timer with Pushbutton Control

DC2321A

Dust Energy Harvesting Demo Board with E-Ink Display, Designed to Connect to the DC2344A or DC2509A

DC2321A

Dust Energy Harvesting Demo Board with E-Ink Display, Designed to Connect to the DC2344A or DC2509A

Buy Now View Details

Product Detail

Demonstration circuit 2321A is a low power wireless sensor node development platform equipped with an E-ink display for user feedback. The system is capable of monitoring and managing its available energy, logging information from sensors and sharing this data over a wireless network.

The board is designed to connect to the DC2344A or DC2509A energy harvesting demonstration boards which output a regulated power supply as well as status information from energy harvesting ICs and their backup batteries. Two coulomb counters on the DC2321A allow the processor to monitor the energy output of these batteries which will vary depending on the amount of energy which can be harvested from the system’s surroundings.

A DC2274A-A SmartMesh Manager must be used in order to evaluate the networking features of the DC2321A.

Resources

ZIP

DC2321A - Design Files

5.00M

PDF

DC2321A - Schematic

116.00K

PDF

DC2321A - Demo Manual (Rev.B)

2.26 M

DC2048A

LTC3330EUH Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Life Extender

LTC3330EUH Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Life Extender

Download

DC2048A

LTC3330EUH Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Life Extender

Buy Now View Details

Product Detail

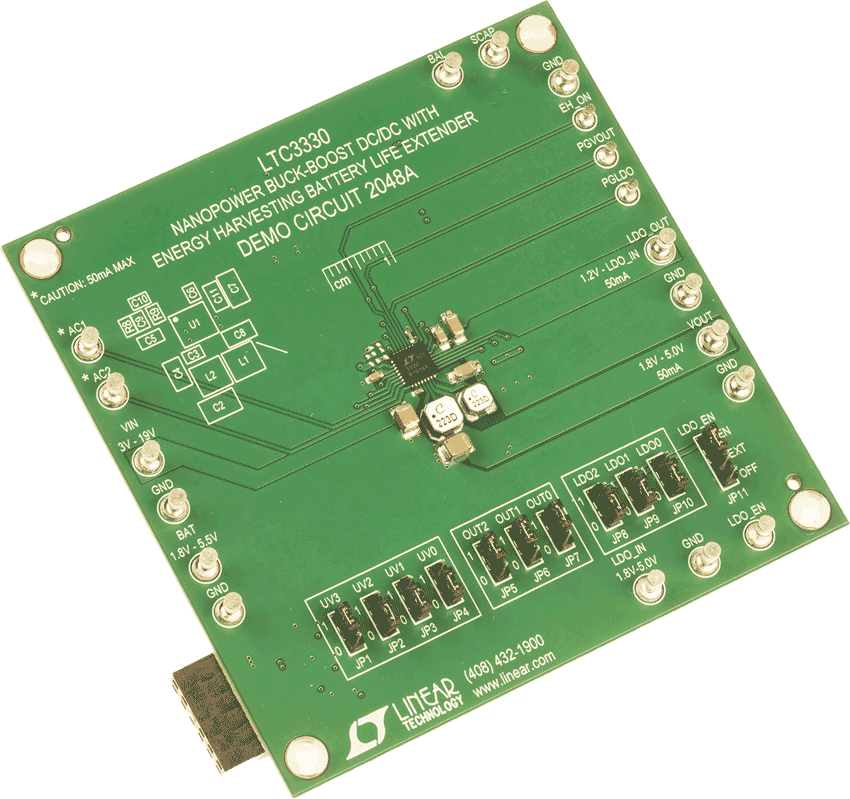

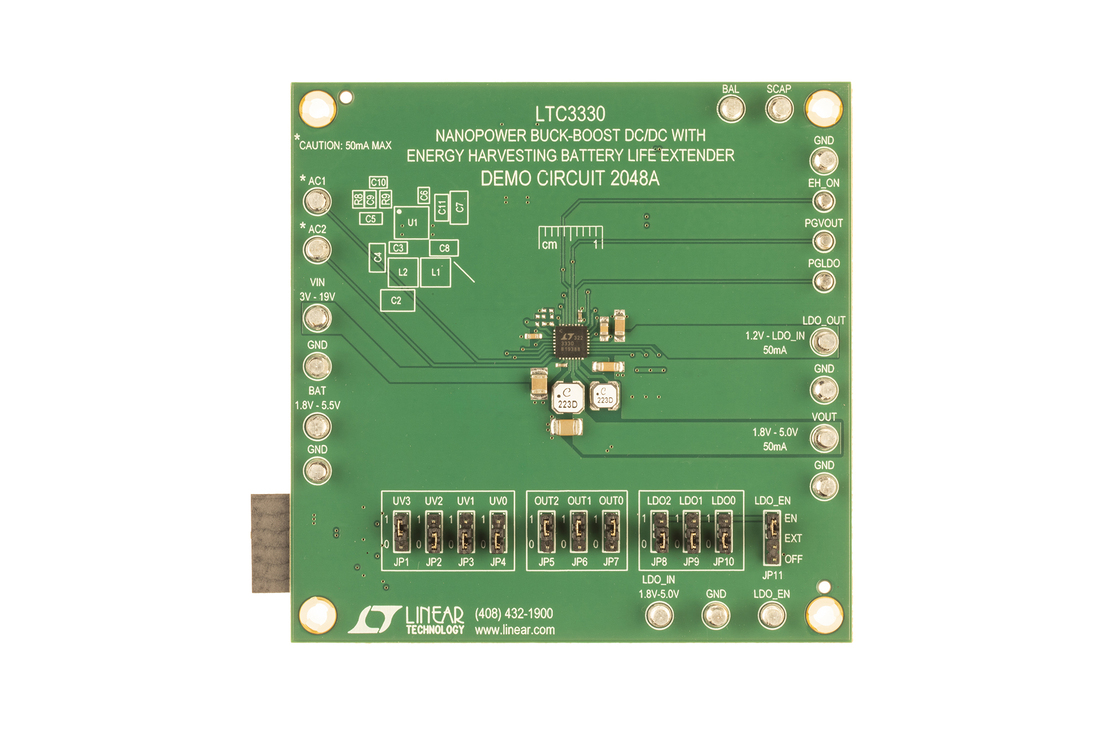

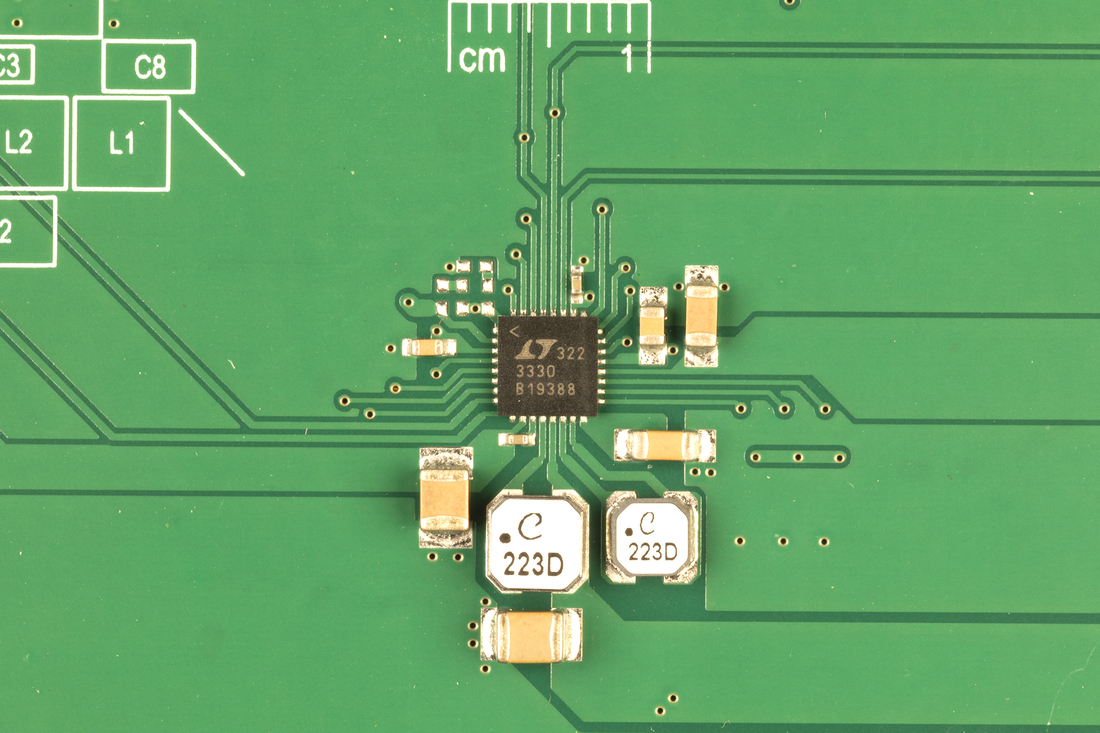

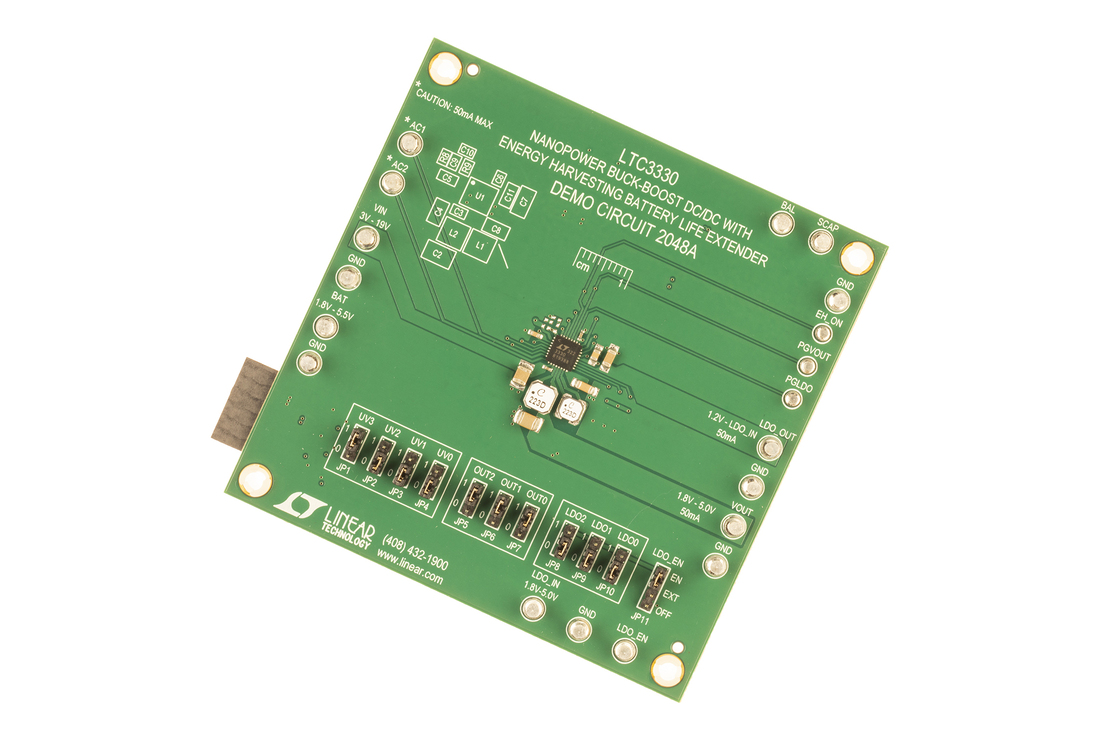

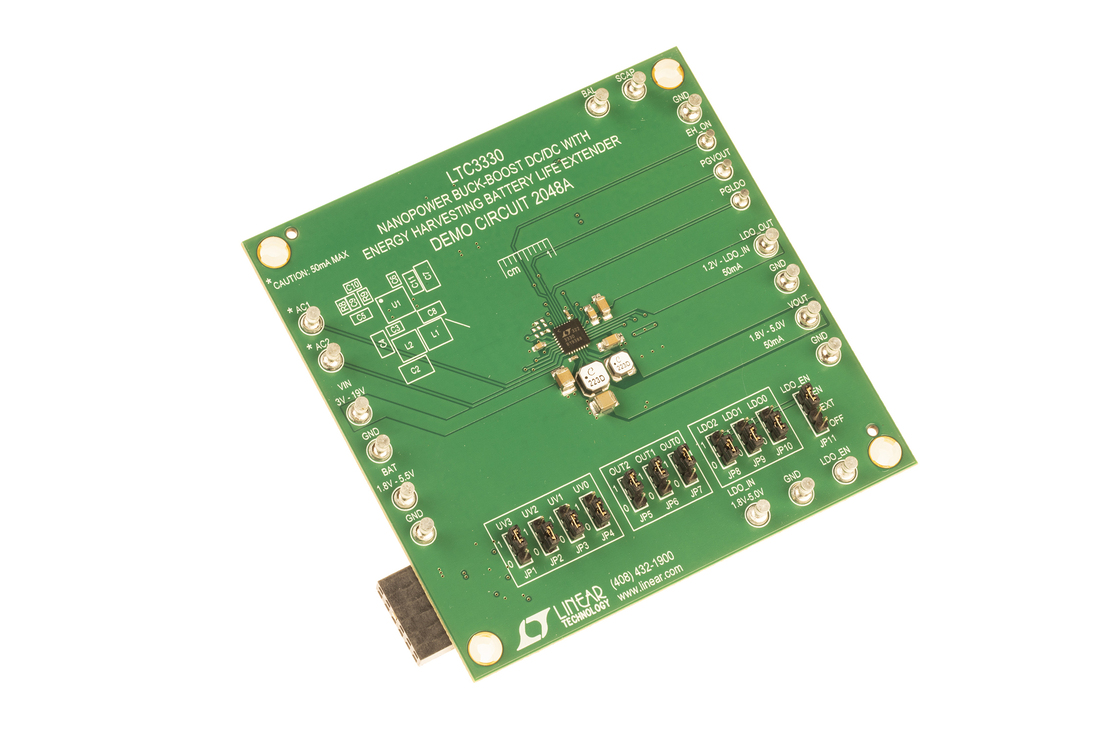

Demonstration Circuit 2048A is a nanopower buckboost DC/DC with energy harvesting battery life extender featuring the LTC3330. The LTC3330 integrates a high voltage energy harvesting power supply plus a DC/DC converter powered by a primary cell battery to create a single output supply for alternative energy applications. The energy harvesting power supply, consisting of an integrated low-loss full-wave bridge with a high voltage buck converter, harvests energy from piezoelectric, solar or magnetic sources. The primary cell input powers a buck-boost converter capable of operating down to 1.8V at its input. Either DC/DC converter can deliver energy to a single output.

Resources

ZIP

DC2048A - Design Files

2.00M

PDF

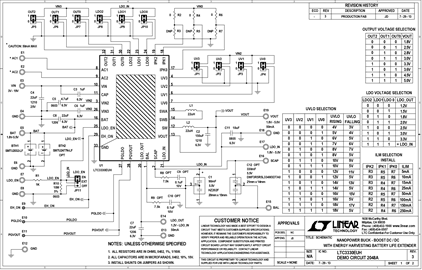

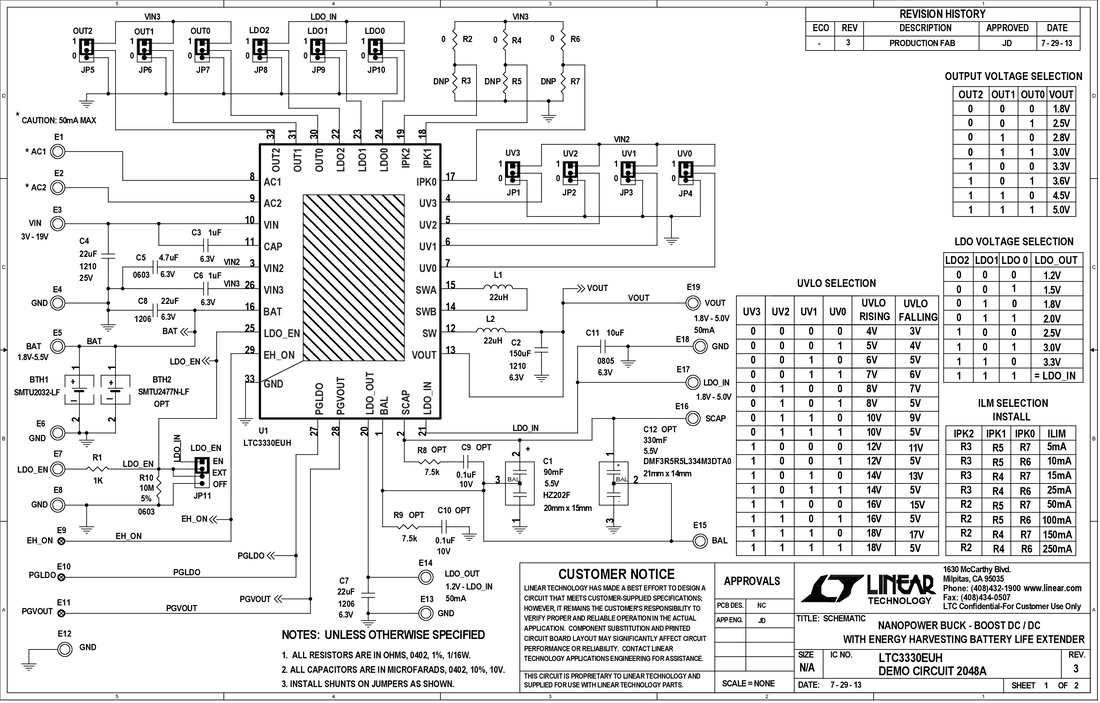

DC2048A - Schematic
