Overview
Features and Benefits
- 1x/2x Multimode Charge Pump Supercapacitor Charger
- Automatic Cell Balancing
- Ideal Diode Main PowerPath™ Controller (VIN to VOUT)
- Internal 2A LDO Backup Supply (CPO to VOUT)
- Automatic Main/Backup Switchover
- Input Voltage Range: 2.5V to 5.5V
- Programmable SCAP Charge Voltage

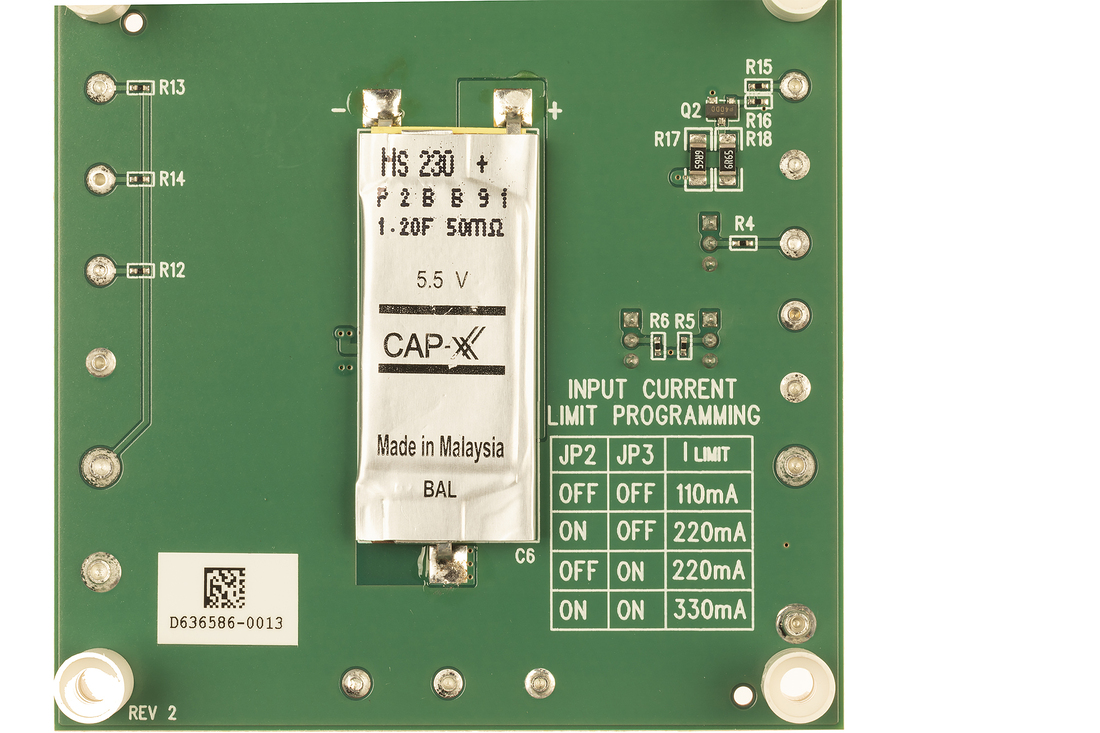

- Programmable Input Current Limit (315mA Max)
- No Load IVIN = 55μA (Typical)
- Low Profile, 16-Lead 3mm × 3mm QFN Package
Product Details
The LTC3226 is a 2-cell series supercapacitor charger with a backup PowerPath controller. It includes a charge pump supercapacitor charger with programmable output voltage, a low dropout regulator, and a power-fail comparator for switching between normal and backup modes.
The constant input current supercapacitor charger is designed to charge two supercapacitors in series to a resistor-programmable output voltage from a 2.5V to 5.3V input supply. The charger input current limit is programmable by an external resistor at up to 315mA.
The internal backup LDO is powered from the supercapacitors and provides up to 2A peak output current with an adjustable output voltage. When the input supply falls below the power-fail threshold, the LTC3226 automatically enters a backup state in which the supercapacitors power the output through the LDO. The input supply power-fail voltage level is programmed by an external resistor divider.
Low input noise, low quiescent current and a compact footprint make the LTC3226 ideally suited for small, batterypowered applications. Internal current limit and thermal shutdown circuitry allow the device to survive a continuous short-circuit from the PROG or CPO pins to ground.
Applications
- Smart Power Meters
- Battery-Powered Industrial/Medical Equipment
- 3.3V Solid-State Drives
- Industrial Alarms
- Data Backup Supplies
- Battery Hold-Up Supplies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

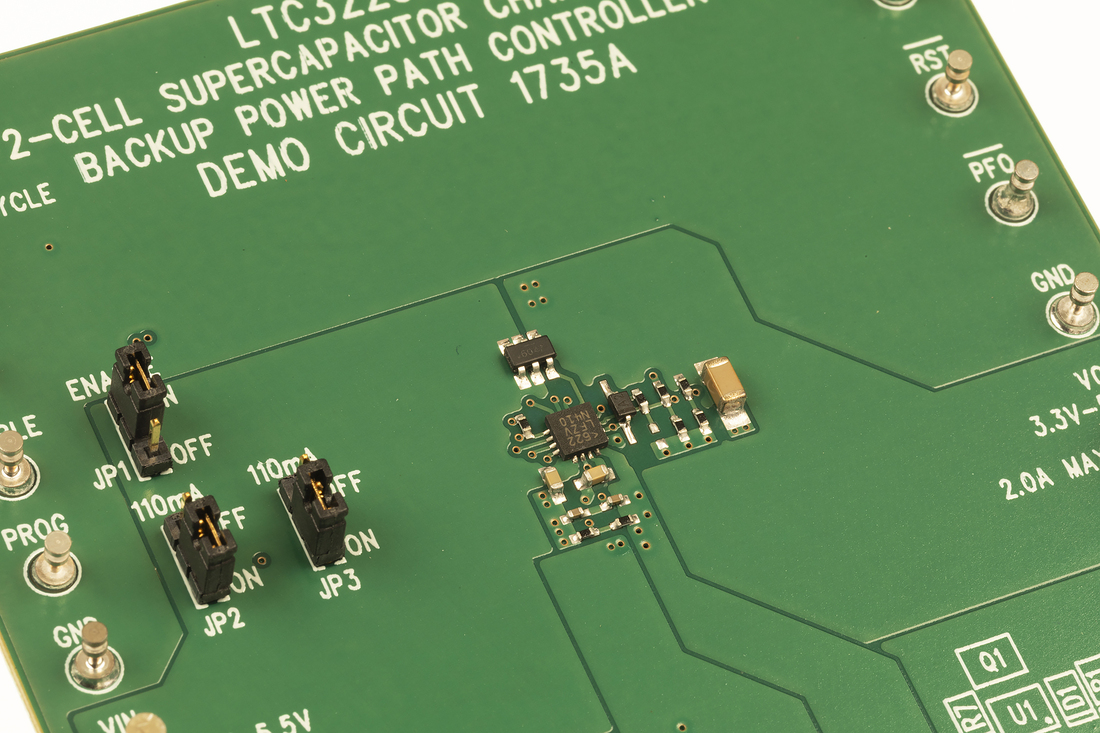

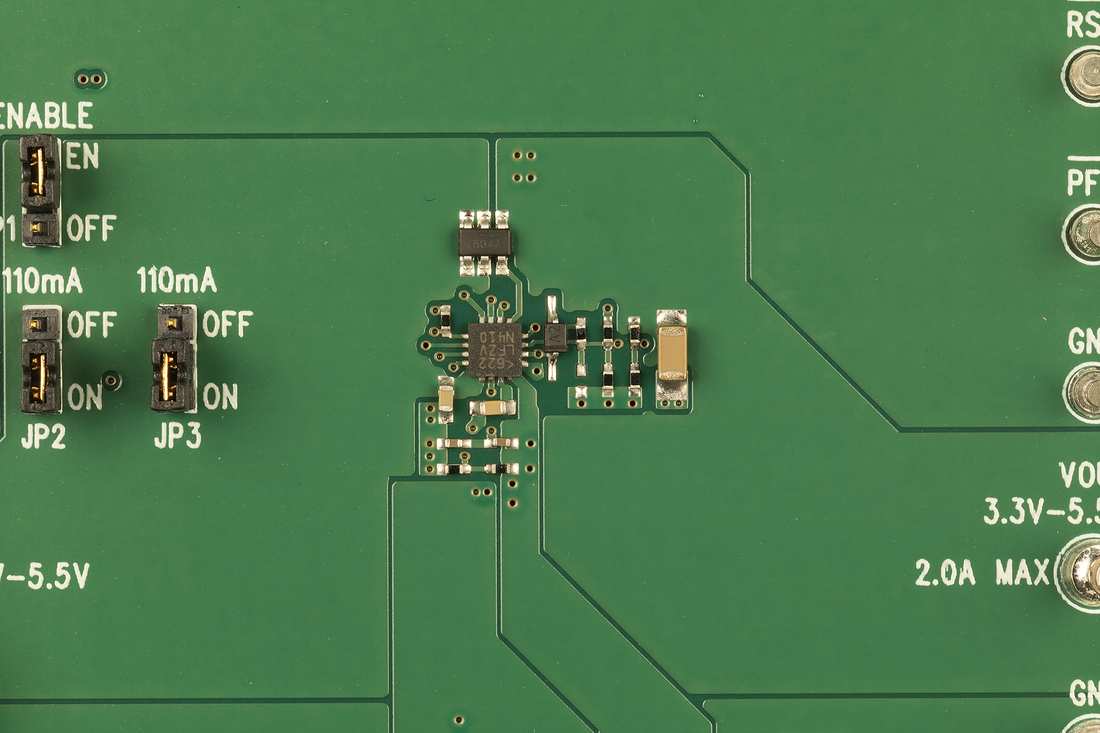

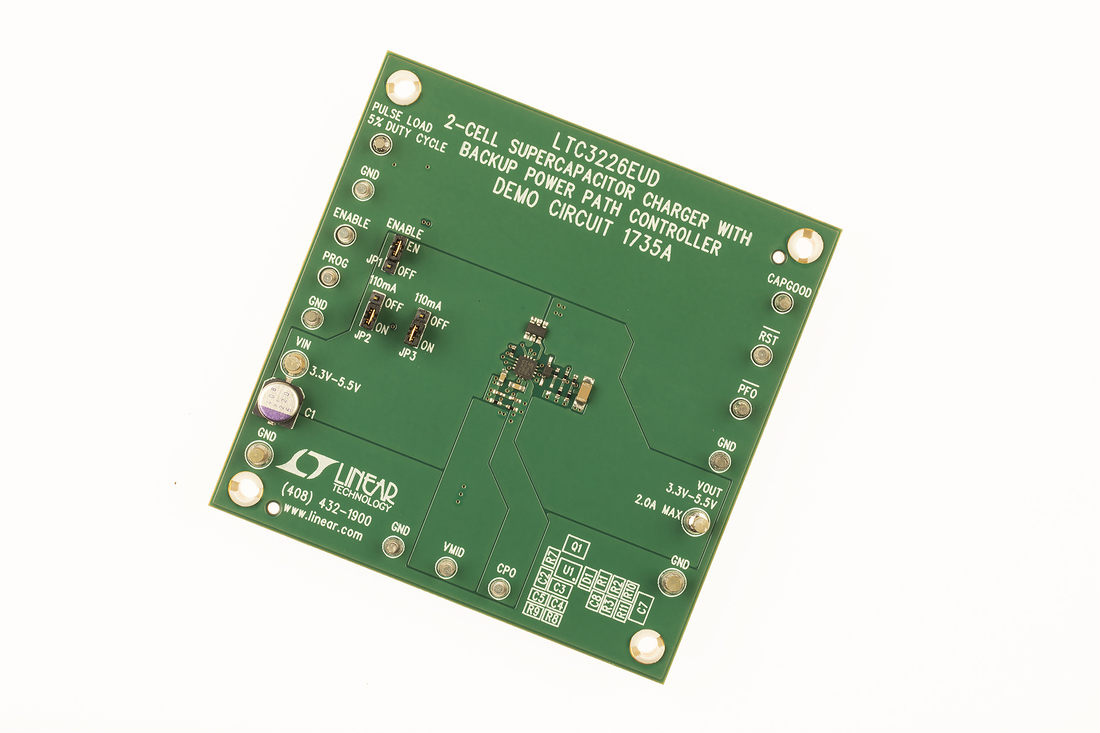

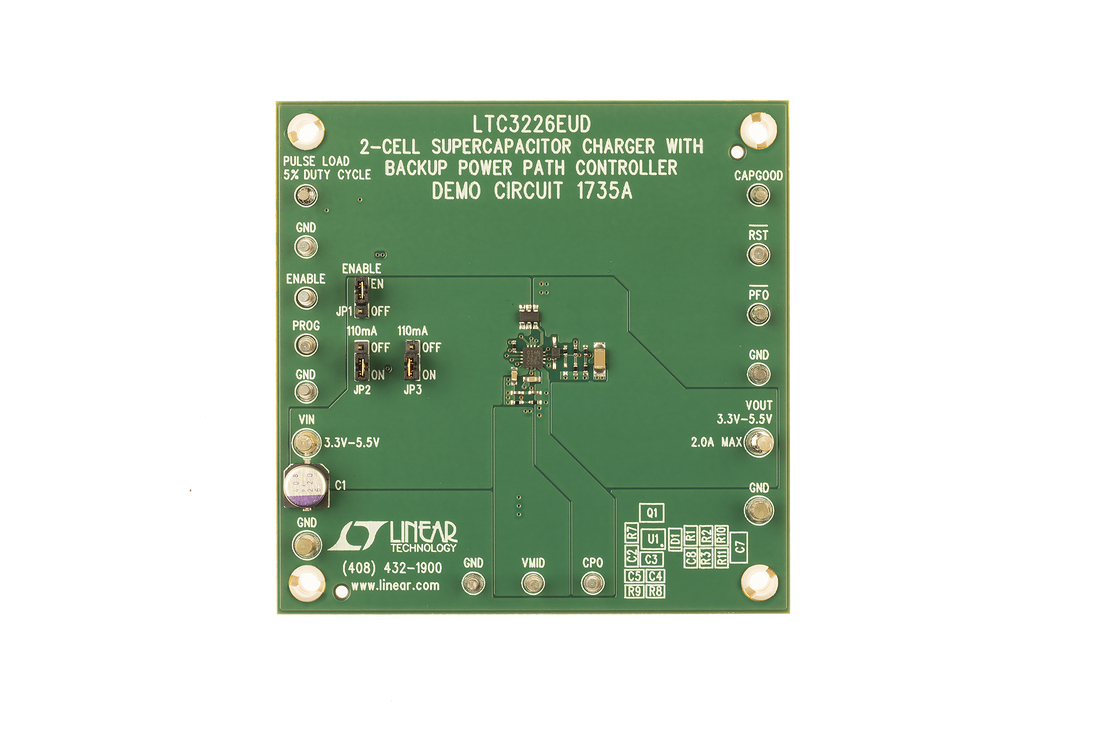

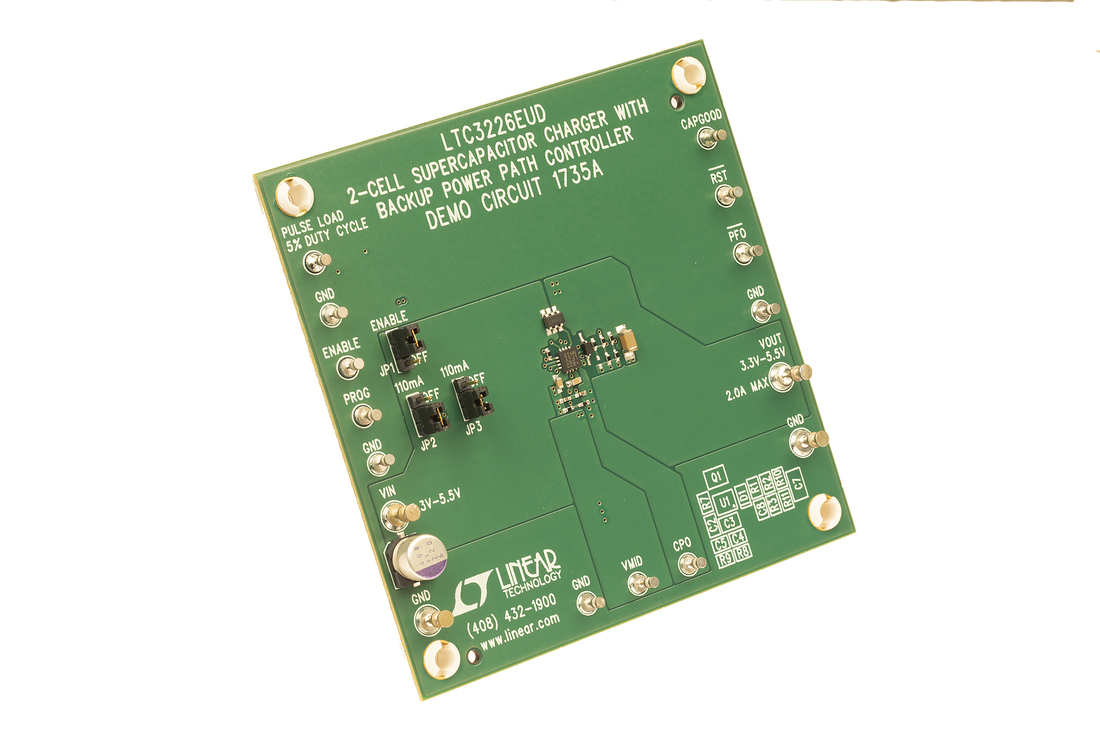

Evaluation Kits (1)
Documentation & Resources
-
R540 Reliability Data3/26/2018PDF23 K
-

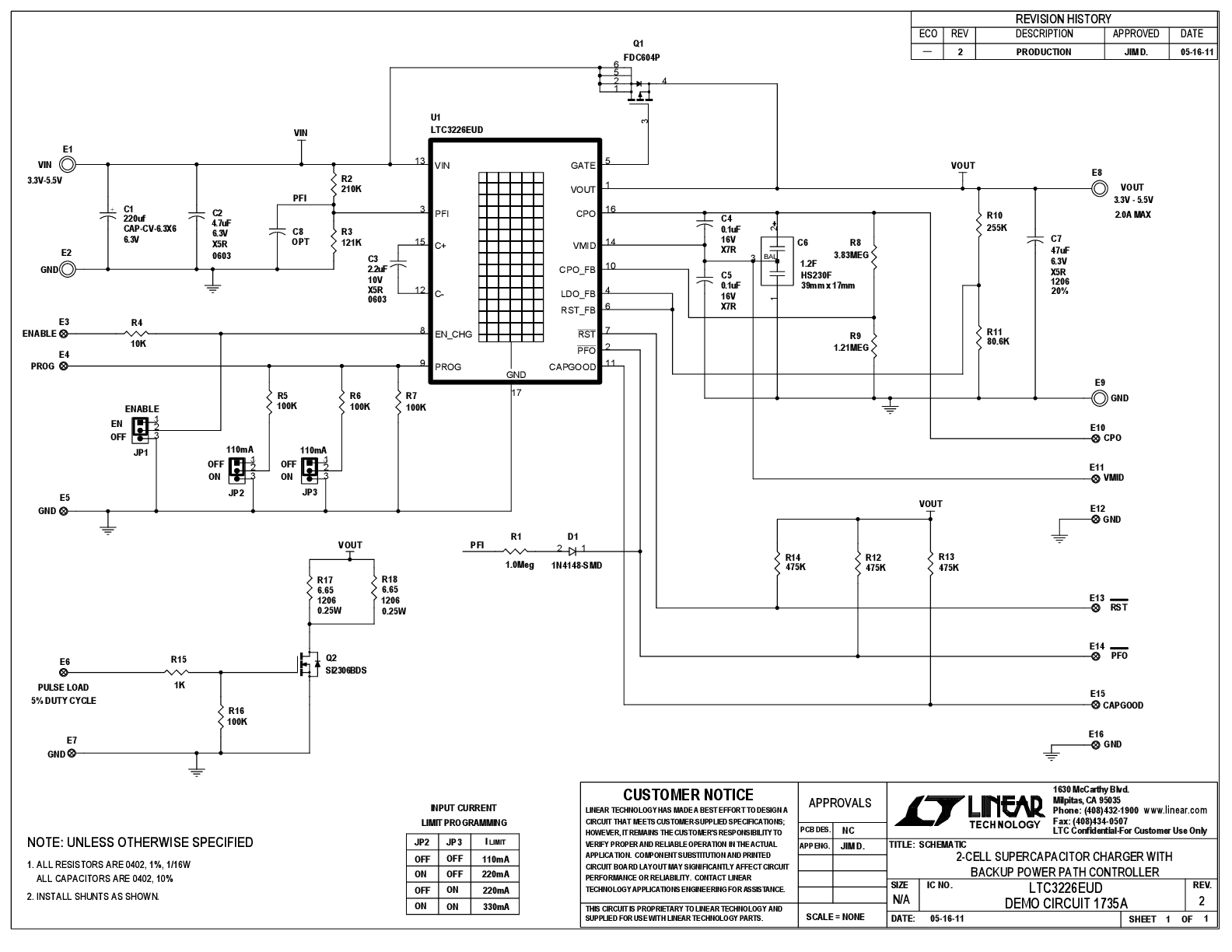

DC1735A - Demo Manual8/31/2011PDF133K
-
Single-IC Supercapacitor-Based Power Supply Backup Solution4/1/2015 LT Journal
