LTC3130

25V, 600mA Buck-Boost DC/DC Converter with 1.6µA Quiescent Current

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 16
1ku List Price Starting From $4.01
Features
  • Regulates VOUT Above, Below or Equal to VIN
  • Wide VIN Range: 2.4V to 25V, <1V to 25V (Using EXTVCC Input)
  • VOUT Range: 1V to 25V
  • Adjustable Output Voltage (LTC3130)
  • Four Selectable Fixed Output Voltages (LTC3130-1)
  • 1.2µA No-Load Input Current in Burst Mode® Operation (VIN = 12V, VOUT = 5V)
  • 600mA Output Current in Buck Mode
  • Pin-Selectable 850mA/450mA Current Limit (LTC3130)
  • Up to 95% Efficiency
  • Pin-Selectable Burst Mode Operation
  • 1.2MHz Ultralow Noise PWM Frequency
  • Accurate RUN Pin Threshold n Power Good Indicator
  • Programmable Maximum Power Point Control
  • IQ = 500nA in Shutdown
  • Thermally-Enhanced 20-Lead 3mm × 4mm QFN and 16-Lead MSOP Packages
Additional Details
show more Icon

The LTC3130/LTC3130-1 are high efficiency, low noise, 600mA buck-boost converters with wide VIN and VOUT ranges. For high efficiency operation at light loads, BurstMode operation can be selected, reducing the quiescent current to just 1.6µA. Converter start-up is achieved from sources as low as 7.5µW.

TheLTC3130/LTC3130-1 employ an ultralow noise, 1.2MHz PWM architecture that minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Built-in loop compensation and soft-start reduces external parts count and simplifies the design. Features include an accurate RUN comparator threshold to allow predictable regulator turn-on and a maximum power point control (MPPC) capability that ensures maximum power extraction from non-ideal sources such as photovoltaic panels. The LTC3130-1 includes an internal voltage divider to provide four selectable fixed output voltages.

Additional features include a power good output, an external VCC input and thermal shutdown.

The LTC3130 and LTC3130-1 are available in thermally-enhanced 20-lead 3mm × 4mm QFN and 16-lead MSOP packages.

Applications

  • Long-Life, Battery-Operated Instruments
  • Portable Military Radios
  • Low Power Sensors
  • Solar Panel Post-Regulator/Charger
Part Models 16
1ku List Price Starting From $4.01

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3130EMSE#PBF
  • HTML
  • HTML
LTC3130EMSE#TRPBF
  • HTML
  • HTML
LTC3130EMSE-1#PBF
  • HTML
  • HTML
LTC3130EMSE-1#TRPBF
  • HTML
  • HTML
LTC3130EUDC#PBF
  • HTML
  • HTML
LTC3130EUDC#TRPBF
  • HTML
  • HTML
LTC3130EUDC-1#PBF
  • HTML
  • HTML
LTC3130EUDC-1#TRPBF
  • HTML
  • HTML
LTC3130IMSE#PBF
  • HTML
  • HTML
LTC3130IMSE#TRPBF
  • HTML
  • HTML
LTC3130IMSE-1#PBF
  • HTML
  • HTML
LTC3130IMSE-1#TRPBF
  • HTML
  • HTML
LTC3130IUDC#PBF
  • HTML
  • HTML
LTC3130IUDC#TRPBF
  • HTML
  • HTML
LTC3130IUDC-1#PBF
  • HTML
  • HTML
LTC3130IUDC-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3130EMSE#PBF

PRODUCTION

LTC3130EMSE#TRPBF

PRODUCTION

LTC3130EMSE-1#PBF

PRODUCTION

LTC3130EMSE-1#TRPBF

PRODUCTION

LTC3130IMSE#PBF

PRODUCTION

LTC3130IMSE#TRPBF

PRODUCTION

LTC3130IMSE-1#PBF

PRODUCTION

LTC3130IMSE-1#TRPBF

PRODUCTION

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LTC3130EMSE#PBF

PRODUCTION

LTC3130EMSE#TRPBF

PRODUCTION

LTC3130EMSE-1#PBF

PRODUCTION

LTC3130EMSE-1#TRPBF

PRODUCTION

LTC3130EUDC#PBF

PRODUCTION

LTC3130EUDC#TRPBF

PRODUCTION

LTC3130EUDC-1#PBF

PRODUCTION

LTC3130EUDC-1#TRPBF

PRODUCTION

LTC3130IMSE#PBF

PRODUCTION

LTC3130IMSE#TRPBF

PRODUCTION

LTC3130IMSE-1#PBF

PRODUCTION

LTC3130IMSE-1#TRPBF

PRODUCTION

LTC3130IUDC#PBF

PRODUCTION

LTC3130IUDC#TRPBF

PRODUCTION

LTC3130IUDC-1#PBF

PRODUCTION

LTC3130IUDC-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3130EMSE#PBF

PRODUCTION

LTC3130EMSE#TRPBF

PRODUCTION

LTC3130EMSE-1#PBF

PRODUCTION

LTC3130EMSE-1#TRPBF

PRODUCTION

LTC3130IMSE#PBF

PRODUCTION

LTC3130IMSE#TRPBF

PRODUCTION

LTC3130IMSE-1#PBF

PRODUCTION

LTC3130IMSE-1#TRPBF

PRODUCTION

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LTC3130EMSE#PBF

PRODUCTION

LTC3130EMSE#TRPBF

PRODUCTION

LTC3130EMSE-1#PBF

PRODUCTION

LTC3130EMSE-1#TRPBF

PRODUCTION

LTC3130EUDC#PBF

PRODUCTION

LTC3130EUDC#TRPBF

PRODUCTION

LTC3130EUDC-1#PBF

PRODUCTION

LTC3130EUDC-1#TRPBF

PRODUCTION

LTC3130IMSE#PBF

PRODUCTION

LTC3130IMSE#TRPBF

PRODUCTION

LTC3130IMSE-1#PBF

PRODUCTION

LTC3130IMSE-1#TRPBF

PRODUCTION

LTC3130IUDC#PBF

PRODUCTION

LTC3130IUDC#TRPBF

PRODUCTION

LTC3130IUDC-1#PBF

PRODUCTION

LTC3130IUDC-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 5

reference details image

DC2397A

LTC3130EUD-1 Demo Board | Synchronous Buck-Boost, 2.4V ≤ VIN ≤ 25V, VOUT = 1.8V/3.3V/5V/12V @ 600mA

zoom

DC2397A

LTC3130EUD-1 Demo Board | Synchronous Buck-Boost, 2.4V ≤ VIN ≤ 25V, VOUT = 1.8V/3.3V/5V/12V @ 600mA

LTC3130EUD-1 Demo Board | Synchronous Buck-Boost, 2.4V ≤ VIN ≤ 25V, VOUT = 1.8V/3.3V/5V/12V @ 600mA

Product Detail

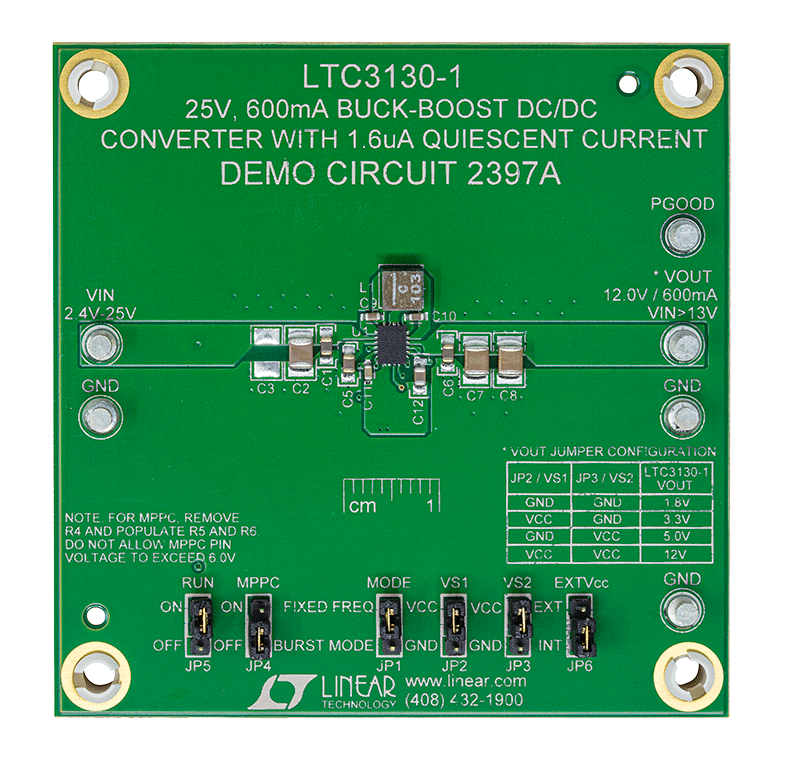

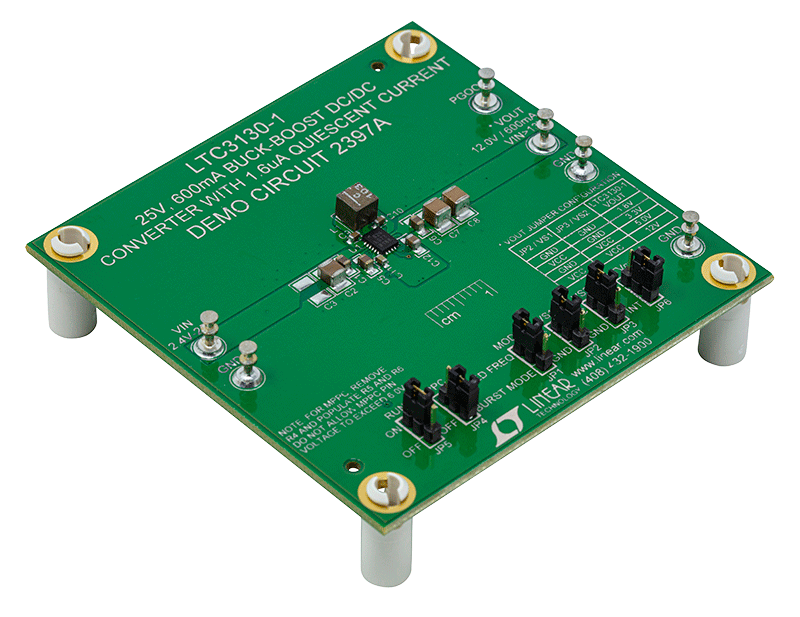

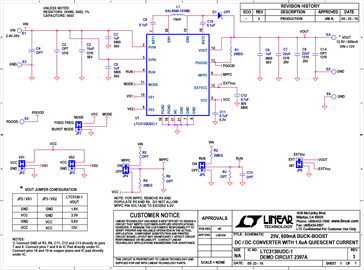

Demonstration circuit 2397A features the LTC3130-1, a wide input voltage, wide output voltage operating range, high efficiency, low noise monolithic DC/DC buck-boost converter that provides 600mA of output current when in buck mode.


The LTC3130-1 has 4-pin selectable output voltages (1.8V, 3.3V, 5V and 12V) and operates from input voltages of 2.4V to 25V. The LTC3130-1 incorporates a proprietary low noise switching algorithm which optimizes efficiency with input voltages above, below, or equal to the output voltage and ensures seamless transitions between operating modes.

reference details image

DC2355A

LTC3130EUD Demo Board | Synchronous Buck-Boost, 2.4V ≤ VIN ≤ 25V, VOUT = 5V @ 600mA

zoom

DC2355A

LTC3130EUD Demo Board | Synchronous Buck-Boost, 2.4V ≤ VIN ≤ 25V, VOUT = 5V @ 600mA

LTC3130EUD Demo Board | Synchronous Buck-Boost, 2.4V ≤ VIN ≤ 25V, VOUT = 5V @ 600mA

Product Detail

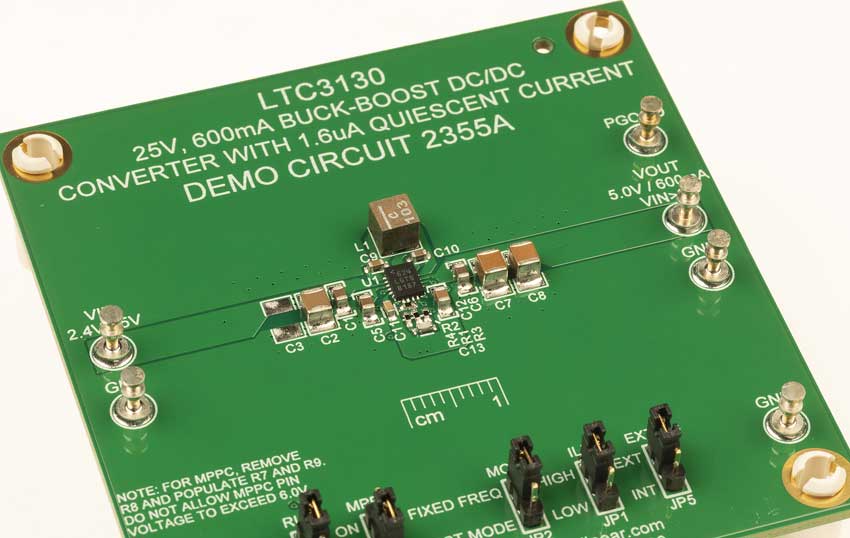

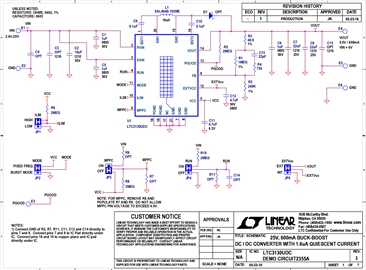

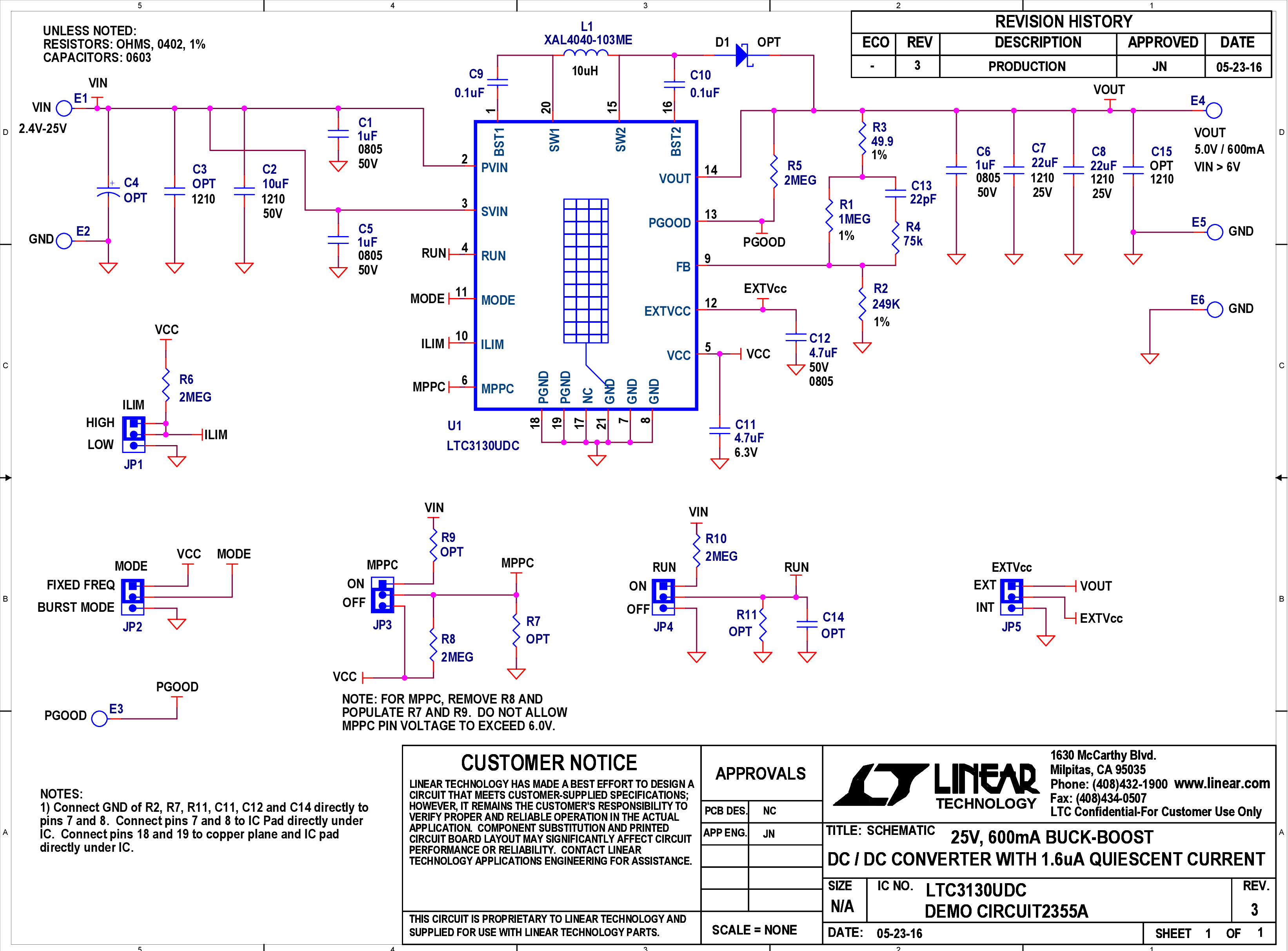

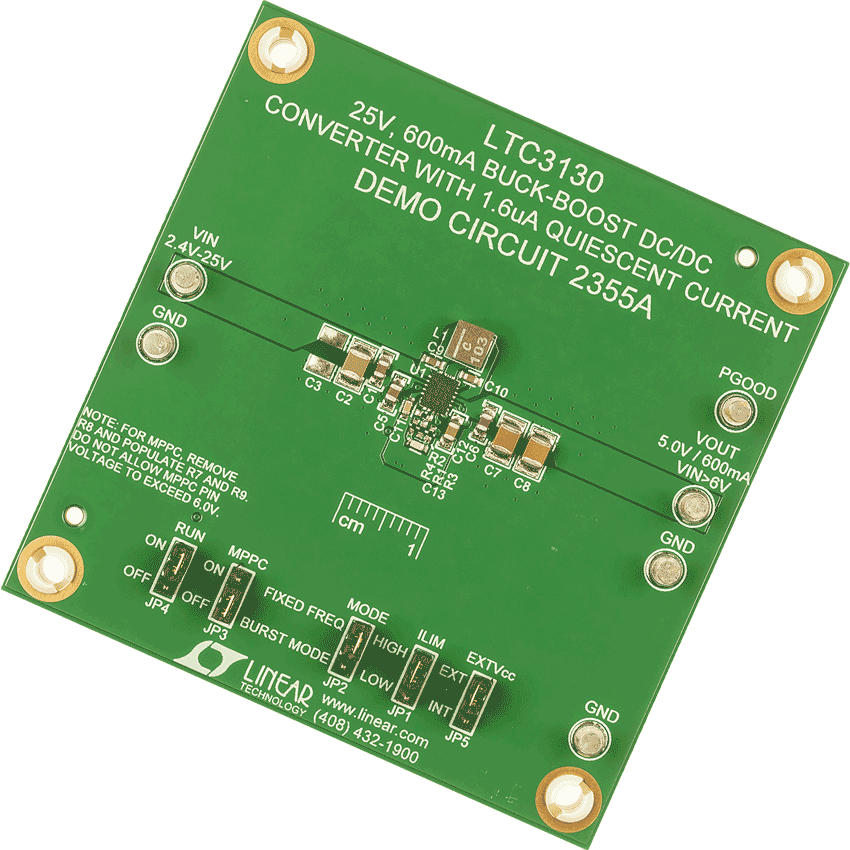

Demonstration Circuit 2355A features the LTC3130, a wide input voltage, wide output voltage operating range, high efficiency, low noise monolithic DC/DC buck-boost converter that can provide up to 600mA output current in buck mode.


The LTC3130 operates from input voltages of 2.4V to 25V. The demo board has been designed with the adjustable output voltage set to 5V. The LTC3130 incorporates a proprietary low noise switching algorithm which optimizes efficiency with input voltages above, below or equal to the output voltage and ensures seamless transitions between operating modes.

reference details image

MAX32670-SX-ARDZ

Long Range Wireless Radio Development Platform Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and SX1261 RF Transceiver

zoom

MAX32670-SX-ARDZ

Long Range Wireless Radio Development Platform Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and SX1261 RF Transceiver

Long Range Wireless Radio Development Platform Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and SX1261 RF Transceiver

Features and Benefits

  • MCU:
    • Arm Cortex-M4 Core with FPU up to 100 MHz
    • 384 kB flash memory with error correction
    • 160 kB SRAM (128 kB with ECC enabled), optionally preserved in lowest power modes
    • Compatible RTC resolution for protocol timeout management
  • Security:
    • Available secure boot
    • Support cryptographic algorithms, including AES-128/192/256
  • Power
    • Ultralow power real time clock with integrated power switch
      • With 300 nA power consumption during sleep mode
  • Long Range Radio
    • Support FSK, GFSK, MSK, GMSK, and Long Range FHSS modulations
    • Power Output: +15 dBm transmit peak power
    • Programmable bit rate up to 62.5 kbps and 300 kbps
    • Support sub-GHz ISM bands from 800 MHz to 960 MHz
    • High sensitivity: down to -148 dBm

Product Detail

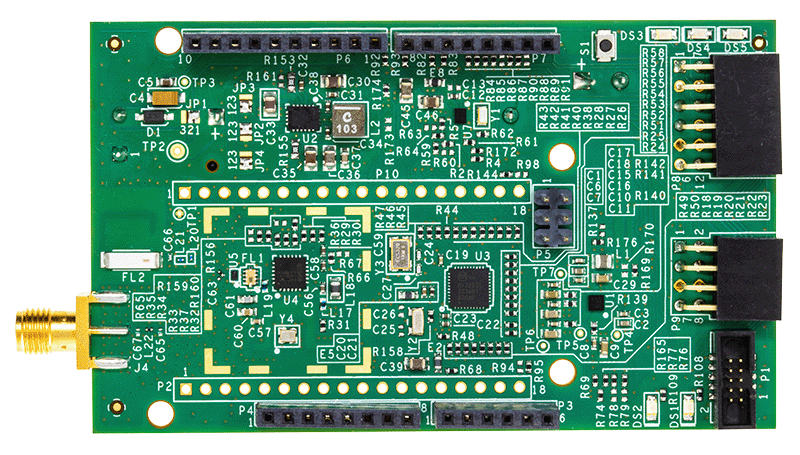

The MAX32670-SX-ARDZ base board features the MAX32670 high-reliability, ultralow power microcontroller based on Arm Cortex®-M4 processor, and the SX1261 long range RF transceiver. The integrated RF transceiver supports a frequency range from 800 MHz up to 960 MHz, making it suitable for high-performance flexible platforms that wirelessly transmit encrypted data at long range; enabling a wide range of IoT applications using ADI sensing solutions.

Due to its low power consumption, this module is ideal for devices running on small-sized batteries. The on-board MAX32670 Arm Cortex®-M4 32-bit microcontroller provides the platform with complete capability to run entire RF stacks and user applications.

APPLICATIONS

  • Smart meters
  • Supply chain and logistics
  • Building automation
  • Agricultural sensors
  • Smart cities
  • Retail store sensors
  • Asset tracking
  • Streetlights
  • Parking sensors
  • Environmental sensors
  • Healthcare
  • Safety and security sensors
  • Remote control applications
reference details image

AD-MAX32LRWISE-SL

Long Range Wireless Radio Development Kit Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and LR1110 RF Transceiver

zoom

AD-MAX32LRWISE-SL

Long Range Wireless Radio Development Kit Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and LR1110 RF Transceiver

Long Range Wireless Radio Development Kit Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and LR1110 RF Transceiver

Features and Benefits

  • Provides the user with a platform to evaluate the features and performance of the evaluation kit​
  • Allows the user to prototype and test their IoT applications before moving on to full-scale development​
  • Provides tools for analyzing the power consumption of the device, helping the user to optimize their applications for energy efficiency​
  • Includes development tools, libraries, and documentation to assist user in writing and debugging their code​
  • Helps the user analyze and study the different modulation schemes, data rates, and other parameters relevant to IoT communication​
  • Comes with user-friendly interfaces, documentation, and software tools that simplify the integration process which can save developers time and effort when incorporating the LR1110 into their IoT devices​

Product Detail

The AD-MAX32LRWISE-SL development kit is a tool intended for designing solutions based on low-power, long range proprietary radio communication technique. This platform features the LR1110, an RF transceiver based on spread spectrum modulation techniques derived from chirp spread spectrum (CSS) technology, and supports a frequency range from 800 MHz to 960 MHz. This solution is also based on the MAX32670 ultralow power microcontroller based on ARM Cortex-M4 processor.​

The platform comes in an Arduino Uno form factor, with two PMOD connectors, and an ESP32 Dev Kit connector for easy-to-connect sensors and signal conditioning add-on modules. Complete with working software and hardware, as well as software examples, this kit makes it easier for customers to prototype and create connected systems and solutions for IoT applications.​

The base platform is accompanied with various Analog Devices add-on hardware but is also compatible with 3rd party hardware. A free programming and debugging tool called Maxim SDK is also provided by Analog Devices.​

The AD-MAX32LRWISE-SL development kit is complete with 1 base board, 1 sensor node, gateway setup essentials, and other accessories. However, customers also have the option to avail of the components individually as intended for their application development.​

  • Base Board:
    • MAX32670-LR-ARDZ Base board (can be purchased separately)​
  • Component Sensor Node:
    • EV-CATTLETAG-ARDZ Smart Livestock Tracking and Health Monitoring Sensor (can be purchased separately)​
  • Gateway Essentials and Other Accessories (can be purchased separately)​
    • RAK5146 PiHAT Kit
    • Raspberry Pi 4 Model B
    • MAX32625PICO rapid development Board
    • RPi4 Power Supply
    • MicroSD Card
    • LAN Cable

    APPLICATIONS

    • Battery-Powered Medical Devices
    • Industrial Sensors
    • Optical Communication Modules
    • Secure Radio Modem Controller
    • Smart Sensor Controller
    • System Housekeeping Controller
reference details image

MAX32670-LR-ARDZ

Long Range Wireless Radio Development Platform for Asset Management Applications Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and LR1110 RF Transceiver

zoom

MAX32670-LR-ARDZ

Long Range Wireless Radio Development Platform for Asset Management Applications Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and LR1110 RF Transceiver

Long Range Wireless Radio Development Platform for Asset Management Applications Based on MAX32670 Ultralow Power Arm Cortex-M4 Microcontroller and LR1110 RF Transceiver

Features and Benefits

  • MCU:
    • Arm Cortex-M4 Core with FPU up to 100 MHz
    • 384 kB flash memory with error correction
    • 160 kB SRAM (128 kB with ECC enabled), optionally preserved in lowest power modes
    • Compatible RTC resolution for protocol timeout management
  • Security:
    • Available Secure Boot
    • Support cryptographic algorithms, including AES-128/192/256
  • Power
    • Ultralow power real time clock with integrated power switch
      • With 300 nA power consumption during sleep mode
  • Multi-Purpose Radio Front-End Targeting Geolocation Purposes
    • Global Navigation Satellite System (GNSS) (GPS/BeiDou) low-power scanning
    • 802.11b/g/n Wi-Fi ultralow power passive scanning
  • Long Range Radio
    • Support FSK, GFSK, MSK, GMSK, and Long Range FHSS modulations
    • Power Output: +15 dBm transmit peak power
    • Programmable bit rate up to 62.5 kbps and 300 kbps
    • Support sub-GHz ISM bands from 800 MHz to 960 MHz
      • High sensitivity: down to -148 dBm

Product Detail

The MAX32670-LR-ARDZ base board features the MAX32670 high-reliability, ultralow power microcontroller based on Arm Cortex-M4 processor, and the LR1110 long range RF transceiver module. The integrated RF transceiver supports a frequency range from 800 MHz up to 960 MHz, making it suitable for high-performance flexible platforms that wirelessly transmit encrypted data at long-range; enabling a wide range of IoT applications using ADI sensing solutions.

This solution also utilizes Semtech’s Long Range Cloud™ Geolocation capabilities to significantly reduce power consumption by determining asset location in a cloud-based solver. Due to its low power consumption, this module is ideal for devices running on small-sized batteries The on-board MAX32670 Arm Cortex®-M4 32-bit microcontroller provides the platform with complete capability to run entire RF stacks and user applications.

APPLICATIONS

  • Asset location
  • Asset recovery
  • Asset traceability
  • Inventory management
  • Asset loss and theft prevention
Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
